Puller 3-arm pattern XS legs
Ready for shipment in 6 workdays
- Item number:
- WS03602018608
- Manufacturer number:
- 1.19/0XS
- Weight:
- 0.325 kg
Puller 3-arm pattern XS legs
Very slim forged legs, Particularly suitable for space conditions that are difficult to access, e.g. in the electric motor area
Features:
- Country of origin: Brazil
- Customs tariff number: 82055980
- Reach: compliant
- Contents (Qty of pieces): 1
- Net weight: 0,3 kg
- 1000 V insulated: No
- VDE certified: No
- 3D data available: No

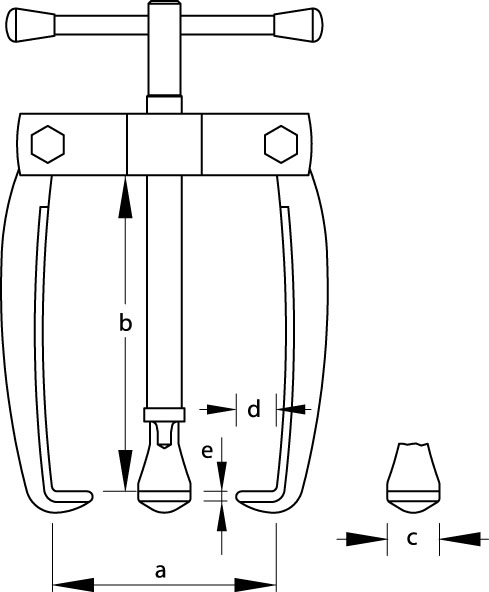

- Usable clamping reach: 70 mm
- Spindle thread size: M 10x1,5 x 100
- Width of hooked foot: 8 mm
- Usable depth of hooked foot: 3 mm
- Thickness of hooked foot at tip: 2,0 mm
- Tractive force (max.): 0.8 t
- reversible arms available: No
- Clamping bracket available: No
- Number of arms: 3
- Hook brake available: No
- Hook can be moved parallel: No
- Quick release lever available: No
- Spindle anti-slip device: No
- Hydraulic spindle available: No
- Screws included: No
- Can be retrofitted with hydraulic spindle: No
- automatic pressing: No
- reversible hooks: No
- Clamping width (max.) external pulling: 50 mm
