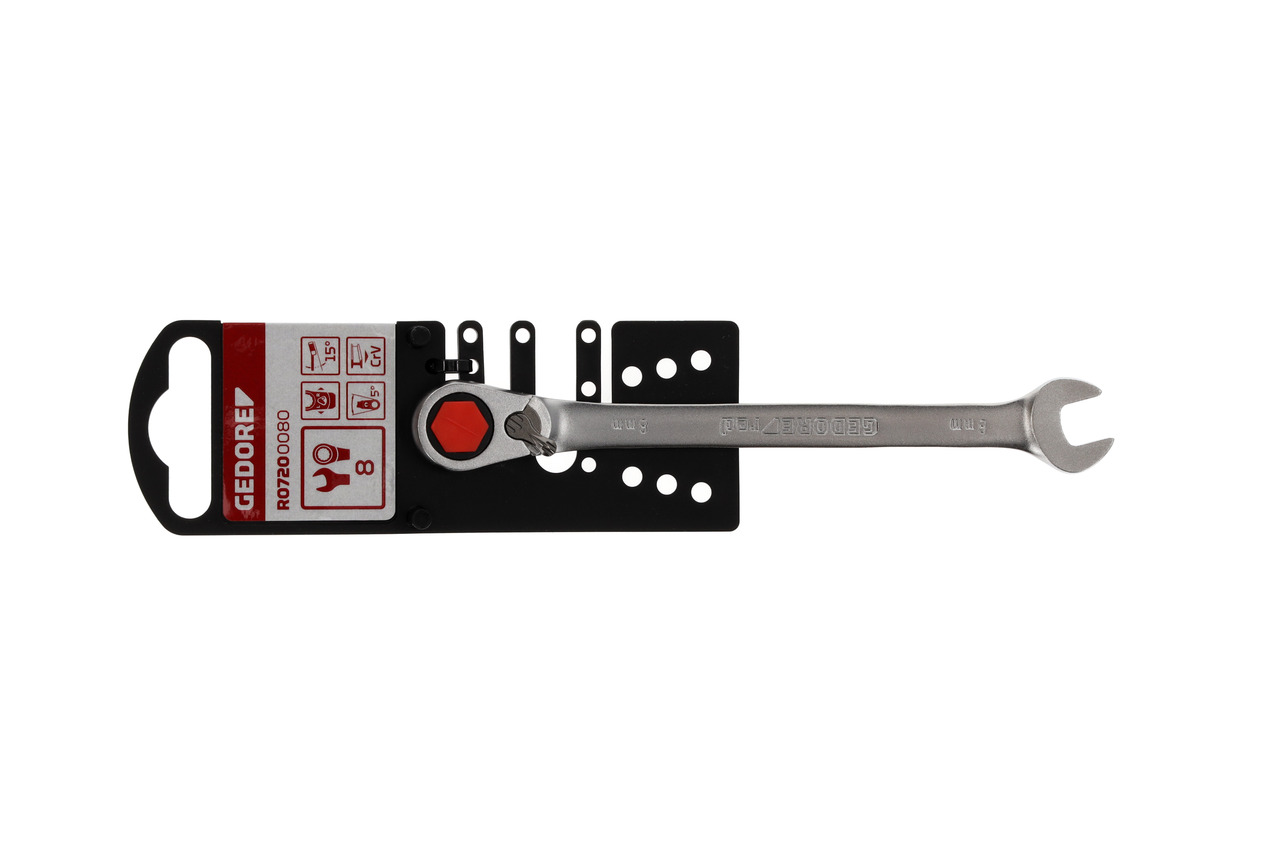

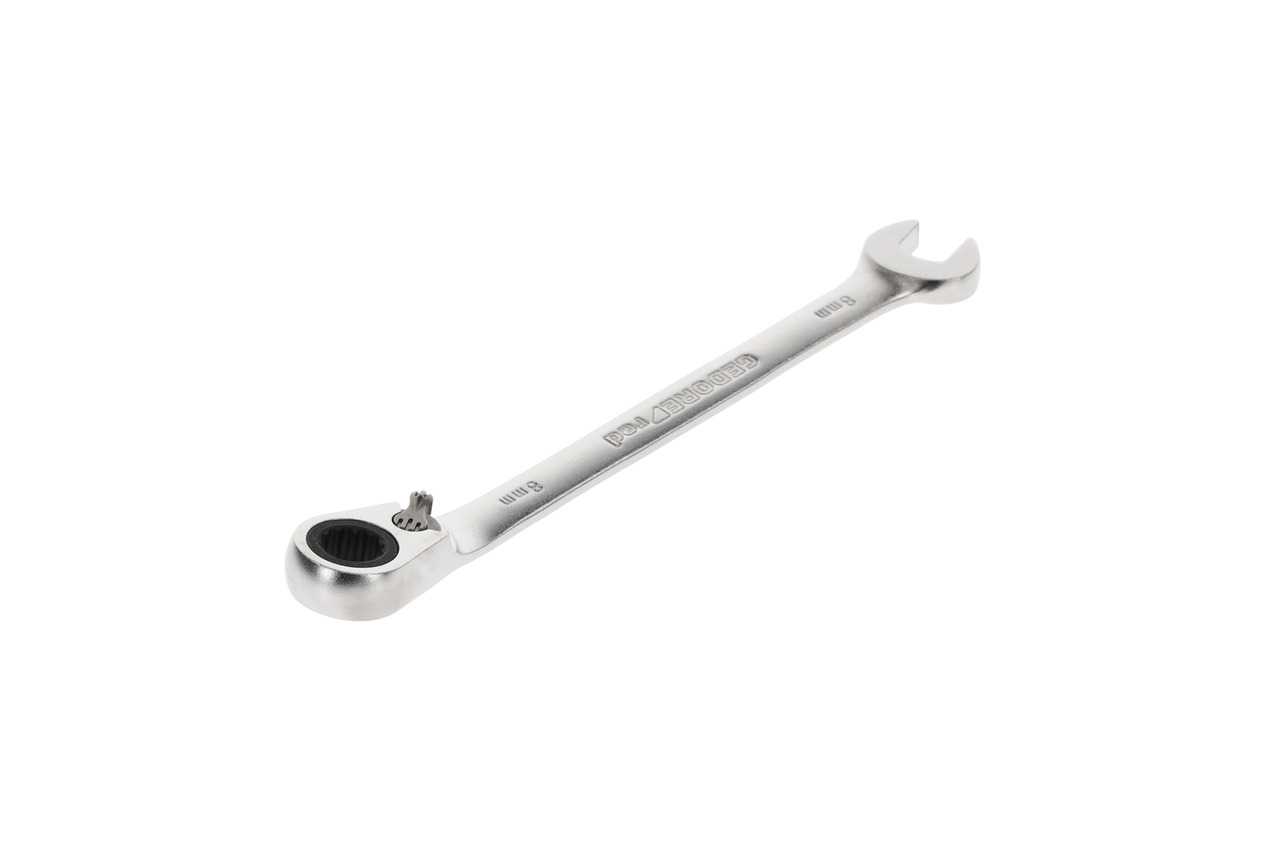

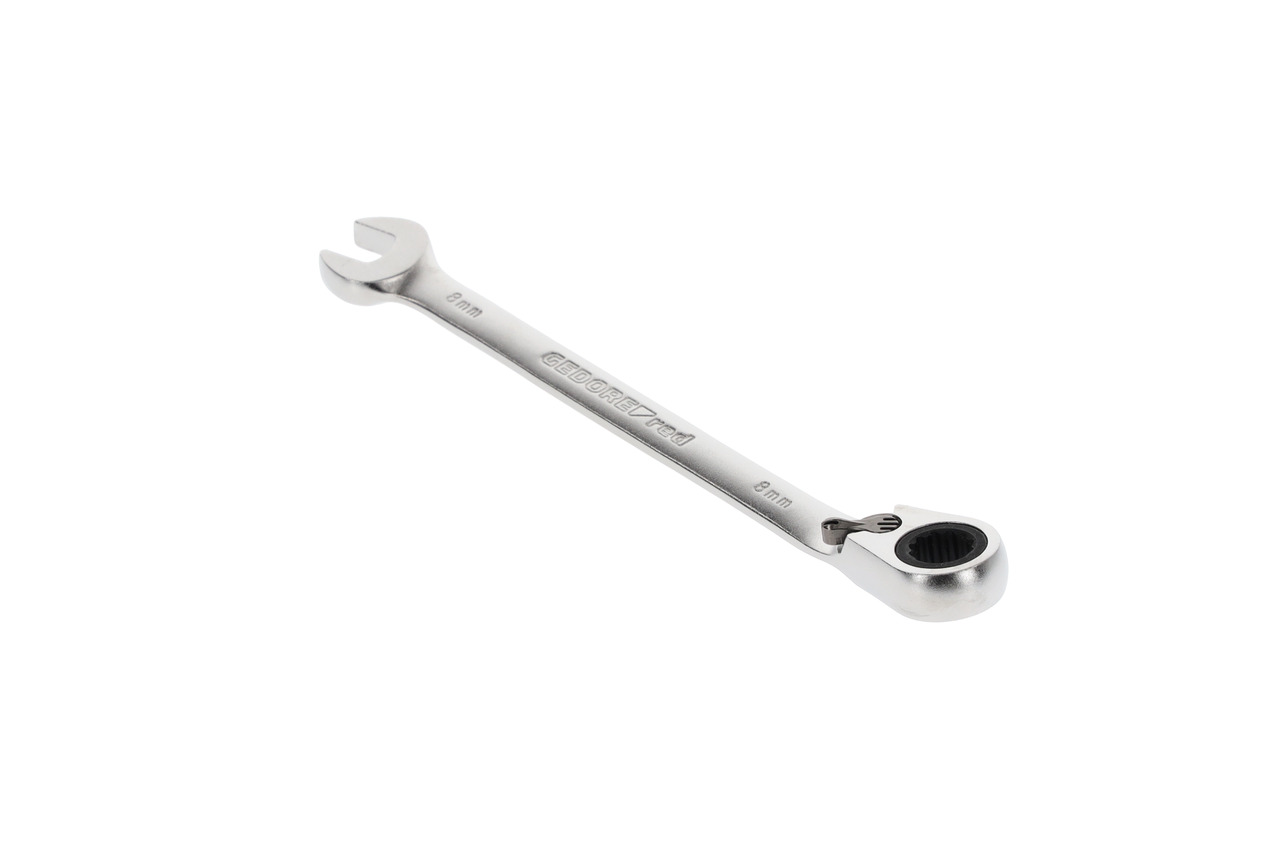

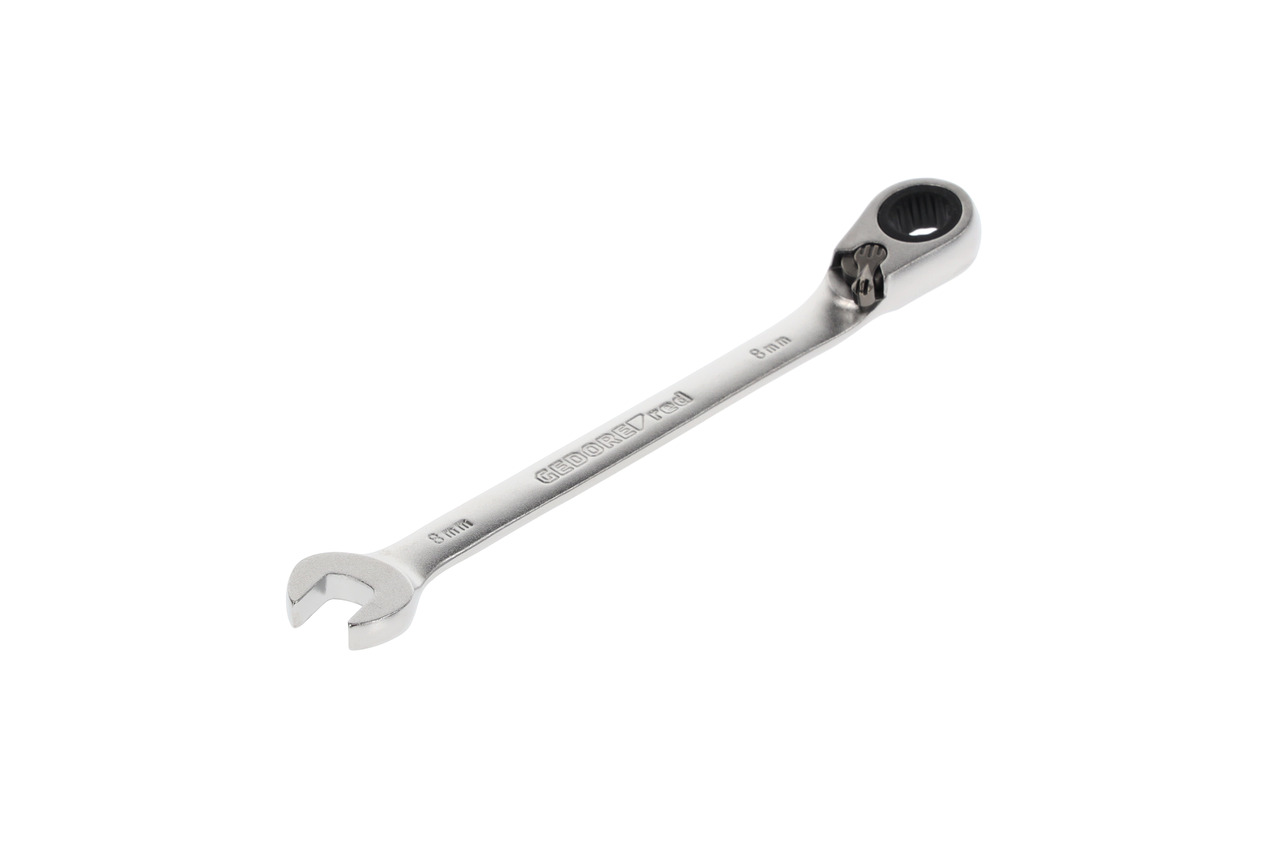

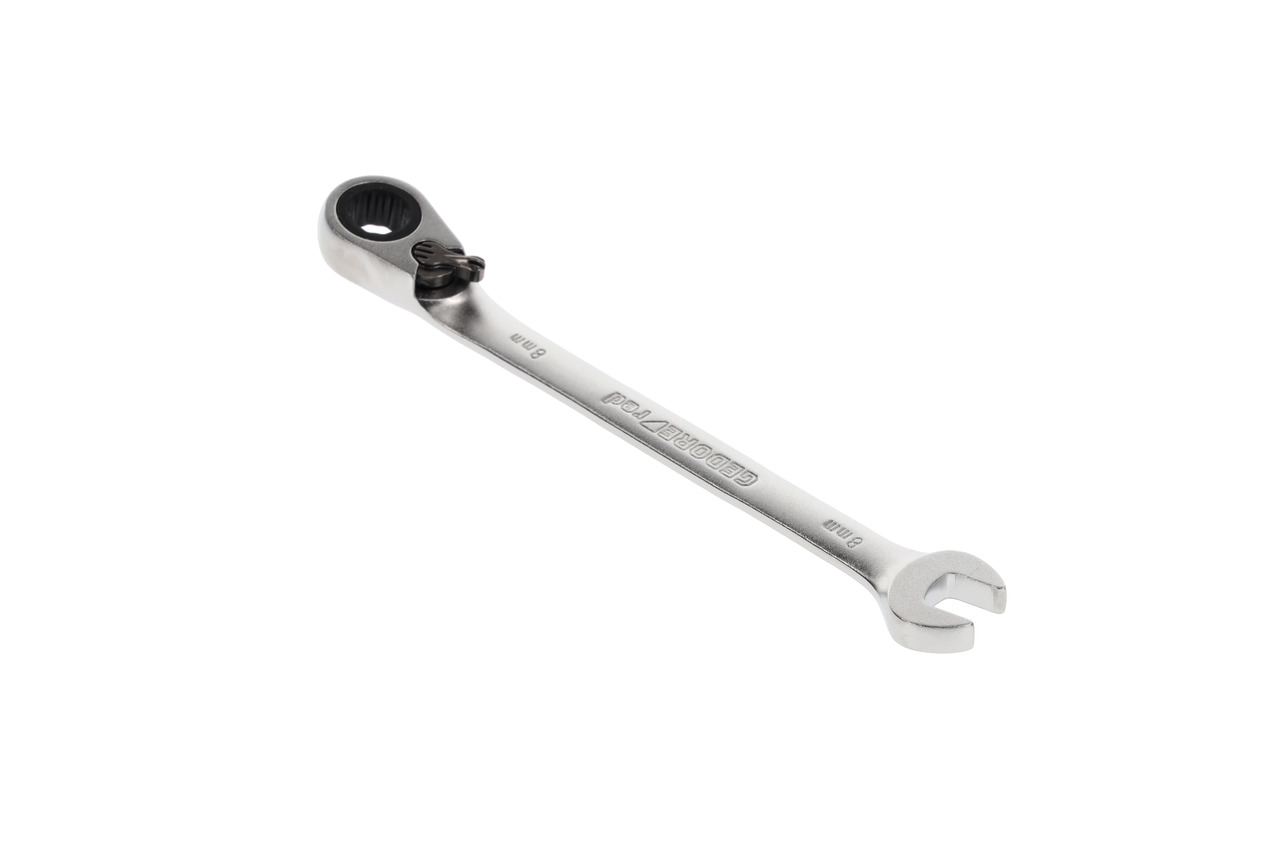

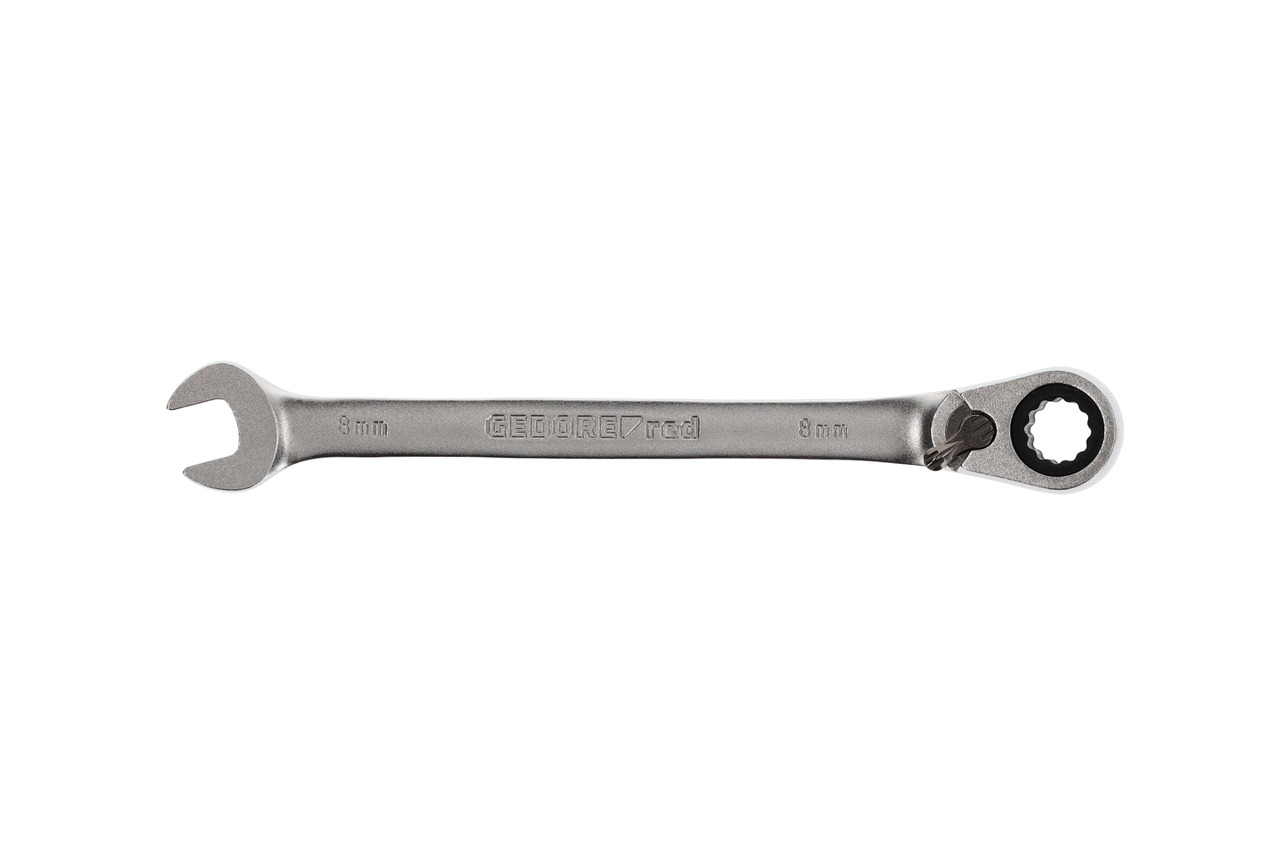

Combin.ratchet span.revers.size8mm 135mm
Ready for shipment in 6 workdays
- Item number:
- WS03603300851
- Manufacturer number:
- R07200080
- Weight:
- 0.042 kg
Combin.ratchet span.revers.size8mm 135mm
In accordance with DIN 3113, Form A, ISO 3318, Ring offset to 15°, reversible for right and left hand operation, 72 teeth Ratchet mechanism , Jaw set at 15°, Matt satin chrome-plated finish, Chrome-vanadium steel
Features:
- Country of origin: Taiwan
- Customs tariff number: 82041100
- Reach: compliant
- Contents (Qty of pieces): 1
- Total width: 19 mm
- Total height: 13 mm
- Net weight: 0,042 kg
- 1000 V insulated: No
- VDE certified: No
- Total length: 136 mm
- Material: Chrome-vanadium steel
- Width of head 1: 18,5 mm
- Width across flats 1: 8 mm
- Head height 1: 5,1 mm
- Standard: similar to DIN 3113 - Form A ISO 3318
- Return angle: 5 °
- Number of teeth: 72
- Width of head 2: 17,7 mm
- Head height 2: 7,7 mm
- Jaw set: 15 °
