Puller hydraulic 3-arm pattern 280x310 mm
Ready for shipment in 6 workdays
- Item number:
- WS03601392980
- Manufacturer number:
- 1.15/4-HSP1
- Weight:
- 8.1 kg
Puller hydraulic 3-arm pattern 280x310 mm
Tried and tested, particularly strong design for removing discs, wheels, ball bearings etc., With technical and economical benefits due to the variable clamping reach and automatic grip of the legs, Particularly suitable for pulling off V-belt pulleys and flywheels which are mounted on longer shafts, With the hydraulic spindle, a controlled and safe pulling action is possible at all times, Also available with standard spindle - Model 1.15
Features:
- Country of origin: Germany
- Customs tariff number: 82055980
- Reach: compliant
- Contents (Qty of pieces): 1
- Net weight: 8,1 kg
- 1000 V insulated: No
- VDE certified: No
- 3D data available: No

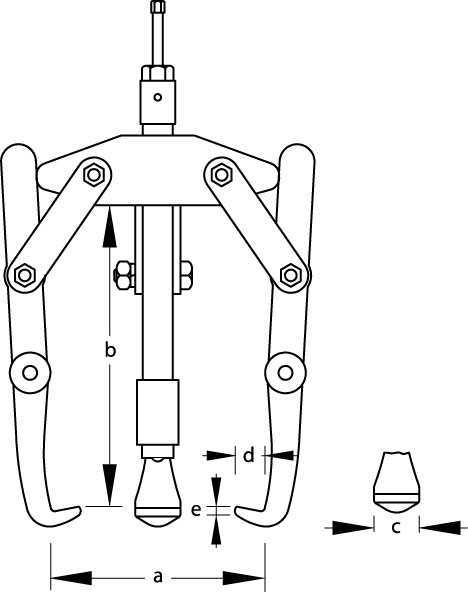

- Usable clamping reach: 310 mm
- Width of hooked foot: 32 mm
- Usable depth of hooked foot: 20 mm
- Thickness of hooked foot at tip: 3,5 mm
- Width across flats [mm]: 32 mm
- Tractive force (max.): 10 t
- reversible arms available: No
- Clamping bracket available: No
- Number of arms: 3
- Hook brake available: No
- Hook can be moved parallel: No
- Quick release lever available: No
- Spindle anti-slip device: No
- Hydraulic spindle available: Yes
- Screws included: No
- Can be retrofitted with hydraulic spindle: No
- automatic pressing: No
- reversible hooks: No
- Clamping width (max.) external pulling: 280 mm
- Hydraulic spindle: 1.06/HSP1
