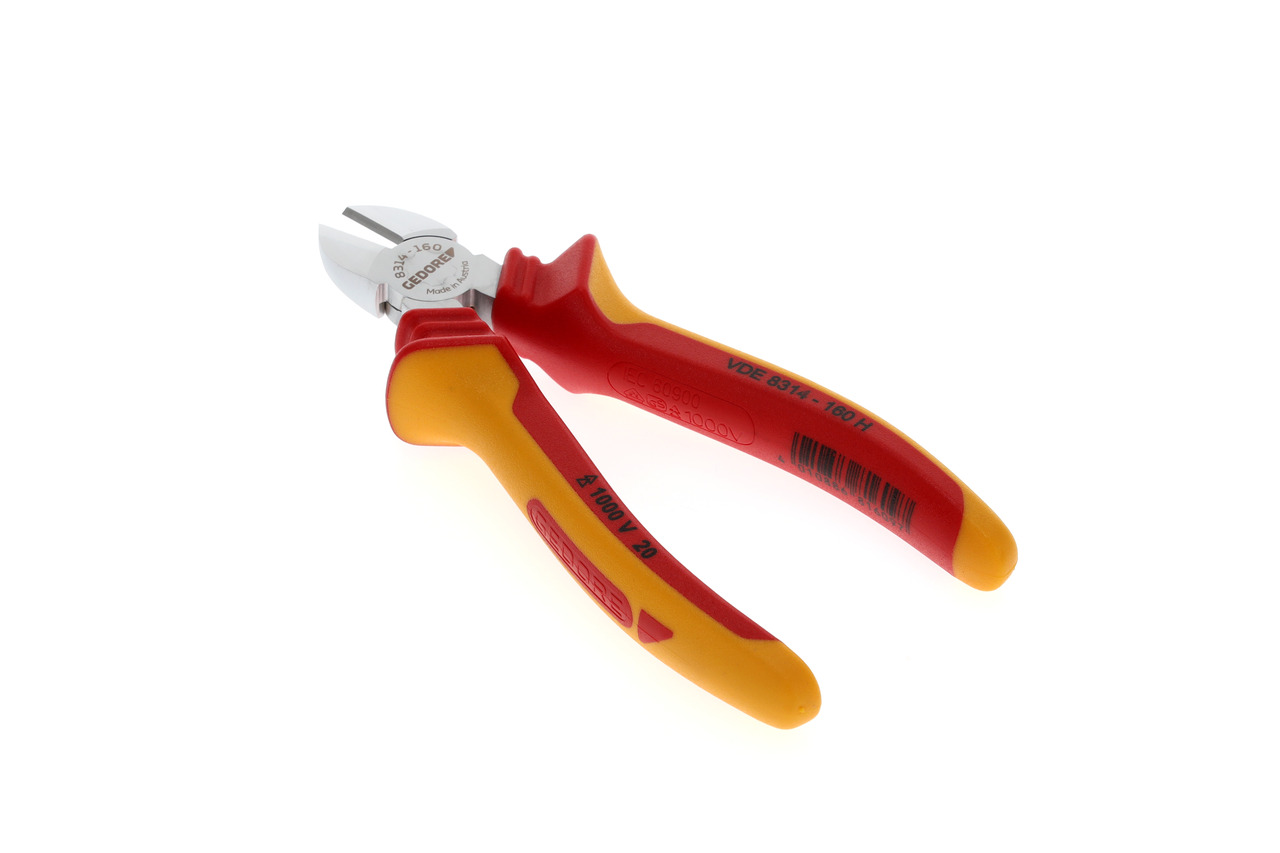

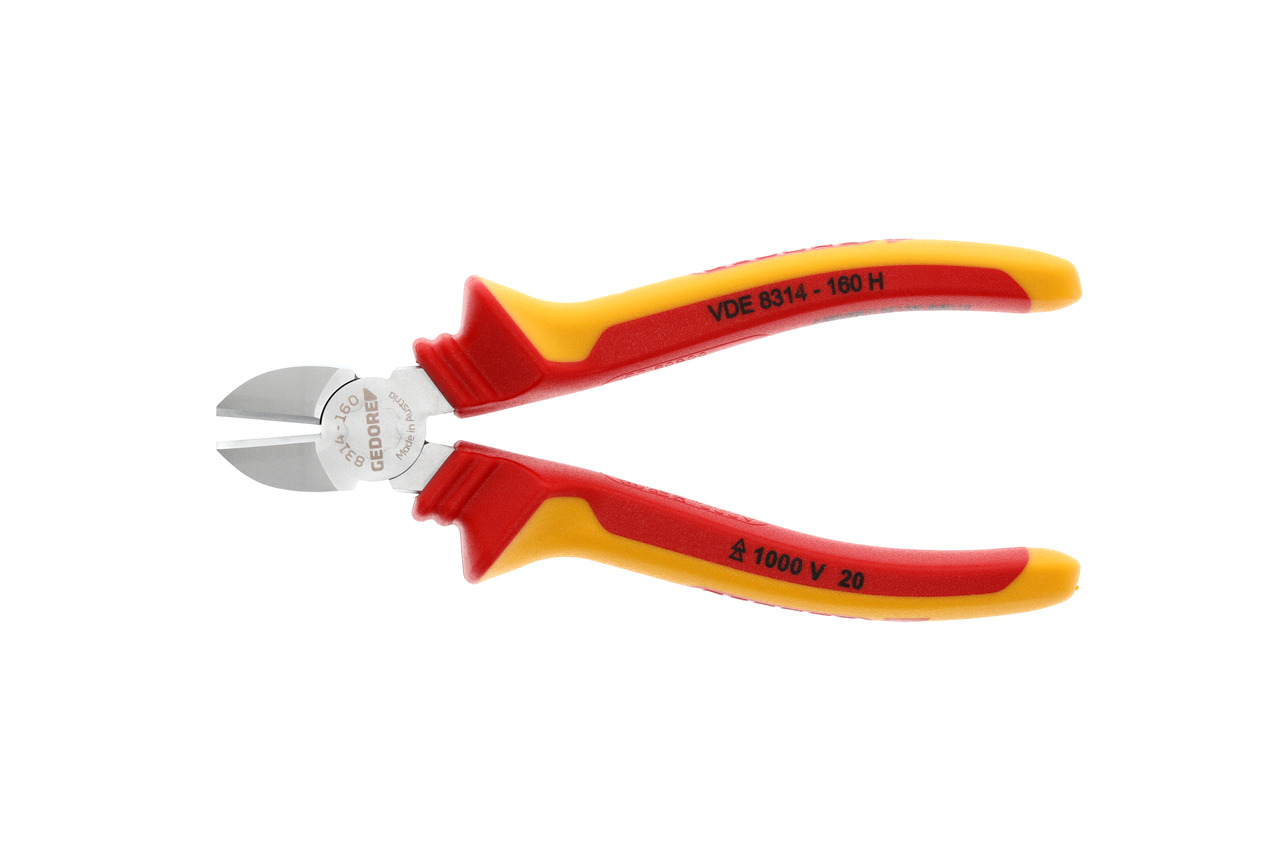

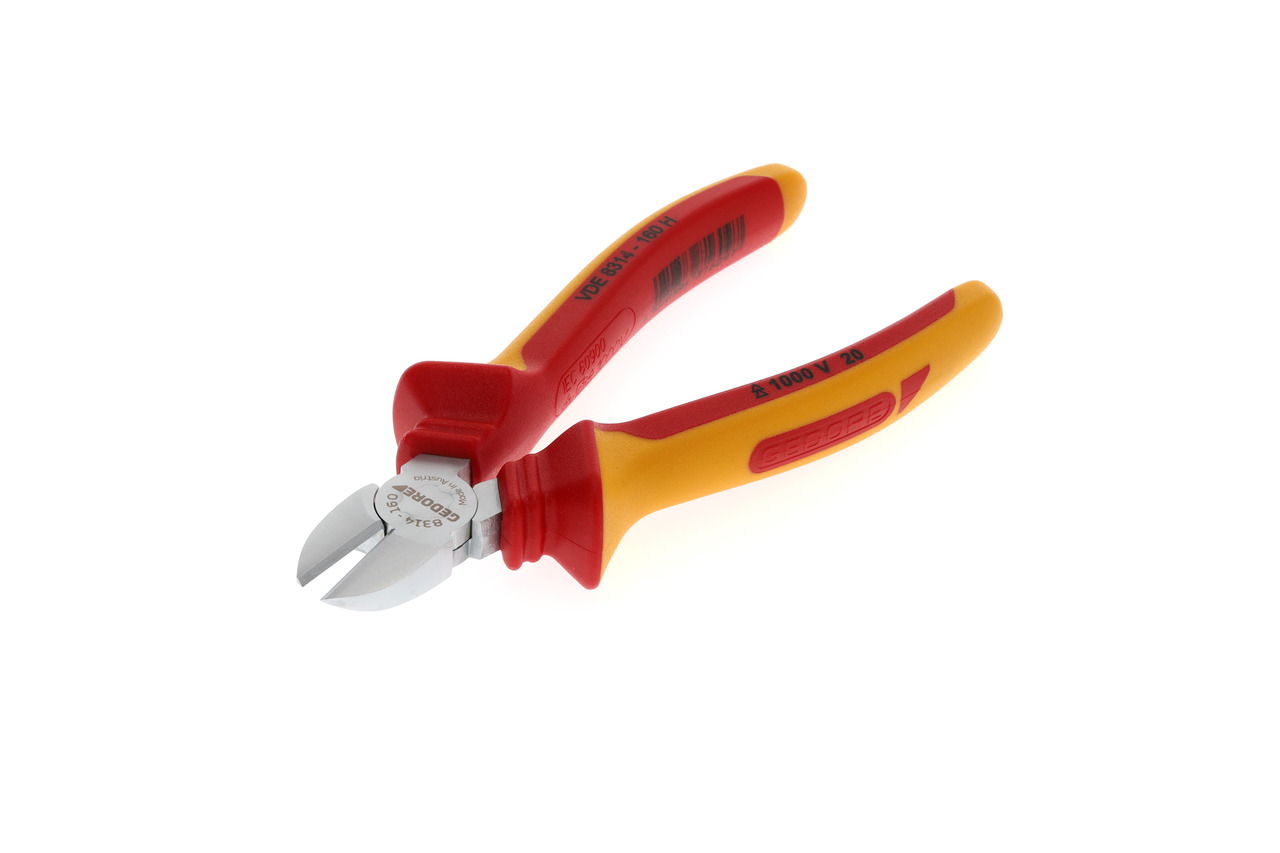

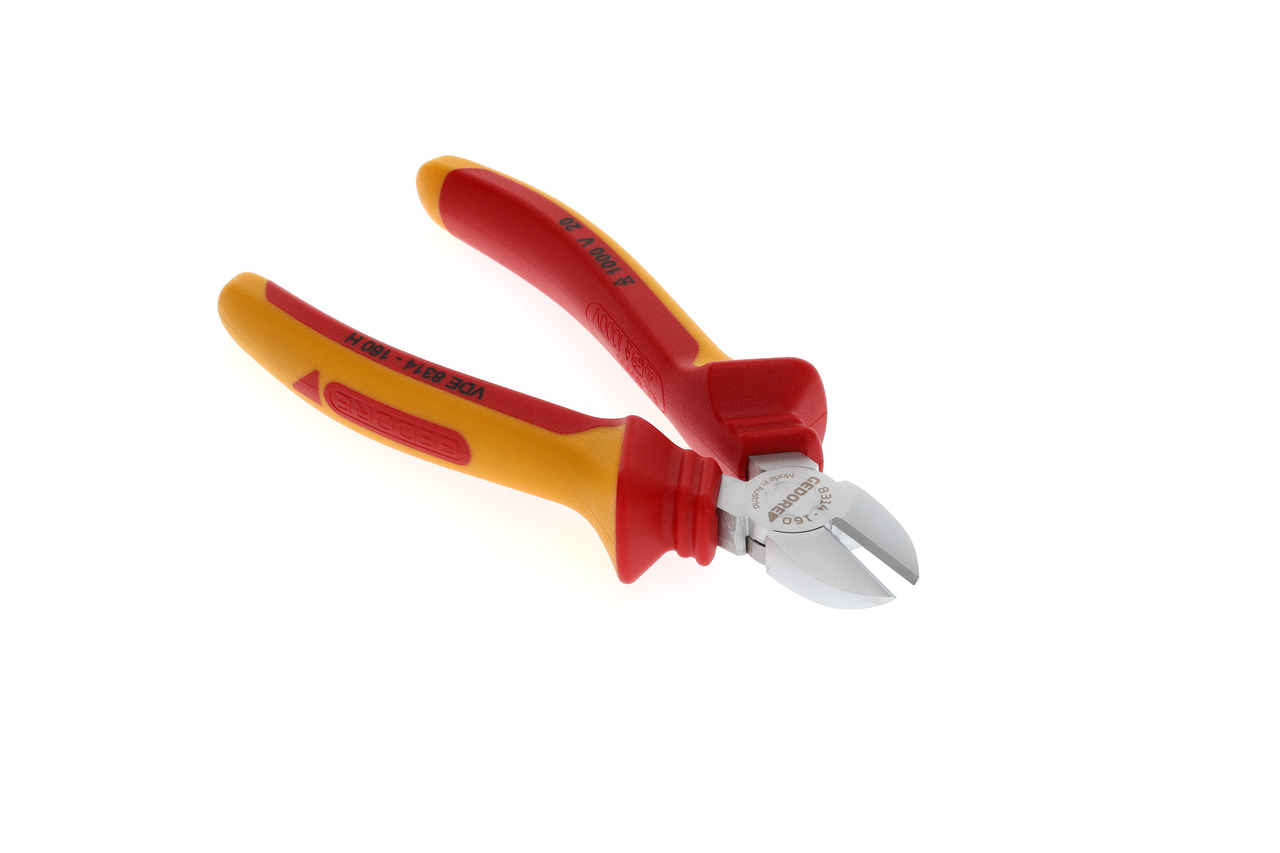

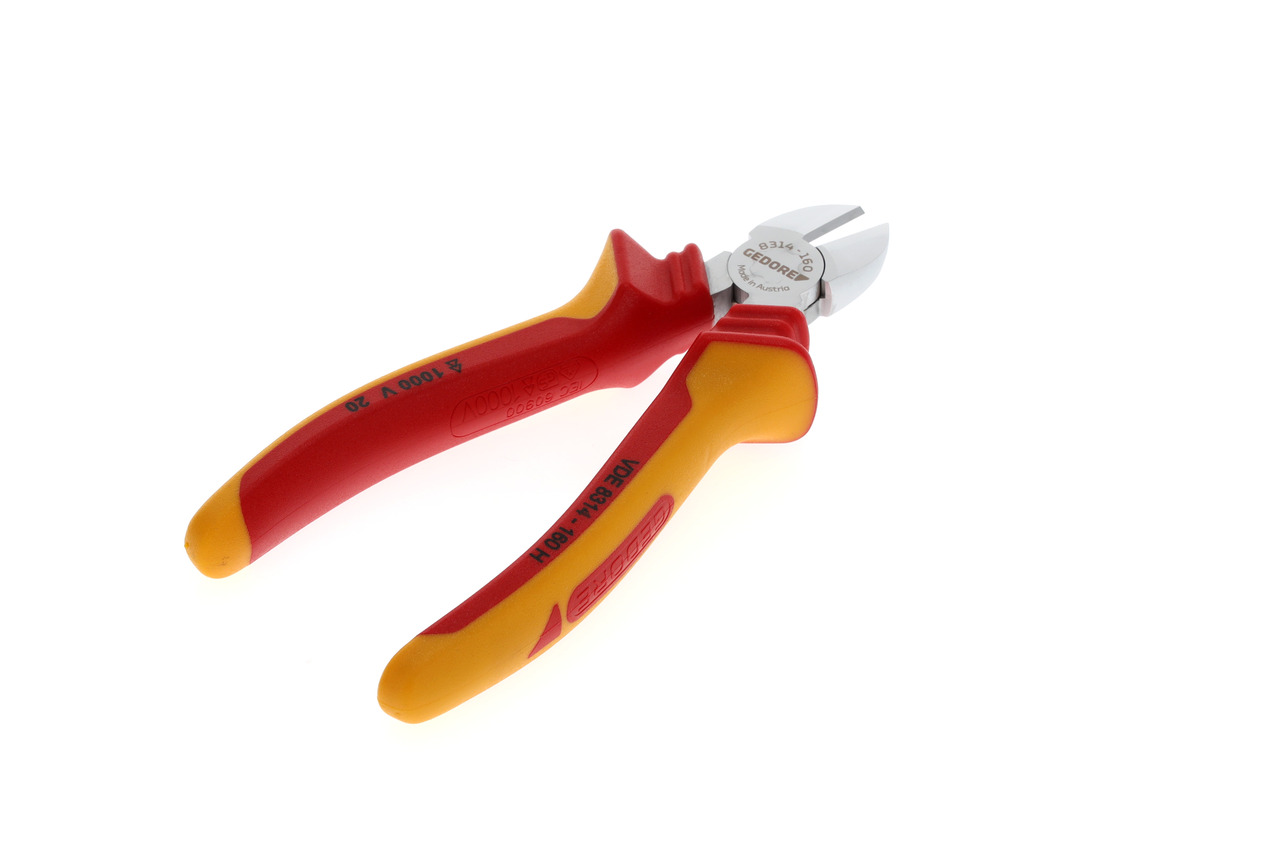

VDE Side cutter with VDE insulating sleeves
Ready for shipment in 6 workdays
- Item number:
- WS03601552163
- Manufacturer number:
- VDE 8314-160 H
- Weight:
- 0.231 kg
VDE Side cutter with VDE insulating sleeves

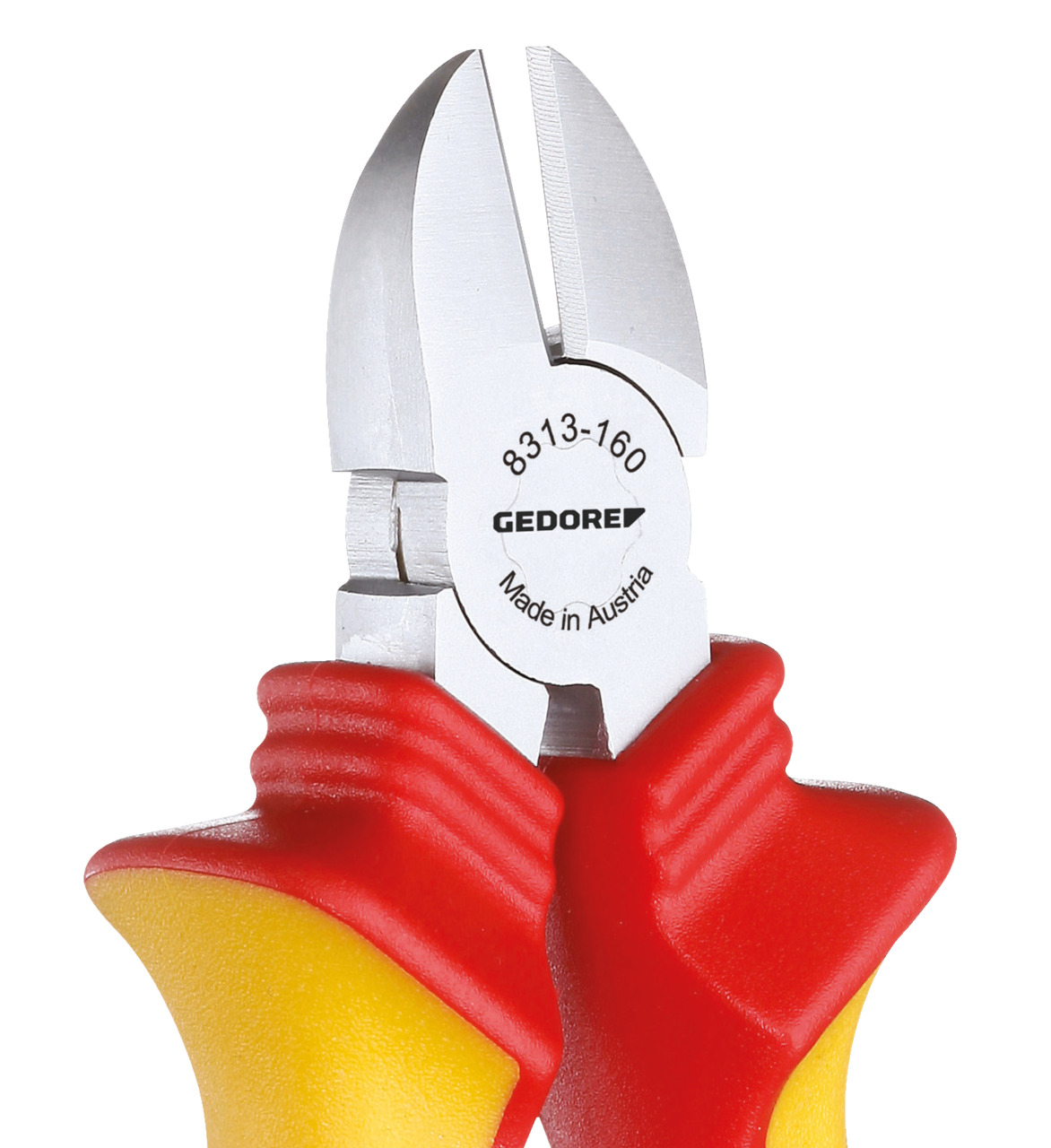

With slender head, ideal for confined spaces, Induction-hardened precision cutting edges, hardness 63 - 65 HRC, GEDORE special hardened and tempered steel, drop-forged, oil-hardened and annealed, Handles with VDE insulating sleeves up to 1000 V, acc. to EN 60900/IEC 60900
Features:
- Country of origin: Austria
- Customs tariff number: 82032000
- Reach: compliant
- Contents (Qty of pieces): 1
- Total width: 56 mm
- Total height: 29 mm
- Net weight: 0,231 kg
- 1000 V insulated: Yes
- VDE certified: Yes
- Total length: 160 mm
- Material: Heat-treated steel
- Width of head 1: 22,0 mm
- Surface: chrome-plated
- Head height 1: 19 mm
- Standard: DIN ISO 5749 EN 60900/IEC60900
- Handle design: 2-component grips VDE insulated up to 1000 V
- Cutting edge length: 19 mm
- Cutting values: Hard wire: 2 mm / 12 AWG Medium hard wire: 2.8 mm / 9 AWG Soft wire: 4 mm / 6 AWG
- Hardness of cutting edge: 63 - 65 HRC
- Design non-sparking: No
- Opening spring present: No
- Blade shape: with facet
- Head thickness: 10,0 mm
- ESD Yes/No: No
- Hardening process: Induction hardened
- Bevel: with
