Universal puller 3-arm pattern 90x100mm

Even load distribution over 3 legs ensures secure grip and balanced pull, Strong, ergonomically shaped cross beam, Hook red-hot drop-forged, Pulling hook with proven screw connection for a frictional connection, Can be used as external and internal puller by repositioning the legs, Nitrocarburized spindle surface, wear and corrosion resistant, Spindle remains smooth and clean - no need to grease or oil, Crosspiece can be combined with other spindle/hook designs and lengths from the GEDORE puller construction kit, Interchangeable legs available for several clamping depths

Features:

• Country of origin: Germany
• Customs tariff number: 82055980
• Contents (Qty of pieces): 1
• Net weight: 1,4 kg
• 1000 V insulated: No
• VDE certified: No
• 3D data available: No

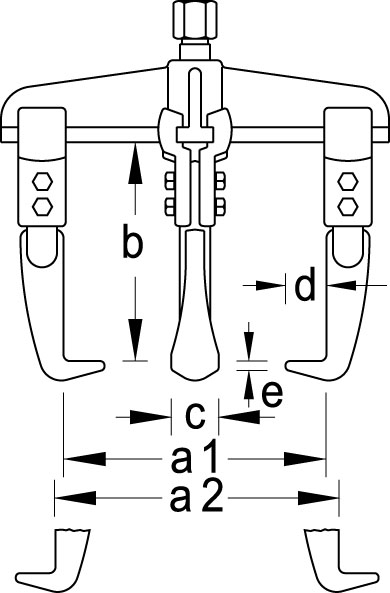

• Usable clamping reach: 100 mm
• Spindle thread size: M 14x1,5 x 140
• Clamping width (min.) internal pulling: 70 mm
• Clamping width (max.) internal pulling: 140 mm
• Width of hooked foot: 22 mm
• Usable depth of hooked foot: 12 mm
• Thickness of hooked foot at tip: 3,0 mm
• Width across flats [mm]: 17 mm
• Tractive force (max.): 3 t
• reversible arms available: No
• Clamping bracket available: No
• Number of arms: 3
• Hook brake available: No
• Hook can be moved parallel: No
• Quick release lever available: No
• Spindle anti-slip device: No
• Hydraulic spindle available: No
• Screws included: No
• Can be retrofitted with hydraulic spindle: Yes
• Clamping width (max.) external pulling: 90 mm
• Hydraulic spindle optional: -
• Graduation: No
• Anti-slip device on the spindle: No
• Type of use: deduct inside and outside
