Torque wrench DREMOMETER CD 3/4" 80-360 Nm

Torque wrench DREMOMETER CD 3/4" 80-360 Nm
Torque wrench DREMOMETER CD 3/4" 80-360 Nm
Torque wrench DREMOMETER CD 3/4" 80-360 Nm
Torque wrench DREMOMETER CD 3/4" 80-360 Nm
Torque wrench DREMOMETER CD 3/4" 80-360 Nm
Torque wrench DREMOMETER CD 3/4" 80-360 Nm
Torque wrench DREMOMETER CD 3/4" 80-360 Nm
Torque wrench DREMOMETER CD 3/4" 80-360 Nm
Torque wrench DREMOMETER CD 3/4" 80-360 Nm
Torque wrench DREMOMETER CD 3/4" 80-360 Nm
Torque wrench DREMOMETER CD 3/4" 80-360 Nm
Torque wrench DREMOMETER CD 3/4" 80-360 Nm
Torque wrench DREMOMETER CD 3/4" 80-360 Nm
Torque wrench DREMOMETER CD 3/4" 80-360 Nm
Torque wrench DREMOMETER CD 3/4" 80-360 Nm
Torque wrench DREMOMETER CD 3/4" 80-360 Nm
Torque wrench DREMOMETER CD 3/4" 80-360 Nm
Torque wrench DREMOMETER CD 3/4" 80-360 Nm
Torque wrench DREMOMETER CD 3/4" 80-360 Nm
Torque wrench DREMOMETER CD 3/4" 80-360 Nm

Ready for shipment in 6 workdays

Item number:
WS03607688470
Manufacturer number:
8570-10
Weight:
2.7 kg

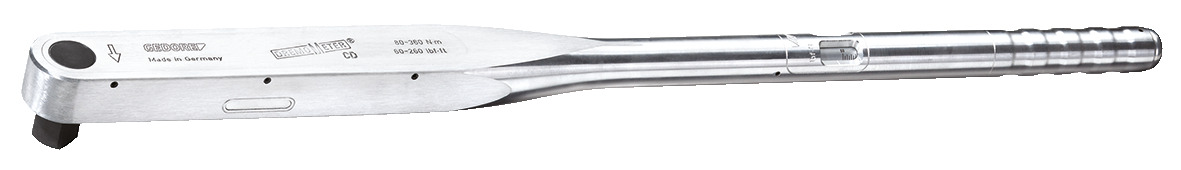

Torque wrench DREMOMETER CD 3/4" 80-360 Nm

Use: Controlled screw tightening in the range of 80 - 360 Nm / 60 - 260 lbf·ft, For use in almost all industrial manufacturing areas, Features: Classified according to DIN EN ISO 6789-2:2017 Type II Class A, incl. traceable test certificate, calibrated to a maximum permissible deviation of +/- 3 % and thus more precise than the +/- 4 % required by the standard, 3/4" square drive with pin-locking mechanism DIN 3120 - B 20, ISO 1174, Automatic short-path actuation with tactile impulse and audible signal, Dual scale with a scale graduation of 5 Nm and 5 lbf·ft, Technical advantage/Function: Lightweight yet robust (as the housing is made of an aluminium alloy) and resilient, very workshop-friendly, No inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches), Both the square drive and fulcrum are on an axis which ensures a high degree of user safety; can be extended to reduce the user's working load., Extremely low wear attributable to reduced forces in a lever mechanism, Forged lever chain from our group own quality forge, Maximum precision even when subjected to extreme continuous use, Long life cycles and tool lives, Easy operation - fast and safe torque tightening, Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle, Single- and double-square drive for controlled bi-directional tightening

Features:

  • Country of origin: Germany
  • Customs tariff number: 82041100
  • Reach: compliant
  • Contents (Qty of pieces): 1
  • Total width: 45 mm
  • Total height: 30 mm
  • Net weight: 2,8 kg
  • 1000 V insulated: No
  • VDE certified: No
  • Total length: 717 mm
  • Material: Aluminum alloy
  • Width of head 1: 45,0 mm
  • Target groups: Automotive Industry Construction and commercial vehicles Military Energy Mechanical engineering Workshop Utilities Service Agriculture Oil & Gas
  • Head height 1: 30 mm
  • Standard: DIN 3120 - B 20 ISO 1174
  • Square drive: 3/4"
  • Range of application: Assembly Series assembly Production Maintenance and repair
  • Torque (max.): 360 Nm
  • Drive type/drive: Single square rigid
  • Torque (min.): 80 Nm
  • Distance housing - square drive: 22,5 mm
  • Scale type: dual
  • Precision +/-: +/- 3 %
  • Tightening direction: right
  • Fixed setting: No
  • Test certificate: DIN EN ISO 6789-2:2017
  • Fuse output square drive: Locking pin
  • Torque range (min./max.): 80 Nm - 360 Nm
  • Trigger mechanism: Short path triggering
  • Graduation: 5 Nm
  • Storage/Content: Plastic Storage Box
  • Torque wrench type: CD
  • Calibration length: 624 mm
