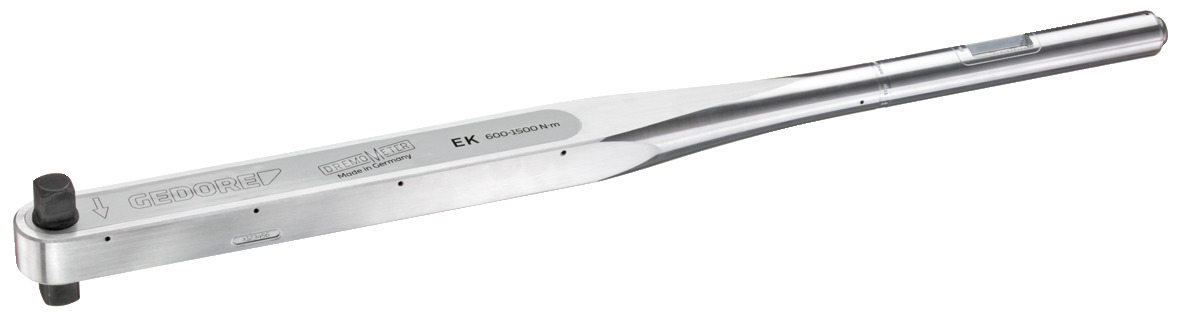

Torque wrench DREMOMETER EKL 1" 600-1500Nm
Ready for shipment in 6 workdays
- Item number:
- WS03602311291
- Manufacturer number:
- 8586-01
- Weight:
- 9.4 kg
Use: Controlled screw tightening in the range of 600 - 1500 Nm, For use in almost all industrial manufacturing areas, Features: Classified according to DIN EN ISO 6789-2:2017 Type II Class A, incl. traceable test certificate, calibrated to a maximum permissible deviation of +/- 3 % and thus more precise than the +/- 4 % required by the standard, 1" square drive with pin-locking mechanism DIN 3120 - B 25, ISO 1174, Automatic short-path actuation with tactile impulse and audible signal, Single scale with a scale division of 25 Nm, Technical advantage/Function: Lightweight yet robust (as the housing is made of an aluminium alloy) and resilient, very workshop-friendly, No inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches), Both the square drive and fulcrum are on an axis which ensures a high degree of user safety; can be extended to reduce the user's working load., Double-lever mechanism for maximum cutting performance, Forged lever chain from our group own quality forge, Maximum precision even when subjected to extreme continuous use, Long life cycles and tool lives, Easy operation - fast and safe torque tightening
Features:
- Country of origin: Germany
- Customs tariff number: 82041100
- Reach: compliant
- Contents (Qty of pieces): 1
- Total width: 60 mm
- Total height: 40 mm
- Net weight: 10,8 kg
- 1000 V insulated: No
- VDE certified: No
- Parts list (Text): Verlängerungsrohr No. 8564-92
- Total length: 932 mm
- Material: Aluminum alloy
- Width of head 1: 60,0 mm
- Target groups: Automotive Industry Construction and commercial vehicles Military Energy Mechanical engineering Workshop Utilities Service Agriculture Oil & Gas
- Head height 1: 40 mm
- Standard: DIN 3120 - B 25 ISO 1174
- Square drive: 1"
- Range of application: Assembly Series assembly Production Maintenance and repair
- Torque (max.): 1500 Nm
- Drive type/drive: Double square
- Torque (min.): 600 Nm
- Distance housing - square drive: 30 mm
- Scale type: Mono
- Precision +/-: +/- 3 %
- Tightening direction: Left and right
- Fixed setting: No
- Test certificate: DIN EN ISO 6789-2:2017
- Fuse output square drive: Locking pin
- Torque range (min./max.): 600 Nm - 1500 Nm
- Trigger mechanism: Short path triggering
- Graduation: 25 Nm
- Storage/Content: Box
- Torque wrench type: EKL
- Calibration length: 1473 mm
- Length extension tube: 925 mm
