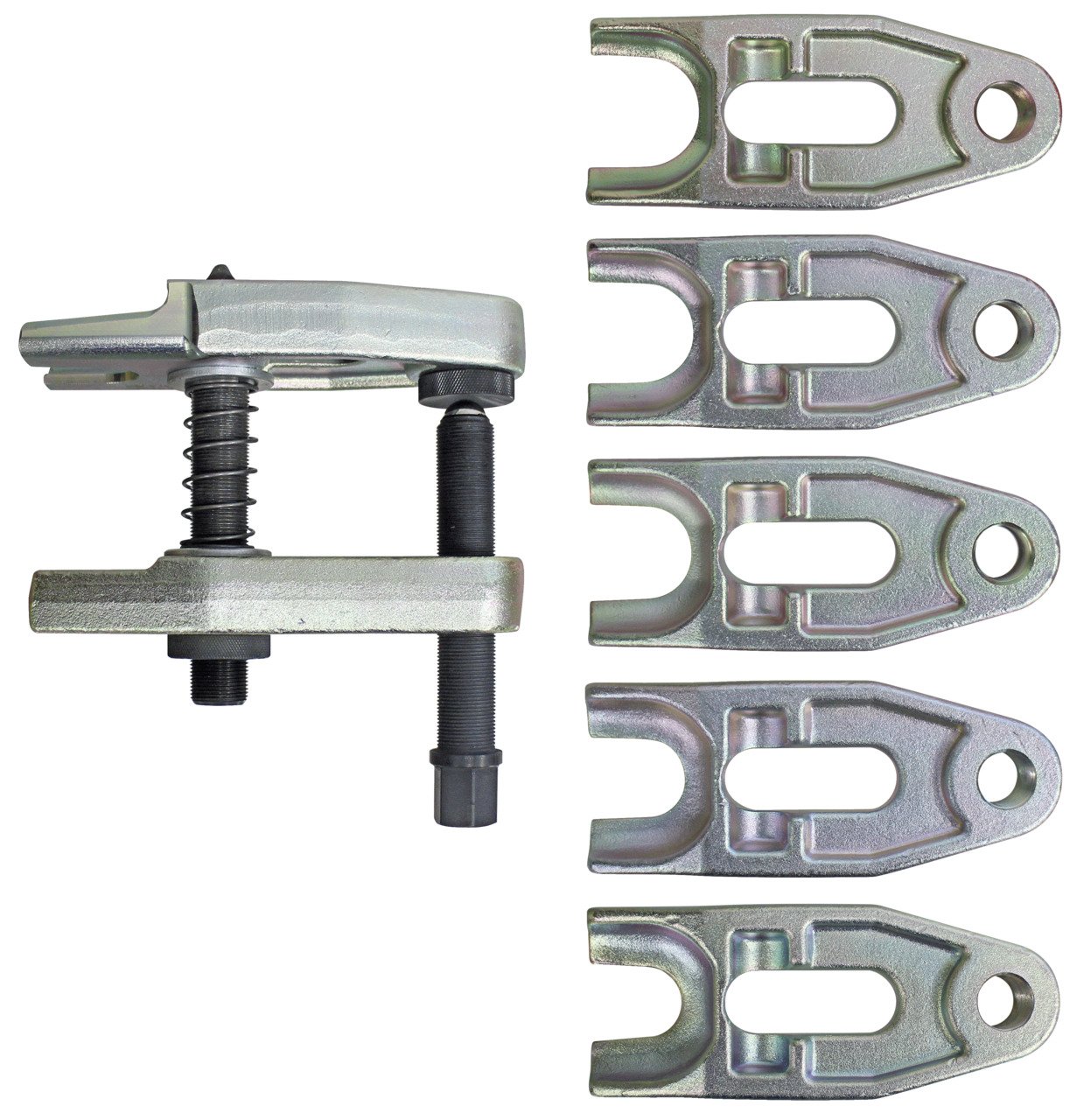

Ball pivot Extractor Set (with 6 forks)

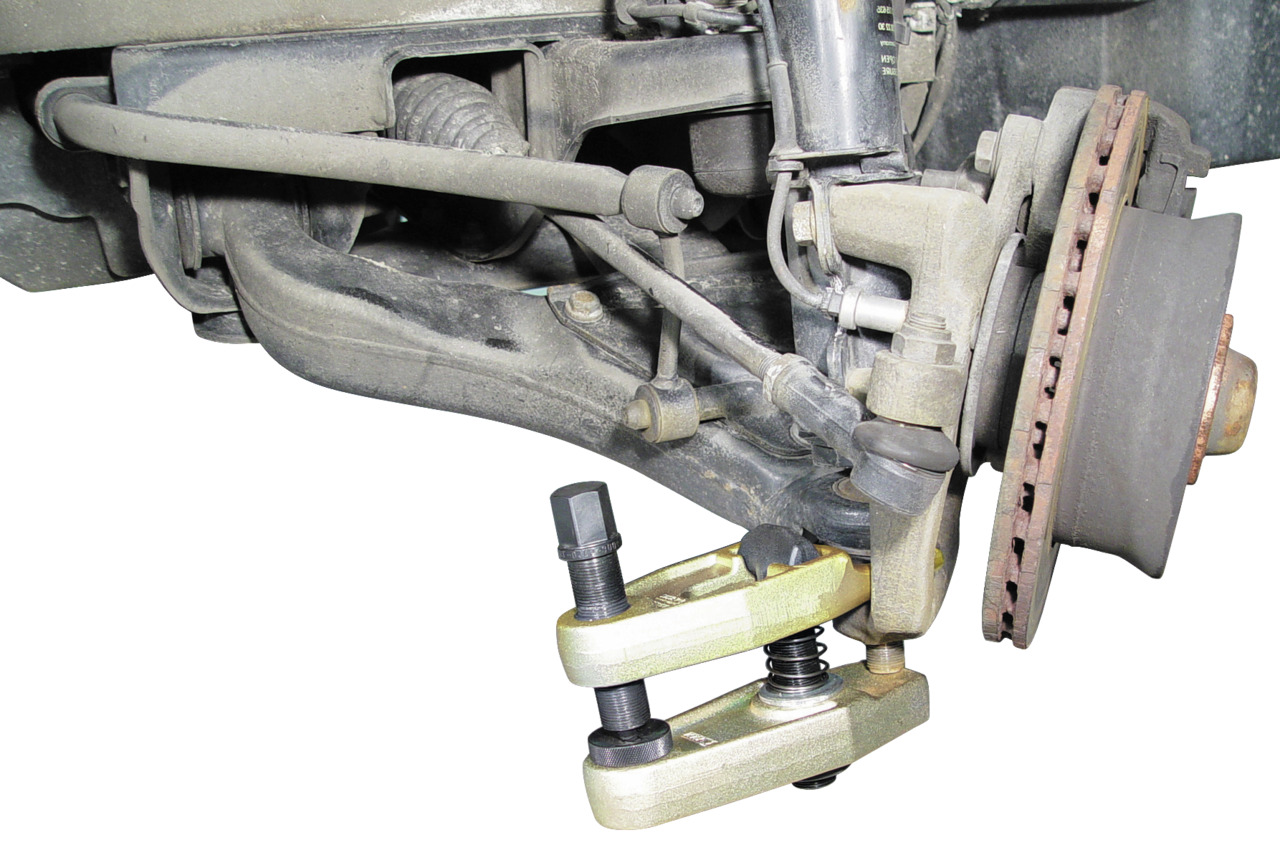

Indispensable tool set for the quick and easy separation of ball joint connections in suspension and steering systems. The ever-increasing number of different ball joints used in today’s vehicle suspension and steering systems has led to the need for an ever-widening range of ball joint extractors for separating ball joint connections from steering knuckles/stub axles and steering arms. This is mainly due to the different diameters and sizes of the ball joints. In addition, ball joints with conical pivot pins require extractors featuring extremely high stability and strength in order to achieve easy separation. When separating ball joint connections, it is decisive that the correct pressure point for separation and angle can be adjusted on the extractor. The KL-0165-3 KA ball joint extractor set from GEDORE Automotive offers automotive service technicians and mechanics a tool with high stability and universal application possibilites. The extractor can easily be adjusted to the respective ball joint diameter and pivot pin height - simply by changing the forks., Advantage: • Variable due to exchangeable forks, • High stability, • Ideal release pressure point and adjustable tilting adjustment

Features:

• Country of origin: Germany
• Customs tariff number: 82055980
• Contents (Qty of pieces): 6
• Total width: 450 mm
• Total depth: 360 mm
• Net weight: 15,5 kg
• 1000 V insulated: No
• VDE certified: No
• Parts list (Text):

  1x KL-0165-300 - Grundwerkzeug ohne Gabel

  1x KL-0165-3001 - Gabel Gr. 3 - a=30 mm - e=80 mm - d=200 mm (ergibt KL-0165-30)

  1x KL-0165-3101 - Gabel Gr. 3 - a=34 mm - e=80 mm - d=200 mm (ergibt KL-0165-31)

  1x KL-0165-3201 - Gabel Gr. 3 - a=40 mm - e=80 mm - d=200 mm (ergibt KL-0165-32)

  1x KL-0165-3301 - Gabel Gr. 3 - a=42 mm - e=80 mm - d=200 mm (ergibt KL-0165-33)

  1x KL-0165-3401 - Gabel Gr. 3 - a=47 mm - e=80 mm - d=200 mm (ergibt KL-0165-34)

  1x KL-0165-3501 - Gabel Gr. 3 - a=33 mm - e=80 mm - d=200 mm (ergibt KL-0165-35)

  1x KL-0165-3090 A - Kunststoffkoffer

• OEM: 951-2923|999-7622
• Width across flats [mm]: 24 mm
• Total length: 230 mm
• Target groups: Automotive Construction and commercial vehicles Agriculture
• Suitable for: Universally compatible. Particularly suitable for commercial vehicles and light trucks, e.g., from MAN, Mercedes, VW, Ford, Scania, Volvo, Landini, John Deere, Deutz, etc.
• Size: Size 3
• Contents (parts list): 6 Forks with opening from 30 to 47 mm
• Quantity adapters: 6
• Storage: in a case
