Puller set with 6 legs 90x100/200 mm
Ready for shipment in 6 workdays
- Item number:
- WS03601745158
- Manufacturer number:
- 1.07/K-1-SE 200 S
- Weight:
- 4.2 kg
Puller set with 6 legs 90x100/200 mm
In robust plastic case, The forged hooked feet are particularly suitable for difficult-to-access places, Quick release legs for fast, easy set-up and adjustment, Contents: 2 spindles, 1 cross-beam each 2- and 3-arm pattern thin quick-grip pulling legs of the 100 and 200 mm clamping depths, Clamping depth 100 mm = hook foot thickness (e) 3.7 mm, max. 2.5 t, Clamping depth 200 mm = hook foot thickness (e) 2.0 mm, max. 2.0 t
Features:
- Country of origin: Germany
- Customs tariff number: 82055980
- Contents (Qty of pieces): 9
- Net weight: 4,2 kg
- 1000 V insulated: No
- VDE certified: No
- Parts list (Text): 106/203 Traverse 2-armig 220 mm 107/203 Traverse 3-armig 220 mm 106/A-100-SE Abzughaken mit Schnellspann-Klemmstück 100 mm (3x) 06/S-200-SSE Abzughaken schlank mit Schnellspann-Klemmstück 200 mm (3x) E-1.1406140 Spindel SW 17, M14x1,5, 140 mm 107/199-SE 200S Kunststoffkoffer mit Schaumstoffeinlage für 1.07/K-1-SE 200S
- 3D data available: No
- Spindle thread size: M 14x1,5 x 140

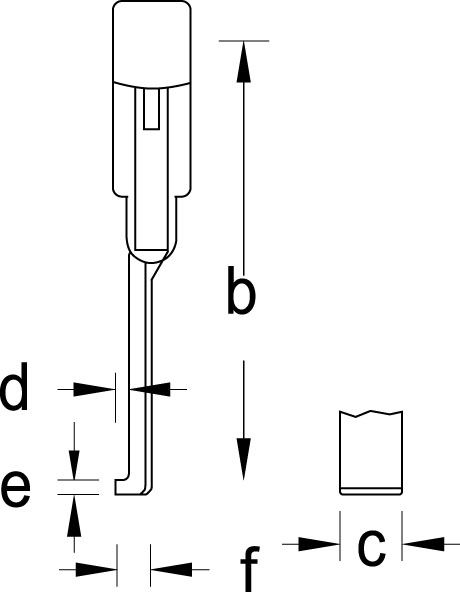

- Width of hooked foot: 27 mm
- Usable depth of hooked foot: 7,5 mm

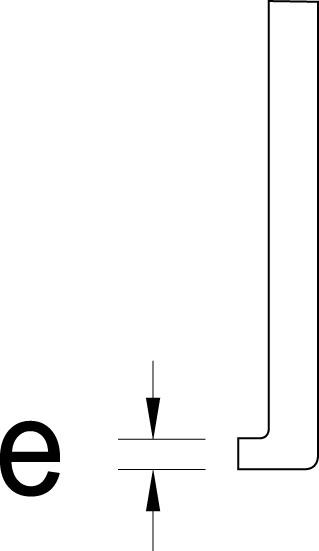

- Thickness of hooked foot at tip: 3,7 mm
- Width across flats [mm]: 17 mm
- Tractive force (max.): 2,5 t
- reversible arms available: No
- Clamping bracket available: No
- Hook brake available: No
- Hook can be moved parallel: No
- Quick release lever available: Yes
- Spindle anti-slip device: No
- Hydraulic spindle available: No
- Screws included: No
- Can be retrofitted with hydraulic spindle: No

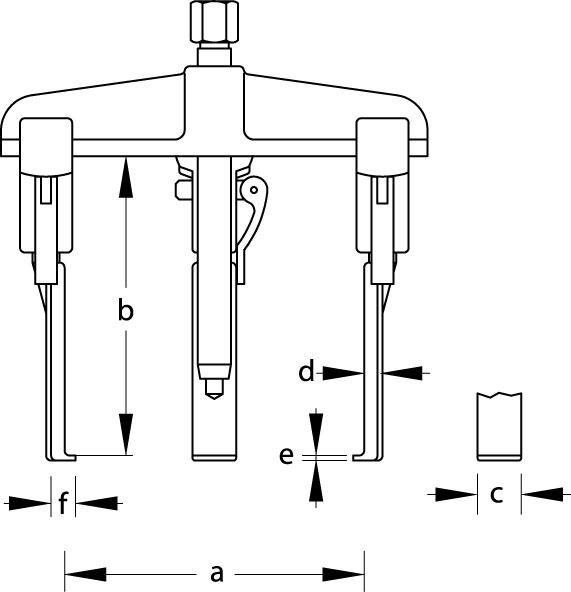

- Clamping width (max.) external pulling: 90 mm
- Usable clamping reach: 100 - 200 mm
- Version: In robust plastic case
- Graduation: No
- Anti-slip device on the spindle: No
- Exchangeable spindle tip: No
- Tractive force (max.) 2: 2,0 t
- Hook foot thickness at the tip 2: 2,0 mm
