Glow Plug Tool Set, Universal
Ready for shipment in 6 workdays
- Item number:
- WS03603431762
- Manufacturer number:
- KL-0132-55 KA
- Weight:
- 0.905 kg

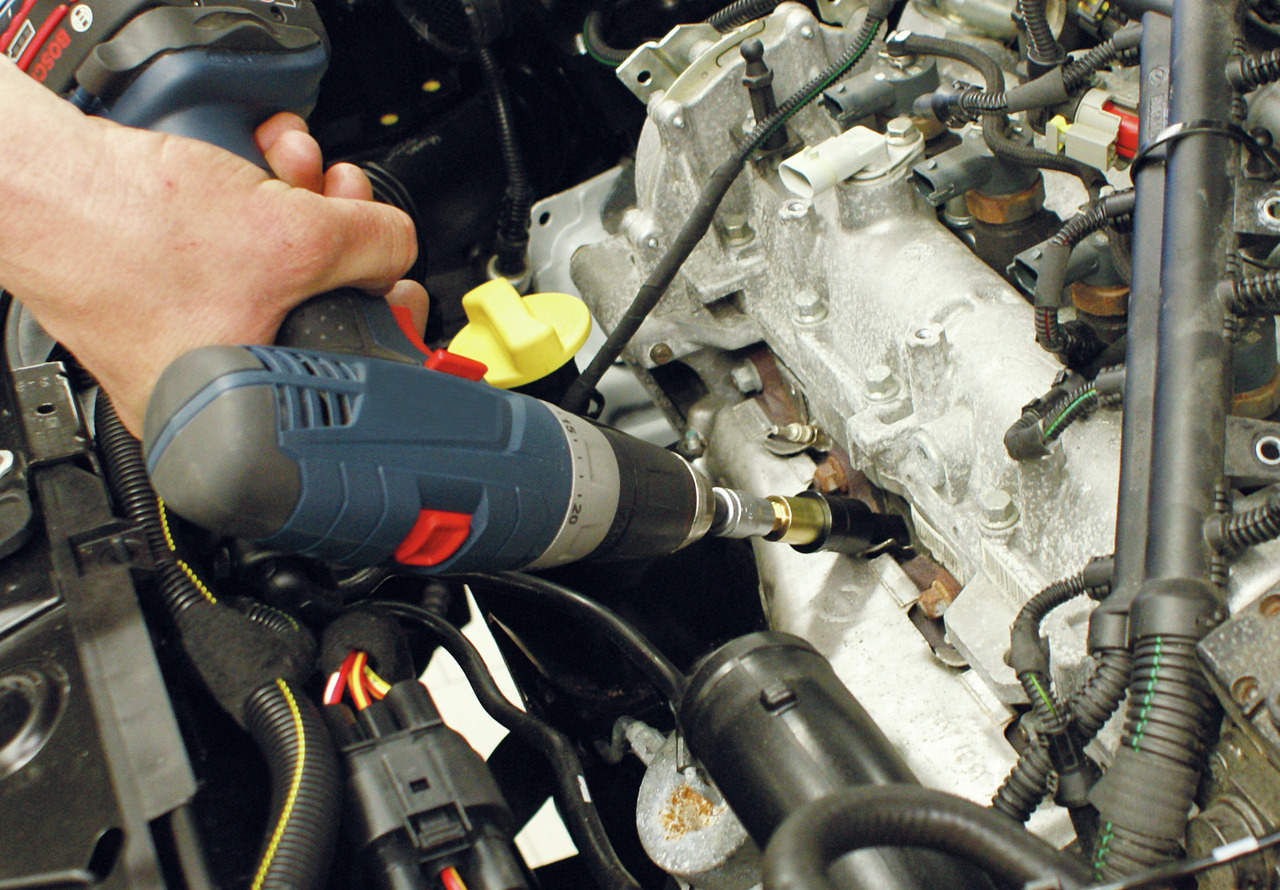

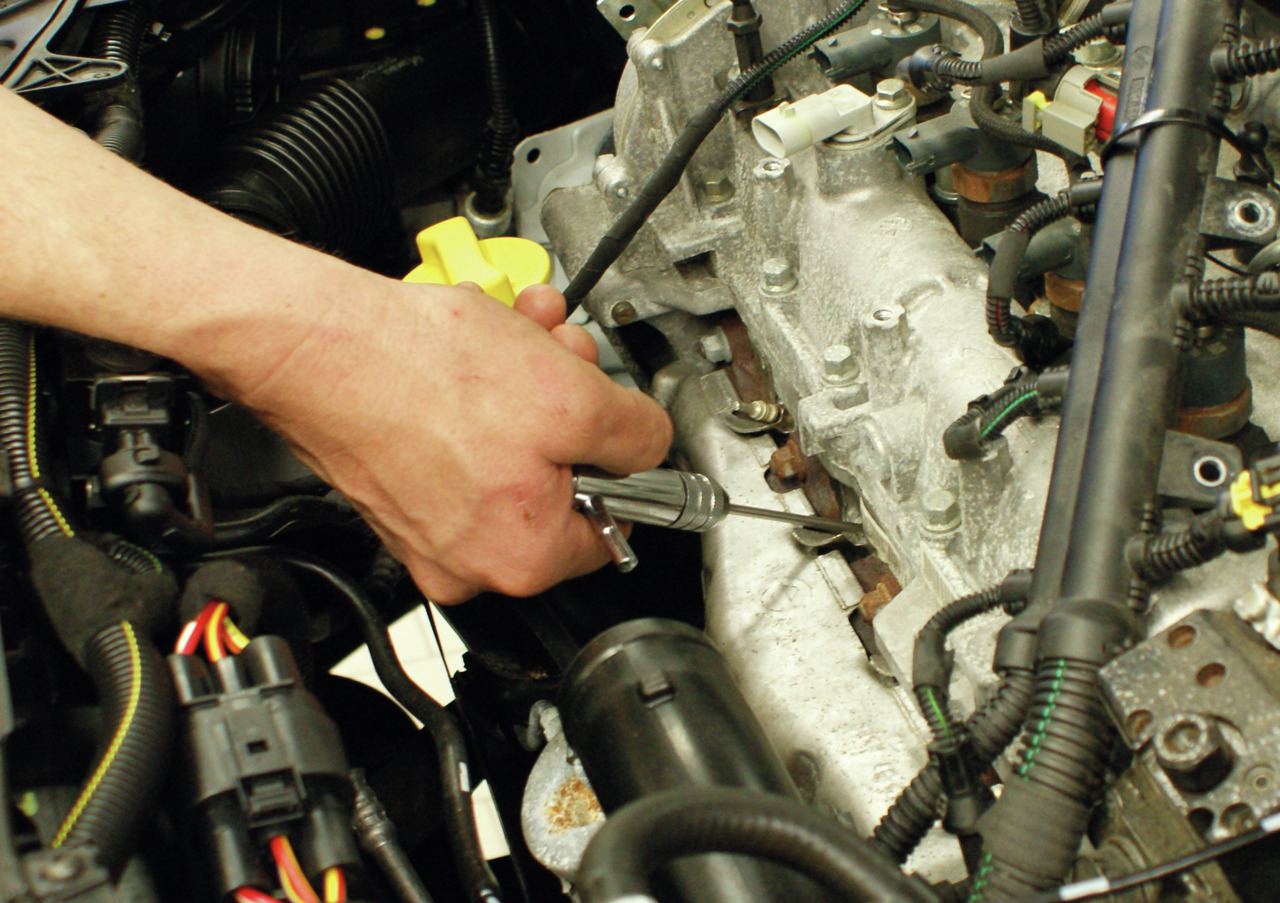

For a quick and professional boring out of torn glow plugs, for recutting and cleaning the original thread on the cylinder head as well as for pulling the glow plug., The vehicle-specific guide sleeves for Mercedes and Fiat engines ensure a precise centring, straight-line guidance and exact drilling depth., For other engines with M8x1 glow plug thread, these tasks can be alternatively performed without guide sleeve., High time and cost savings, as there is no need to remove or replace the cylinder head.
Features:
- Country of origin: Germany
- Customs tariff number: 82055980
- Contents (Qty of pieces): 9
- Total width: 235 mm
- Total height: 48 mm
- Total depth: 185 mm
- 1000 V insulated: No
- VDE certified: No

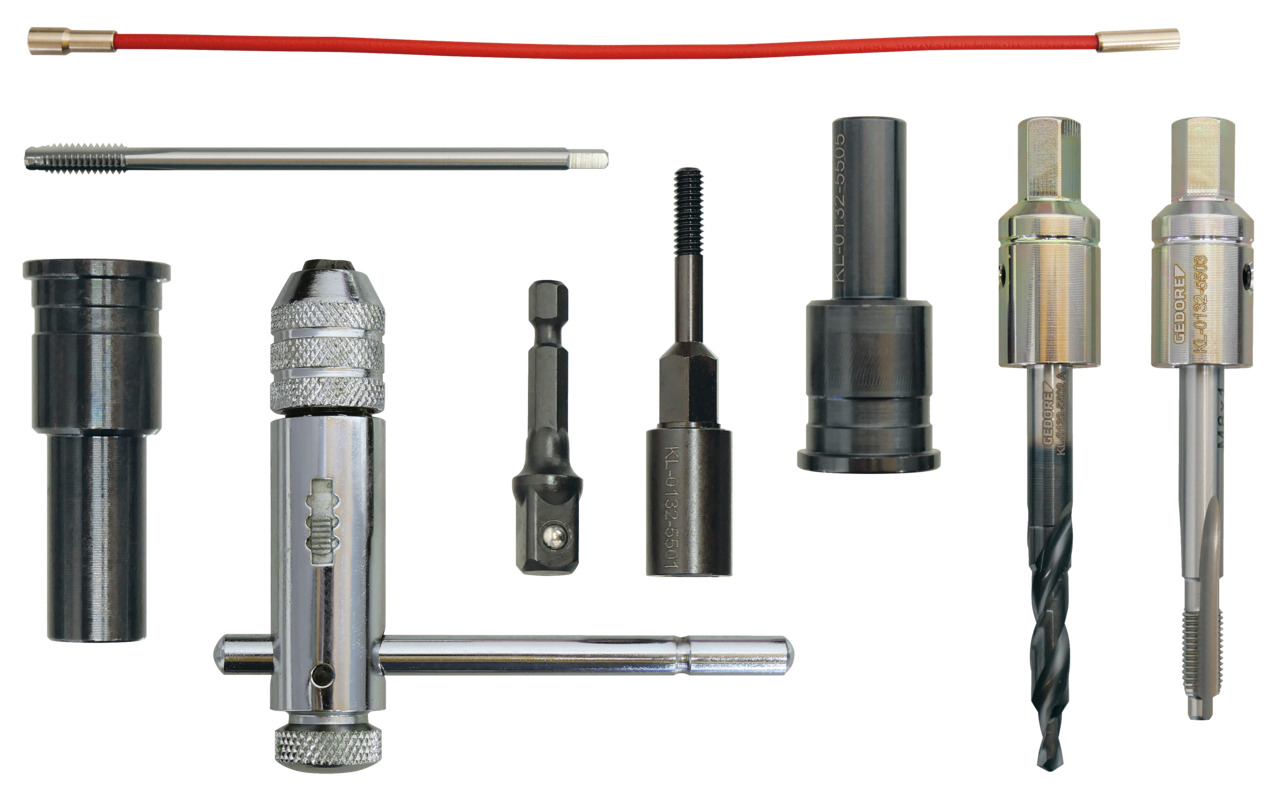

- Parts list (Text):
1x KL-0132-5501 - Zugbolzen Nr. 12-24 UNC für Schlagauszieher
1x KL-0132-5502 A - Kernlochbohrer Ø4 / Ø7 für M8x1
1x KL-0132-5503 - Gewindebohrer M8x1
1x KL-0132-5504 - Führungshülse für Fiat JTD (3,0l und 2,3l)
1x KL-0132-5505 - Führungshülse für Mercedes (OM 639, 640, 642..)
1x KL-0369-306 - Werkzeughalter mit Vierkant-Aufnahme 2,4 - 5,5
1x KL-1383-2241 - Gewindebohrer Nr.12-24 UNC mit Bohrspitze
1x KL-4007-2510 - Adapter für Bohrmaschine 3/8" Vierkant
1x KL-0126-221 - Magnetheber flexibel
1x KL-0132-5590 A - Kunststoffkoffer
- Target groups: Automotive
- Suitable for: Universally compatible with diesel engines featuring an M8x1 glow plug thread, such as those in Fiat, Mercedes, and many more. Especially suitable for Mercedes (OM639, OM640, OM642, OM651) and Fiat (1.3 JTD, 2.3 JTD, 3.0 JTD).
- for motor type: Diesel
- Storage: in a case
- for thread: M8x1
