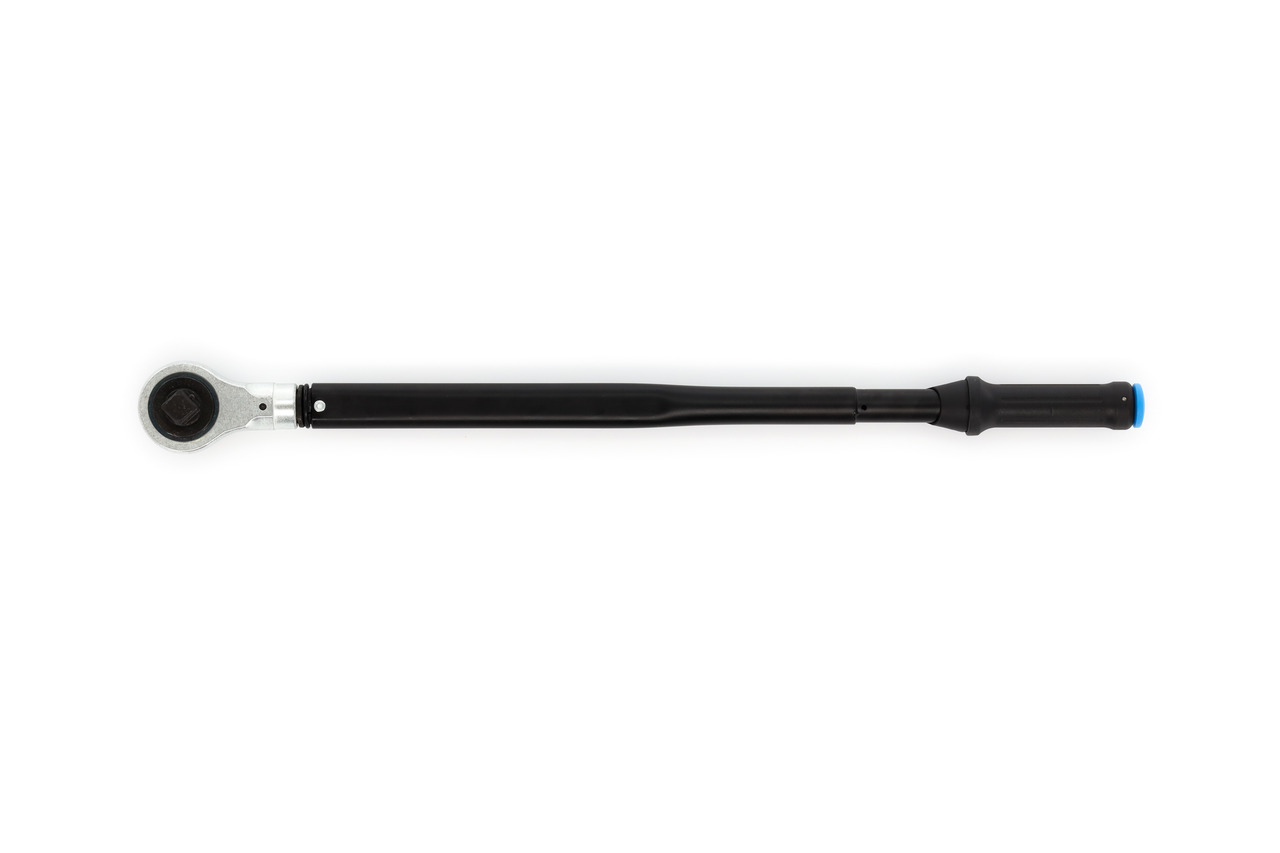

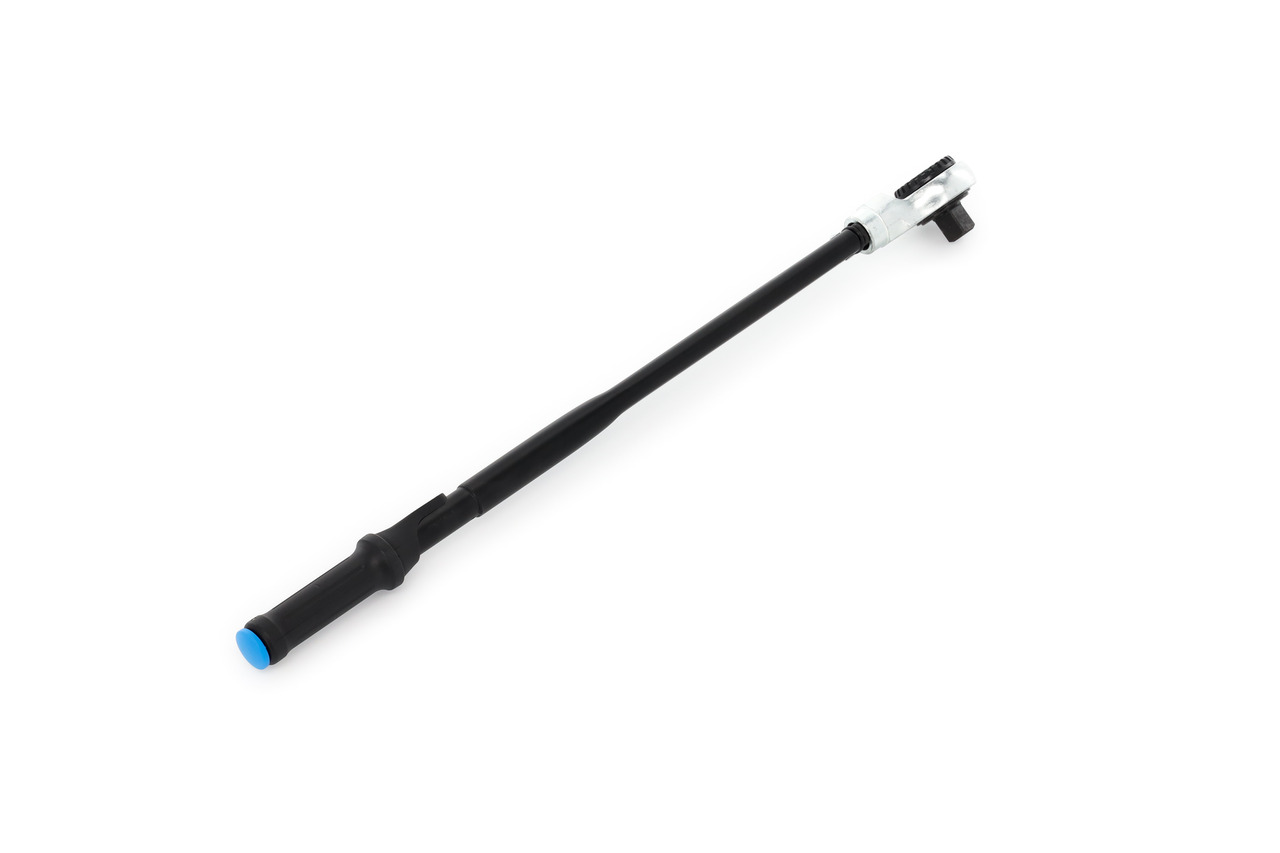

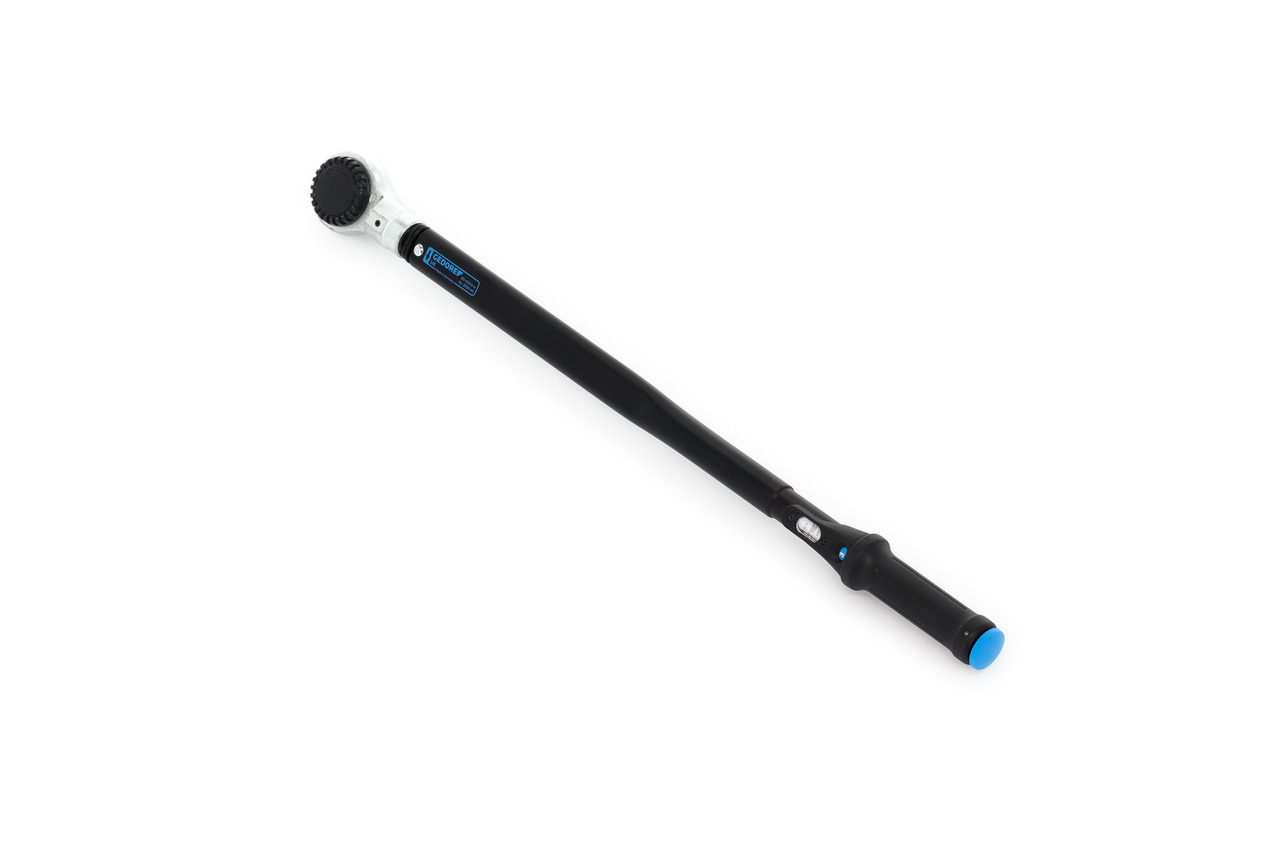

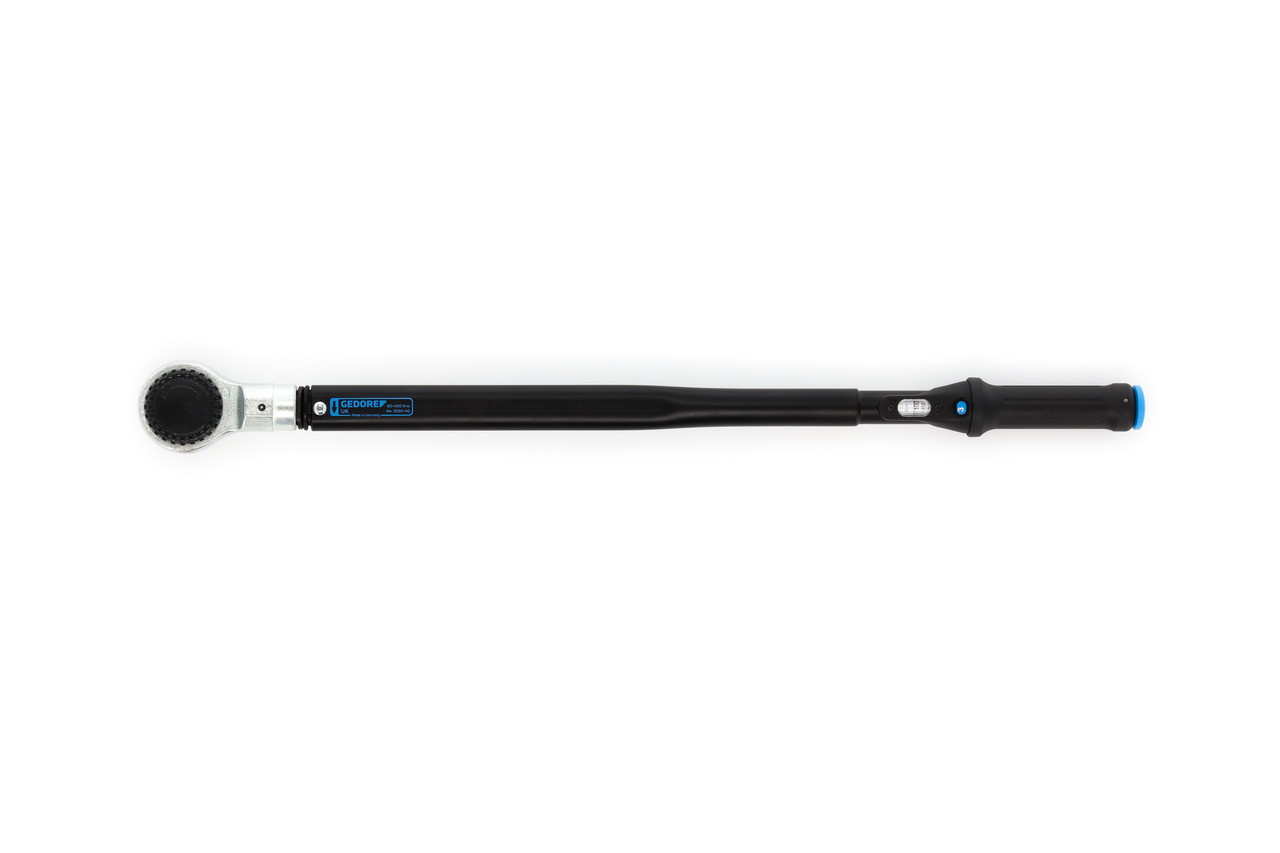

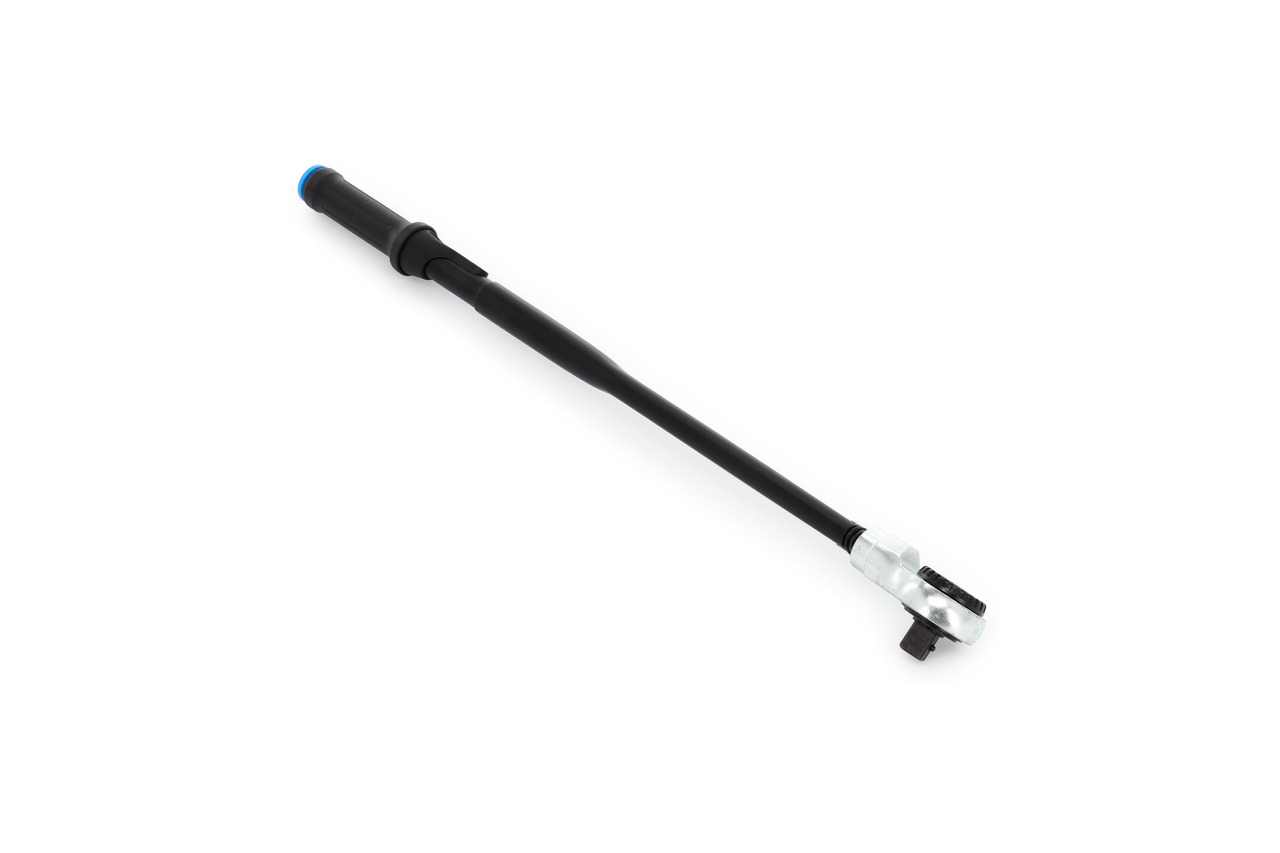

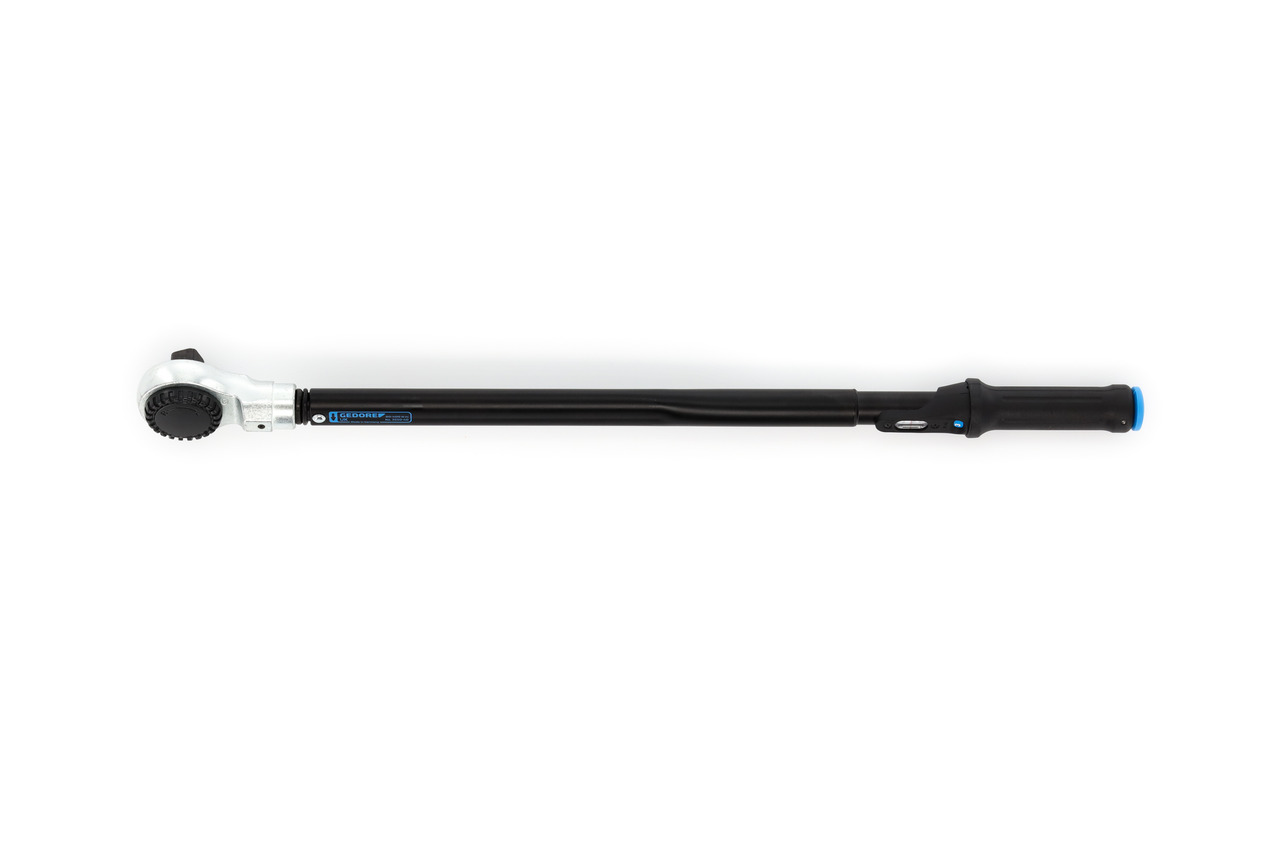

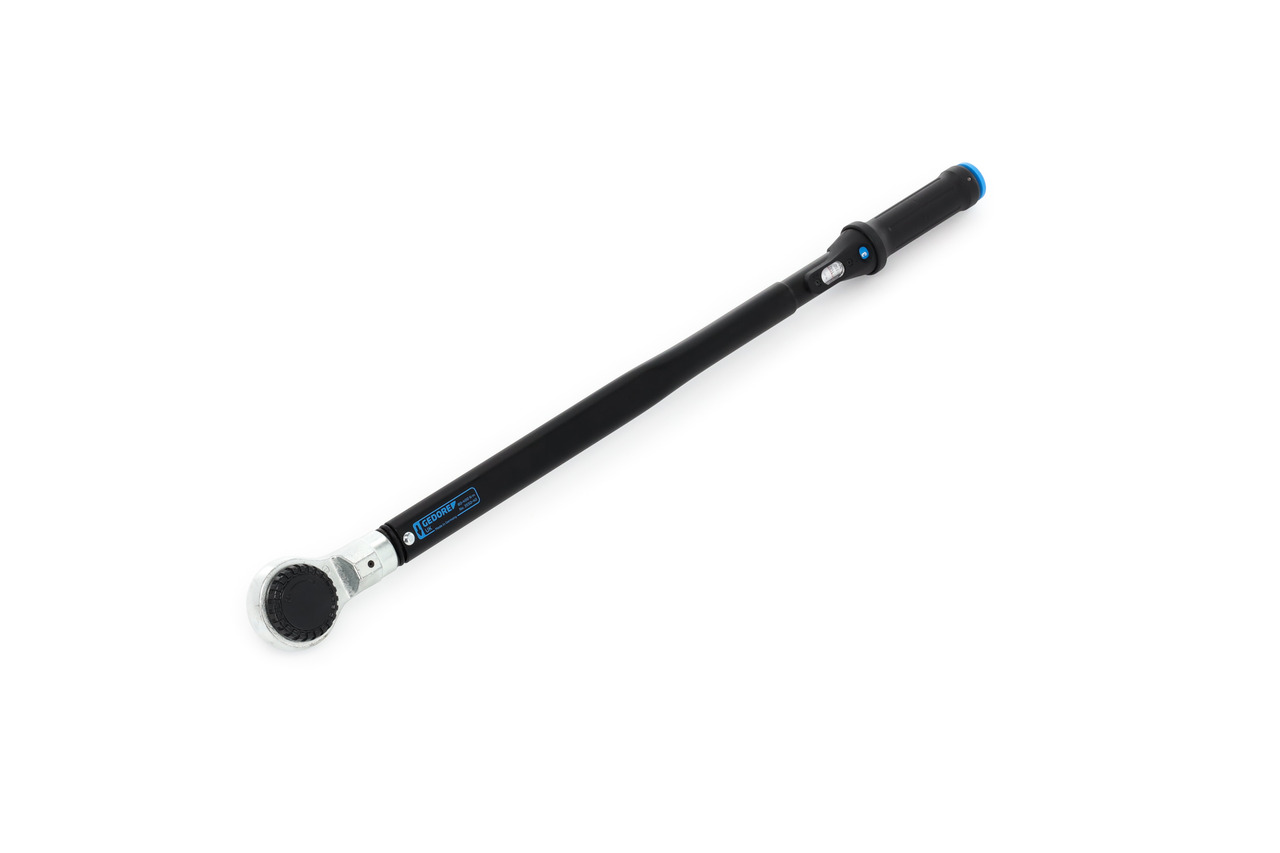

Torque wrench Torcoflex 3/4" 80-400 Nm
Ready for shipment in 6 workdays
- Item number:
- WS03602958074
- Manufacturer number:
- 3550-40 UK
- Weight:
- 2.48 kg
Torque wrench Torcoflex 3/4" 80-400 Nm
Adjustable, releasing and sturdy tubular torque wrench with integrated lever ratchet (from 3/4 inch with change disk) and with square drive for industry and the trades, Classified according to DIN EN 6789:2017 Type II Class A, calibrated to a maximum permissible deviation of +/- 3 % and thus more precise than the +/- 4 % required in the standard, Incl. test certificate according to DIN EN ISO 6789-2:2017, For controlled directional tightening
Features:
- Country of origin: Germany
- Customs tariff number: 82041100
- Reach: compliant
- Contents (Qty of pieces): 1
- Total width: 69 mm
- Total height: 65 mm
- Net weight: 3,44 kg
- 1000 V insulated: No
- VDE certified: No
- Total length: 740 mm
- Material: Steel tube construction with high-quality plastic parts
- Width of head 1: 68,0 mm
- Target groups: Automotive Industry Construction and commercial vehicles Consumer Energy Mechanical engineering Workshop Service Agriculture Oil & Gas Utilities
- Head height 1: 36 mm
- Square drive: 3/4"
- Range of application: Assembly Maintenance and repair
- Return angle: 7,2 °
- Number of teeth: 50
- Torque (max.): 400 Nm
- Drive type/drive: Reversible ratchet
- Torque (min.): 80 Nm
- Distance housing - square drive: 34 mm
- Scale type: Mono
- Precision +/-: +/- 3 %
- Tightening direction: right
- Fixed setting: No
- Test certificate: DIN EN ISO 6789-2:2017
- Vernier: 1 Nm
- Graduation: 10
- Fuse output square drive: Locking pin
- Torque range (min./max.): 80 Nm - 400 Nm
- Trigger mechanism: Short path triggering
- Calibration length: 634,2 mm
