Reamer Set for Glow Plug Channel

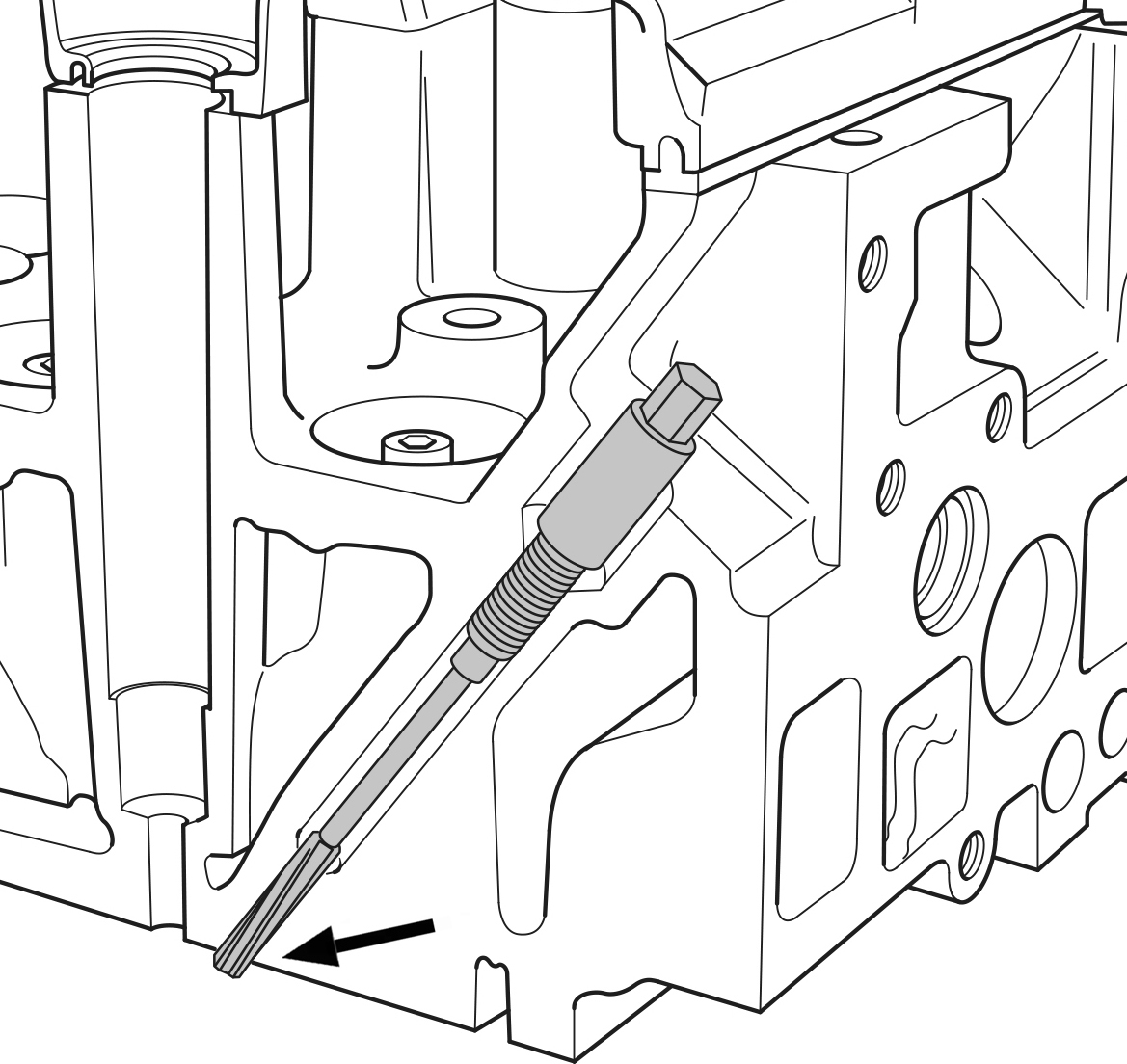

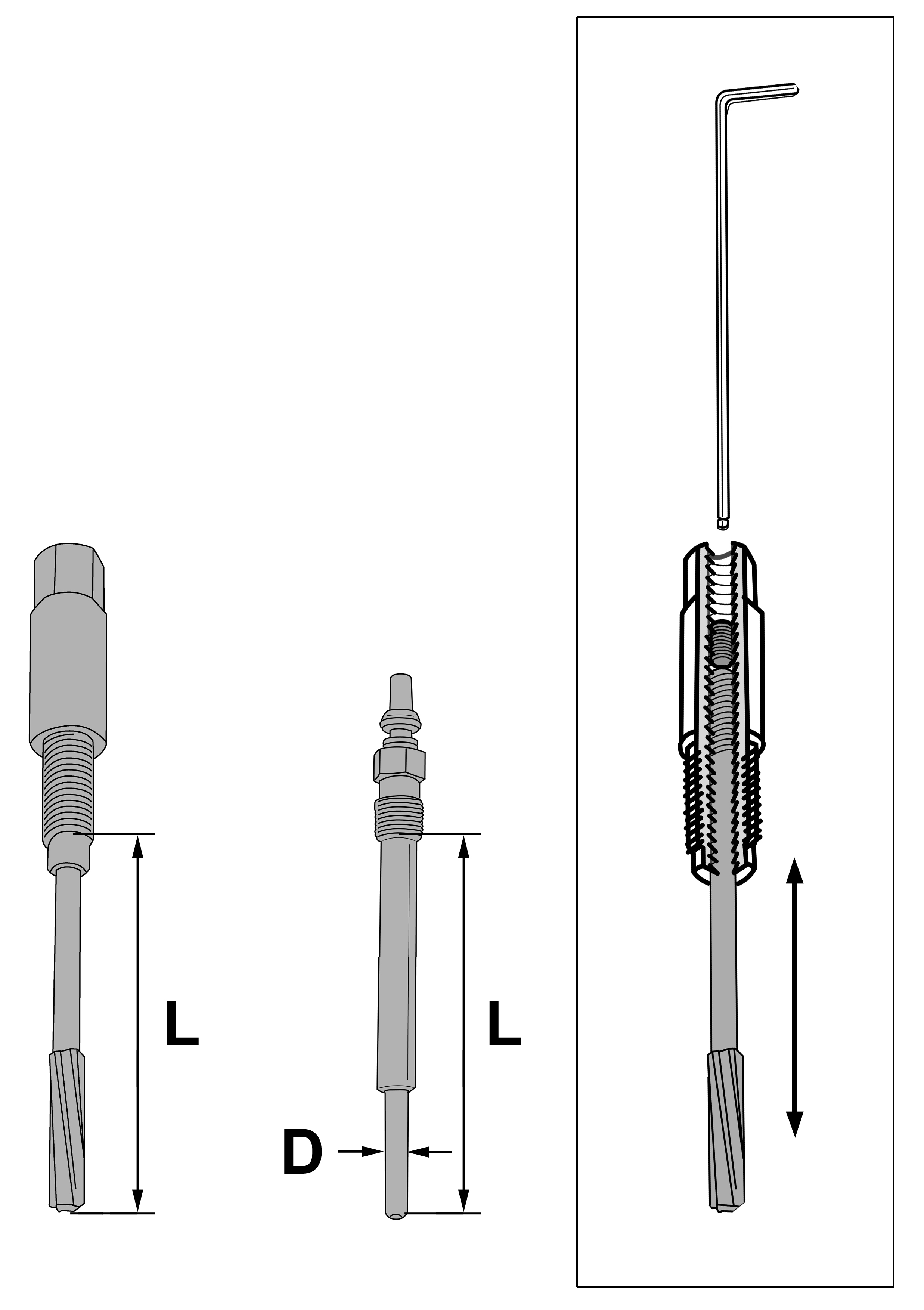

This tool set is designed to clean glow plug apertures and glow plug retaining threads. Thanks to the possibility to combine the different holders (glow plug retaining threads) with the necessary reamers (glow plug aperture Ø) and to precisely adjust the length of the reamers as needed, this tool set is virtually universal in its field of application, since the reamers can always be accurately adapted to the respective engine type. Coking deposits are carefully and effectively removed from glow plug retaining threads and glow plug apertures - thanks to the special design of the tool and the cleaning groove in the holder., The possibility of combining the different holders (glow plug mounting thread) with the reamers (glow plug channel Ø) and the precise adjustment of the reamer length results in an almost universally applicable reamer set with reamers precisely matched to the respective engine., By means of the cleaning groove in the holder and the specially shaped reamer, deposits and coking on the glow plug mounting thread and the glow plug channel are gently removed.

Features:

• Country of origin: Germany
• Customs tariff number: 82076030
• Contents (Qty of pieces): 6
• Total width: 120 mm
• Total height: 59 mm
• Total depth: 255 mm
• 1000 V insulated: No
• VDE certified: No
• Parts list (Text):

  1x KL-0369-2510 A - Halter M8x1 mit Gewindestift

  1x KL-0369-2610 A - Halter M9x1 mit Gewindestift

  1x KL-0369-2710 A - Halter M10x1 mit Gewindestift

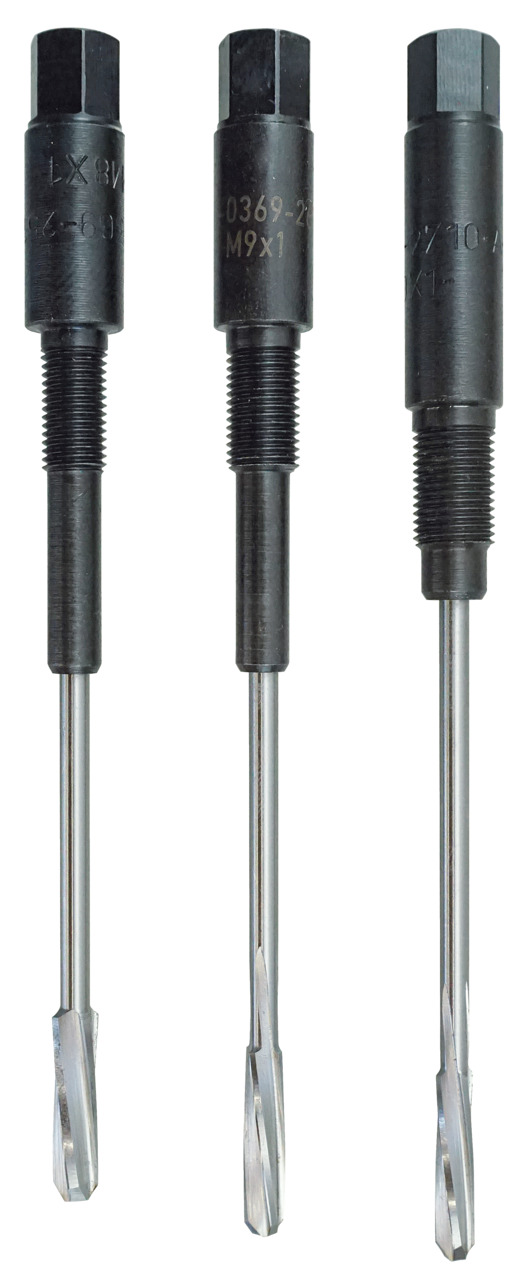

  1x KL-0369-2512 A - Reibahle Ø 4,8 mm (Glühkerzen-Ø D = Ø 4,0 mm)

  1x KL-0369-2522 A - Reibahle Ø 5,2 mm (Glühkerzen-Ø D = Ø 4,4 mm)

  1x KL-0369-2732 A - Reibahle Ø 5,8 mm (Glühkerzen-Ø D = Ø 5,0 mm)

  1x KL-0369-2590 - Kunststoffkoffer

• Target groups: Automotive Construction and commercial vehicles
• Suitable for: Universally compatible with diesel engines featuring M8x1, M9x1, or M10x1 glow plug threads. Particularly suitable for BMW 1.6 and 2.0 diesel engines. Installed in models such as BMW 1 Series (E81/E82/E87/E88), 3 Series (E90/E91/E92/E93), 5 Series (E60/E61/F10), X1 (E84), X3 (E83); Mini Hatch (R56), Countryman (R60), Clubman (R55), and Coupe (R58).
• for motor type: Diesel
• Drive connector hexagon: 10 mm
• Contents (parts list): M8x1 / M9x1 / M10x1
• Storage: in a case
• Reamer diameter: 4,8 mm | 5,2 mm | 5,8 mm
