Ready for shipment in 6 workdays

Item number:
WS03607682000
Manufacturer number:
8560-01
Weight:
1.2 kg

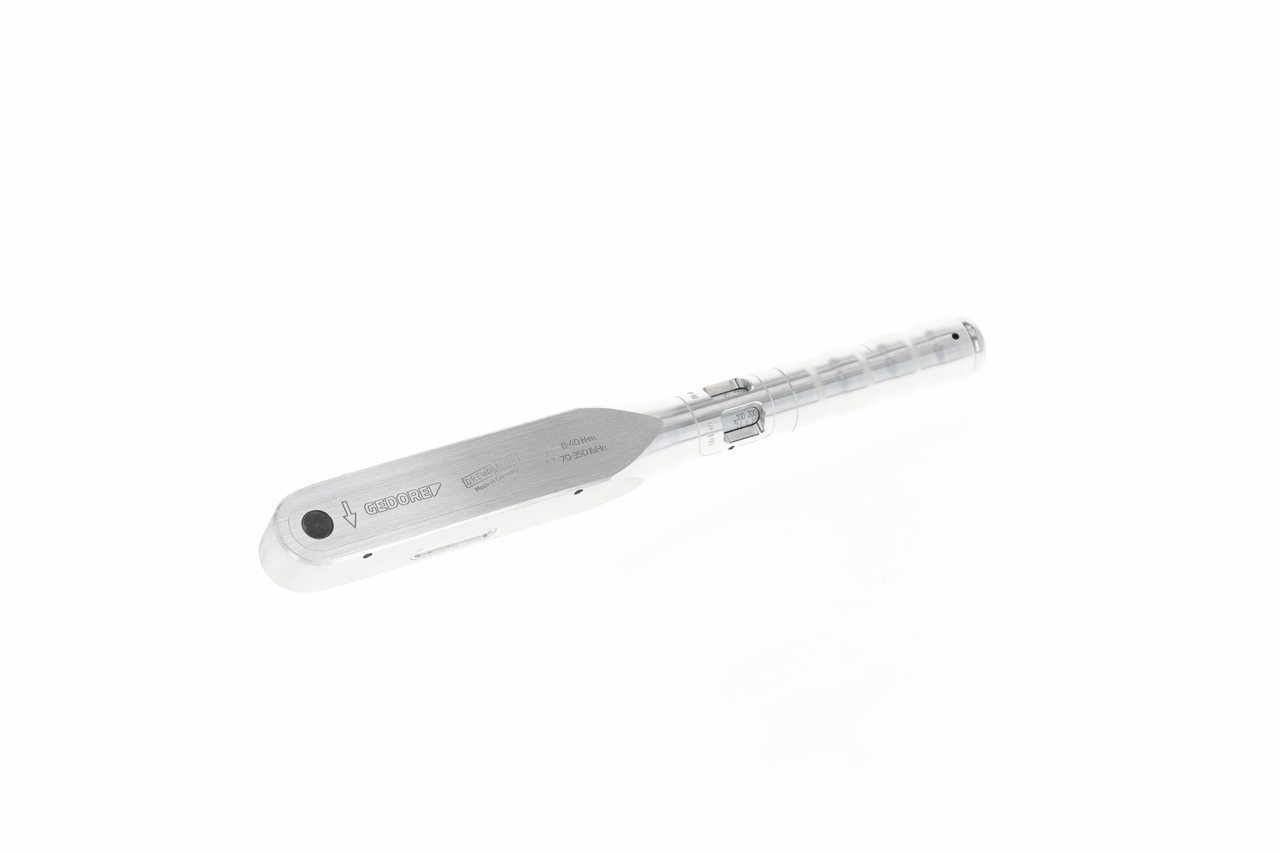

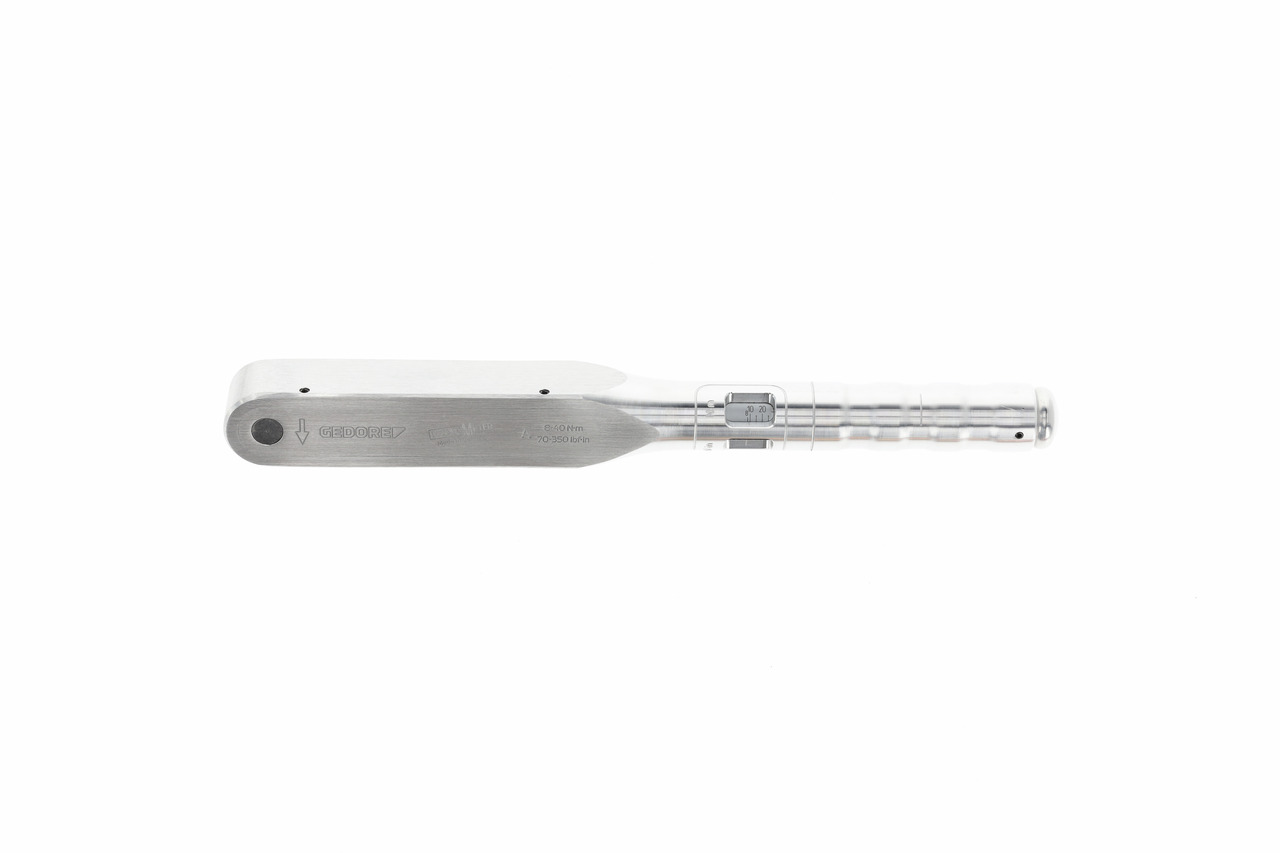

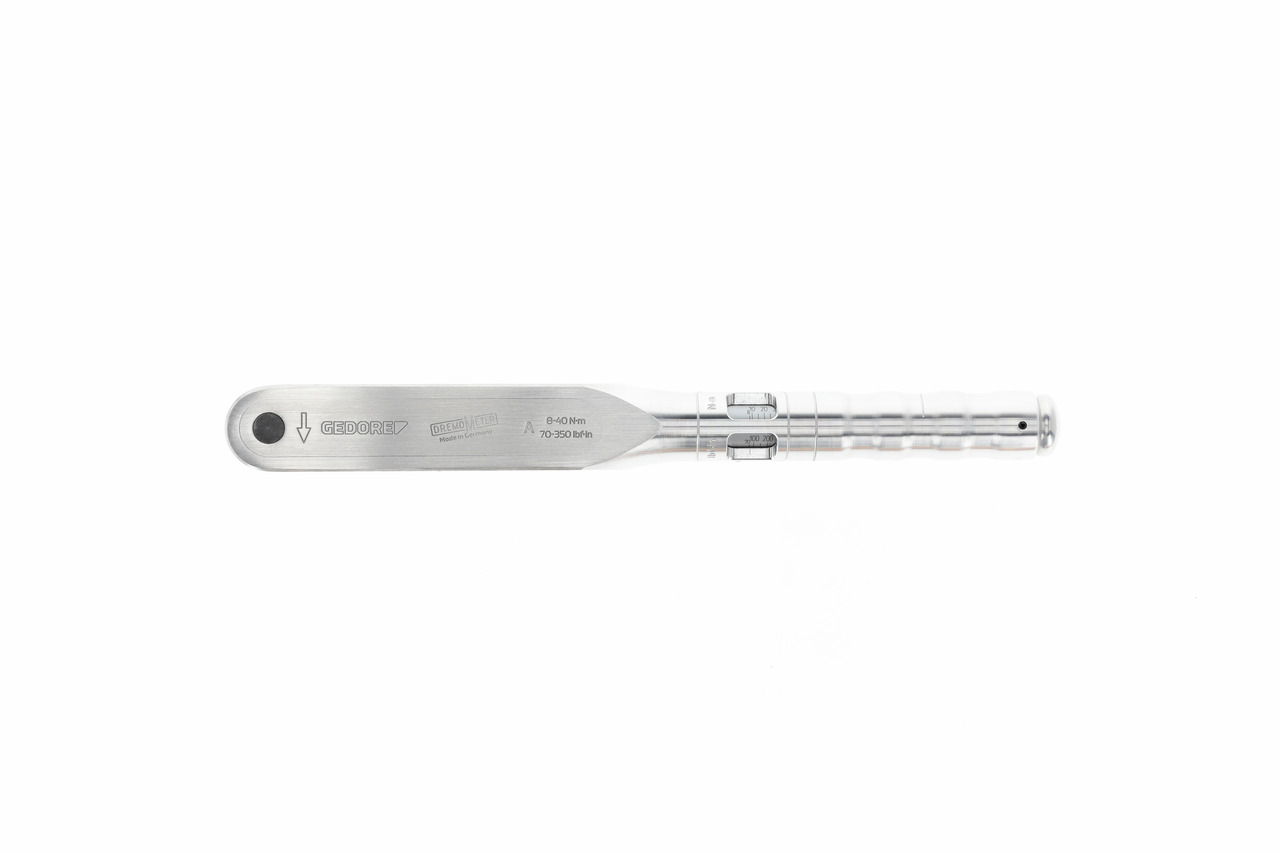

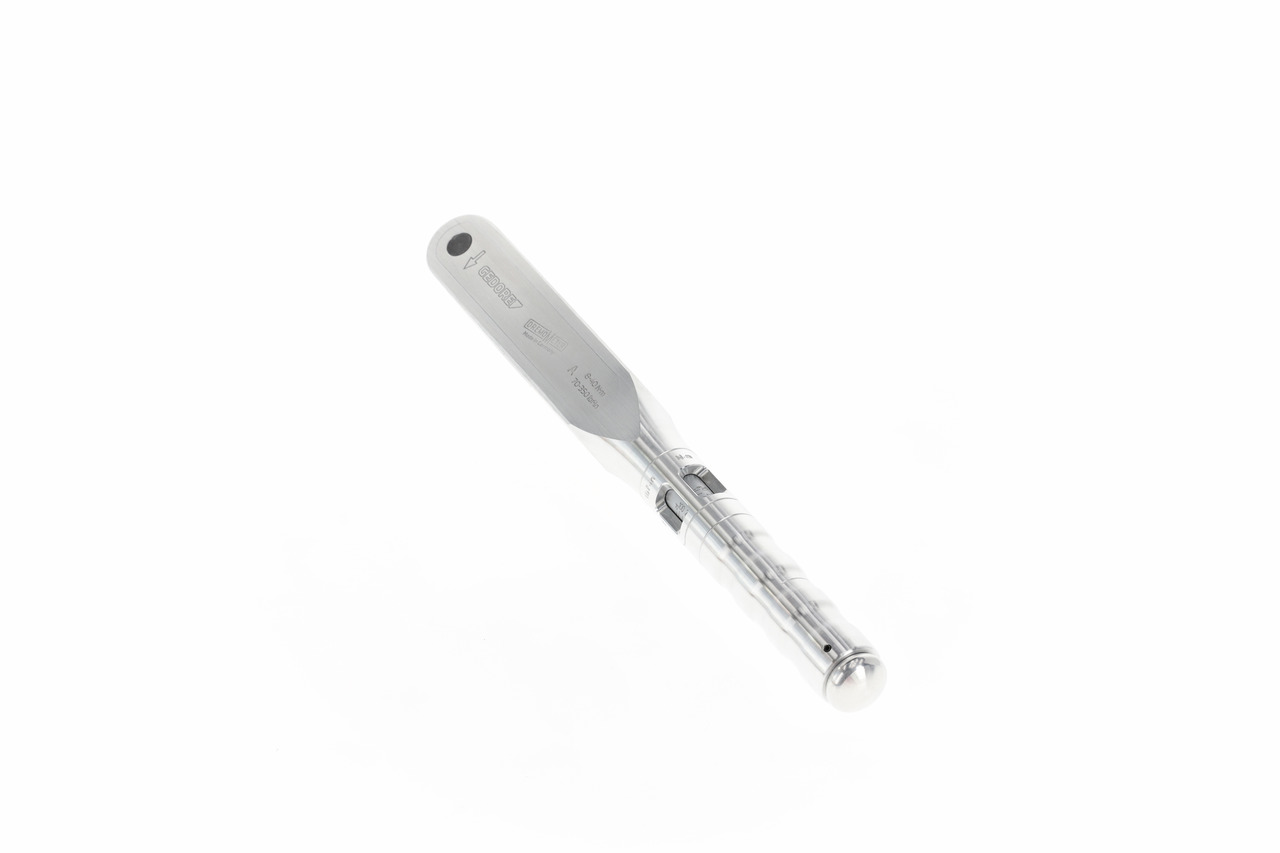

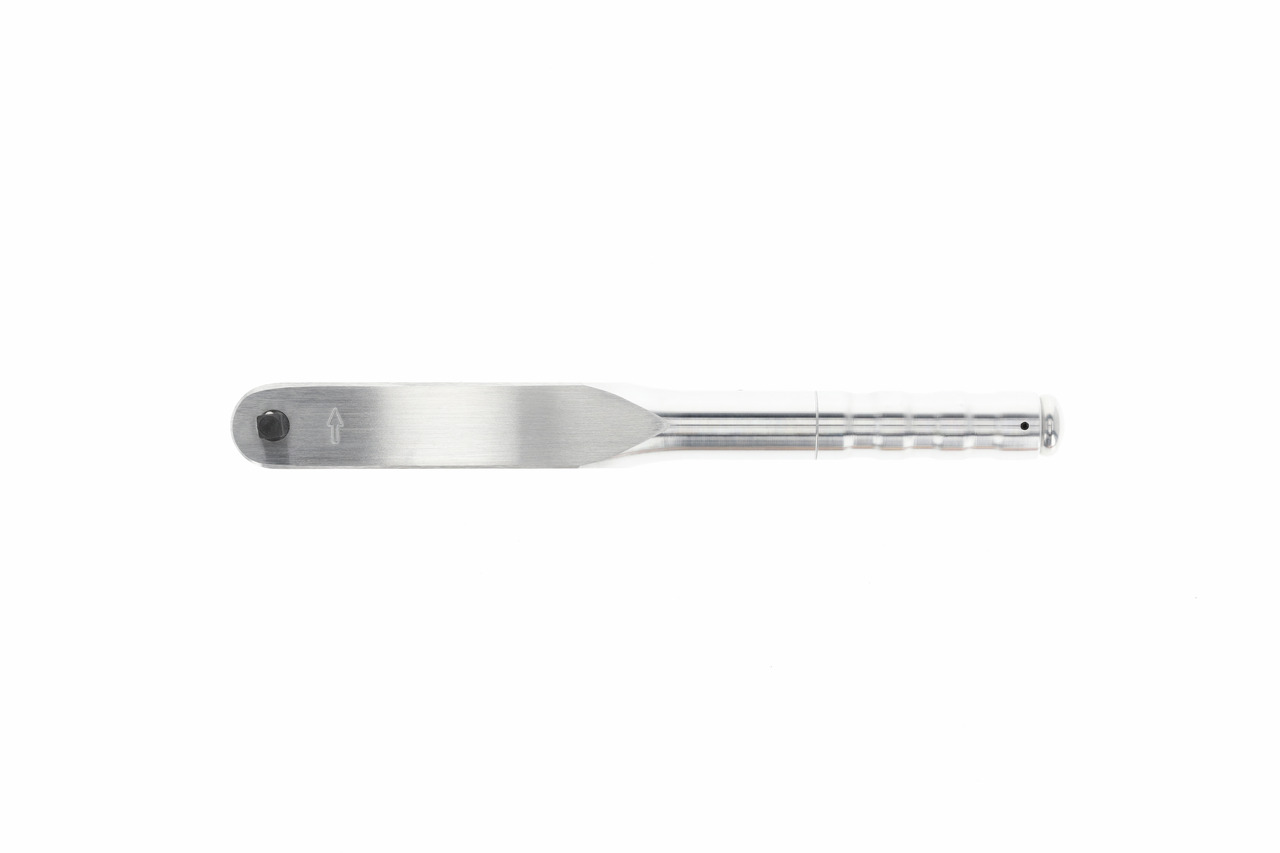

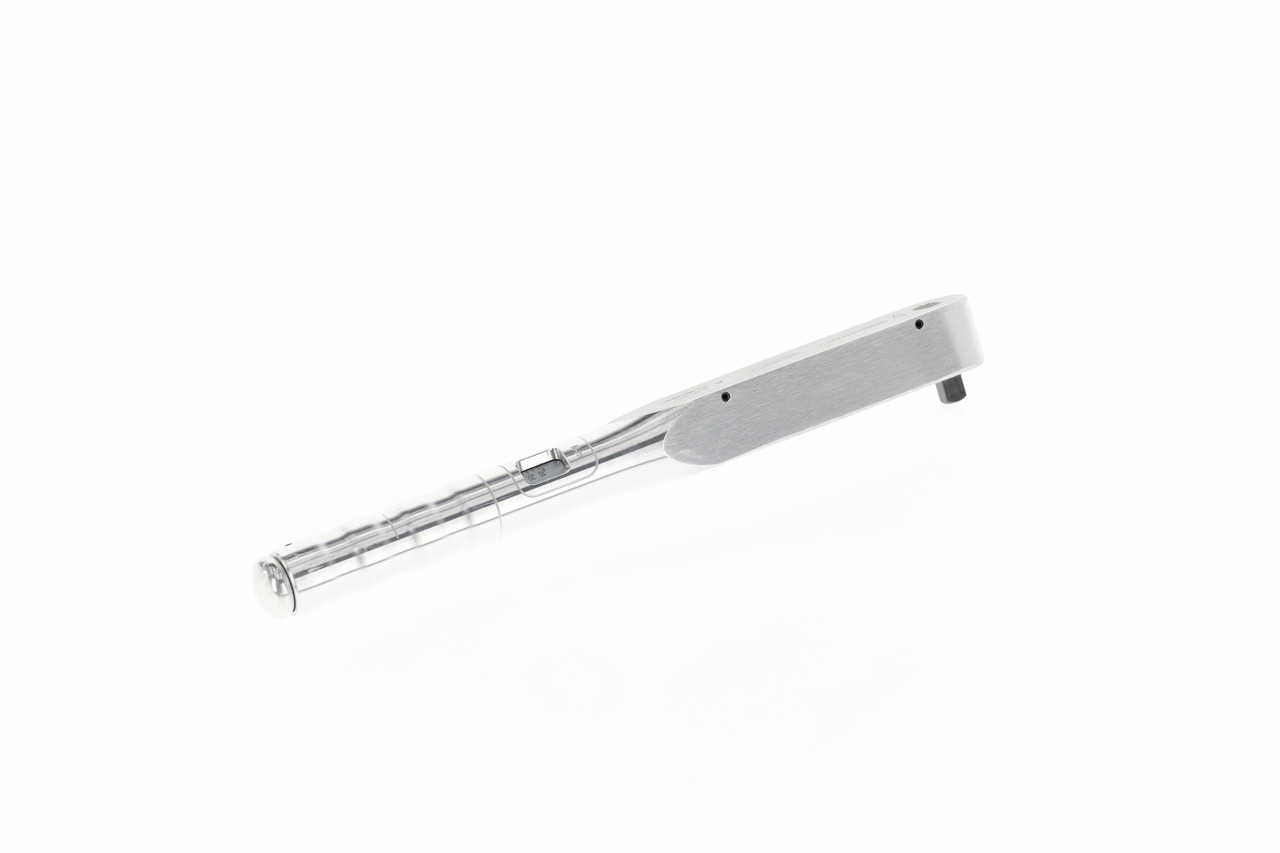

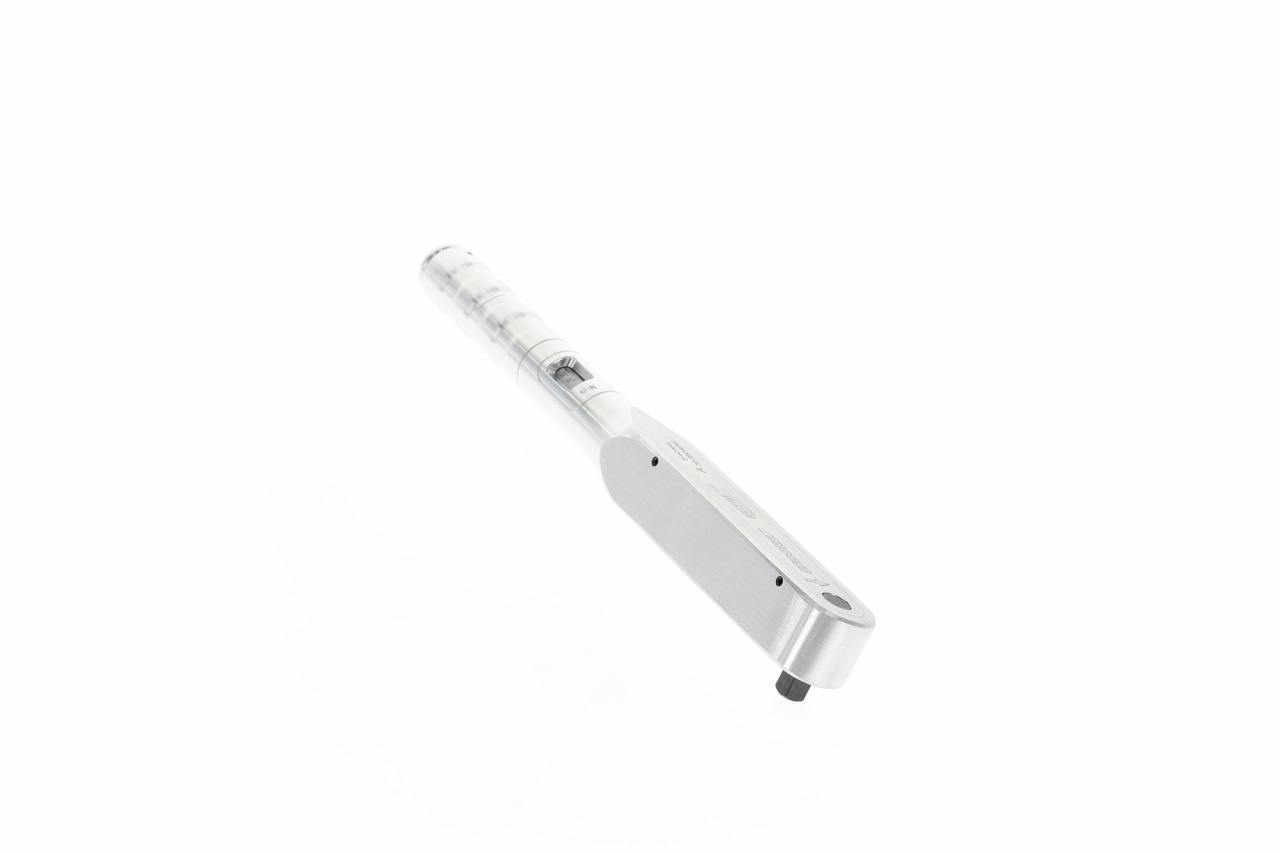

Torque wrench DREMOMETER A 3/8" 8-40 Nm

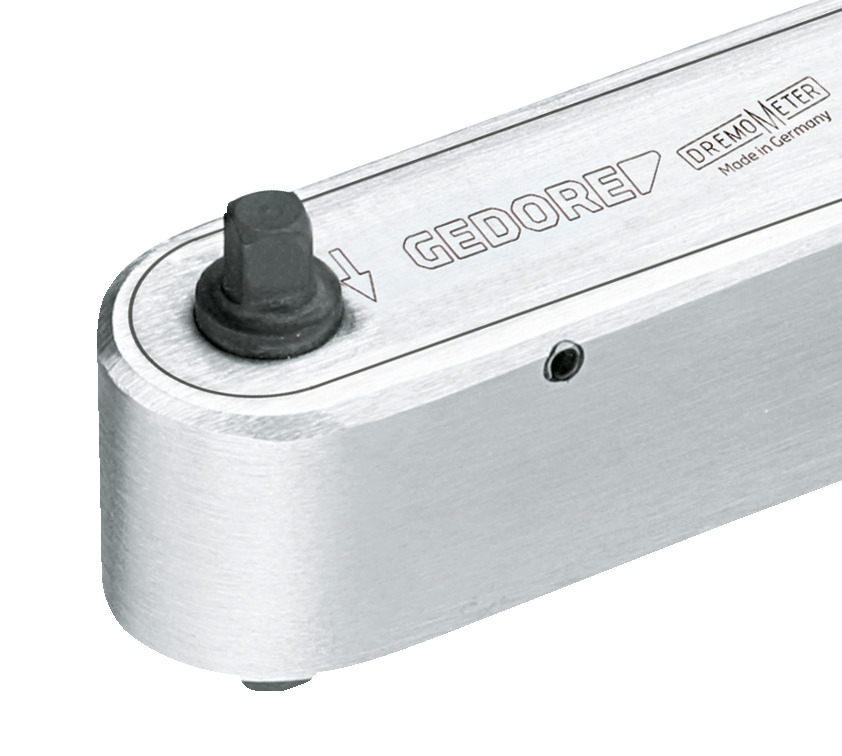

Use: Controlled screw tightening in the range of 8 - 40 Nm / 70 - 350 lbf·in, For use in almost all industrial manufacturing areas, Features: Classified according to DIN EN ISO 6789-2:2017 Type II Class A, incl. traceable test certificate, calibrated to a maximum permissible deviation of +/- 3 % and thus more precise than the +/- 4 % required by the standard, 3/8" square drive with pin-locking mechanism DIN 3120 - A 20, ISO 1174, Automatic short-path actuation with tactile impulse and audible signal, Dual scale with a scale graduation of 5 Nm and 50 lbf·in, Technical advantage/Function: Lightweight yet robust (as the housing is made of an aluminium alloy) and resilient, very workshop-friendly, No inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches), Both the square drive and fulcrum are on an axis which ensures a high degree of user safety; can be extended to reduce the user's working load., Extremely low wear attributable to reduced forces in a lever mechanism, Forged lever chain from our group own quality forge, Maximum precision even when subjected to extreme continuous use, Long life cycles and tool lives, Easy operation - fast and safe torque tightening, Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle, Single- and double-square drive for controlled bi-directional tightening

Features:

  • Country of origin: Germany
  • Customs tariff number: 82041100
  • Reach: compliant
  • Contents (Qty of pieces): 1
  • Total width: 35 mm
  • Total height: 43,5 mm
  • Net weight: 0,848 kg
  • 1000 V insulated: No
  • VDE certified: No
  • Total length: 338 mm
  • Material: Aluminum alloy
  • Width of head 1: 35,0 mm
  • Target groups: Automotive Electronics industry Precision mechanics Military Energy Mechanical engineering Workshop Service Agriculture Control cabinet construction
  • Head height 1: 30 mm
  • Standard: DIN 3120 - A 10 ISO 1174
  • Square drive: 3/8"
  • Range of application: Assembly Series assembly Production Maintenance and repair
  • Torque (max.): 40 Nm
  • Drive type/drive: Single square rigid
  • Torque (min.): 8 Nm
  • Distance housing - square drive: 17,5 mm
  • Scale type: dual
  • Precision +/-: +/- 3 %
  • Tightening direction: right
  • Fixed setting: No
  • Fuse output square drive: Ball safety device
  • Torque range (min./max.): 8 Nm - 40 Nm
  • Graduation: 50 lbf·in
  • Trigger mechanism: Short path triggering

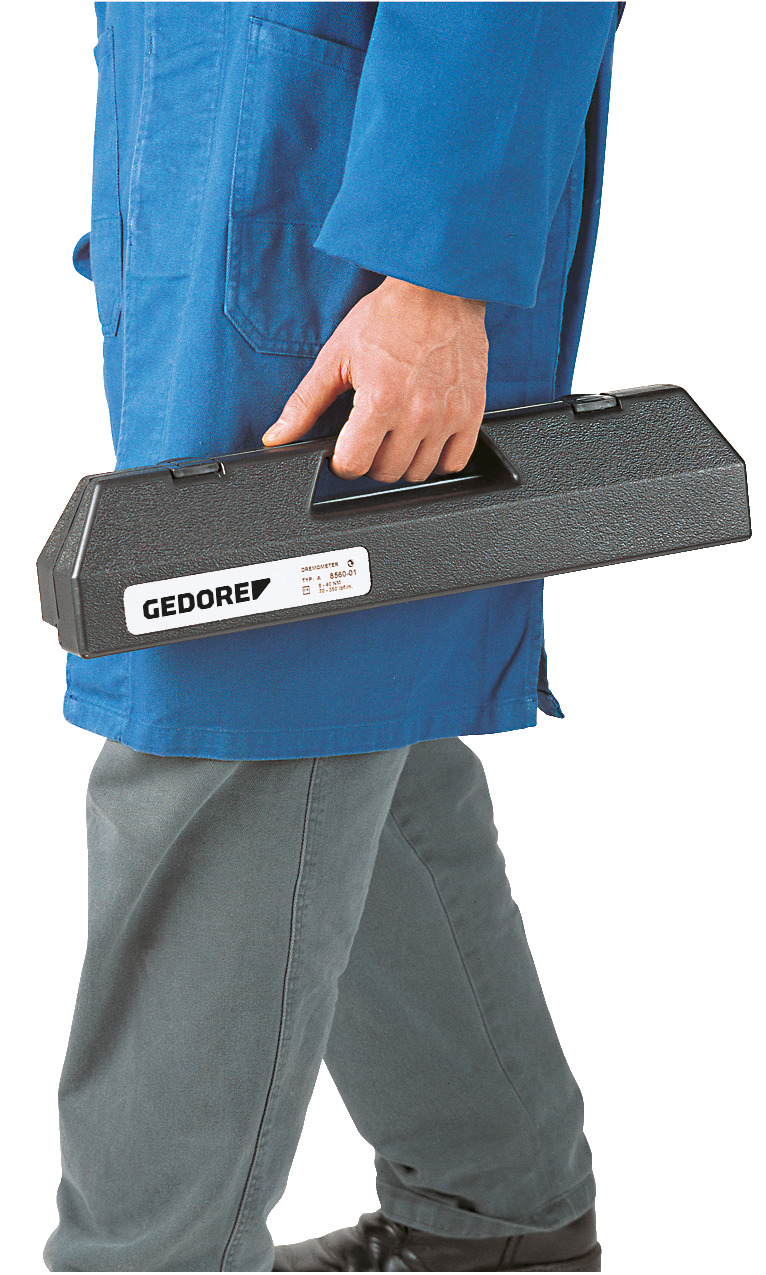

  • Storage/Content: Plastic Storage Box
  • Torque wrench type: A
  • Calibration length: 262 mm
