Puller
Ready for shipment in 6 workdays
- Item number:
- WS03608007400
- Manufacturer number:
- 1.17/2
- Weight:
- 12.67 kg

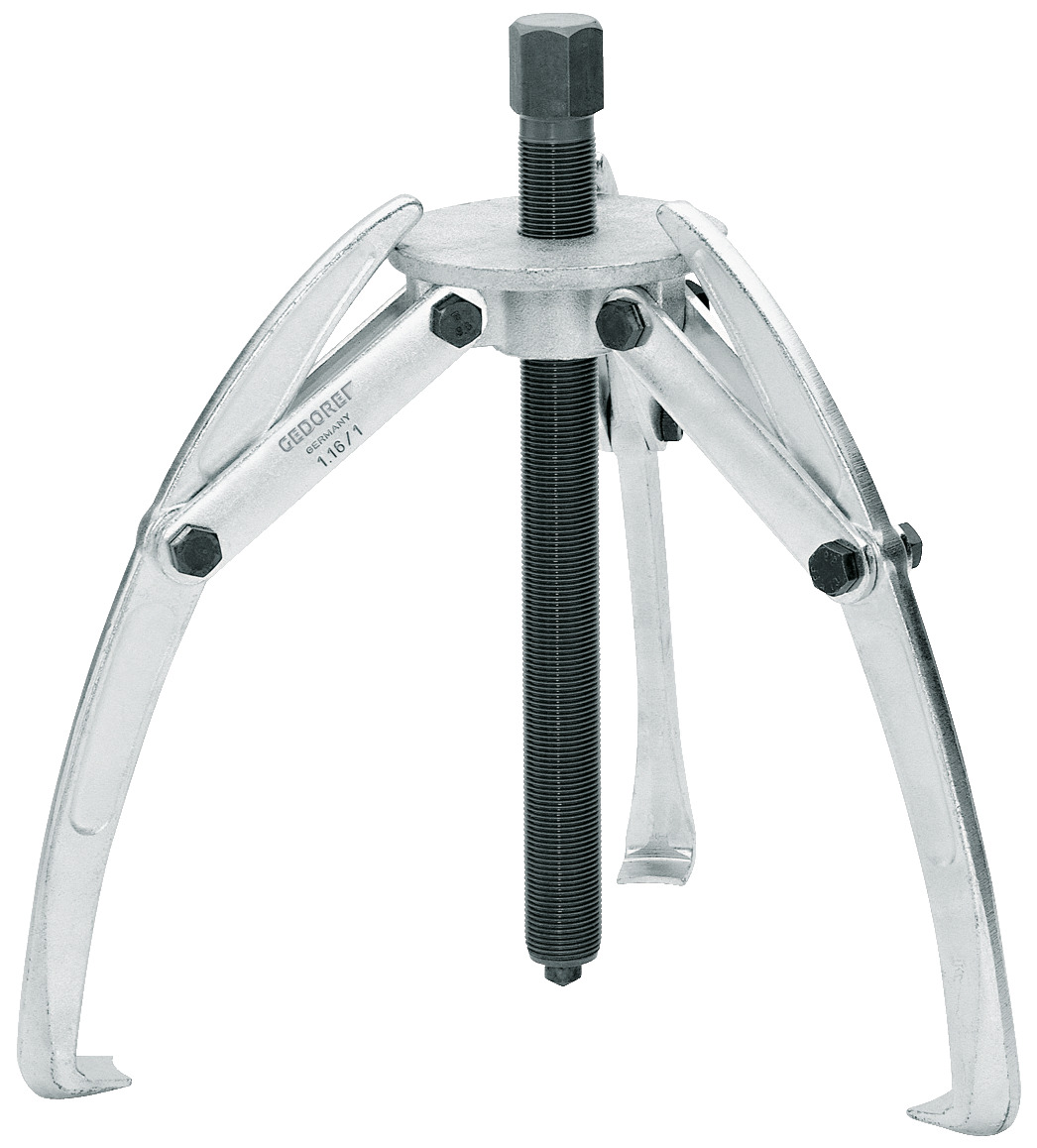

Puller
Very strong, Especially suitable for industry and for heavy agricultural and construction machinery, The legs grip automatically, Upgradeable with hydraulic spindle, Can be used as 2- and 3-arm puller
Features:
- Country of origin: Germany
- Customs tariff number: 82055980
- Reach: compliant
- Contents (Qty of pieces): 1
- Net weight: 12,7 kg
- 1000 V insulated: No
- VDE certified: No
- 3D data available: No
- Usable clamping reach: 420 mm
- Spindle thread size: G 1 x 500
- Width of hooked foot: 32 mm
- Usable depth of hooked foot: 22 mm
- Thickness of hooked foot at tip: 3,0 mm
- Width across flats [mm]: 36 mm
- Tractive force (max.): 12 t
- reversible arms available: No
- Clamping bracket available: No
- Number of arms: 3
- Hook brake available: No
- Hook can be moved parallel: No
- Quick release lever available: No
- Spindle anti-slip device: No
- Hydraulic spindle available: No
- Screws included: No
- Can be retrofitted with hydraulic spindle: Yes
- automatic pressing: Yes
- reversible hooks: No
- Clamping width (max.) external pulling: 450 mm
- Hydraulic spindle optional: 1.06/HSP3
