SPARE PARTS AND REPAIR PRODUCTS FOR WIND TURBINES

Pulling leg with quick-release clamp 150 mm

Ready for shipment in 6 workdays

Item number:
WS03602018756
Manufacturer number:
106/B-150-XSE
Weight:
0.63 kg

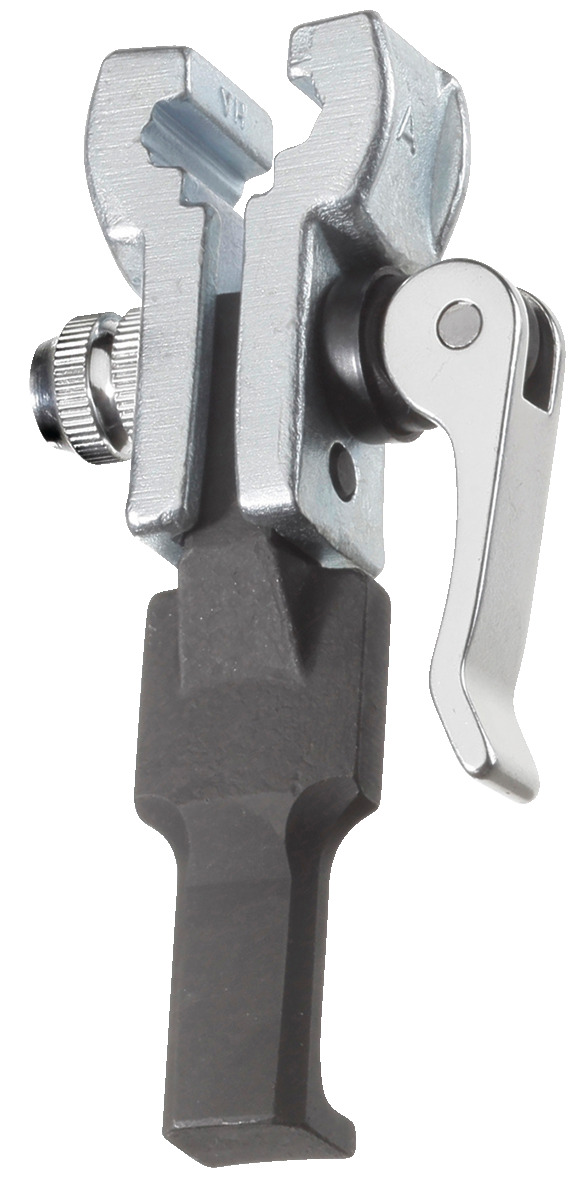

Pulling leg with quick-release clamp 150 mm

1 extra slim leg incl. clamping parts with quick-release adjustment, for fast and uncomplicated setting and adjustment, Particularly suitable for barely accessible places, e.g. gear maintenance

Features:

  • Country of origin: Germany
  • Customs tariff number: 82055980
  • Contents (Qty of pieces): 1
  • Net weight: 0,63 kg
  • 1000 V insulated: No
  • VDE certified: No

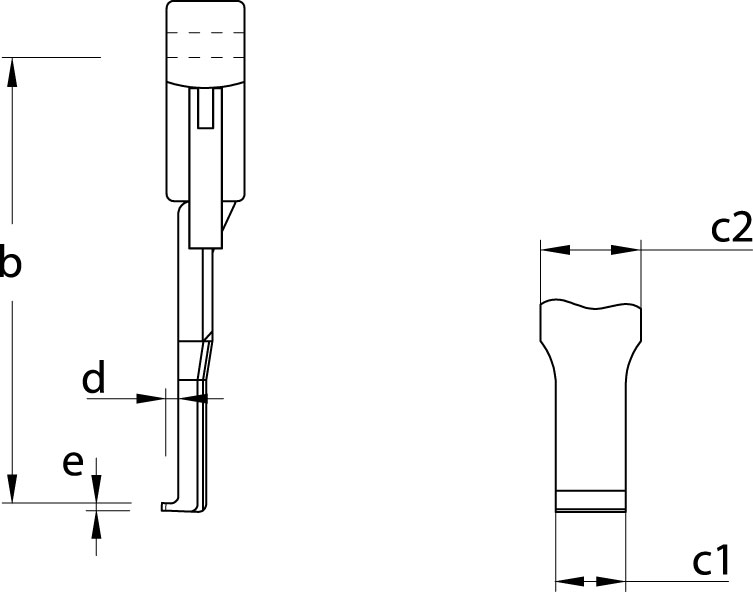

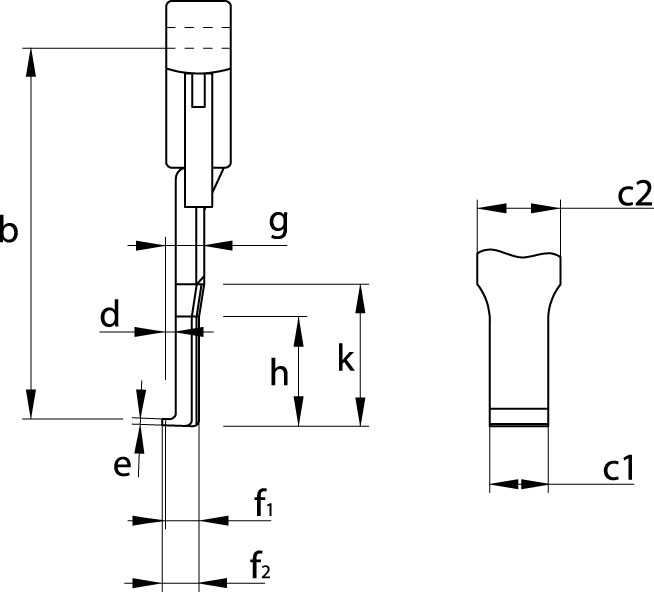

  • Usable clamping reach: 150 mm
  • Width of hooked foot: 17,5 mm
  • Thickness of hooked foot at tip: 3,5 mm
  • reversible arms available: No
  • Hook brake available: No
  • Quick release lever available: Yes
  • Spindle anti-slip device: No
  • Depth of hooked foot: 11 mm
  • Detachment hook type: Parallel pulling legs
