Set of 4 pulling legs 226 mm with spacers
Ready for shipment in 6 workdays
- Item number:
- WS03608012240
- Manufacturer number:
- 1.29/40
- Weight:
- 0.6 kg
Set of 4 pulling legs 226 mm with spacers
N/A
Features:
- Country of origin: Germany
- Customs tariff number: 82055980
- Contents (Qty of pieces): 4
- Net weight: 0,646 kg
- 1000 V insulated: No
- VDE certified: No
- Parts list (Text): 129/40 Abzughaken 1 St. 226mm mit 5 Abstandshalter

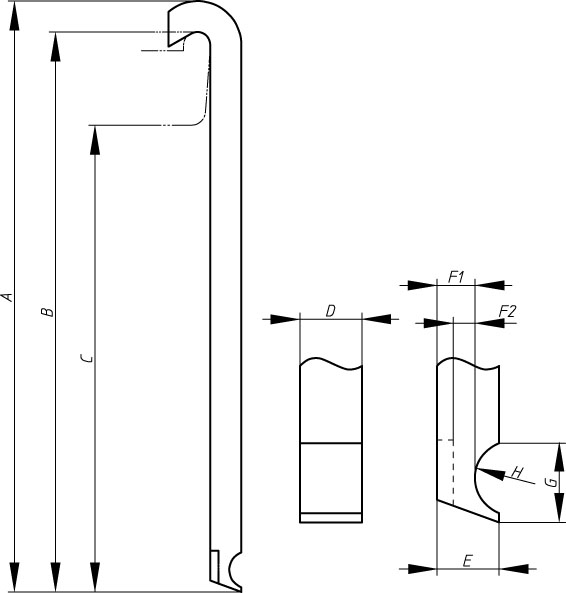

- Width of hooked foot: 11,3 mm
- Total length: 237 mm
- Depth of hooked foot: 10 mm
- Hook foot length upper edge of head: 227 mm
- Hook foot length Lower edge of head: 197, 199 mm
- Distance inner radius rear edge: 6,4 - 8,9 mm
- Distance inner radius of rear edge stepped: 6,4 mm
- Distance from top edge of radius to tip of hook foot: 13,1 mm
- Rounding Diameter: 6 mm
- for ball bearing No.: 6306 6307 6404 6208 6209 6210 6307
- for ball bearing extractor: 1.29/3 1.29/4
