Workbench with rear panel
Ready for shipment in 6 workdays
- Item number:
- WS03606624450
- Manufacturer number:
- BR 1504 0511 L
- Weight:
- 128 kg

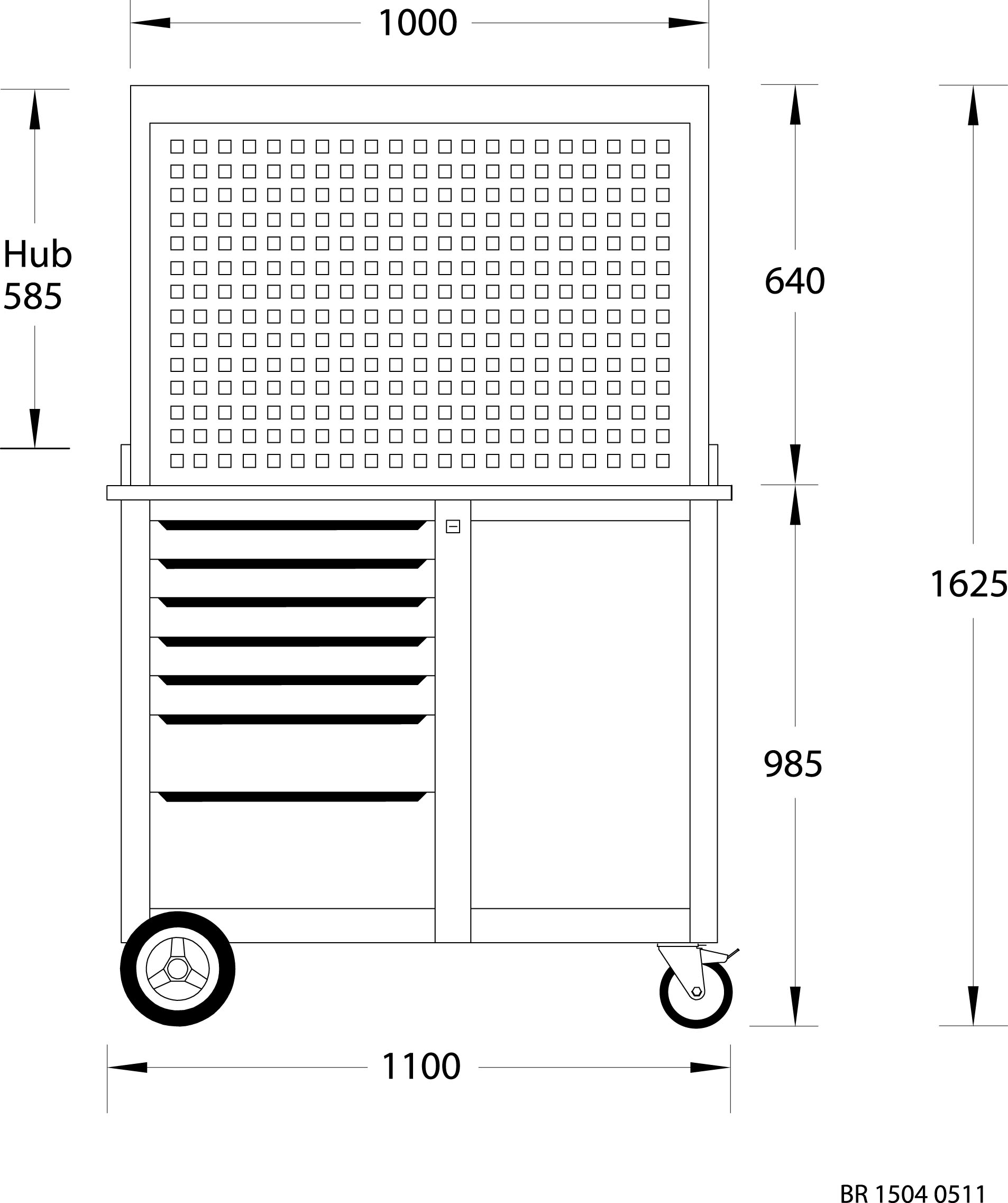

Sheet steel, corrosion resistant and scratch-proof powder-coated, GEDORE blue, Body: Dimensions: H 985 x B 1100 x D 550 mm, 30 mm thick multiplex beech wood worktop, surface additionally protected by linseed oil varnish, Large usable storage space with shelf and door, With rear panel, square perforation 10 x 38 mm to fix hooks and tools, with lowering mechanism, can be raised by 2 gas springs, Safety through heel protection for persons, Drawers: Central locking with cylinder lock, Wide drawers (W 480 x D 400 mm) fully extendable, removable, Each drawer with safety locking, single-hand operation, Ball-bearing guide rails, Can be individually equipped with lengthwise and crosswise dividers (can be ordered individually), Load capacity per drawer 40 kg, bottom heavy-duty drawer 60 kg, GEDORE high-performance chassis: Total load capacity 1000 kg, 750 kg when mobile, 2 roller-bearing GEDORE high-performance wheels (fixed castors Ø 200 mm), 2 ball-bearing mounted GEDORE smooth-running wheels (swivel castors Ø 125 mm), both with total brakes, The GEDORE trapezoidal axle construction secures smooth running, manoeuvrability and track-keeping also in case of maximum loads, The GEDORE trapezoidal axle construction secures smooth running, manoeuvrability and track-keeping also in case of maximum loads, 2 distance modules No. 1500 ED-70 K, 10 length- (LT) and 2 crosswise (QT) dividers from zinc-plated sheet steel, Options: Can be equipped with GEDORE tool modules (1500 ES/1500 CT), Rear panel R 1504 XL-L can be added, Further drawer combinations on request, Delivery without tools and accessories
Features:
- Country of origin: Germany
- Customs tariff number: 94032080
- Reach: compliant
- Contents (Qty of pieces): 1
- Total width: 1.100 mm
- Total height: 1.625 mm
- Total depth: 665 mm
- Net weight: 128 kg
- 1000 V insulated: No
- VDE certified: No
- Material: Sheet steel
- Version: Mobile workbench with rear panel
- Surface: powder-coated
- Colour: GEDORE blue
- Dimension (L x W x H): 1.625 mm x 1.100 mm
- Thickness (e.g. workplate): 30 mm
- Drawer type: 5x Type 1, H = 67 mm 1x Type 2, H = 137 mm 1x Type 3, H = 207 mm
- Number of crosswise dividers: 2
- Number of lengthwise dividers: 3
- Number of drawers: 7
- Load capacity: 500 kg
- Single pull-out stop: No
- Lockable: Yes
- Number of wheels: 4
- Static load carrying capacity: 700 kg
- Load capacity per drawer: 40 kg
- Load capacity heavy duty drawer: 60 kg
- Fixed roller diameter (2x): 200 mm
- Swivel castor diameter with brakes (2x): 125 mm
- Number of cabinets: 1
