VDE Electricians' side cutter
Ready for shipment in 6 workdays
- Item number:
- WS03601742582
- Manufacturer number:
- VDE 8315-160 H
- Weight:
- 0.231 kg

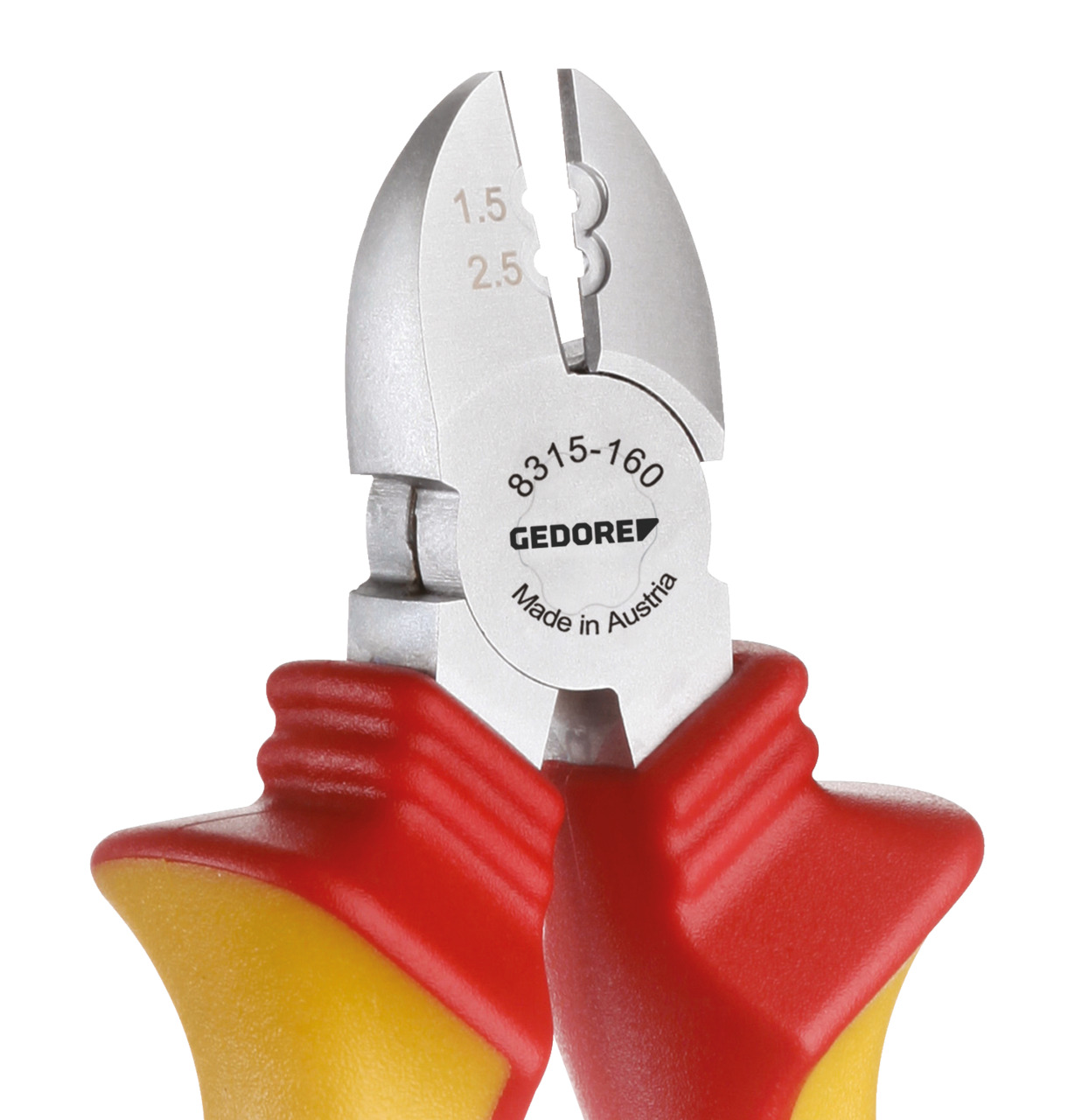

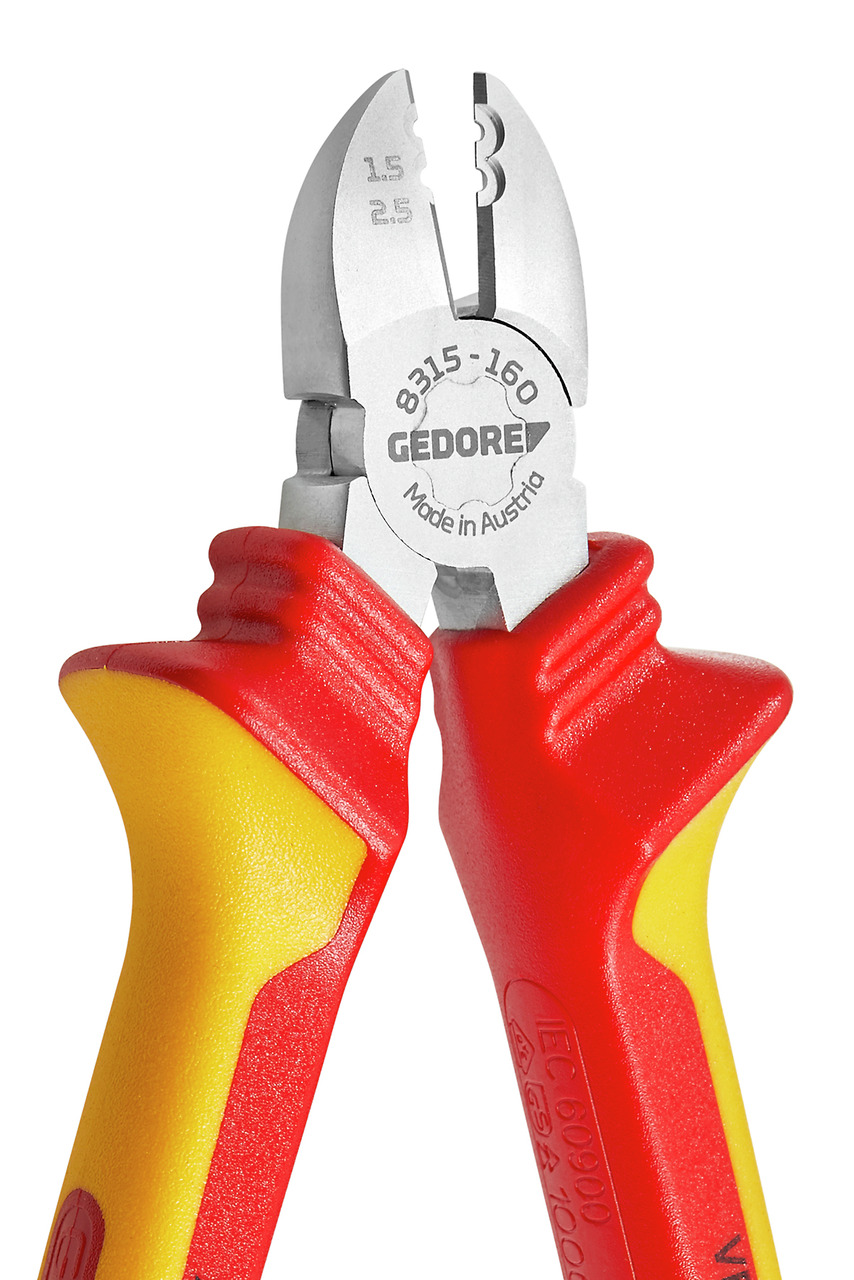

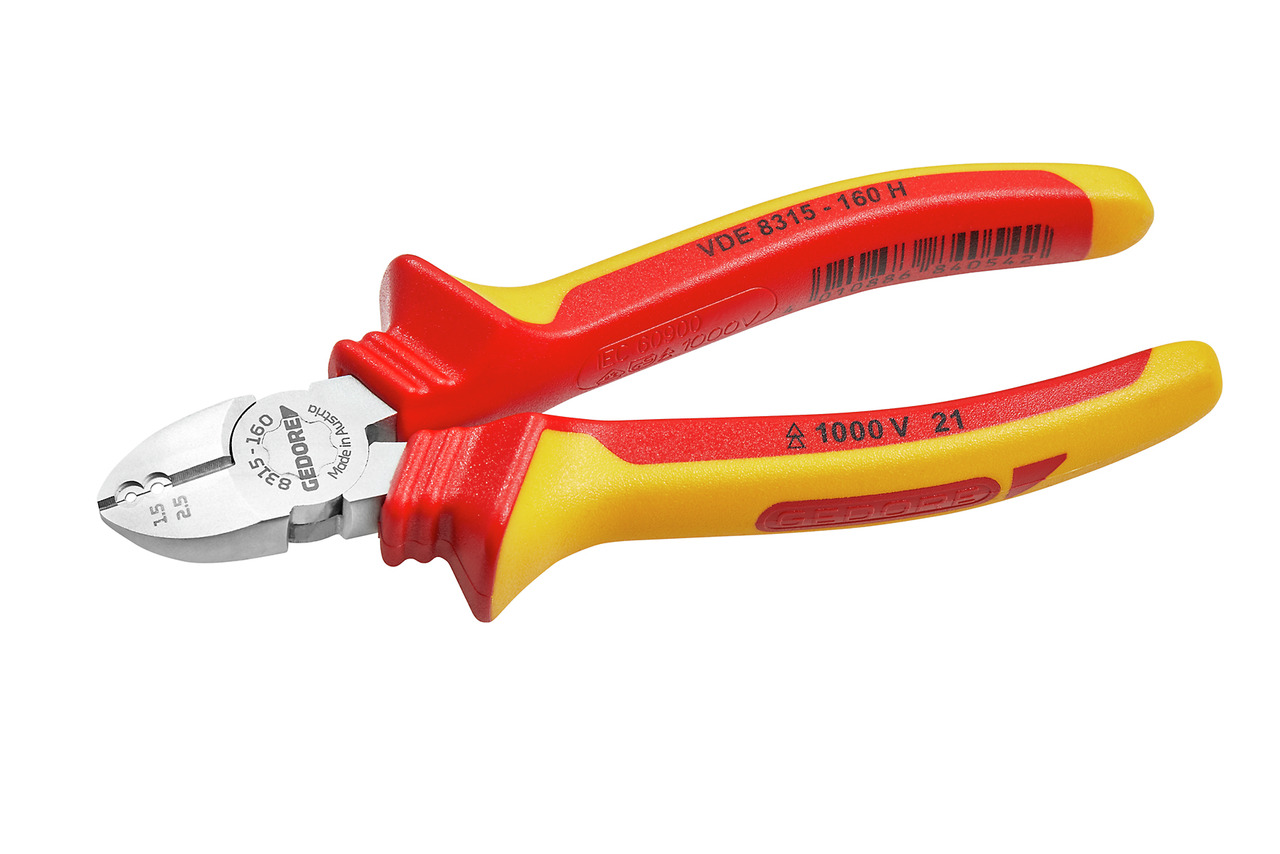

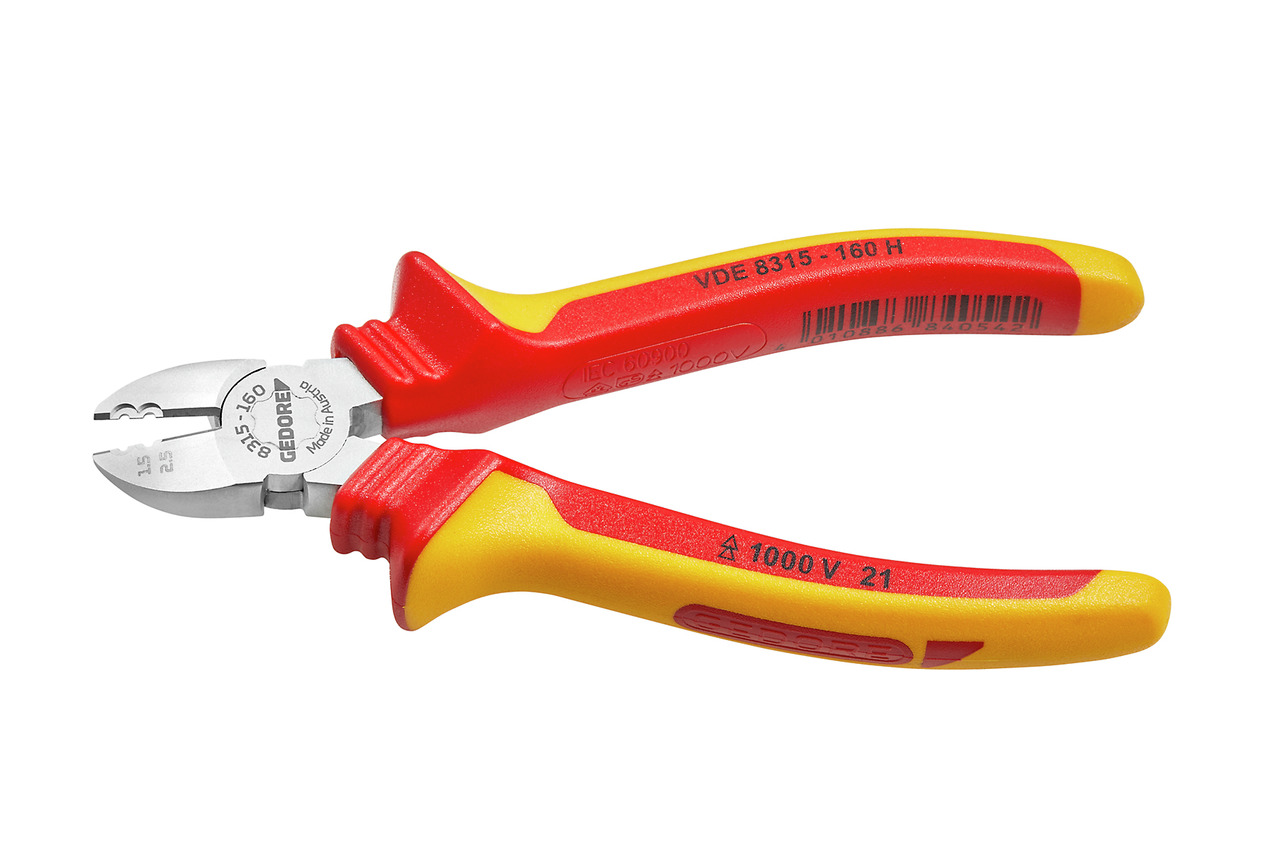

VDE Electricians' side cutter
Double-function electricians’ side cutters: for cutting and stripping wire, Stripping holes for solid and stranded conductors with 1.5 mm² and 2.5 mm² conductor cross-section, Induction-hardened precision cutting edges, hardness 61 - 63 HRC, GEDORE special hardened and tempered steel, drop-forged, oil-hardened and annealed, Handles with VDE insulating sleeves up to 1000 V, acc. to EN 60900/IEC 60900
Features:
- Country of origin: Austria
- Customs tariff number: 82032000
- Reach: compliant
- Contents (Qty of pieces): 1
- Net weight: 0,231 kg
- 1000 V insulated: Yes
- VDE certified: Yes
- Total length: 160 mm
- Material: Heat-treated steel

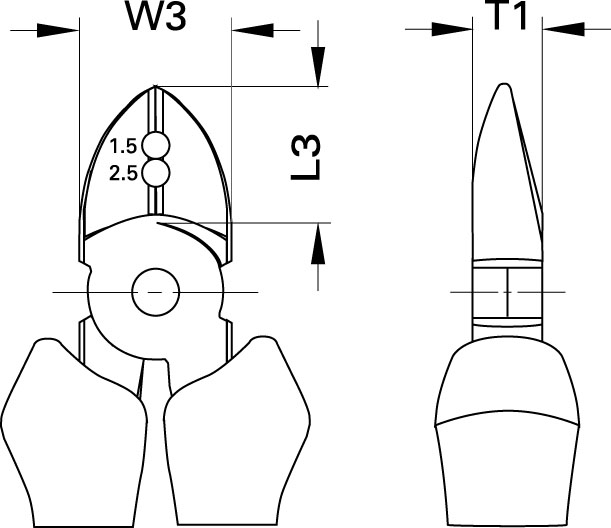

- Width of head 1: 22,0 mm
- Surface: chrome-plated
- Head height 1: 19 mm
- Standard: EN 60900/IEC60900
- Handle design: 2-component grips VDE insulated up to 1000 V
- Cutting edge length: 19 mm
- Wire/cable diameter: 1,5 und 2,5 mm²
- Cutting values: Hard wire: 1.6 mm / 14 AWG Medium hard wire: 3 mm / 9 AWG Soft wire: 5 mm / 4 AWG Cu cable, multi wire cross section: 3x2.5 mm² Multi-wire cable Ø: 10 mm
- Design non-sparking: No
- Opening spring present: No
- Blade shape: with facet
- Head thickness: 10,0 mm
- ESD Yes/No: No
- Hardening process: Induction hardened
- Bevel: with
