Double clutch basic tool

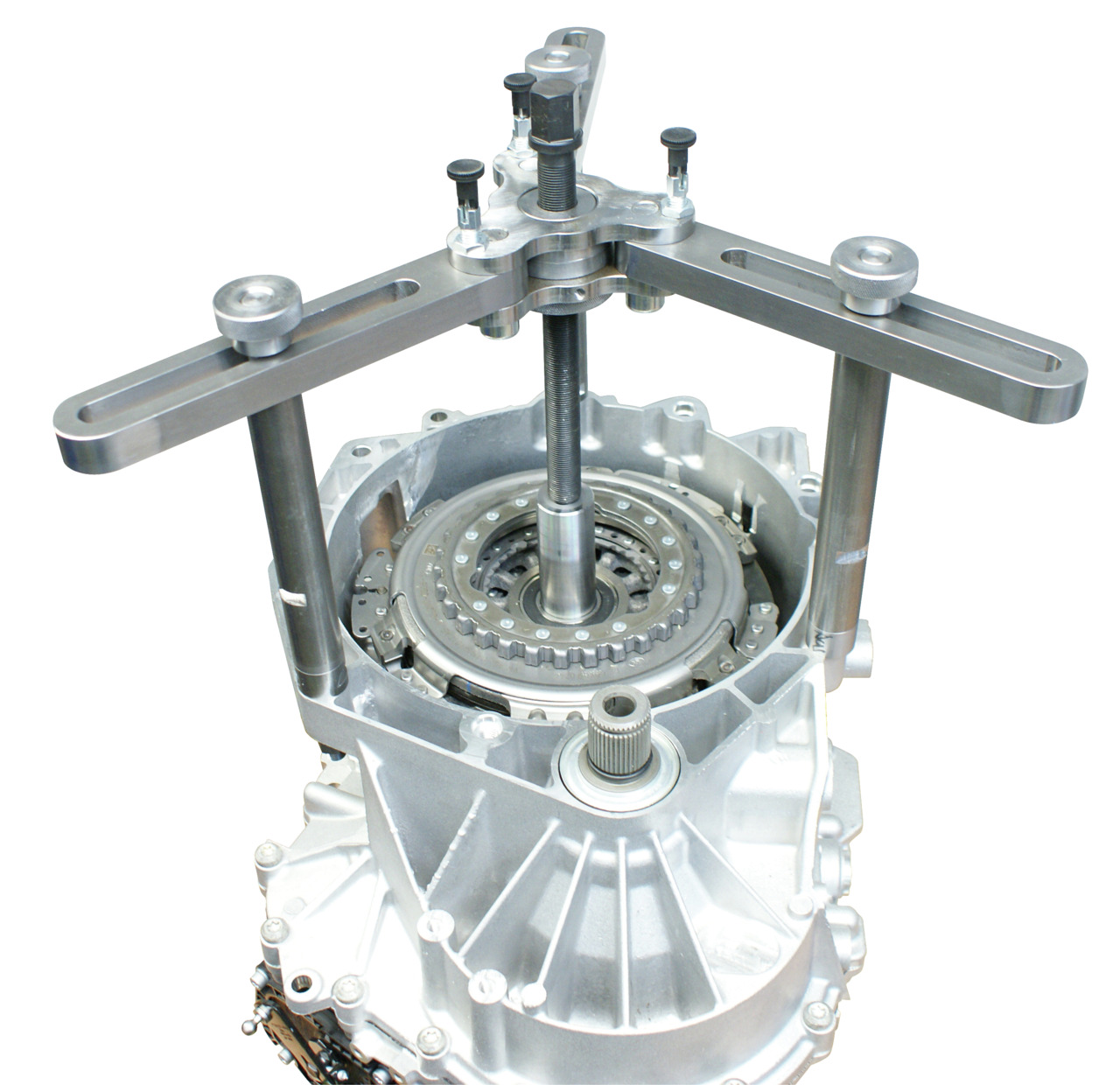

For a professional maintenance on double clutch systems, special tools are absolutely required, in order to avoid costly damage in advance., The double clutch base tool set KL-0500-80 KA enables a professional maintenance of all currently available LuK* double clutch systems (dry clutch version), when used in combination with the vehicle-specific supplementary kits., The modular and future-oriented construction of the double clutch basic tool kit KL-0500-80 KA can be also extended for future double clutch systems due to the vehicle-specific supplementary kits., *LuK, an enterprise of the Schaeffler Group, is an internationally famous automotive supplier for clutch and gearbox systems, converters and dampers.

Features:

• Country of origin: Germany
• Customs tariff number: 82055980
• Contents (Qty of pieces): 21
• Total width: 494 mm
• Total height: 156 mm
• Total depth: 402 mm
• Net weight: 8,7 kg
• 1000 V insulated: No
• VDE certified: No

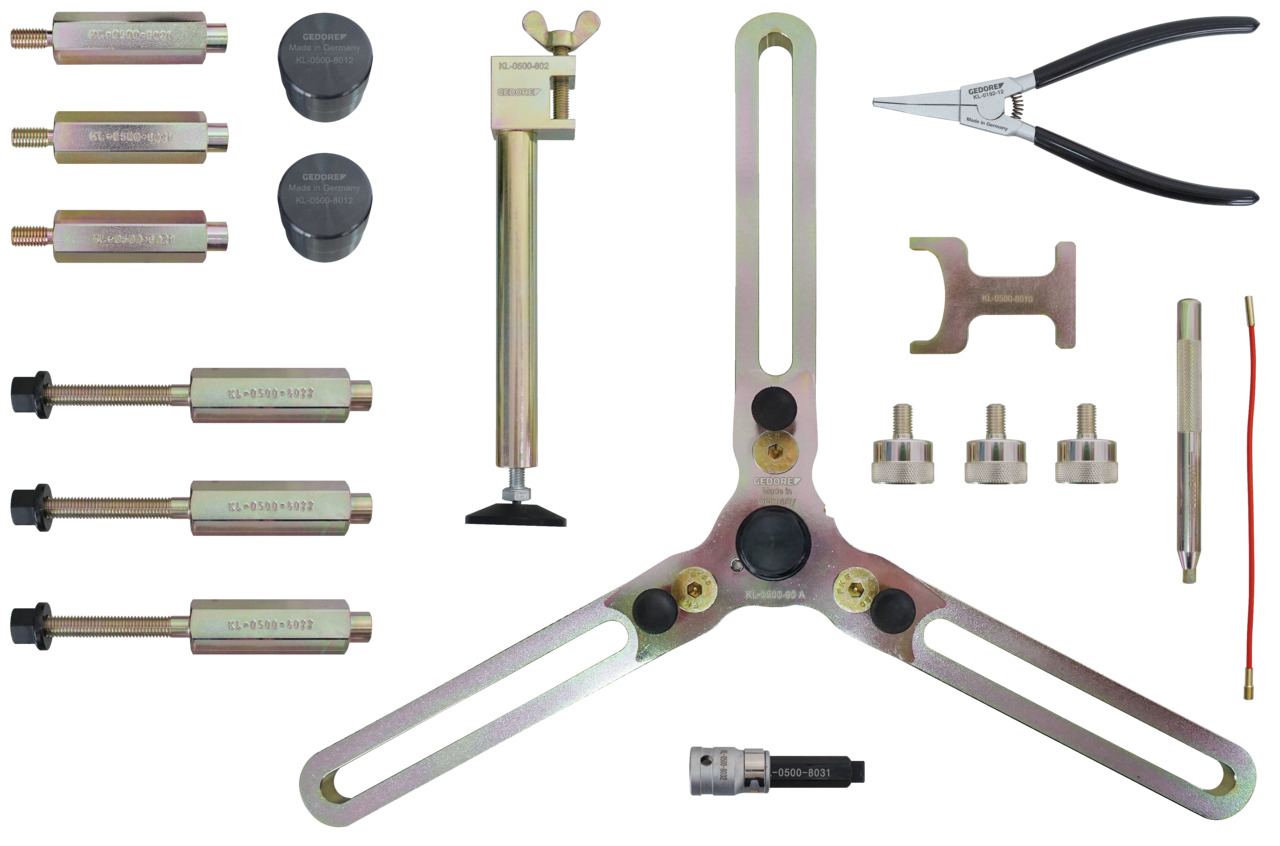

• Parts list (Text):

  1x KL-0500-601 A - Grundgerät

  1x KL-0500-802 - Getriebeabstützung mit Höhenverstellung

  3x KL-0350-0009 - SK-Bundmutter M10

  3x KL-0500-6020 - Rändelschraube

  3x KL-0500-6021 - Gewindebolzen M10, 100 mm lang

  3x KL-0500-6022 - Gewindebolzen M10, 160 mm lang

  1x KL-0500-8010 - Schlüssel SW47

  1x KL-0500-8011 - 7-kant Schlüssel

  2x KL-0500-8012 - Verschlußstopfen Ausgleich-Getriebe

  1x KL-0500-803 - ZMS-Rückstellwerkzeug

  1x KL-0126-221 - Magnetheber flexibel

  1x KL-0192-12 - Sicherungsringzange abgewinkelt

  1x KL-0500-8090 A LUK - Kunststoffkoffer

• OEM: 400 0418 10
• Target groups: Automotive
• Suitable for: Universally compatible, in combination with vehicle-specific supplement sets, for VW-Audi, Seat, Škoda, Renault, and Ford cars with dry dual-clutch systems, such as the 1st generation 0AM (up to 5/2011), 2nd generation 0AM (from 6/2011) for VW-Audi; Renault DC4 and Ford DPS6, etc.
• Required accessories: KL-0500-81 KA - Double clutch supplement for VW-Audi KL-0500-82 KA - Double clutch supplement for Renault KL-0500-83 KA - Double clutch supplement for Ford
• Storage: in a case
