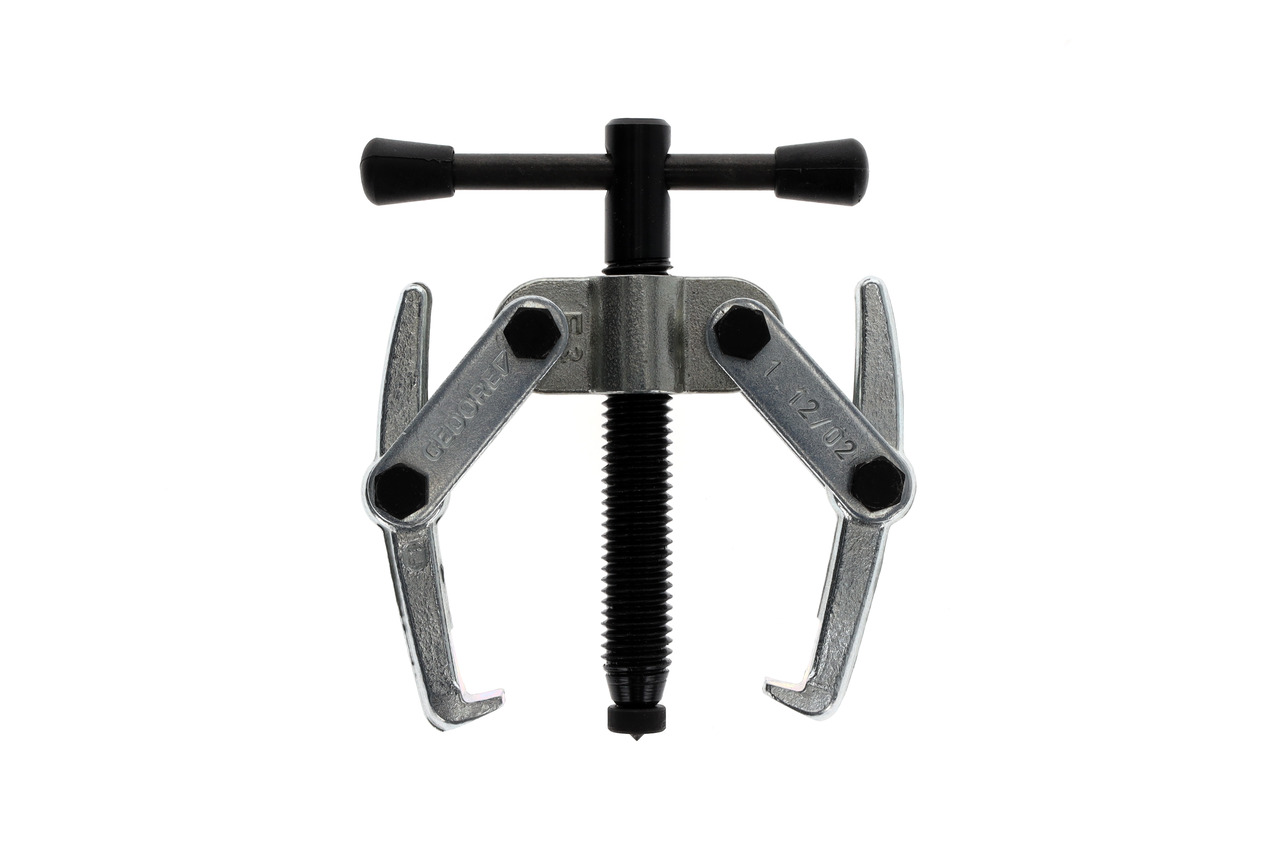

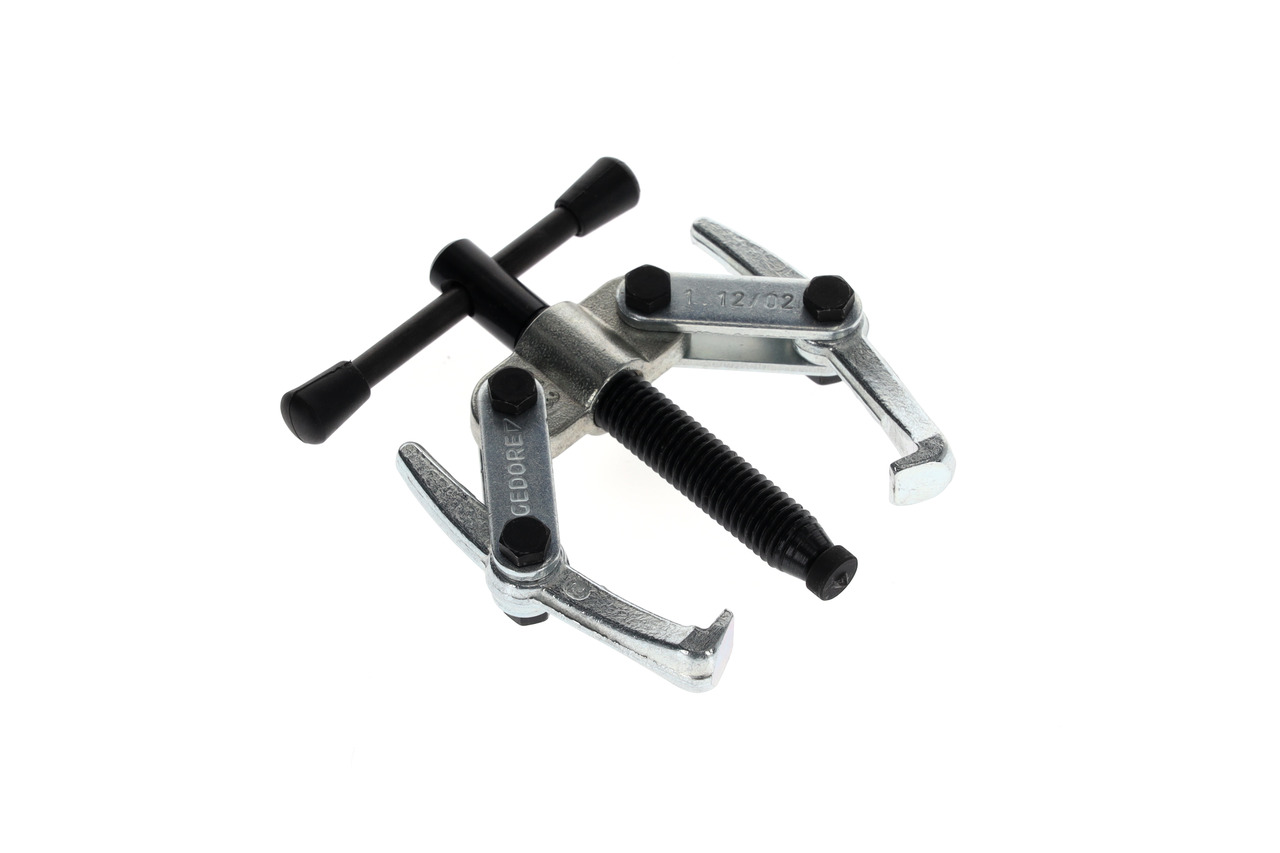

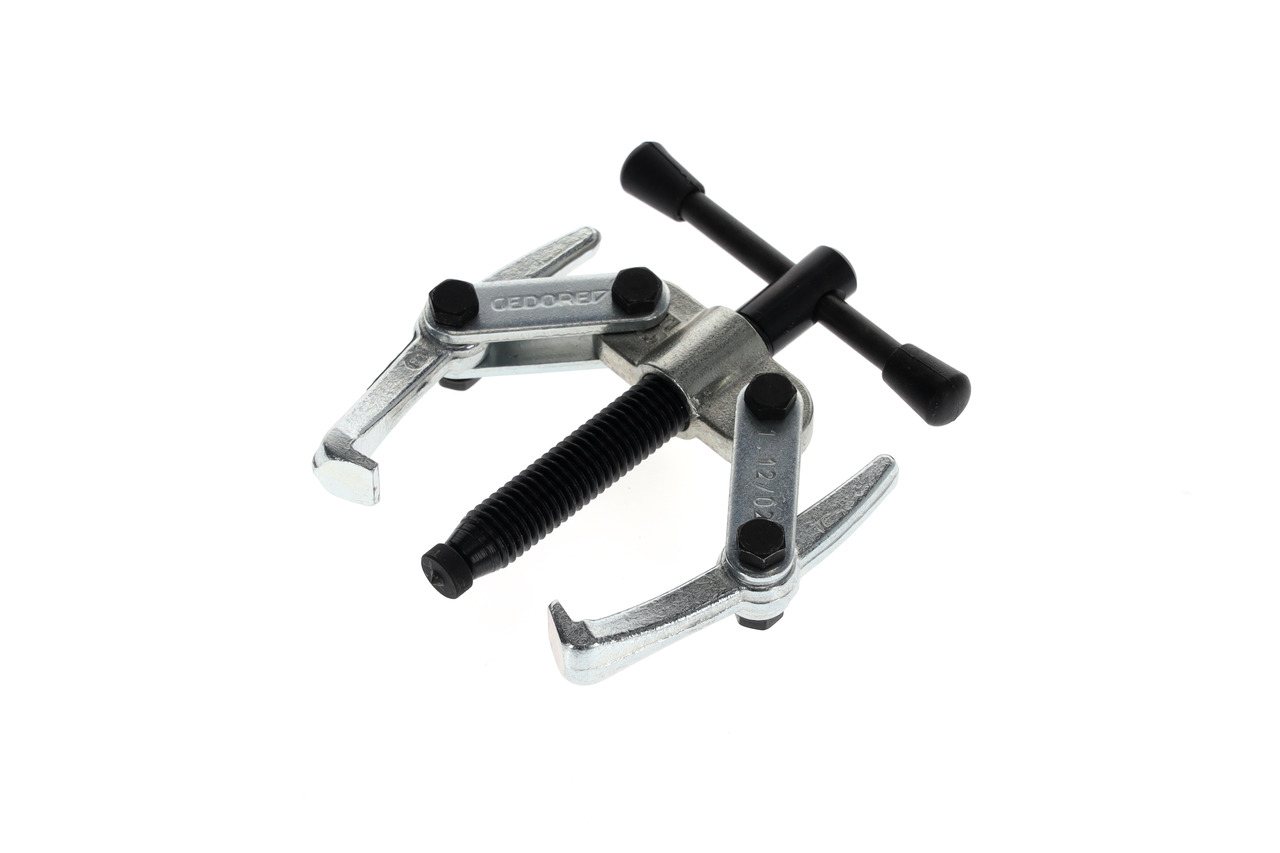

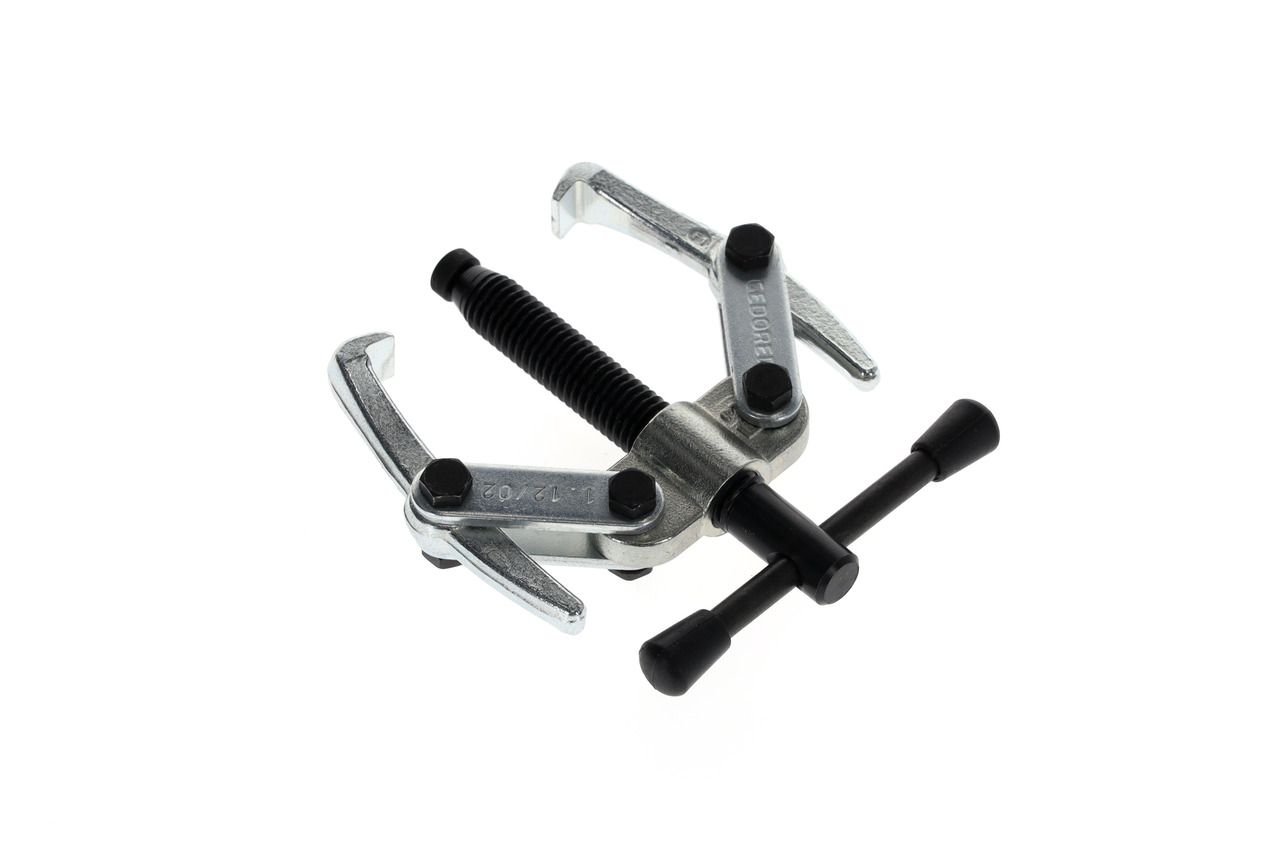

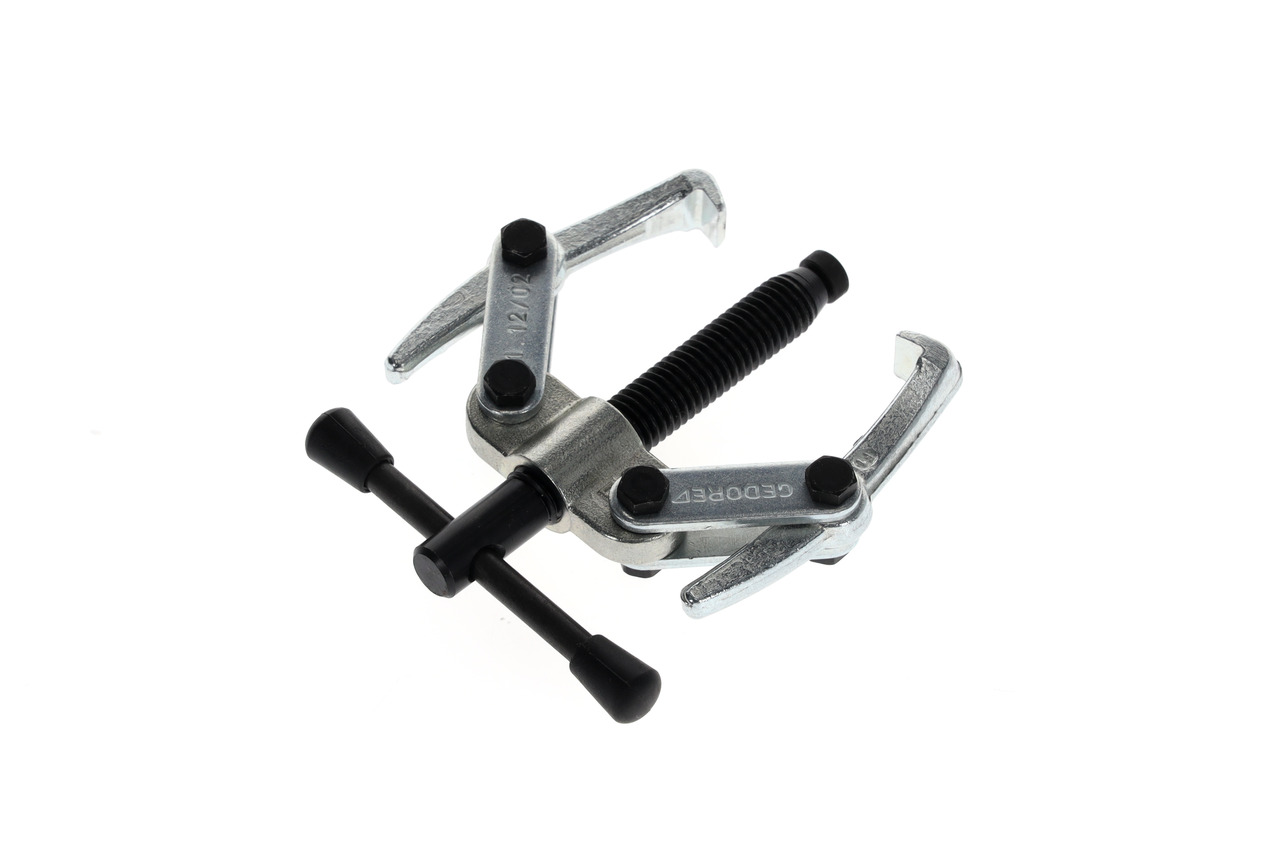

Battery-terminal puller, 2-arm pattern
Ready for shipment in 6 workdays
- Item number:
- WS03608003840
- Manufacturer number:
- 1.12/02
- Weight:
- 0.16 kg
Battery-terminal puller, 2-arm pattern
Ideal for removing small parts such as battery terminals, pulleys, wheels, ball bearings, etc., The legs grip automatically
Features:
- Country of origin: Germany
- Customs tariff number: 82055980
- Reach: compliant
- Contents (Qty of pieces): 1
- Total width: 69 mm
- Total height: 19 mm
- Net weight: 0,16 kg
- 1000 V insulated: No
- VDE certified: No
- 3D data available: No

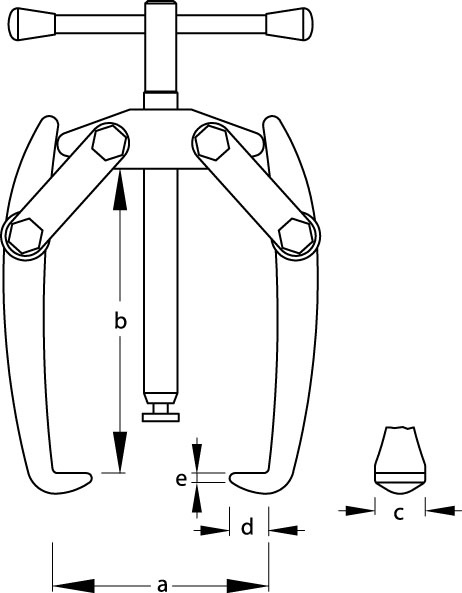

- Usable clamping reach: 40 mm
- Spindle thread size: M 10x1,5 x 60
- Width of hooked foot: 10 mm
- Usable depth of hooked foot: 5 mm
- Thickness of hooked foot at tip: 2,0 mm
- Tractive force (max.): 0.5 t
- reversible arms available: No
- Clamping bracket available: No
- Number of arms: 2
- Hook brake available: No
- Spindle anti-slip device: No
- Hydraulic spindle available: No
- Screws included: No
- Can be retrofitted with hydraulic spindle: No
- automatic pressing: Yes
- reversible hooks: No
- Clamping width (max.) external pulling: 60 mm
- Total length: 90 mm
