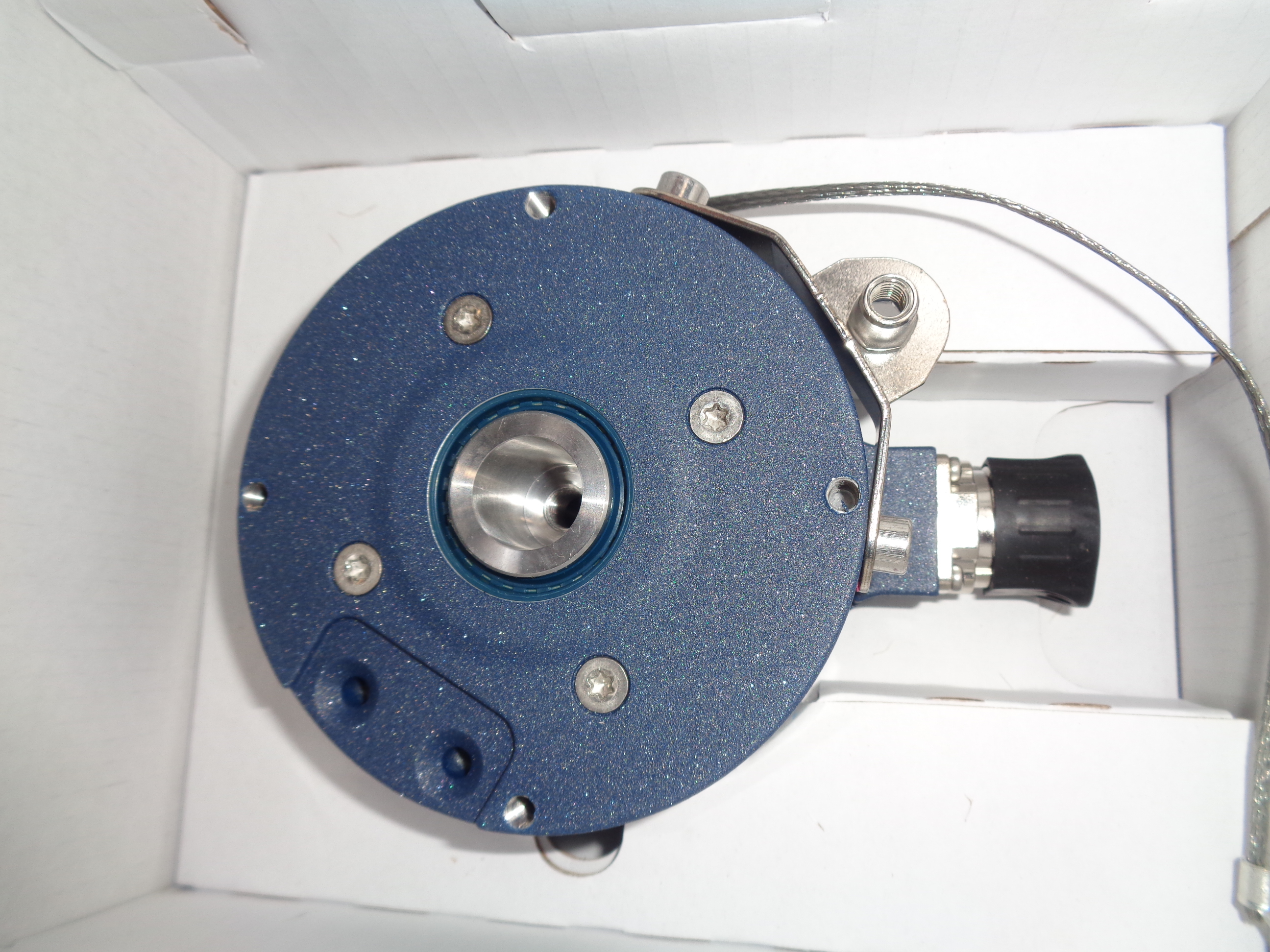

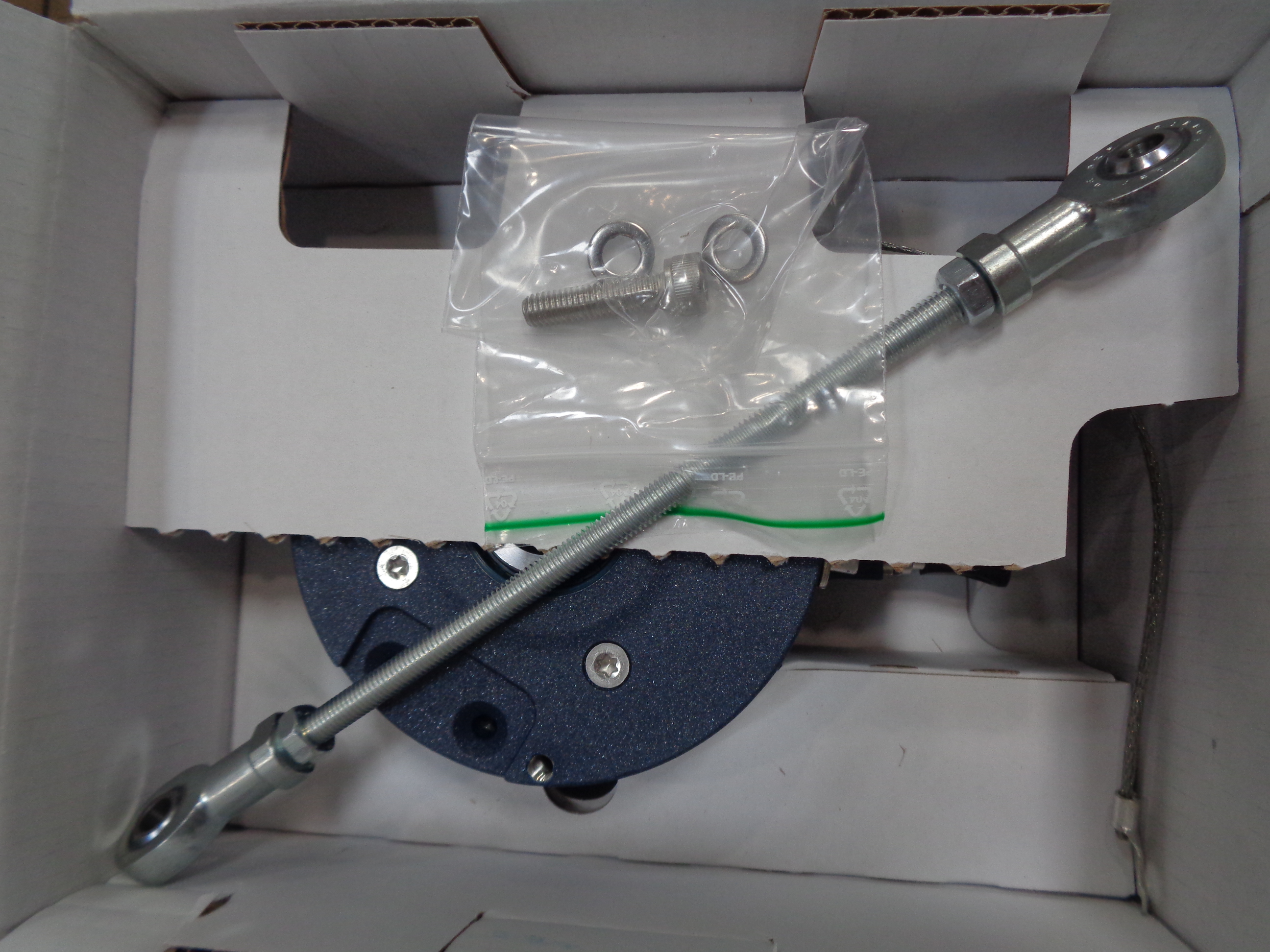

Encoder DASAA 5023-4UL (WA 215 4326) SR: 2.349.286 MAT: 14176
Encoder DASAA 5023-4UL (WA 215 4326) SR: 2.349.286 MAT: 14176
Ready for shipment in 70 workdays
- Item number:
- WS3603218
- Weight:
- 3 kg
Encoder DASAA 5023-4UL (WA 215 4326) SR: 2.349.286 MAT: 14176
Code key 862209126
Type XHI
Model 862 Extra Robust
Shaft type Ø17 mm taper hollow shaft
Flange type 86-flange
Resolution 2048 ppr
Power supply 9-30 Vdc
Output signal High Current HTL (HCHTL)
Connection type M23 connector 12-pin
Connecting direction Radial
Pin layout CW
Number of channels 6 (S00, S00\, S90, S90\, Sref, Sref\)
Overvoltage protection With overvoltage protection
Torque bracket 330° orientation
Type XHI
Model 862 Extra Robust
Shaft type Ø17 mm taper hollow shaft
Flange type 86-flange
Resolution 2048 ppr
Power supply 9-30 Vdc
Output signal High Current HTL (HCHTL)
Connection type M23 connector 12-pin
Connecting direction Radial
Pin layout CW
Number of channels 6 (S00, S00\, S90, S90\, Sref, Sref\)
Overvoltage protection With overvoltage protection
Torque bracket 330° orientation
