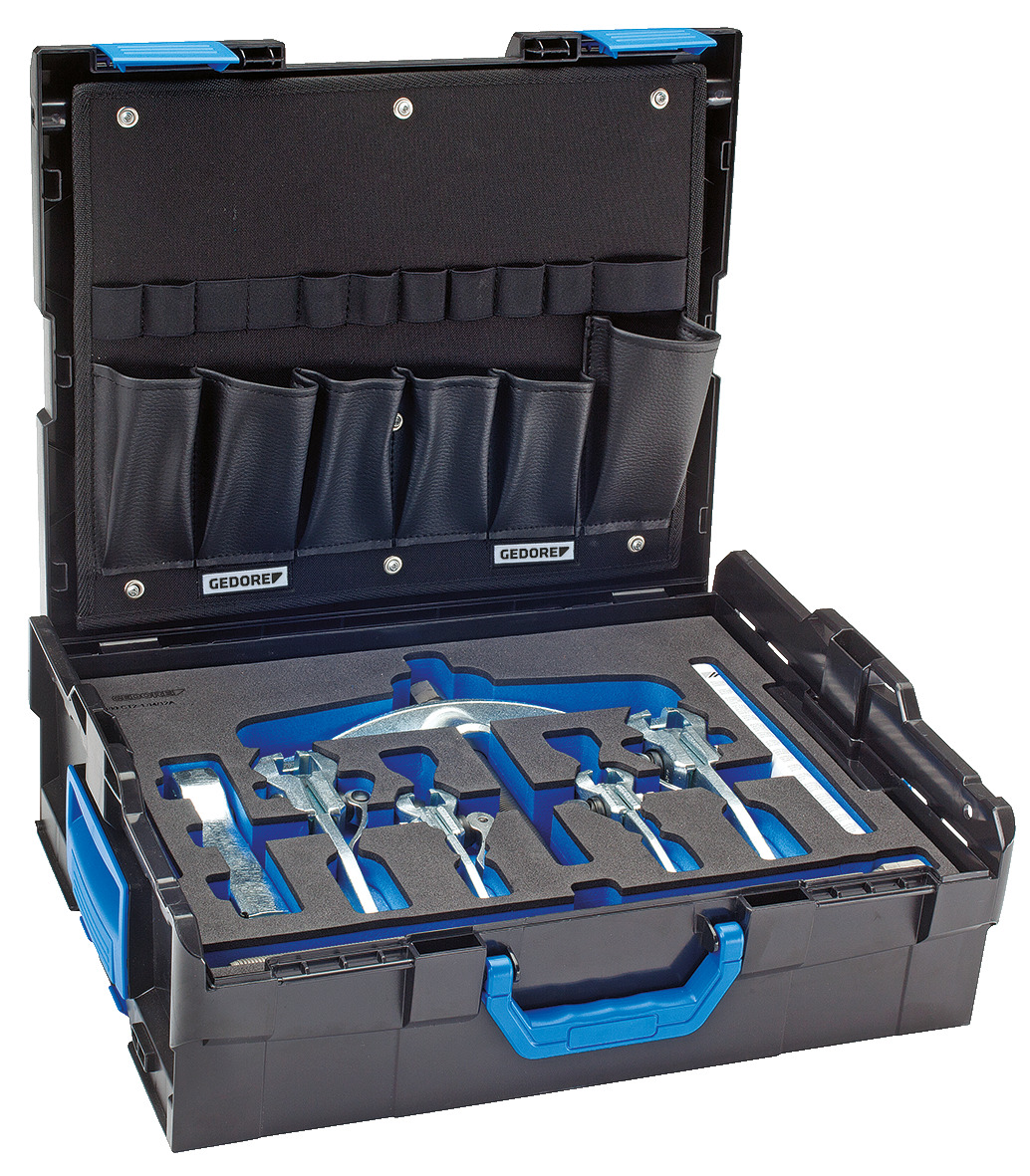

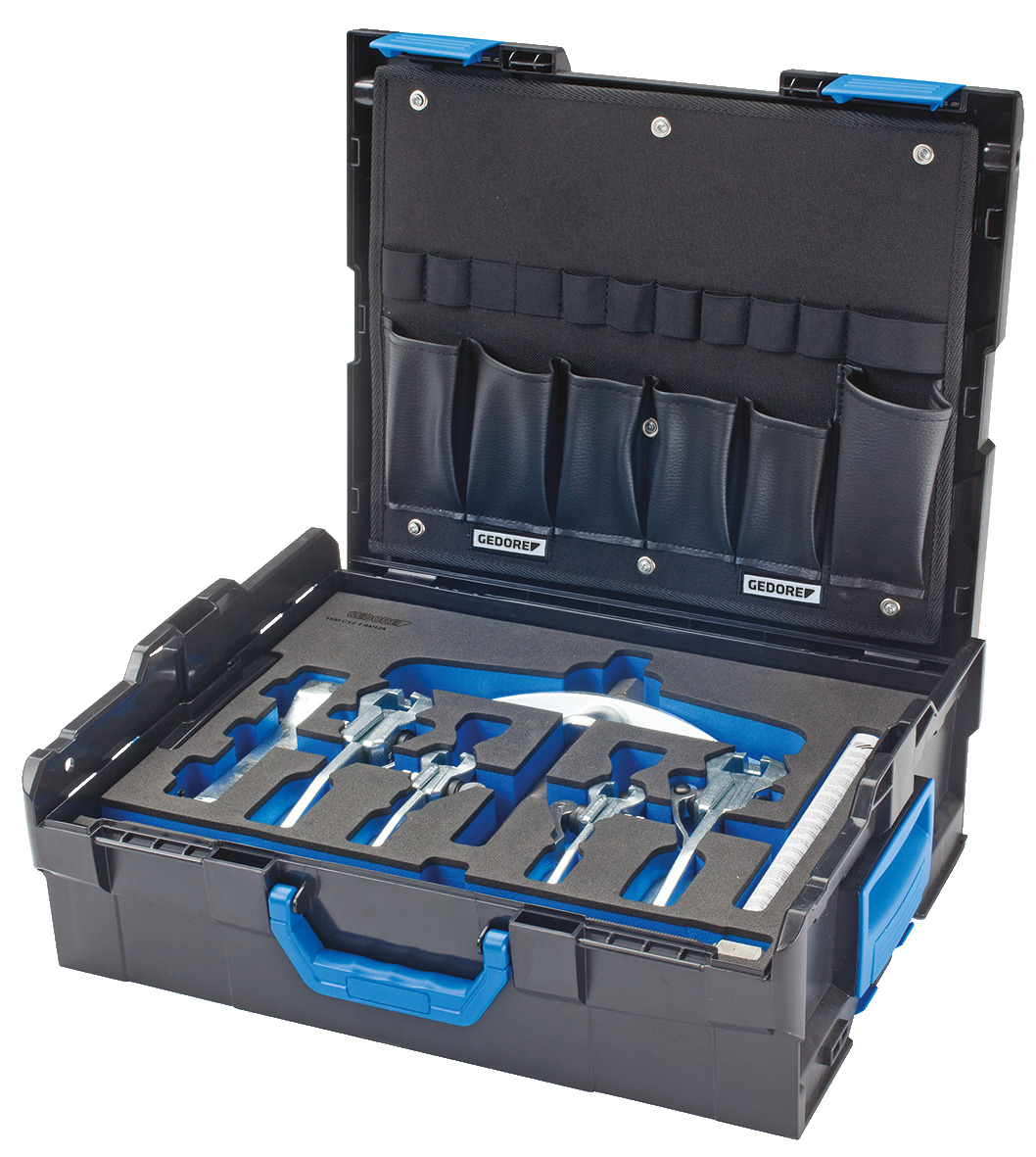

Universal puller set in L-BOXX 136
Ready for shipment in 6 workdays
- Item number:
- WS03602927241
- Manufacturer number:
- 1100-1.04/12A
- Weight:
- 9.6 kg
Universal puller set in L-BOXX 136

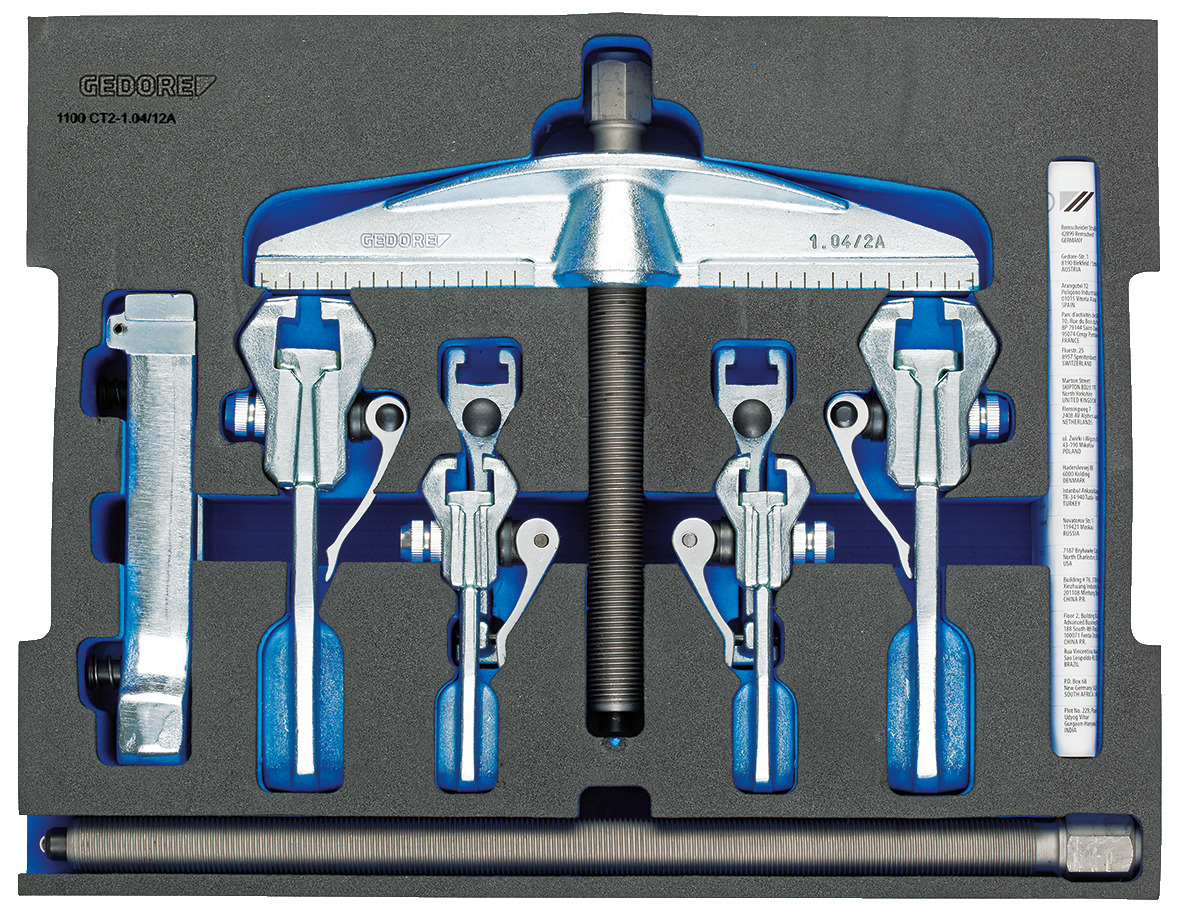

Max. capacity 3 and 5 t, For clamping depths up to Ø 200 mm external, Ø 70-260 mm internal, and clamping reach up to 300 mm, With 3 of 4 spindles the spindle tip can be turned (ball/tip), Quick-release pulling legs with intregral T-profile for a better transmission of force, 2 rigid extensions each 100 and 150 mm with leg brake for quick adjustment of the legs, With Check-Tool insert for quick check of tool completeness, No. 1100 CT2-1.04/12A for retrofitting existing L-BOXX®s 136, As tools are fully sunk in the foam, the equipped insert can be stacked, Insert can be used in drawers with minimum dimensions 400 x 310 x 90 mm
Features:
- Country of origin: Germany
- Customs tariff number: 82055980
- Contents (Qty of pieces): 7
- Total width: 444 mm
- Total height: 152 mm
- Total depth: 360 mm
- Net weight: 9,6 kg
- 1000 V insulated: No
- VDE certified: No

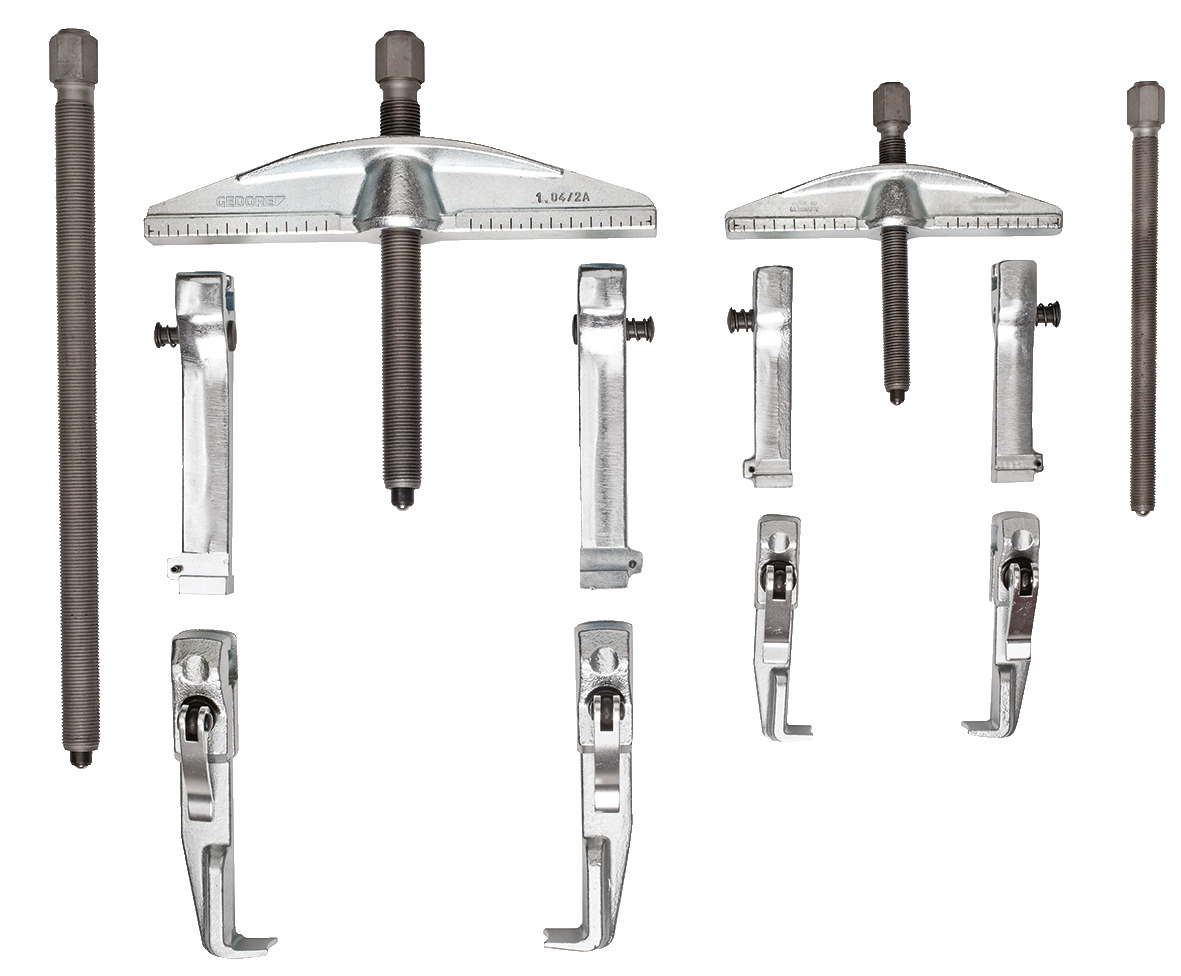

- Parts list (Text): Universal-Abzieher No. 1x 1.04/1A, 2-armig 130x100 mm Universal-Abzieher No. 1.04/2A 2-armig 200x150 mm Verlängerung mit Hakenbremse No. 106/A-100-VB, 100 mm Verlängerung mit Hakenbremse No. 106/B-150-VB, 150 mm Spindel No. 1.1406200 SW 17 M14x1,5 200 mm Spindel No. 1.2106350KS, SW 22, G 1/2", 350 mm, mit Kugelspitze + GEDORE L-BOXX® 136 No. 1100 L
- Usable clamping reach: 300 mm
- Clamping width (min.) internal pulling: 70 mm
- Clamping width (max.) internal pulling: 260 mm
- Tractive force (max.): 3 and 5 t
- reversible arms available: Yes
- Clamping width (max.) external pulling: 200 mm
