Universal Injector Nozzle Puller Set Bosch

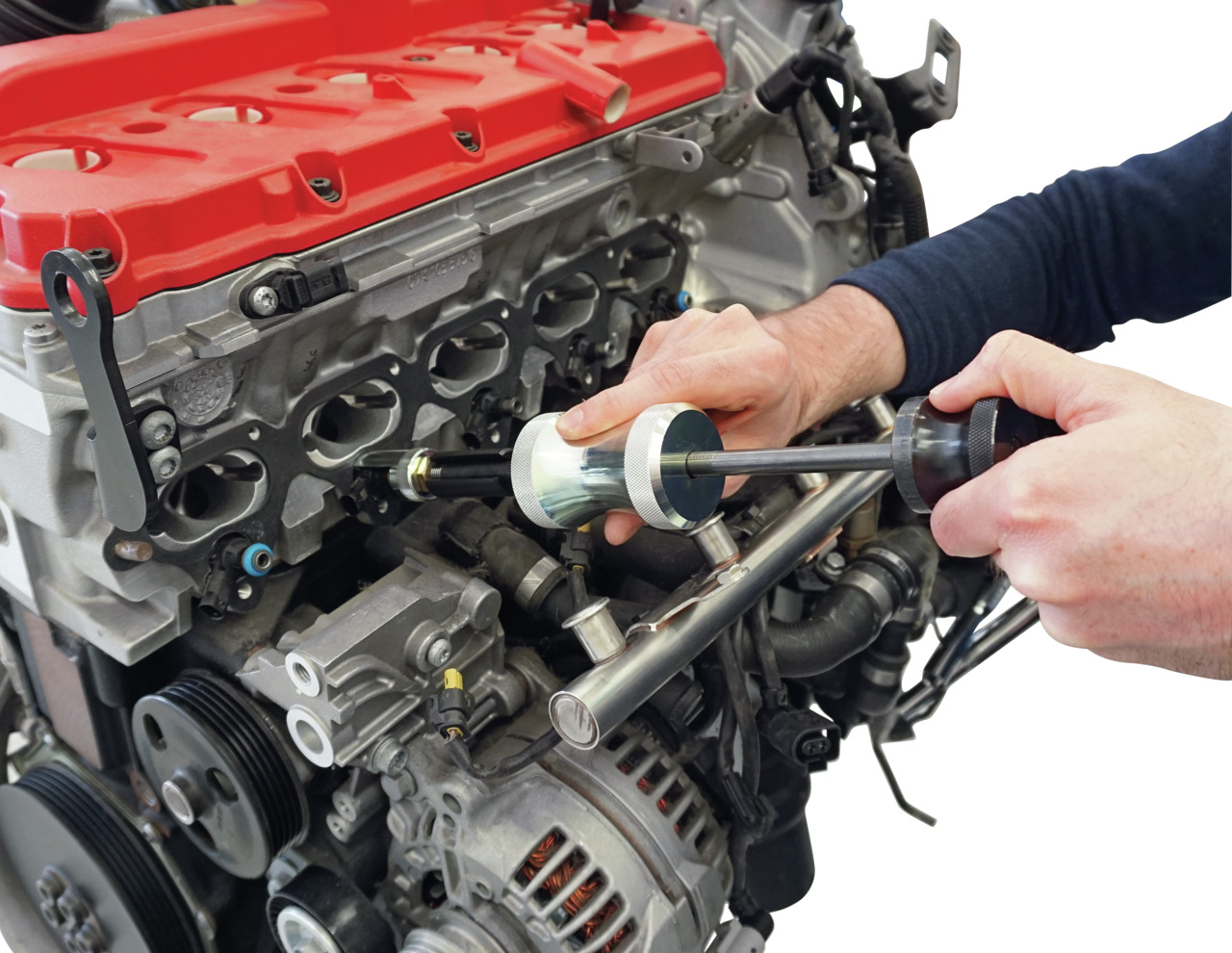

For quick and professional extraction of injectors on direct-injection petrol engines., Required, for example, when replacing the injectors and when dismantling the valve cover., To do this, the injector is loosened and pulled out using the impact extractor., The different pullers allow a safe engagement at the respective injector.

Features:

• Country of origin: Germany
• Customs tariff number: 82055980
• Contents (Qty of pieces): 7
• Total width: 272 mm
• Total height: 50 mm
• Total depth: 189 mm
• Net weight: 1,9 kg
• 1000 V insulated: No
• VDE certified: No

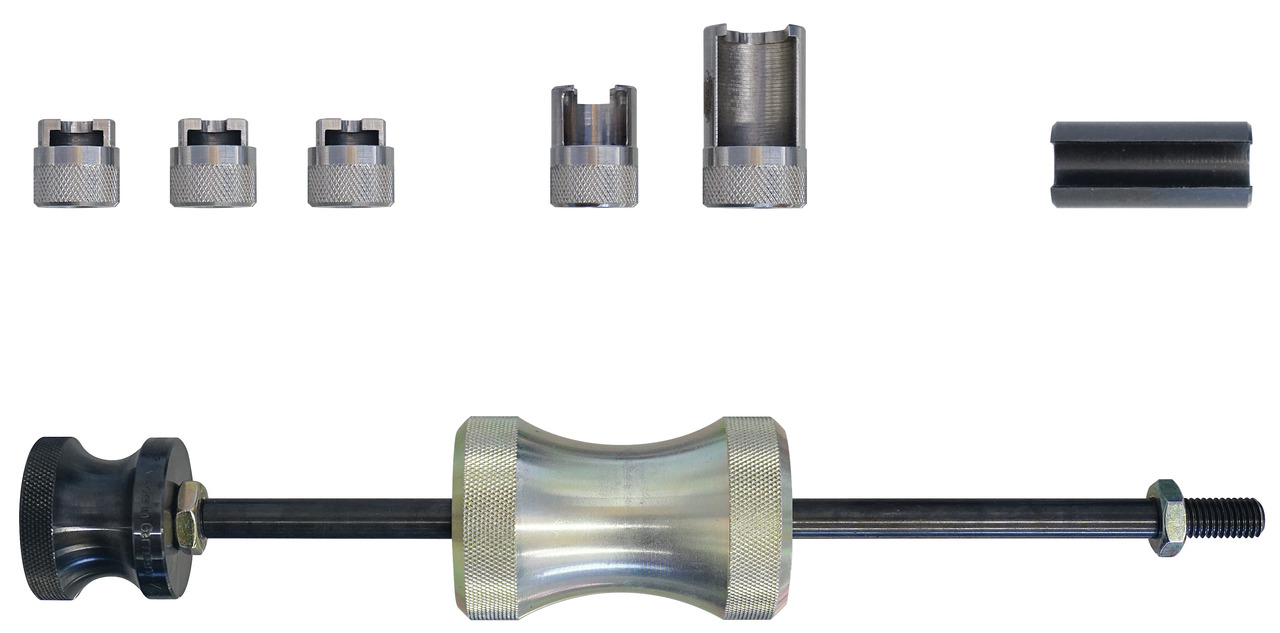

• Parts list (Text):

  1x KL-0187-1001 - Abzieher f. Schlaghammer Gr. 1

  1x KL-0187-1002 - Abzieher f. Schlaghammer Gr. 2

  1x KL-0187-1003 - Abzieher f. Schlaghammer Gr. 3

  1x KL-0187-1004 - Abzieher f. Schlaghammer Gr. 4

  1x KL-0187-1005 - Abzieher f. Schlaghammer Gr. 5

  1x KL-0049-1205 - Kunststoffhülse

  1x KL-0049-101 A - Schlagauszieher Grundgerät

  1x KL-0187-1090 - Schaumstoffeinlage

• OEM: KV10119600|310-206|205-047|J-37281-A|0986616101|T10133|T10133/1|T10133/2|T10133/3|T10133/9
• Target groups: Automotive Construction and commercial vehicles
• Suitable for: Universally compatible with passenger cars (PKW) and vans featuring gasoline direct injection engines with BOSCH, SIEMENS VDO, CONTINENTAL, MAGNET-MARELLI, and DENSO injectors. Installed, for example, in VW-Audi, Seat, Skoda (FSI, TSI, TFSI), Alfa Romeo, BMW, Ford, Hyundai, Nissan, Mercedes, Opel, Peugeot, Citroen, Renault, and many more.
• Size: 1 / 2 / 3 / 4 / 5
• Impact weight: 900 g
• for motor type: Petrol
• Storage: in a foam insert
• Drive type: manual
• Mounting thread: M10
• for injectors from: Bosch Continental Denso Magnet-Marelli Siemens/VDO
