Puller set with 9 legs 130x100/200/250 mm
Ready for shipment in 6 workdays
- Item number:
- WS03608117260
- Manufacturer number:
- 1.07/AS
- Weight:
- 4.92 kg
Puller set with 9 legs 130x100/200/250 mm
3-arm puller, with 9 slim hooks in 3 lengths, Particularly suitable for hard-to-reach areas
Features:
- Country of origin: Germany
- Customs tariff number: 82055980
- Contents (Qty of pieces): 10
- Net weight: 4,9 kg
- 1000 V insulated: No
- VDE certified: No
- Parts list (Text): 107/1A03 Traverse 3-armig 180 mm 106/A-100-S Abzughaken schlank 100 mm (3x) 106/A-200-S Abzughaken schlank 200 mm (3x) 106/A-250-S Abzughaken schlank 250 mm (3x) E-1.1406140 Spindel SW 17, M14x1,5, 140 mm
- 3D data available: No
- Spindle thread size: M 14x1,5 x 140
- Width of hooked foot: 29,5 mm
- Usable depth of hooked foot: 7,5 mm
- Thickness of hooked foot at tip: 3,7 mm
- Width across flats [mm]: 17 mm
- Tractive force (max.): 2,5 t
- reversible arms available: No
- Clamping bracket available: No
- Hook brake available: No
- Hook can be moved parallel: No
- Quick release lever available: No
- Spindle anti-slip device: No
- Hydraulic spindle available: No
- Screws included: No
- Can be retrofitted with hydraulic spindle: No
- Clamping width (max.) external pulling: 130 mm
- Hydraulic spindle optional: -
- Depth of hooked foot: 13,5 mm

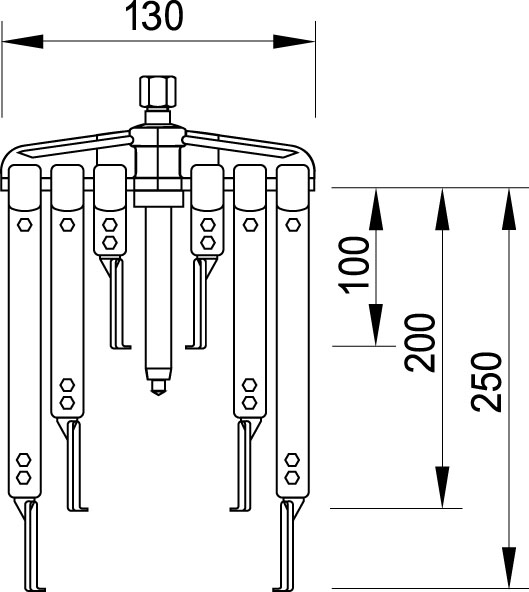

- Usable clamping reach: 100 / 200 / 250 mm
- Graduation: No
- Anti-slip device on the spindle: No
- Exchangeable spindle tip: No
