Locking Tool Set, Ford

Designed for the locking/positioning of camshaft, crankshaft and timing belt tensioner. The kit also includes a tool to adjust the VCT unit. An indispensable tool set when replacing a timing belt or performing an engine repair. Scope of Delivery: KL-0680-18 Locking Pin for Crankshaft. For locking the crankshaft. KL-0180-3024 Locking Pin, Ø 2.4mm. For locking the timing belt tensioner. KL-0680-2403 A Setting Gauge for Camshaft. For locking the camshaft sprockets/VCT unit. KL-0680-2404 A Locking Tool for Flywheel. For locking the flywheel. KL-0680-15 A Setting Gauge for Camshaft. For locking the camshafts. KL-0680-17 Locking Pin for Crankshaft. For locking the crankshaft. KL-0680-16 A Locking Pin for Crankshaft. For locking the crankshaft. KL-0680-2405 A Locking Tool for Vibration Damper. For locking the crankshaft vibration damper. KL-0680-2490 A Plastic Storage Case., An indispensable tool set when replacing a timing belt or performing an engine repair.

Features:

• Country of origin: Germany
• Customs tariff number: 82055980
• Contents (Qty of pieces): 9
• Total width: 255 mm
• Total height: 48 mm
• Total depth: 210 mm
• Net weight: 1,3 kg
• 1000 V insulated: No
• VDE certified: No

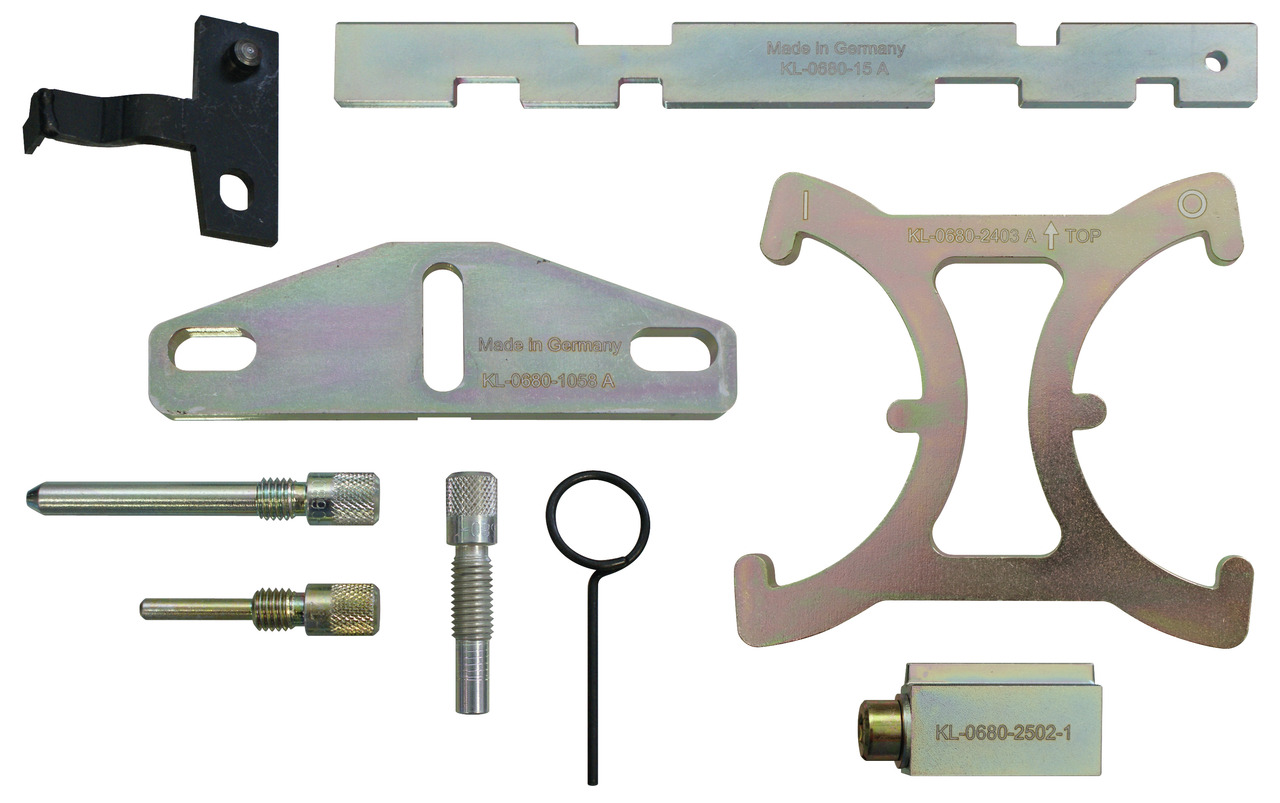

• Parts list (Text):

  1x KL-0680-15 A - Einstell-Lehre Nockenwelle

  1x KL-0680-16 A - Arretierdorn Kurbelwelle

  1x KL-0680-17 - Arretierdorn Kurbelwelle

  1x KL-0680-18 - Arretierdorn Kurbelwelle

  1x KL-0180-3024 - Arretierstift Ø 2,4 mm

  1x KL-0680-2403 A - Einstell-Lehre Nockenwelle

  1x KL-0680-2404 A - Arretierwerkzeug Schwungrad

  1x KL-0680-2405 A - Arretierwerkzeug Schwingungsdämpfer

  1x KL-0680-2490 A - Kunststoffkoffer

• OEM: 303-1054|303-367|303-376 B|303-393|303-465|303-507|303-620|303-748|999-7151|999-7429|999-7431|303-376 |49 JE01 054|49 JE02 061|49 N010 101|303-1097|303-1550|999-7201|999-7406|303-393-02|303-574|JE01 061|21-168|21-259
• Target groups: Automotive Construction and commercial vehicles
• Suitable for: Suitable for Ford 1.25, 1.4, 1.6, 1.8, 2.0, 2.3, and 2.5 gasoline engines. Used in vehicles such as Ford C-Max, Fiesta, Fusion, Focus, Galaxy, Ka, Maverick, Mondeo, S-Max, Tourneo Connect, Transit Connect; Mazda 2, 3, 323, 5, 6, E-Series, MPV, MX-5, Premacy, Tribute, Xedos 9; Volvo C30, S40, S60, S80, V40, V50, V60, V70.
• for motor type: Petrol
• Storage: in a case
