Double flaring tool 4.75-10mm, 3/16"-3/8"
Ready for shipment in 6 workdays
- Item number:
- WS03604662980
- Manufacturer number:
- 1101-234013
- Weight:
- 4.2 kg
Double flaring tool 4.75-10mm, 3/16"-3/8"

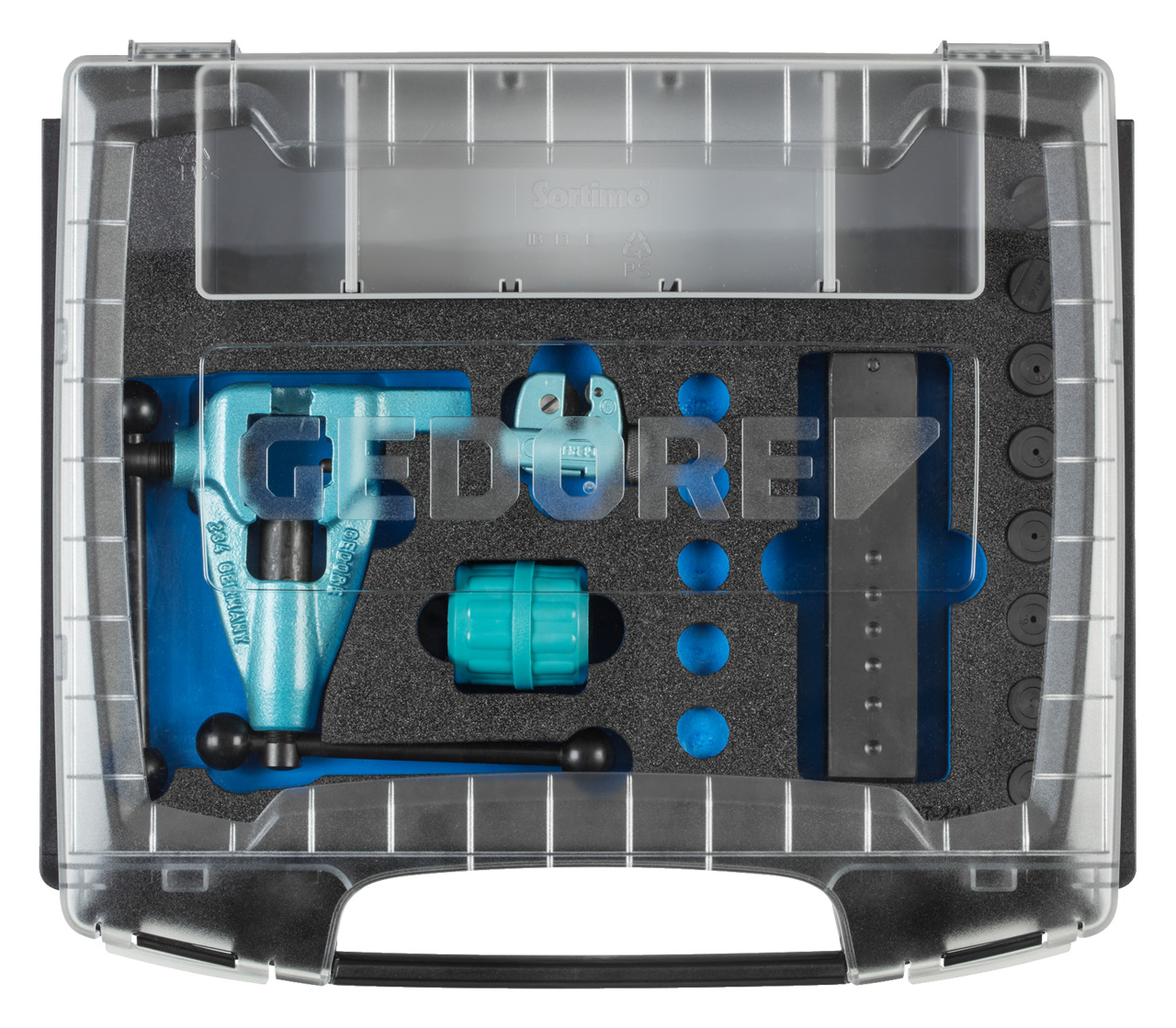

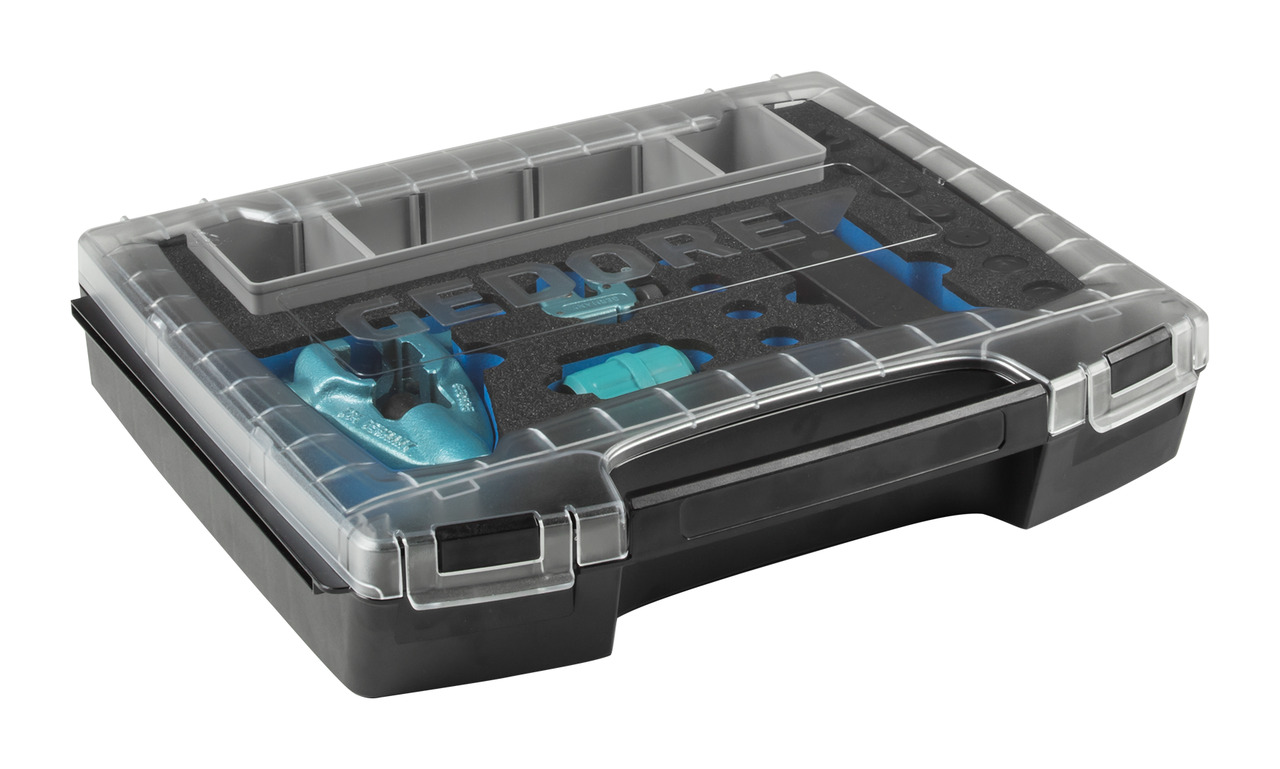

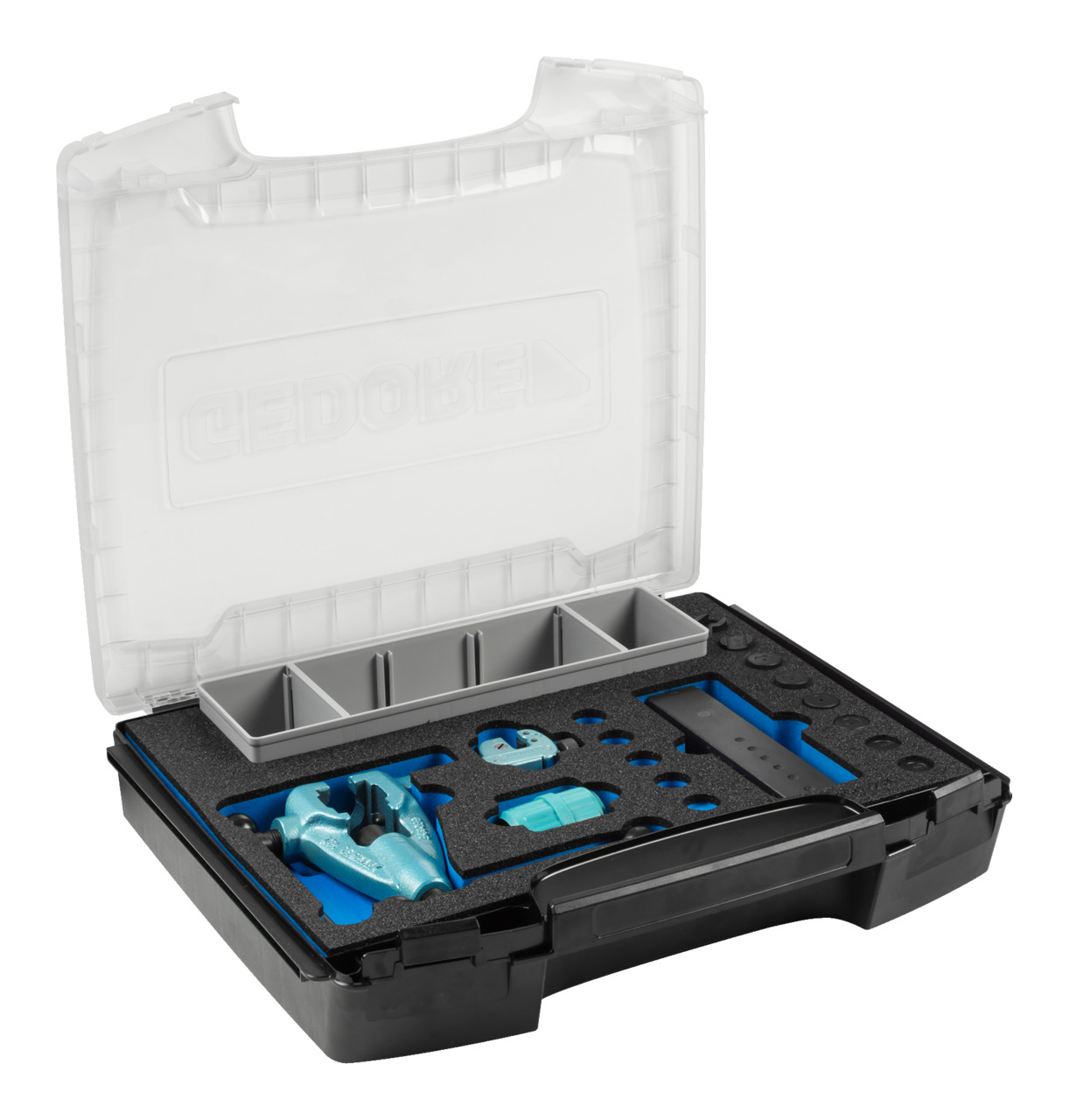

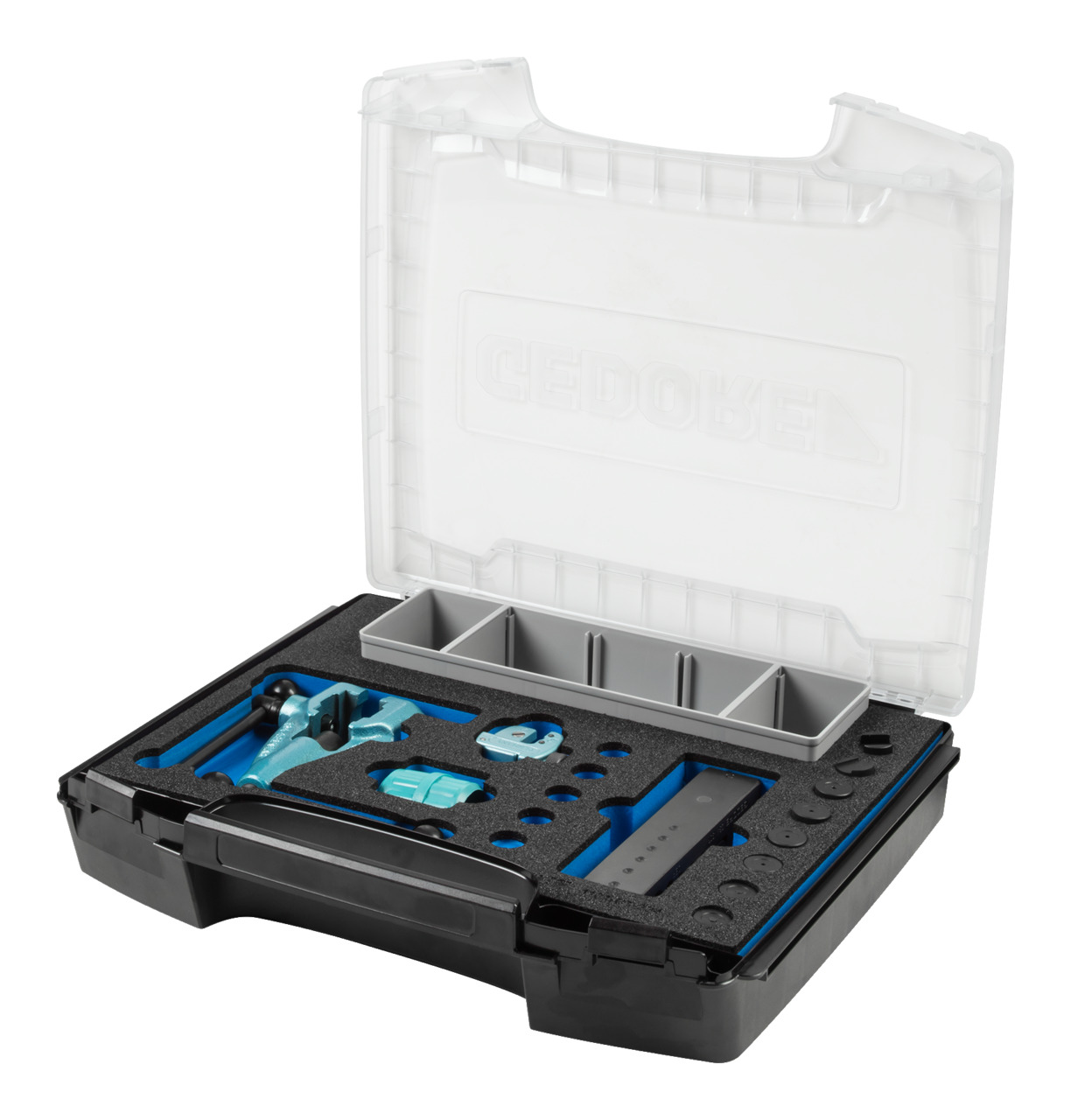

For precision flanges according to DIN 74234, For brake lines, coolant lines, hydraulic and pneumatic pipes with a wall thickness of 0.7 to 1.0 mm, Body in tempered cast iron GTW 40, Painted blue, Complete set for metric and/or inch pipes, With pipe deburring reamer 4-32 mm Ø and miniature pipe cutter 4-16 mm Ø, In GEDORE i-BOXX® 72 No. 1101 L, Dimensions: W 367 x D 316 x H 72 mm
Features:
- Country of origin: Germany
- Customs tariff number: 82055980
- Reach: compliant
- Contents (Qty of pieces): 18
- Total width: 367 mm
- Total height: 72 mm
- Net weight: 4,2 kg
- 1000 V insulated: No
- VDE certified: No
- Parts list (Text): 1 Grundkörper No. 234000 2 Spannbacken No. 234101 + 234102 6 Druckstücke 4,75-10 mm No. 234204-234210 4 Druckstücke 3/16-3/8" No. 234303-234306 3 Einstelllehren + Druckstücke No. 234790 + 234801-802 1 Kleinst-Rohrabschneider 4-16 mm Ø No. 231000 1 Rohrfräser 4-32 mm Ø No. 232001 1 GEDORE i-BOXX® 72 No. 1101 L
- Total length: 316 mm
- Flanging: metric & imperial
- for flanging according to DIN 74234: Yes
