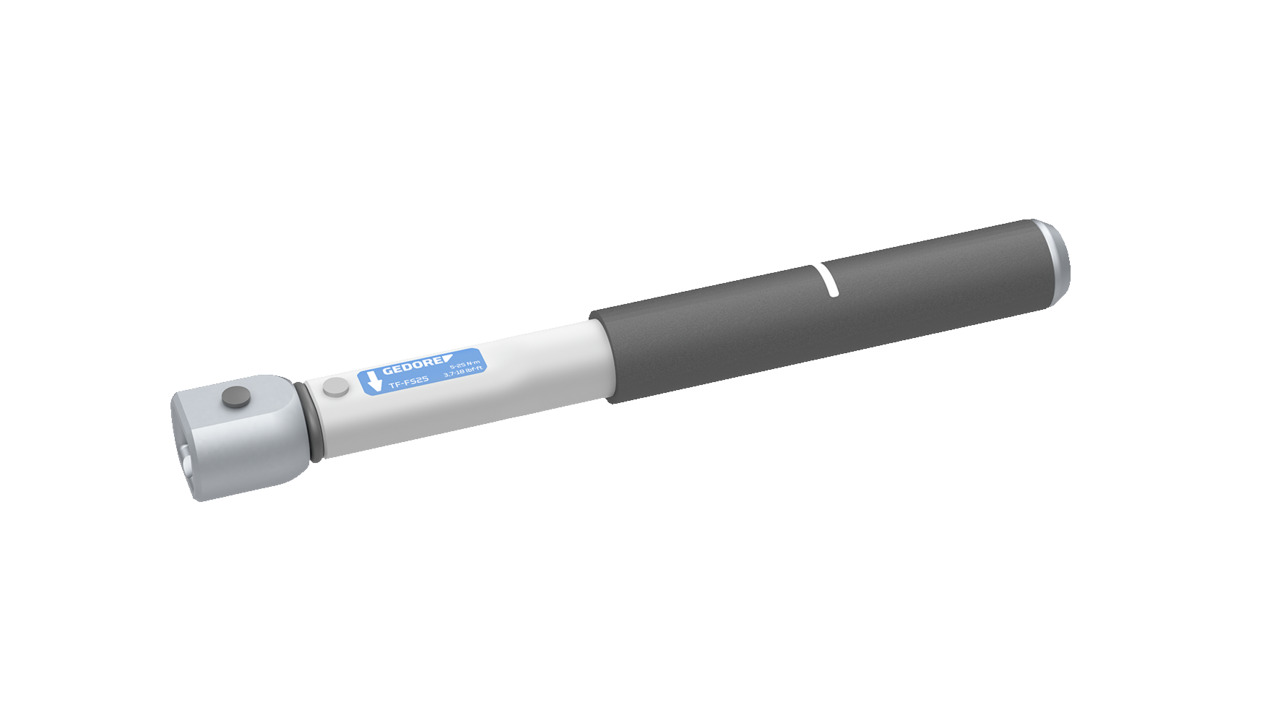

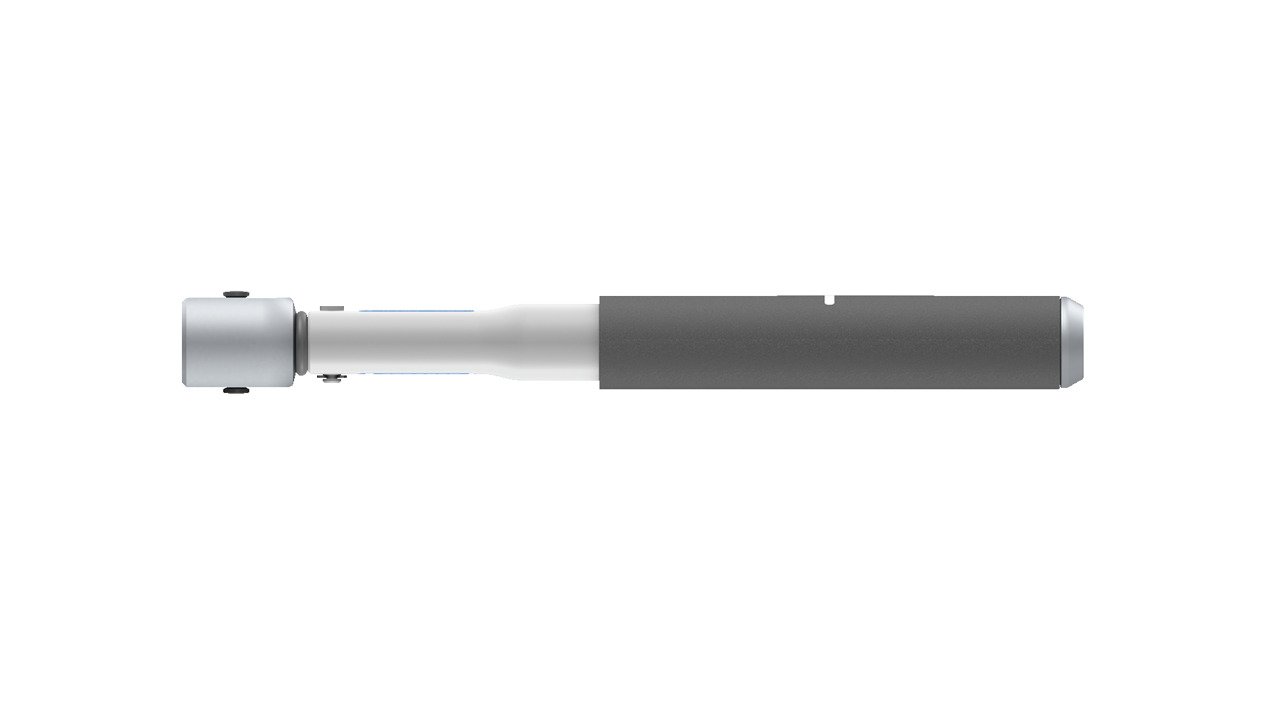

TORCOFIX FS SE 9x12 5-25 Nm not preset
Ready for shipment in 6 workdays
- Item number:
- WS03603288250
- Manufacturer number:
- TF-FS25
- Weight:
- 0.3 kg
TORCOFIX FS SE 9x12 5-25 Nm not preset

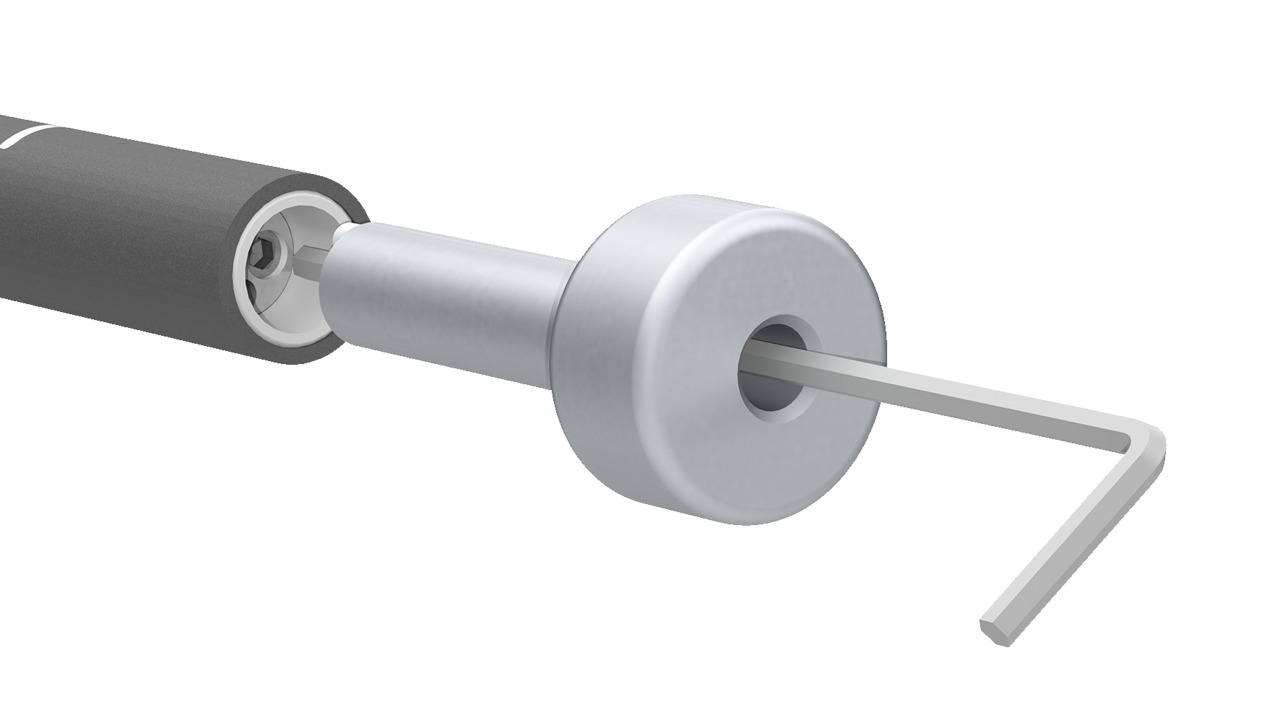

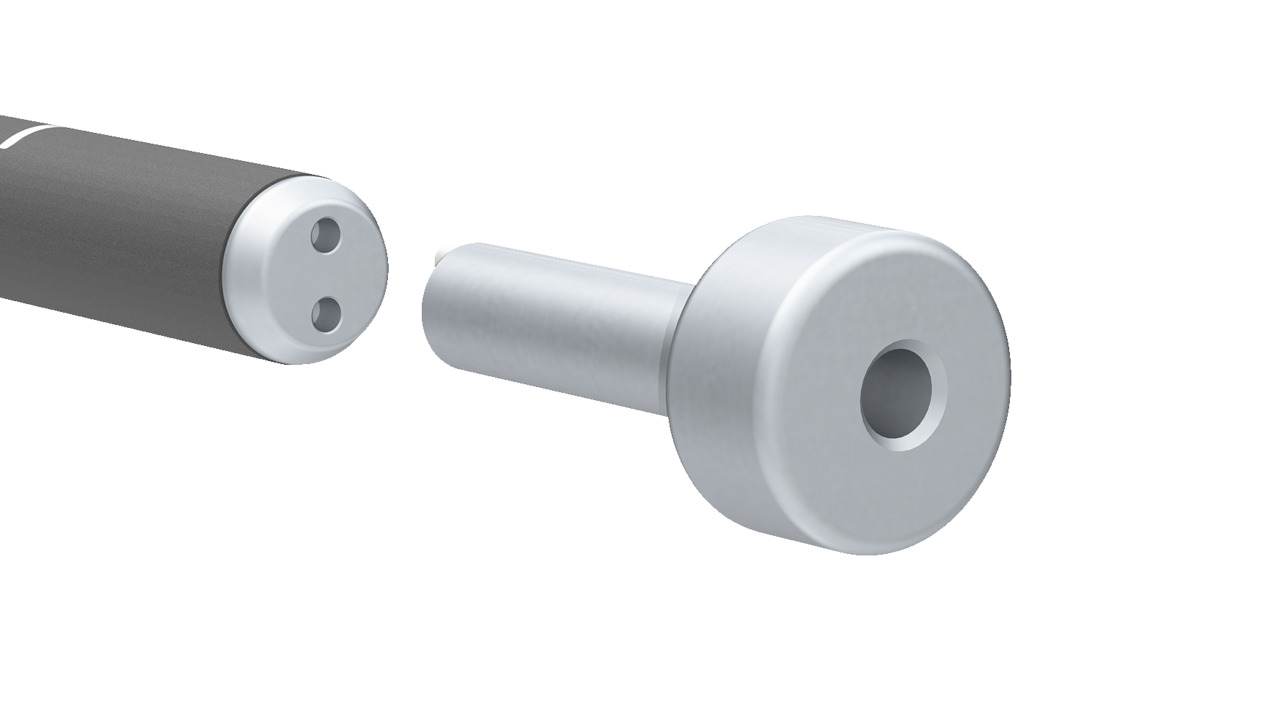

For controlled right- and left-hand tightening (insert tool for change of direction), Incl. traceable test certificate (DIN EN ISO 6789-2:2017)
Features:
- Country of origin: Germany
- Customs tariff number: 82041100
- Reach: compliant
- Contents (Qty of pieces): 1
- Total width: 22 mm
- Total height: 18,5 mm
- Net weight: 0,3 kg
- 1000 V insulated: No
- VDE certified: No
- Total length: 186 mm
- Material: lacquered tubular steel construction, with galvanized rectangular support
- Target groups: Automotive Industry Military Energy Mechanical engineering Utilities
- Range of application: Assembly Series assembly Production
- Torque (max.): 25 Nm
- Torque (min.): 5 Nm
- Scale type: without
- Precision +/-: +/- 3 %
- Tightening direction: Left and right
- Fixed setting: Yes
- Test certificate: DIN EN ISO 6789-2:2017
- Torque range (min./max.): 5 Nm - 25 Nm
- Trigger mechanism: Short path triggering
- Drive connector rectangular: 9 x 12 mm
- Safety: Catch lock
- Depth gauge: 17,5 mm
- Storage/Content: Plastic Storage Box
- Calibration length: 133,5 mm
