Press Frame Kit, without Drive, in a Foam Insert

Press Frame Kit, without Drive, in a Foam Insert
Press Frame Kit, without Drive, in a Foam Insert
Press Frame Kit, without Drive, in a Foam Insert
Press Frame Kit, without Drive, in a Foam Insert
Press Frame Kit, without Drive, in a Foam Insert
Press Frame Kit, without Drive, in a Foam Insert
Press Frame Kit, without Drive, in a Foam Insert
Press Frame Kit, without Drive, in a Foam Insert
Press Frame Kit, without Drive, in a Foam Insert
Press Frame Kit, without Drive, in a Foam Insert
Press Frame Kit, without Drive, in a Foam Insert
Press Frame Kit, without Drive, in a Foam Insert

Ready for shipment in 6 workdays

Item number:
WS03602842777
Manufacturer number:
KL-0039-1161 E
Weight:
8.16 kg

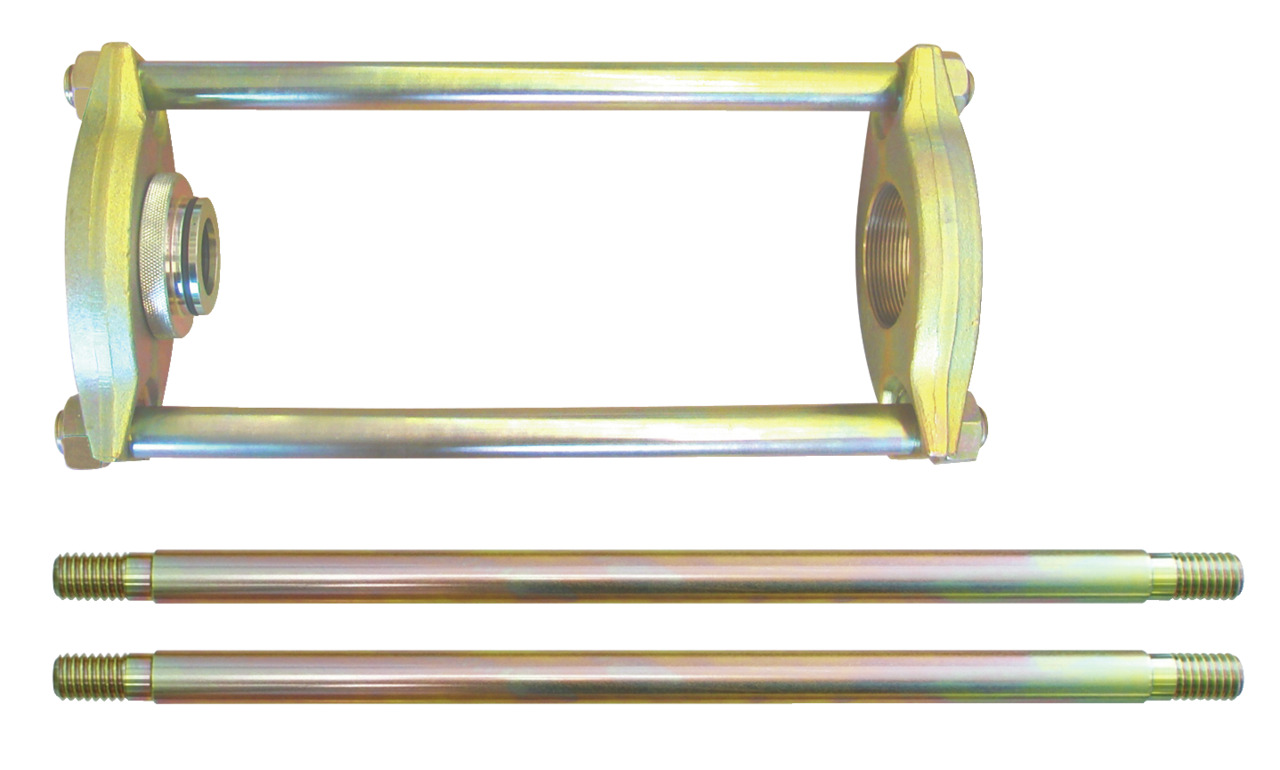

Press Frame Kit, without Drive, in a Foam Insert

Short design, without drive., Due to its use with the extensive pressure / support sleeve assortment of the KL-0039 series, the press frame is universally applicable., The press frame is suitable for a mechanical as well as for a hydraulic use.

Features:

  • Country of origin: Germany
  • Customs tariff number: 82055980
  • Contents (Qty of pieces): 11
  • Total width: 445 mm
  • Total height: 115 mm
  • Total depth: 305 mm
  • Net weight: 8,1 kg
  • 1000 V insulated: No
  • VDE certified: No
  • Parts list (Text):

    1x KL-0039-1140 - Pressrahmen leicht kurz

    2x KL-0039-1153 - Zugstange M18, 375 mm lang

    1x KL-4999-1318 - Einlage Pressrahmen-Satz

  • Target groups: Automotive Construction and commercial vehicles Agriculture
  • Suitable for: Universal fit.
  • Drive type: hydraulic mechanical
  • Load (max.): 12 t
  • Width, inside (press frame): 115 mm
  • Length, inside (press frame): 275 mm
  • Cylinder mounting thread: 2¼"-14 UNS
  • Length, inside (press frame) 2: 350 mm
