Puller Plate Kit, Ford Transit
Ready for shipment in 6 workdays
- Item number:
- WS03603069680
- Manufacturer number:
- KL-0174-371
- Weight:
- 8.6 kg
Puller Plate Kit, Ford Transit

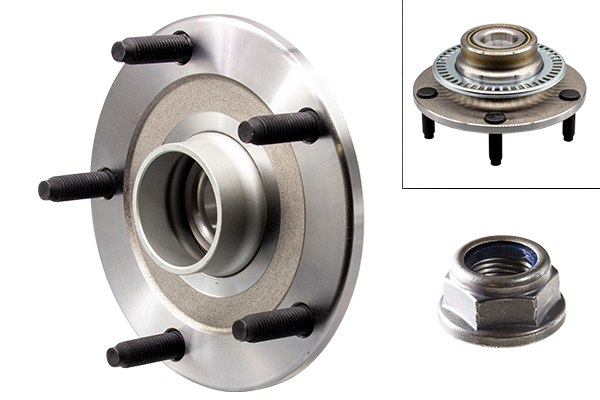

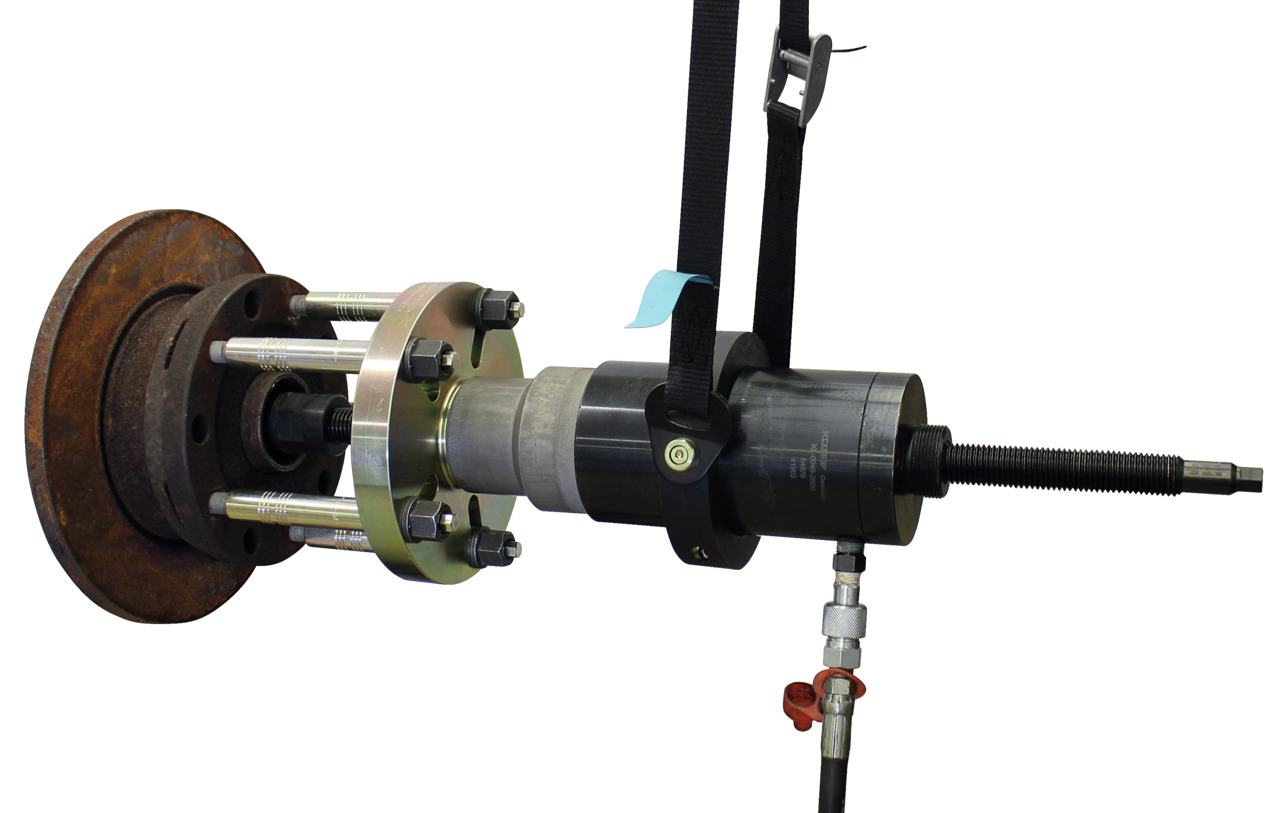

Included in KL-0174-370 tool set., This is necessary, for example, when you replace the wheel bearing and the brake disc on the rear axle, as these are located behind the wheel hub., All work can be carried out directly on the vehicle within a few minutes.
Features:
- Country of origin: Germany
- Customs tariff number: 82055980
- Contents (Qty of pieces): 12
- Net weight: 8,6 kg
- 1000 V insulated: No
- VDE certified: No
- Parts list (Text):
1x KL-0174-330 - Lochscheibe Gr. 3
5x KL-0174-767 - Zugbolzen Typ M, M14 (l=100)
5x KL-0174-701 - SK-Bundmutter M14
1x KL-0174-572 - Adapter 2¼" auf 2¾", 28 t
- Target groups: Automotive Construction and commercial vehicles
- Suitable for: Compatible with the front and rear axle on Ford Transit/Tourneo (2000-2006 / 2006-2014) with front-wheel drive and a bolt circle diameter at the wheel hub of 160 mm.
- Required accessories: Hydraulic drive (28 t): KL-0040-2800 - Hydraulic cylinder 28 t KL-0215-35 M28 - Hydraulic pump KL-0040-2812-1 - Pull / thrust spindle M24x590 KL-0040-2812-5 - Thrust nut M24 KL-0174-3701 - Thrust piece short
- Version: Type M
- Drive type: hydraulic
- Wheel stud circles: 100 - 170 mm
- Mounting thread: M14
