Glow Plug Tool Set (Universal)

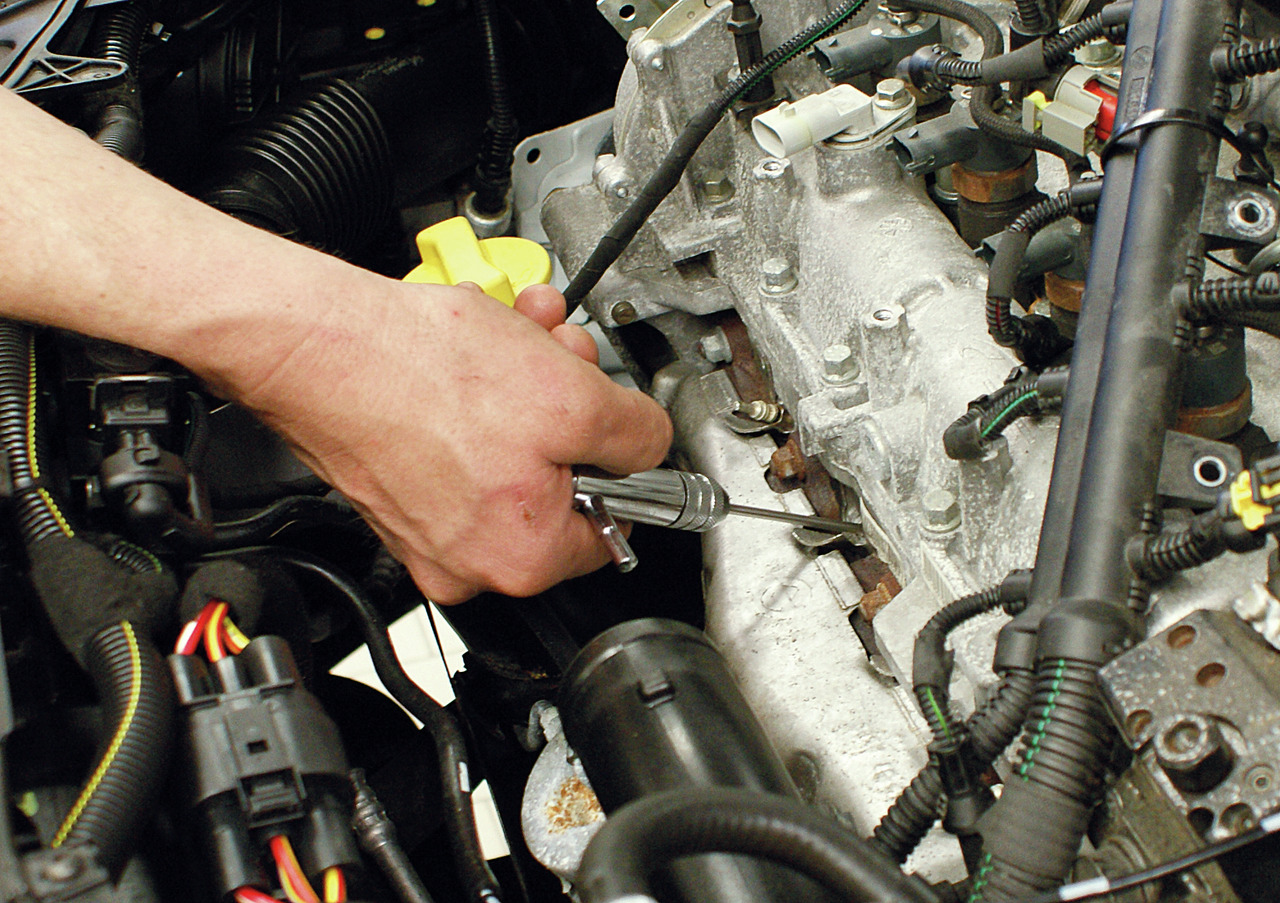

The universal KL-0132-61 KA glow plug tool set enables the quick and easy drilling out of damaged or broken-off glow plugs. The glow plug, respectively the glow plug top connector, is drilled out/drilled up with the aid of the pilot drill. Next, the original thread is re-tapped and cleaned with the special screw tap. Then, the remains of the glow plug can be removed using either the screw tap or the puller bolt in conjunction with a slide hammer puller such as KL 0049-100., The glow plug, respectively the glow plug top connector, is drilled out/drilled up with the aid of the pilot drill., Next, the original thread is re-tapped and cleaned with the special screw tap., Then, the remains of the glow plug can be removed using either the screw tap or the puller bolt in conjunction with a slide hammer puller.

Features:

• Country of origin: Germany
• Customs tariff number: 82055980
• Contents (Qty of pieces): 7
• Total width: 235 mm
• Total height: 48 mm
• Total depth: 185 mm
• 1000 V insulated: No
• VDE certified: No

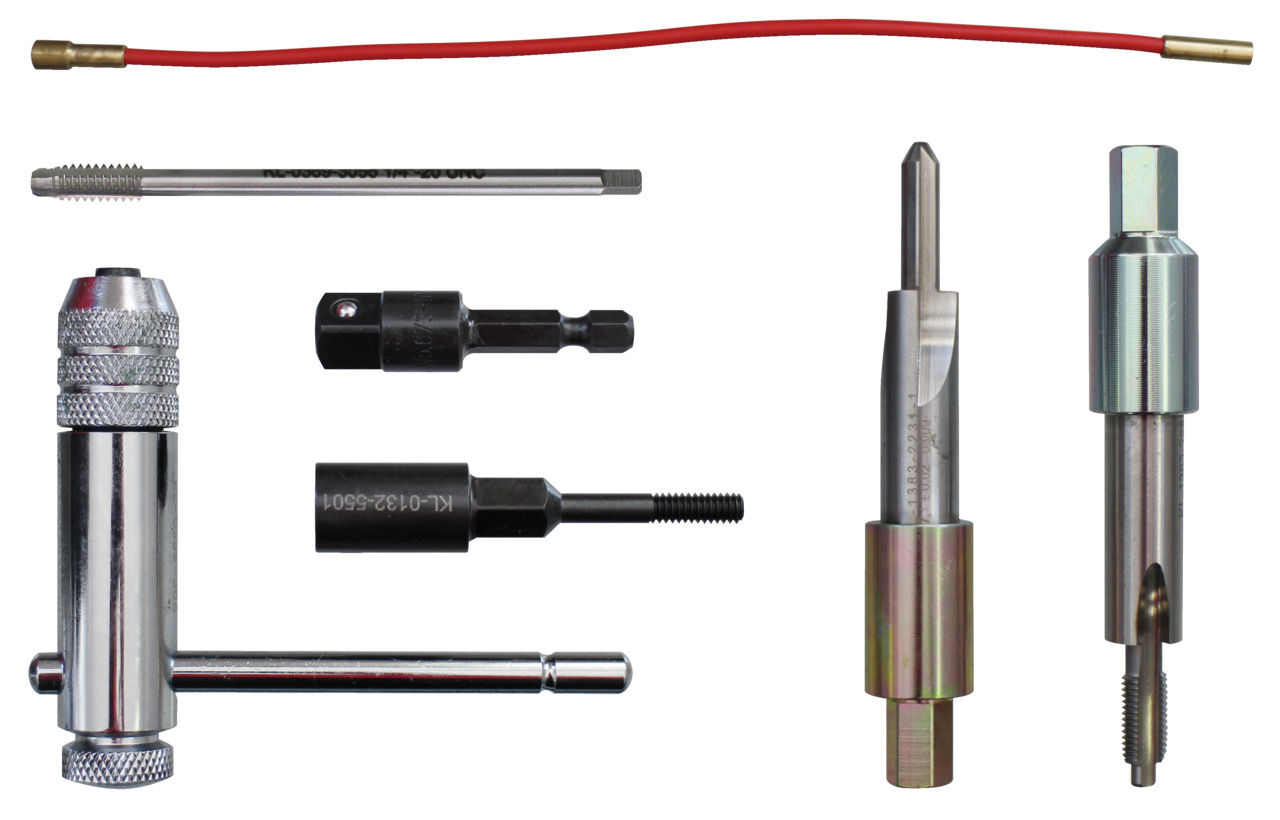

• Parts list (Text):

  1x KL-0126-221 - Magnetheber flexibel

  1x KL-0132-5501 - Zugbolzen Nr. 12-24 UNC für Schlagauszieher

  1x KL-0132-6101 - Kernlochbohrer Ø 8,1 mm für M9x1

  1x KL-0132-6102 - Gewindebohrer M9x1

  1x KL-0369-306 - Werkzeughalter mit Vierkant-Aufnahme 2,4 - 5,5

  1x KL-1383-2241 - Gewindebohrer Nr.12-24 UNC mit Bohrspitze

  1x KL-4007-2510 - Adapter für Bohrmaschine 3/8" Vierkant

  1x KL-0132-5590 A - Kunststoffkoffer

• Target groups: Automotive Construction and commercial vehicles
• Suitable for: Universally compatible with diesel engines that have a glow plug thread size of M9x1. Particularly suitable for Alfa, Fiat, Lancia, Opel, and Saab 1.9 and 2.4 D / TiD / JTD / JTDM / CDTI engines. Installed in Alfa 147, 156, 159, 166, GT; Opel Astra H, Astra V, Signum, Vectra C, Zafira; Saab 9-3; Fiat Croma, Stilo; Lancia Thesis, and others.
• for motor type: Diesel
• Storage: in a case
• for thread: M9x1
