Timing chain puller VW 1,2 TSI

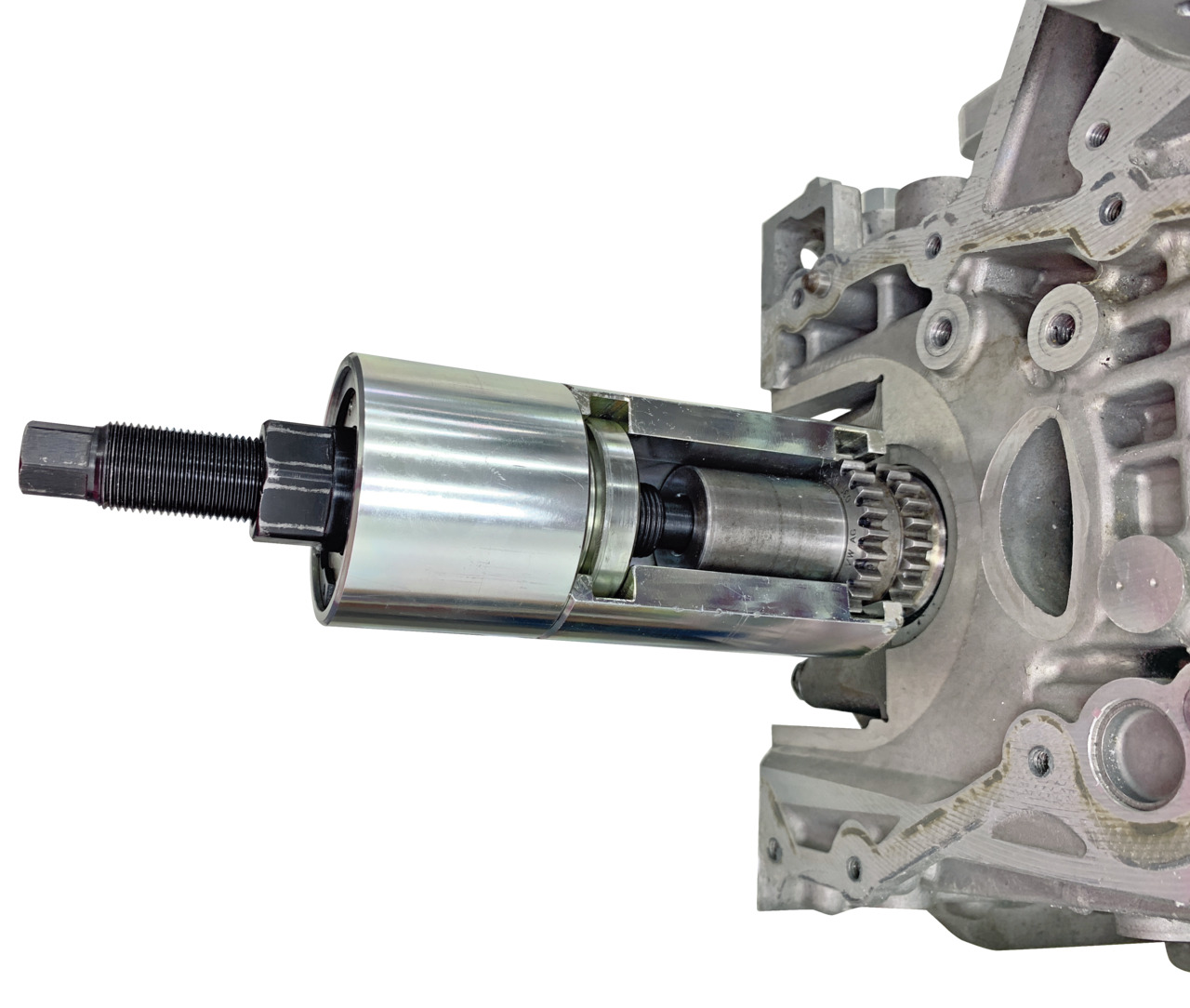

Required for professional removal and mounting of the timing chain sprocket on the crankshaft., Time-consuming loosening and lowering of the entire vehicle engine can thus be avoided., The flywheel locking tool included in the scope of delivery serves as an anti-rotation device for the crankshaft, and the press ring also allows the shaft seal to be pressed into the timing cover.

Features:

• Country of origin: Germany
• Customs tariff number: 82055980
• Contents (Qty of pieces): 5
• Total width: 290 mm
• Total height: 89 mm
• Total depth: 254 mm
• Net weight: 3,5 kg
• 1000 V insulated: No
• VDE certified: No

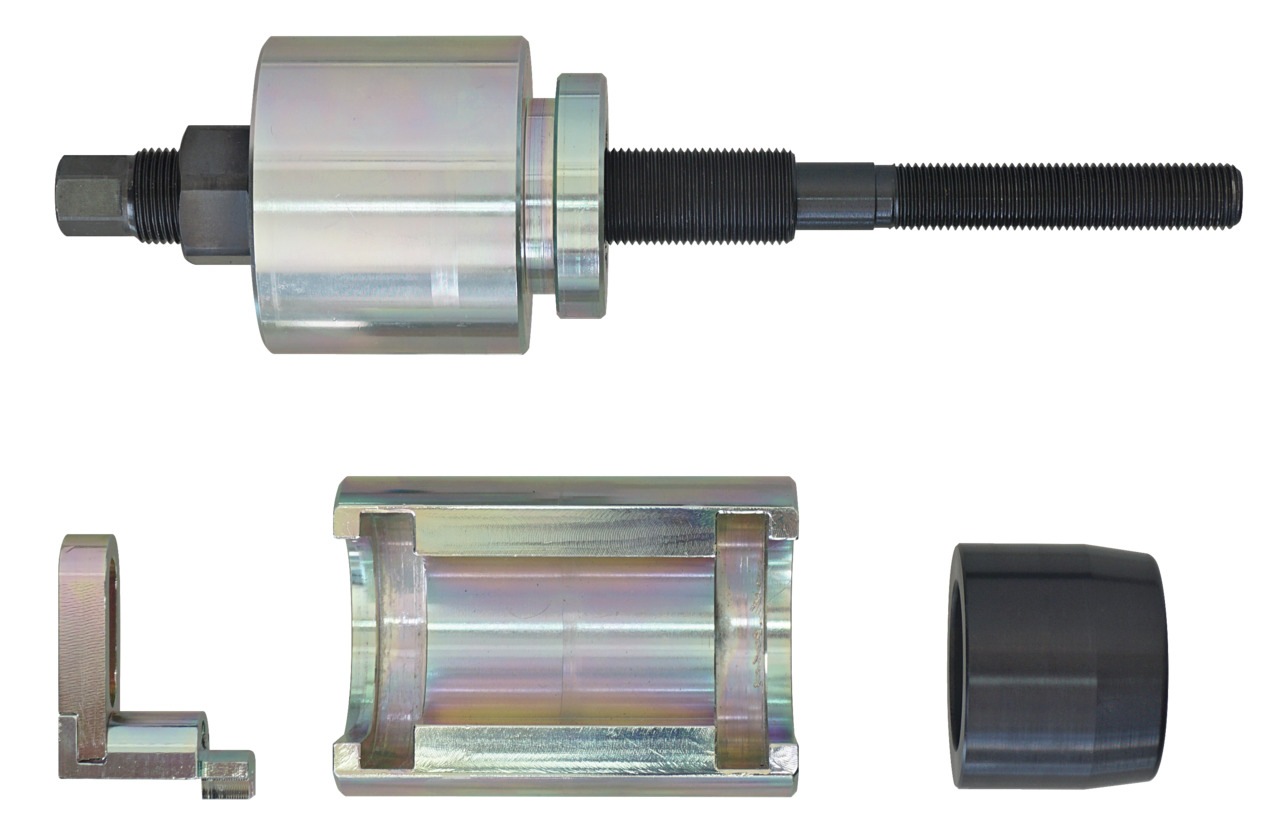

• Parts list (Text):

  1x KL-0282-531 - Steuerkettenrad-Abzieher VW

  1x KL-0282-532 - Schwungrad-Blockierwerkzeug

  1x KL-0282-533 A - Pressring Wellendichtring

  1x KL-0282-5390 - Kunststoffkoffer

• OEM: T30122|MP3-467|40-105
• 3D data available: No
• Target groups: Automotive
• Suitable for: Compatible with VW-Audi, Seat, and Skoda vehicles with 1.2 and 1.4 TSI petrol engines. Installed in, for example, VW Golf VI (5K, AJ, 517), Golf PLUS (5M, 521), Polo V (6R, 6C), Jetta VI (162, 163, AV), Caddy III (2K, 2C), Beetle (5C), Touran (1T); Audi A1 (8X), A3 (8P); Seat Altea (5P), Leon (1P), Ibiza IV (6J, 6P), Toledo IV (KG); Skoda Fabia II (542, 545), Octavia II (1Z), Rapid (NH1, NH3), Roomster (5J), Yeti (5L).
• for motor type: Petrol
• Diameter 1: 65 mm
• Storage: In robust plastic case
• Spindle total length: 240 mm
