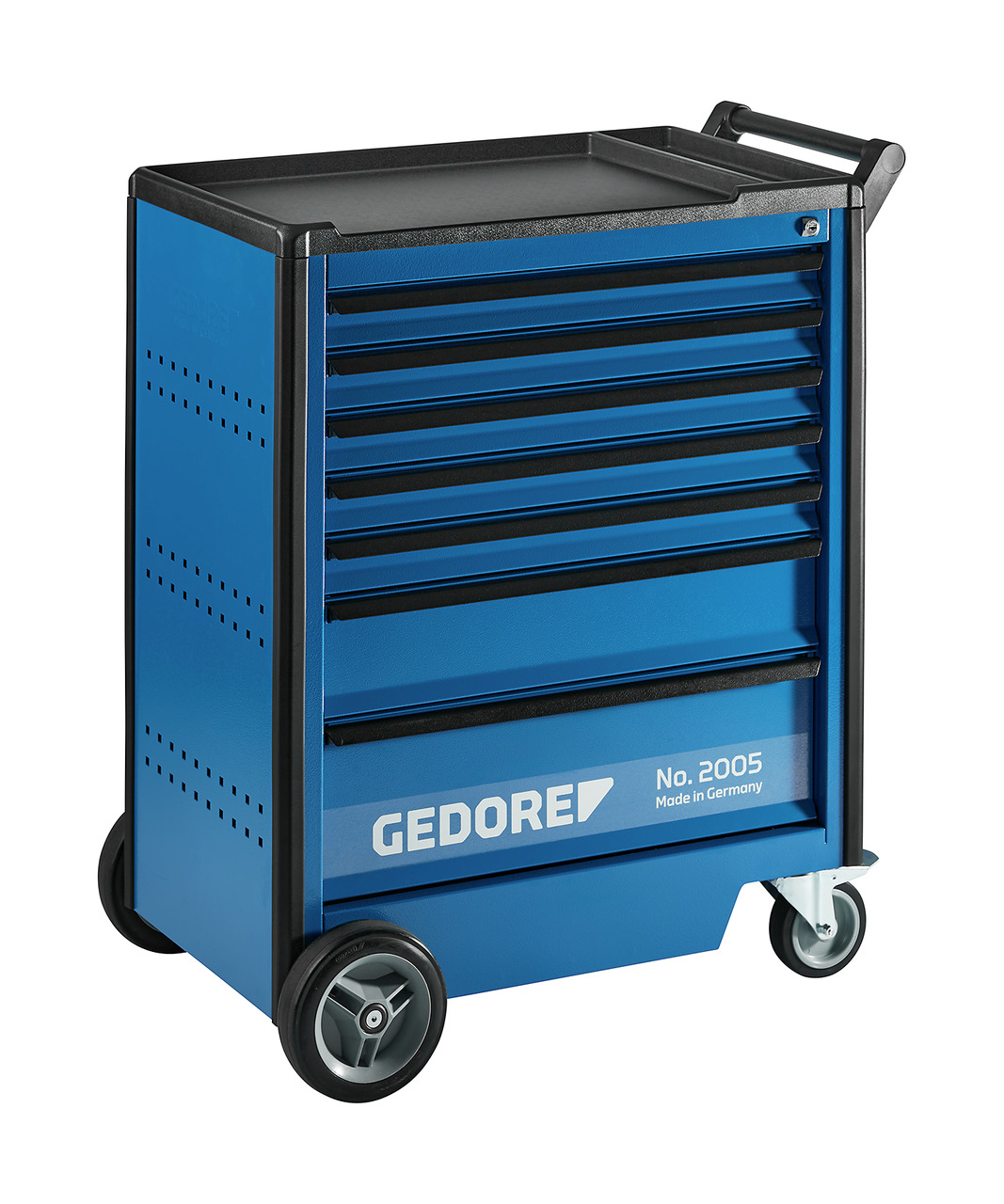

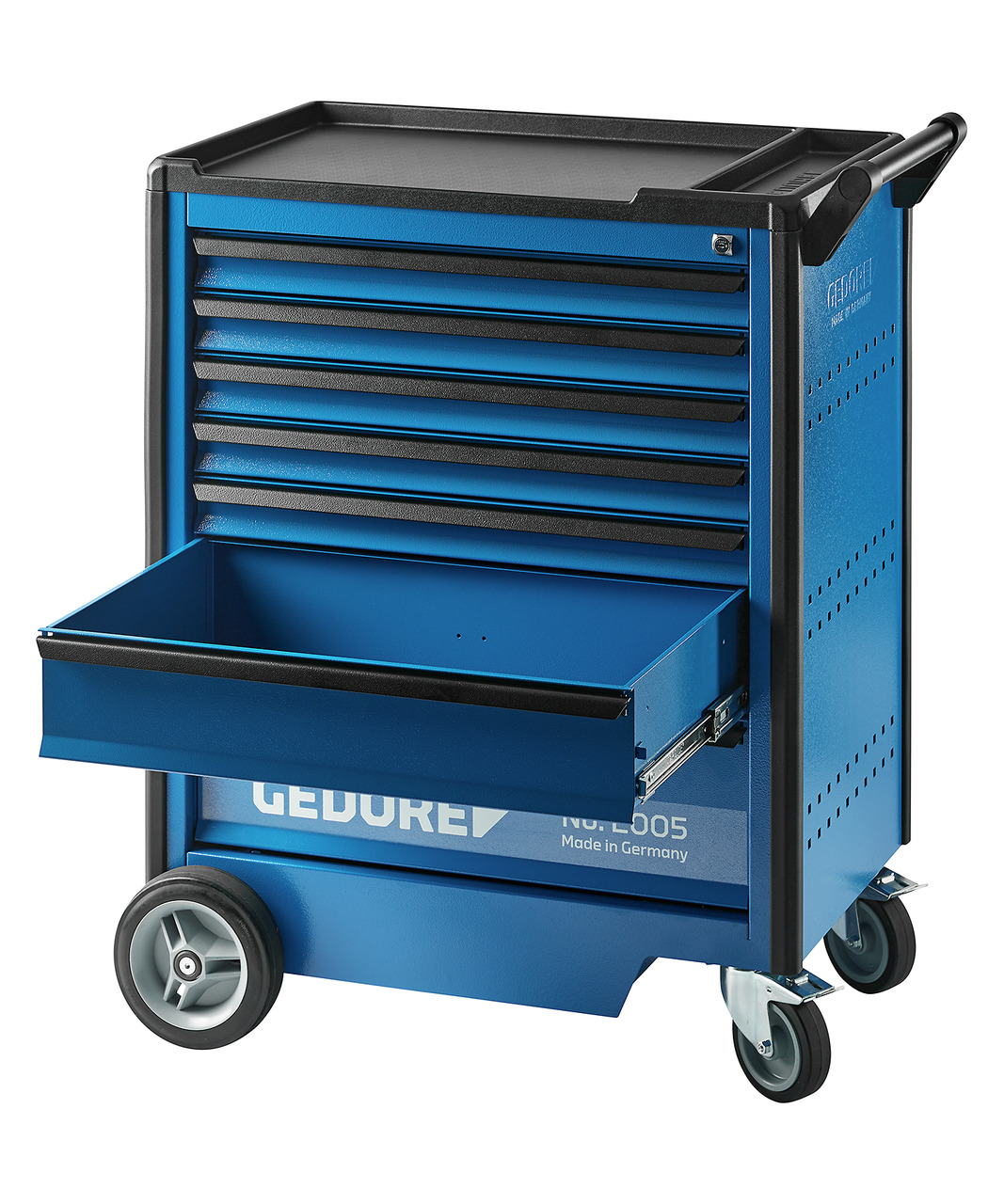

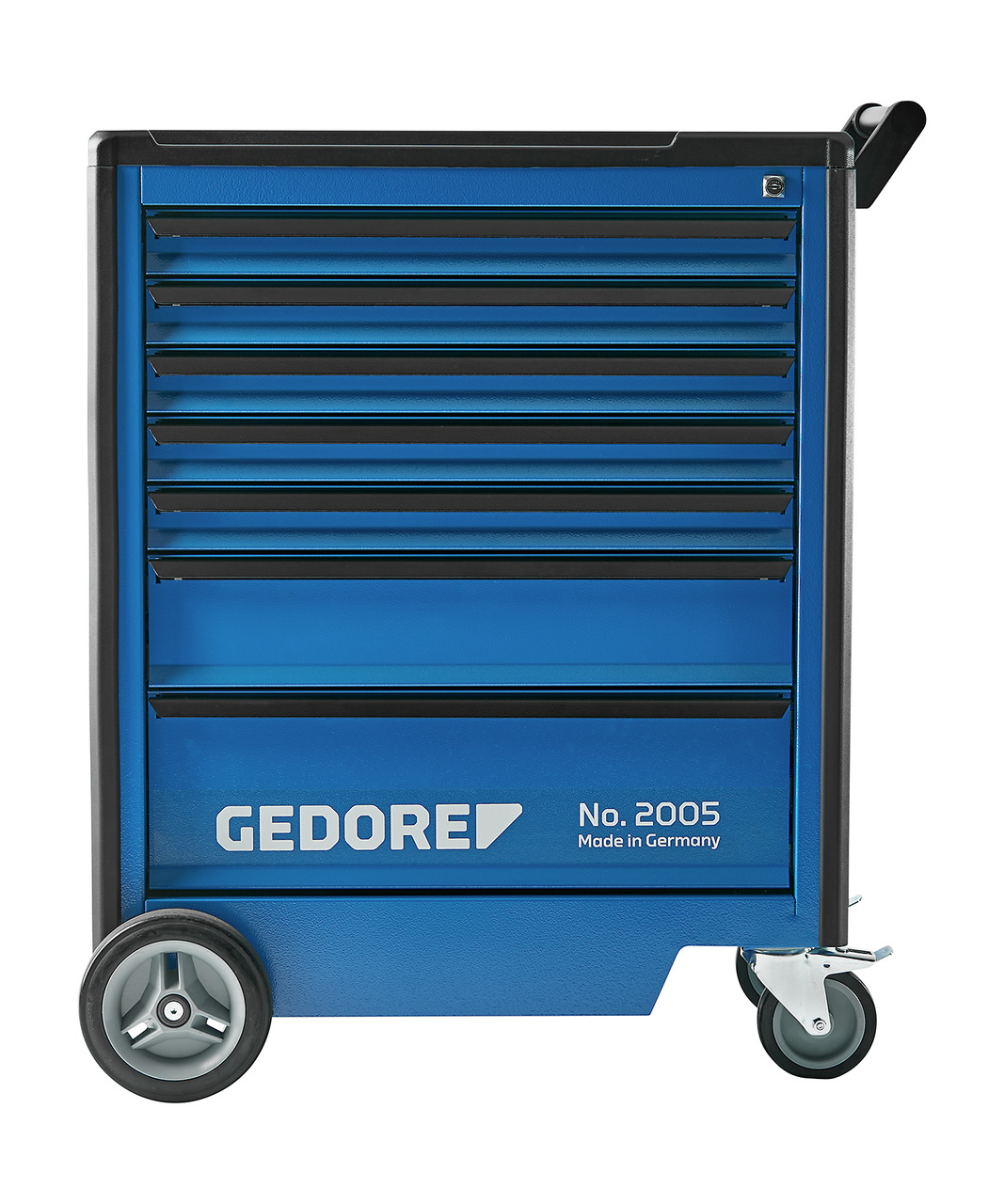

Tool trolley with 7 drawers
Ready for shipment in 6 workdays
- Item number:
- WS03601803018
- Manufacturer number:
- 2005 0511
- Weight:
- 83 kg
Body: Dimensions: H 812 x W 771 x D 478 mm, Working platform in ABS, with compartments for small parts, Manoeuvrable and easy to control thanks to the driving and steering handle, Side walls with Euro perforation 10 x 38 mm to fix hooks and tools, Heel and impact protection for your safety, Sheet steel, corrosion resistant and scratch-proof powder-coated, GEDORE blue, Drawers: Central locking with cylinder lock, Wide drawers (W 640 x D 400 mm) fully extendable, removable, Each drawer with safety locking, single-hand operation, Ball-bearing guide rails, Can be individually equipped with lengthwise and crosswise dividers (can be ordered individually), Load capacity per drawer 40 kg, bottom heavy-duty drawer 60 kg, Sheet steel, corrosion resistant and scratch-proof powder-coated, GEDORE blue, GEDORE High-performance chassis: Total load capacity 1000 kg static (750 kg dynamic), 2 high-performance wheels on roller bearings (fixed castors Ø 200 mm), 2 smooth running wheels on ball bearings (swivel castors Ø 125 mm), both with total brake, The GEDORE trapezoidal axle construction secures smooth running, manoeuvrability and track-keeping also in case of maximum loads, Accessories: Length- (LT) and crosswise (QT) dividers from zinc-plated sheet steel (can be ordered individually), Options: Can be equipped with GEDORE tool modules (1500 ES/1500 CT or 2005 CT), Optionally extendable with GEDORE tool chests, rear panels and tool holders, Rear panel R 1504 XL-L can be added, Further drawer combinations on request, Delivery without tools and accessories
Features:
- Country of origin: Germany
- Customs tariff number: 94032080
- Reach: compliant
- Contents (Qty of pieces): 1
- Total width: 605 mm
- Total height: 1.020 mm
- Net weight: 83 kg
- 1000 V insulated: No
- VDE certified: No
- Total length: 865 mm
- Material: Sheet steel
- Surface: powder-coated
- Colour: GEDORE blue, RAL 5017
- RAL colour tone: blue
- Dimension (L x W x H): 1.020 mm x 605 mm
- Drawer type: 5x Type 1, H = 67 mm 1x Type 2, H = 137 mm 1x Type 3, H = 207 mm
- Number of crosswise dividers: 2
- Number of lengthwise dividers: 3
- Number of drawers: 7
- Load capacity: 750 kg
- Single pull-out stop: No
- Lockable: Yes
- Number of wheels: 4
- Working height: 985 mm
- Static load carrying capacity: 1000 kg
- Load capacity per drawer: 40 kg
- Load capacity heavy duty drawer: 60 kg
- Fixed roller diameter (2x): 200 mm
- Swivel castor diameter with brakes (2x): 125 mm
