Glow Plug Tool Set (Universal)

The universal KL-0132-62 KA glow plug tool set enables the quick and easy drilling out of damaged or broken-off glow plugs. The glow plug, respectively the glow plug top connector, is drilled out/drilled up with the aid of the pilot drill. Next, the original thread is re-tapped and cleaned with the special screw tap. Then, the remains of the glow plug can be removed using either the screw tap or the puller bolt in conjunction with a slide hammer puller such as KL 0049-100., The glow plug, respectively the glow plug top connector, is drilled out/drilled up with the aid of the pilot drill., Next, the original thread is re-tapped and cleaned with the special screw tap., Then, the remains of the glow plug can be removed using either the screw tap or the puller bolt in conjunction with a slide hammer puller.

Features:

• Country of origin: Germany
• Customs tariff number: 82055980
• Contents (Qty of pieces): 7
• Total width: 235 mm
• Total height: 48 mm
• Total depth: 185 mm
• 1000 V insulated: No
• VDE certified: No

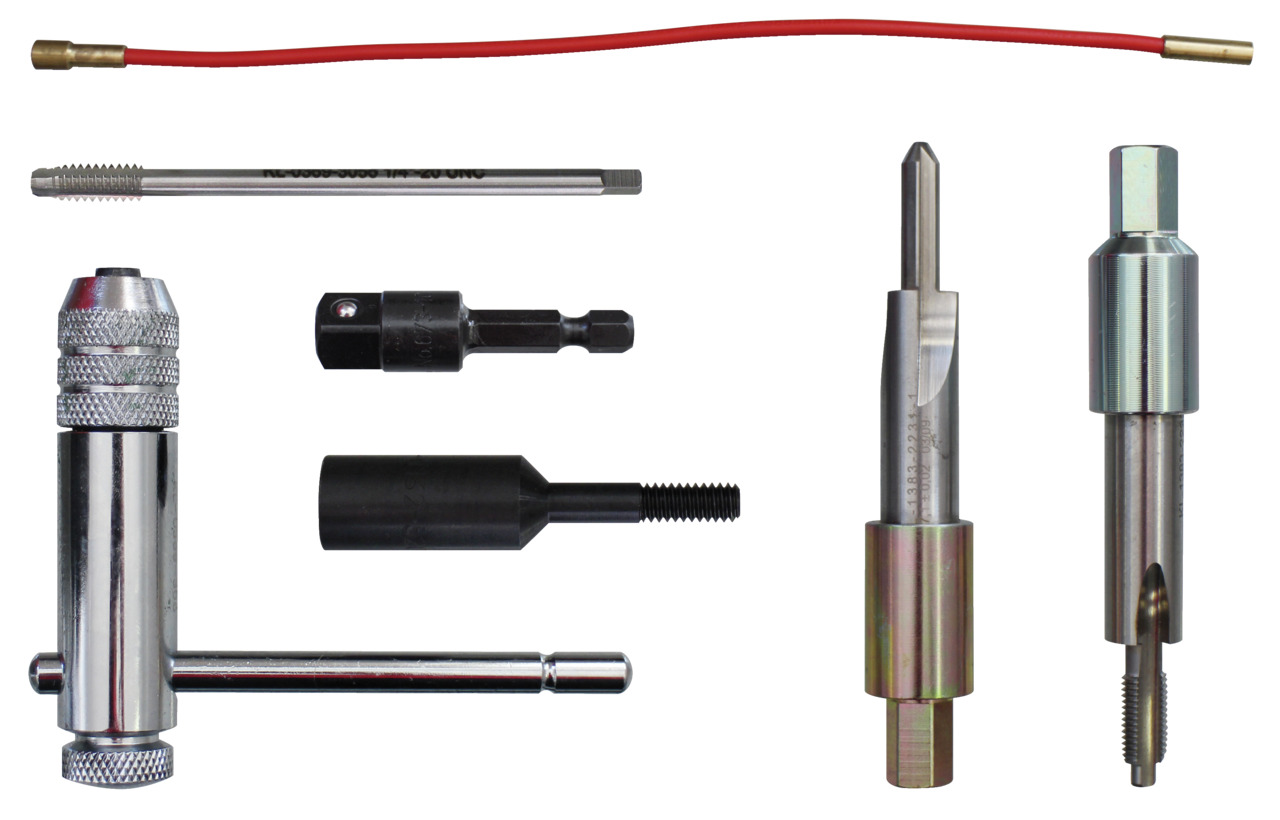

• Parts list (Text):

  1x KL-0126-221 - Magnetheber flexibel

  1x KL-0132-5202 - Zugbolzen 1/4"-20 UNC für Schlagauszieher

  1x KL-0132-6201 - Gewindebohrer M10x1,25

  1x KL-0283-7021 - Kernlochbohrer Ø 9,1 mm für M10x1,25

  1x KL-0369-3056 - Gewindebohrer 1/4"-20 UNC mit Bohrspitze

  1x KL-0369-306 - Werkzeughalter mit Vierkant-Aufnahme 2,4 - 5,5

  1x KL-4007-2510 - Adapter für Bohrmaschine 3/8" Vierkant

  1x KL-0132-5590 A - Kunststoffkoffer

• Target groups: Automotive Construction and commercial vehicles
• Suitable for: Universally compatible with diesel engines that have a glow plug thread size of M10x1.25. Particularly suitable for Opel, Mazda, Ford, Hyundai, Honda, Kia, Mini, Nissan, and Toyota 1.4 - 3.0 D / DI / DTI / TD / CRDi / CDTi engines (engine codes: 1ND, 1ND-TV, 4EE-2, CD23, D4FA, LD23, MD25TI, R2, RF OHC, RF46, RF-CX, RF-N, TD27T, WL, WL-T, Y17DT, Y17DTL, Y30DT, Z17DTL, Z30DT). Installed in models such as Opel Astra G, Astra H, Combo, Corsa C, Meriva, Signum, Vectra C; Mazda 626 II, 626 III, 626 IV, MPV I, B-series; Ford Ranger; Hyundai Accent, Getz, Matrix; Honda Civic VI; Kia Besta, Pregio, K2700; Mini One D; Nissan Serena, Terrano II, Vanette; Toyota Yaris, Corolla, and others.
• for motor type: Diesel
• Storage: in a case
• for thread: M10x1,25
