Glow Plug Tool Kit, universal

Provides a quick and professional repair solution for torn glow plugs on the cylinder head. , For precise boring out of the glow plug, removal of the glow plug element and recutting of the glow plug mounting thread., No need to dismantle or replace the cylinder head., Quick boring out of the glow plug using special core drills., Easy removal of the glow plug element using an extraction tool., Simple recutting of the glow plug thread using a tap., Precise centring and exact drilling depth thanks to vehicle-specific guide sleeves., an also be used universally without guide sleeves for diesel engines with M8x1 and M10x1 mounting threads., Foam insert provides additional space for glow plug spanners, reamers and thread repair kits.

Features:

• Country of origin: Germany
• Customs tariff number: 82055980
• Contents (Qty of pieces): 28
• Total width: 494 mm
• Total height: 116 mm
• Total depth: 402 mm
• Net weight: 5 kg
• 1000 V insulated: No
• VDE certified: No

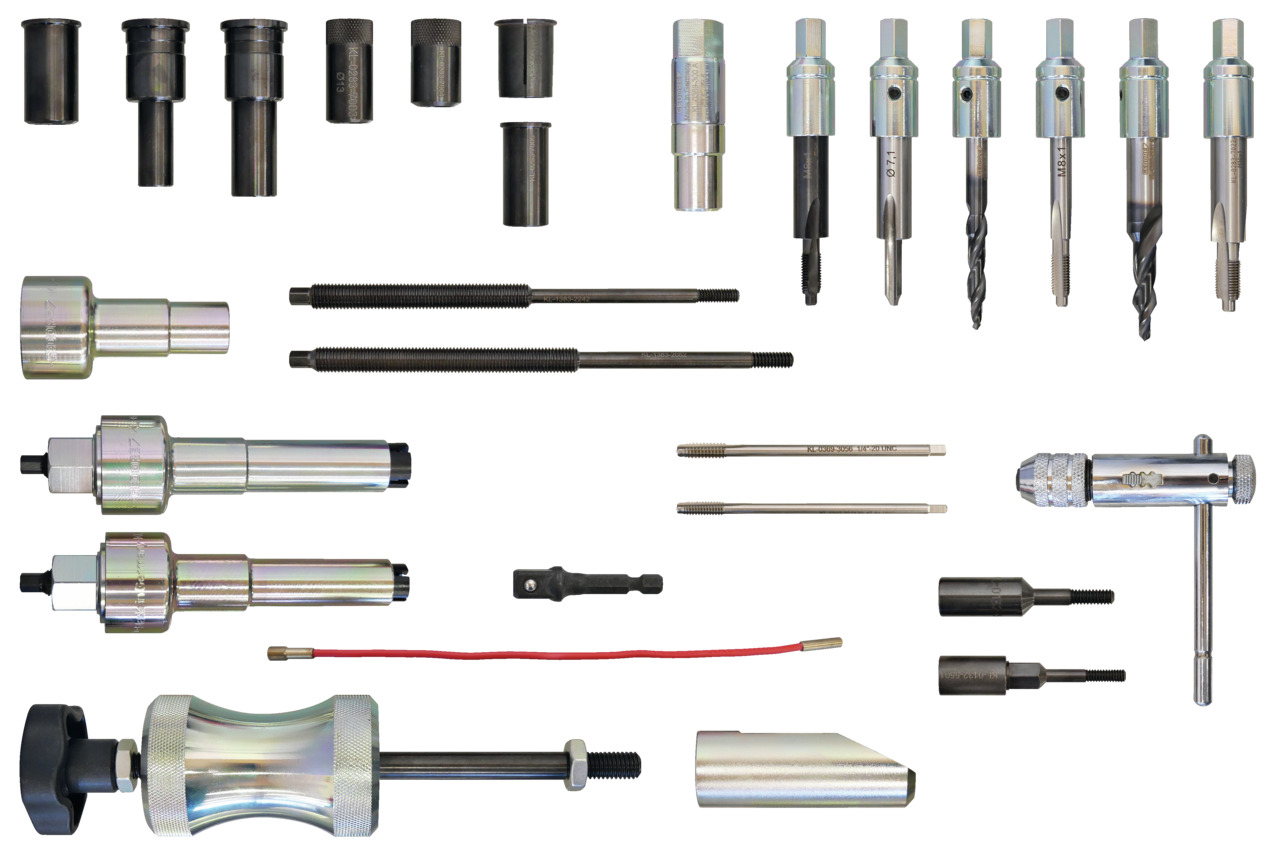

• Parts list (Text):

  1x KL-0049-100 A - Schlagauszieher

  1x KL-0126-221 - Ventilkeil-Magnetheber, flexiebel

  1x KL-0132-5201 - Führungshülse für Mercedes

  1x KL-0132-5202 - Zugbolzen, 1/4"-20 UNC

  1x KL-0132-5501 - Zugbolzen, Nr.12-24 UNC

  1x KL-0132-5502 A - Kernlochbohrer, Ø 4 / 7 mm

  1x KL-0132-5503 - Gewindebohrer, M8x1

  1x KL-0132-5504 - Führungshülse, Fiat

  1x KL-0132-5505 - Führungshülse, Mercedes

  1x KL-0283-7003 - Führungshülse, Ø 13 mm

  1x KL-0283-7004 - Führungshülse, BMW

  1x KL-0283-7005 - Führungshülse, VW

  1x KL-0283-7021 A - Kernlochbohrer, Ø 4,8 / 9 mm

  1x KL-0283-7022 - Gewindebohrer, M10x1

  1x KL-0283-7050 - Ausziehwerkzeug (Grundgerät)

  1x KL-0369-201 A - Glühkerzen Ausziehwerkzeug

  1x KL-0369-202 - Glühkerzen Ausziehwerkzeug

  1x KL-0369-300 A - Walzendreher

  1x KL-0369-3015 - Zentrierhülse, lang

  1x KL-0369-3031 B - Grundkörper, 75 mm

  1x KL-0369-3056 - Gewindebohrer, 1/4"-20 UNC

  1x KL-0369-306 - Werkzeughalter

  1x KL-1383-2052 - Zugbolzen, 1/4"-20 UNC

  1x KL-1383-2231 - Kernlochbohrer, Ø 7,1 mm

  1x KL-1383-2232 - Gewindebohrer, M8x1

  1x KL-1383-2241 - Gewindebohrer, Nr.12-24 UNC

  1x KL-1383-2242 - Zugbolzen, Nr.12-24 UNC

  1x KL-4007-2510 - Adapter

  1x KL-0132-5692 A - Schaumstoffeinlage

  1x KL-4990-9472 - Kunststoffkoffer

• Target groups: Automotive Construction and commercial vehicles
• Suitable for: Universally suitable for diesel engines (D / DI / DTI / TD / TDI / CDI / CRDi / CDTi / JTD / EcoBlue) with M8x1 and M10x1 glow plug threads. Installed in vehicles such as VW-Audi, BMW, Mini, Mercedes, Fiat, Ford, Opel, Renault, Peugeot, Mazda, Hyundai, Honda, Kia, Nissan, Toyota, and many more. Particularly suitable for specific vehicle models with guide sleeves, including BMW (M47, N47, B47, N57); Mercedes (OM611, OM612, OM613, OM639, OM640, OM642, OM646, OM647, OM648, OM651 CDI); VW-Audi (2.5, 2.7, 3.0 V6 TDI); Ford (2.0 EcoBlue); Fiat, Alfa, Lancia, Citroën, Peugeot, IVECO (1.3, 2.3, 3.0 JTD/HDI, F1A, F1C, F30DT, 169A1.000, 169A5.000, 188A8.000, 188A9.000, 199A2.000, 199A3.000, 199A9.000, 199B1.000, 199B2.000, 199B4.000, 223A9.000, 263A2.000); Fiat (1.3 JTD).
• for motor type: Diesel
• Storage: in a case
• for thread: M8x1 | M10x1
