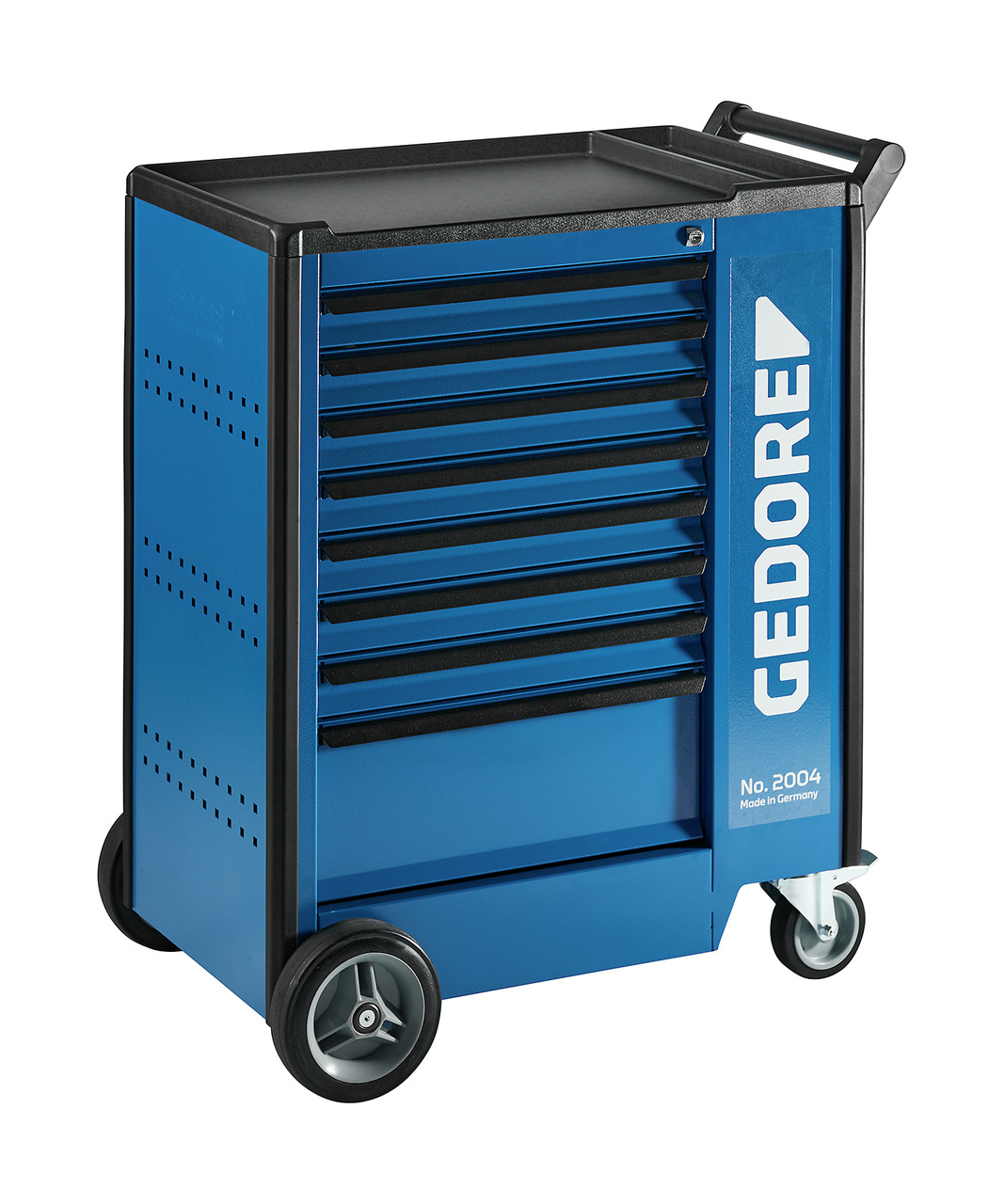

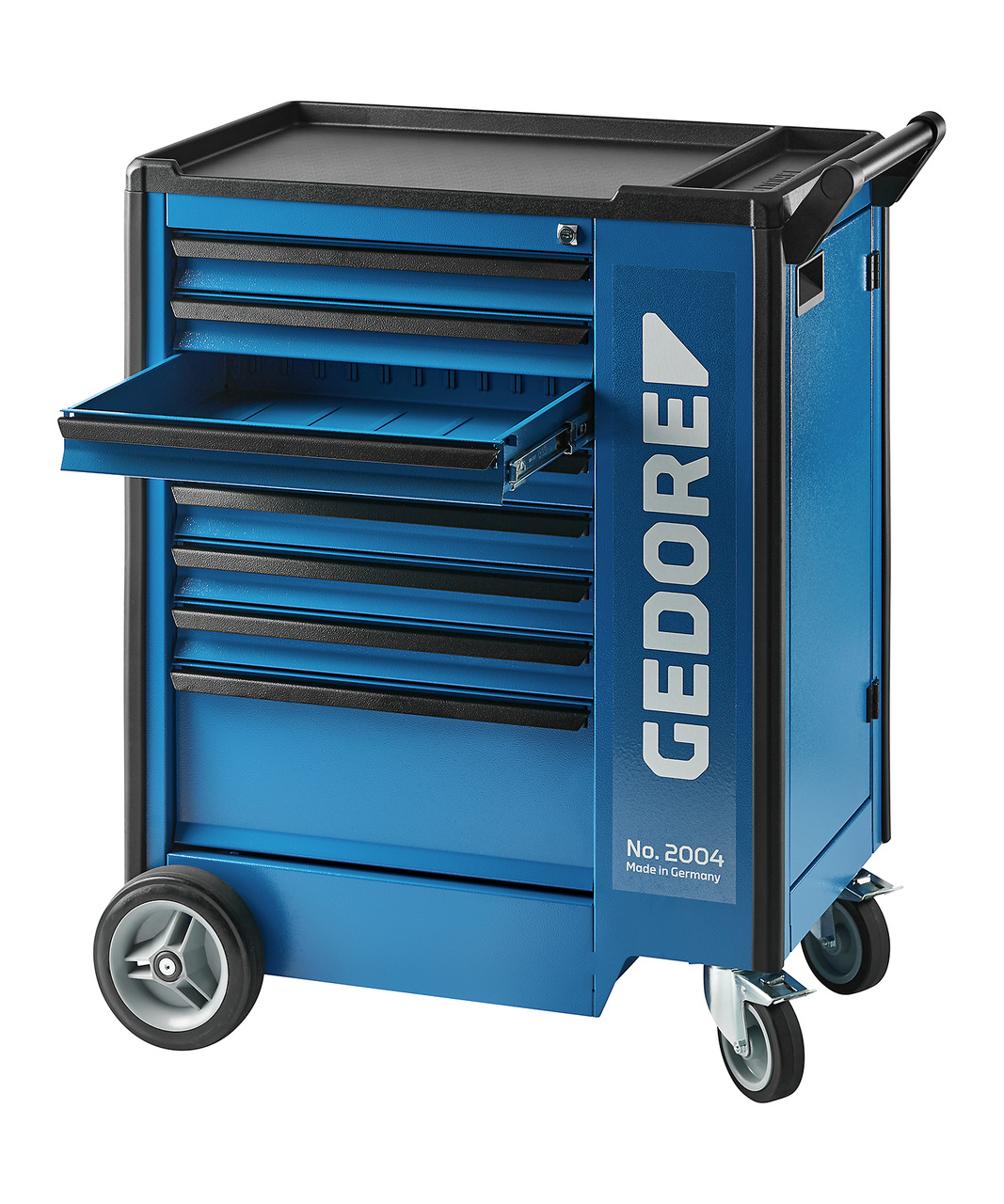

Tool trolley with 8 drawers
Ready for shipment in 6 workdays
- Item number:
- WS03601640712
- Manufacturer number:
- 2004 0701
- Weight:
- 90 kg
Body: Dimensions: H 812 x W 771 x D 478 mm, Working platform in ABS, with compartments for small parts, Storage compartment with perforated sheet (Euro perforation 10 x 38 mm), two removable drawers for small parts and door on the handle side, Manoeuvrable and easy to control with the driving and steering handle, Front side with Euro perforation 10 x 38 mm to fix hooks and tools, Heel and impact protection for your safety, Sheet steel, corrosion-resistant and scratch-resistant powder-coated, GEDORE blue, Drawers: Central locking with cylinder lock, Wide drawers (W 480 x D 400 mm) fully extendable, removable, Each drawer and storage compartment with safety locking, single-hand operation, Ball-bearing guide rails, Can be individually equipped with lengthwise and crosswise dividers (can be ordered individually), Load capacity per drawer 40 kg, bottom heavy-duty drawer 60 kg (not for No. 2004 1000), Sheet steel, corrosion resistant and scratch-proof powder-coated, GEDORE blue, GEDORE high-performance chassis: Total load capacity 1000 kg static (750 kg dynamic), 2 roller-bearing GEDORE high-performance wheels (fixed castors Ø 200 mm), 2 ball-bearing mounted GEDORE smooth-running wheels (swivel castors Ø 125 mm), both with total brakes, Even under maximum loads, the GEDORE axle design ensures: smooth running, maneuverability and directional stability, The GEDORE trapezoidal axle construction secures smooth running, manoeuvrability and track-keeping also in case of maximum loads, Length- (LT) and crosswise (QT) dividers from zinc-plated sheet steel (can be ordered individually), Options: Can be equipped with GEDORE tool modules (1500 ES/1500 CT), Optionally extendable with GEDORE tool chests, rear panels and tool holders, Rear panel R 1504 XL-L can be added, Further drawer combinations on request, Delivery without tools and accessories
Features:
- Country of origin: Germany
- Customs tariff number: 94032080
- Reach: compliant
- Contents (Qty of pieces): 1
- Total width: 605 mm
- Total height: 1.020 mm
- Net weight: 90 kg
- 1000 V insulated: No
- VDE certified: No
- Total length: 865 mm
- Material: Sheet steel
- Surface: powder-coated
- Colour: RAL 5017
- RAL colour tone: blue
- Dimension (L x W x H): 1.020 mm x 605 mm x 865 mm
- Drawer type: 7x Type 1, H = 67 mm 1x Type 3, H = 207 mm
- Number of crosswise dividers: 2
- Number of lengthwise dividers: 3
- Number of drawers: 8
- Load capacity: 750 kg
- Single pull-out stop: No
- Lockable: Yes
- Number of wheels: 4
- Working height: 985 mm
- Static load carrying capacity: 1000 kg
- Load capacity per drawer: 40 kg
- Load capacity heavy duty drawer: 60 kg
- Fixed roller diameter (2x): 200 mm
- Swivel castor diameter with brakes (2x): 125 mm
