SPARE PARTS AND REPAIR PRODUCTS FOR WIND TURBINES

Bolt extractor 2.1-4.9 mm, M6-M8

Ready for shipment in 6 workdays

Item number:
WS03606758570
Manufacturer number:
8551 2
Weight:
0.009 kg

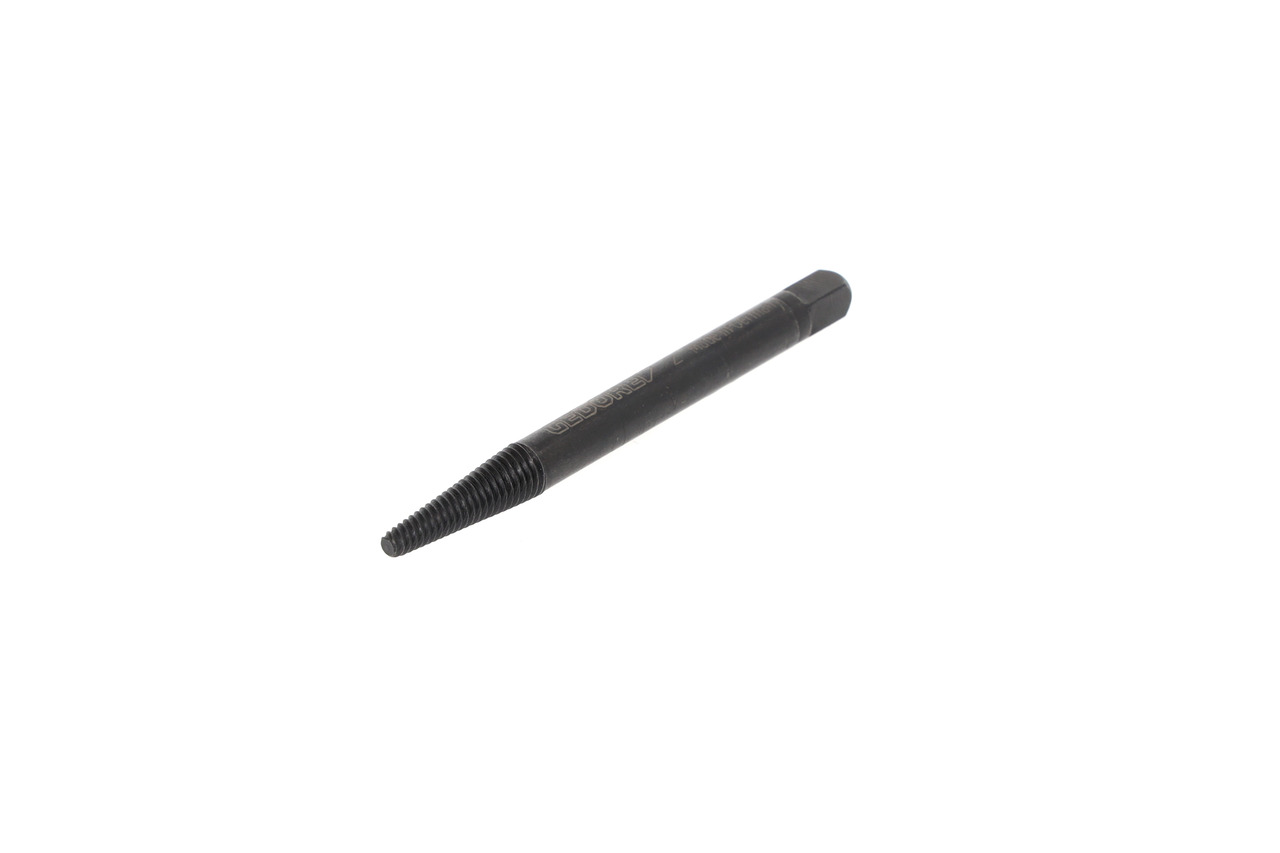

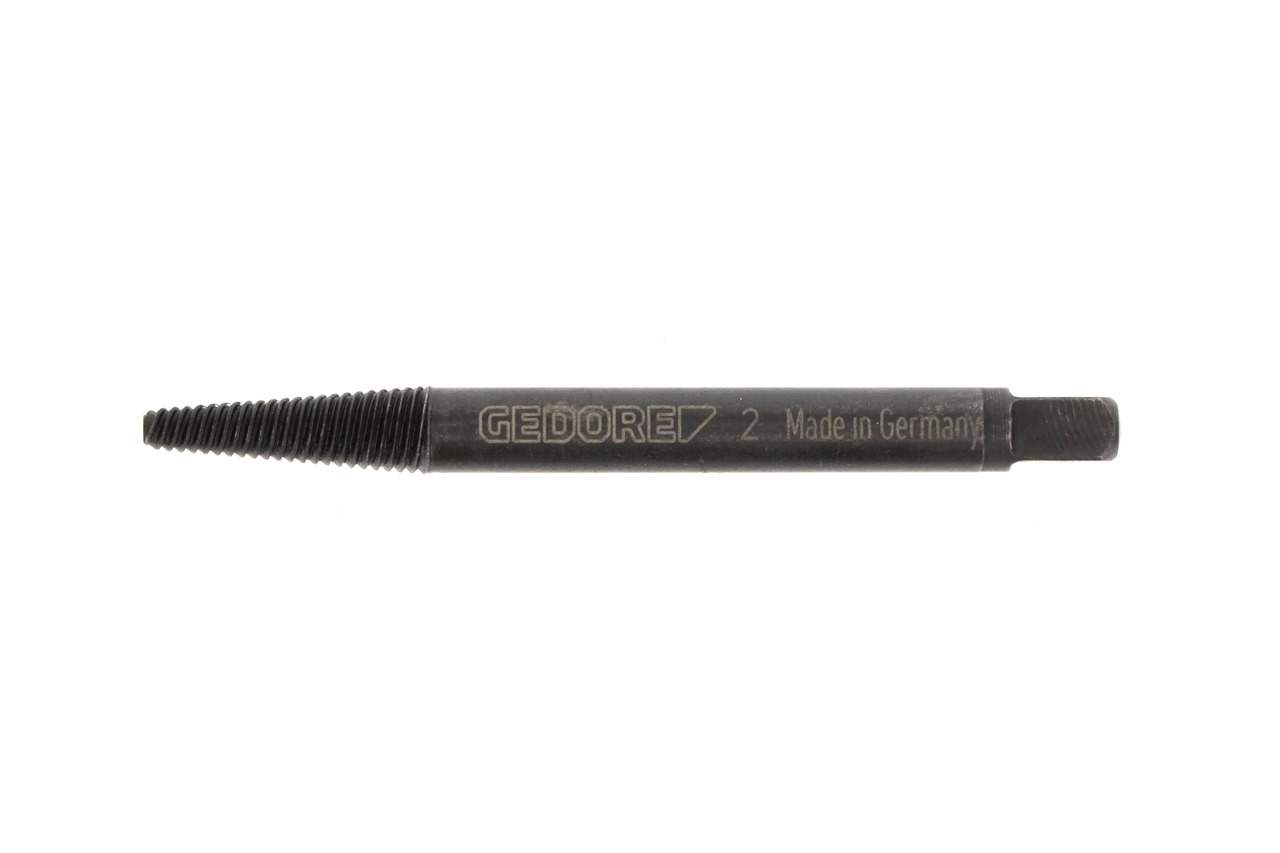

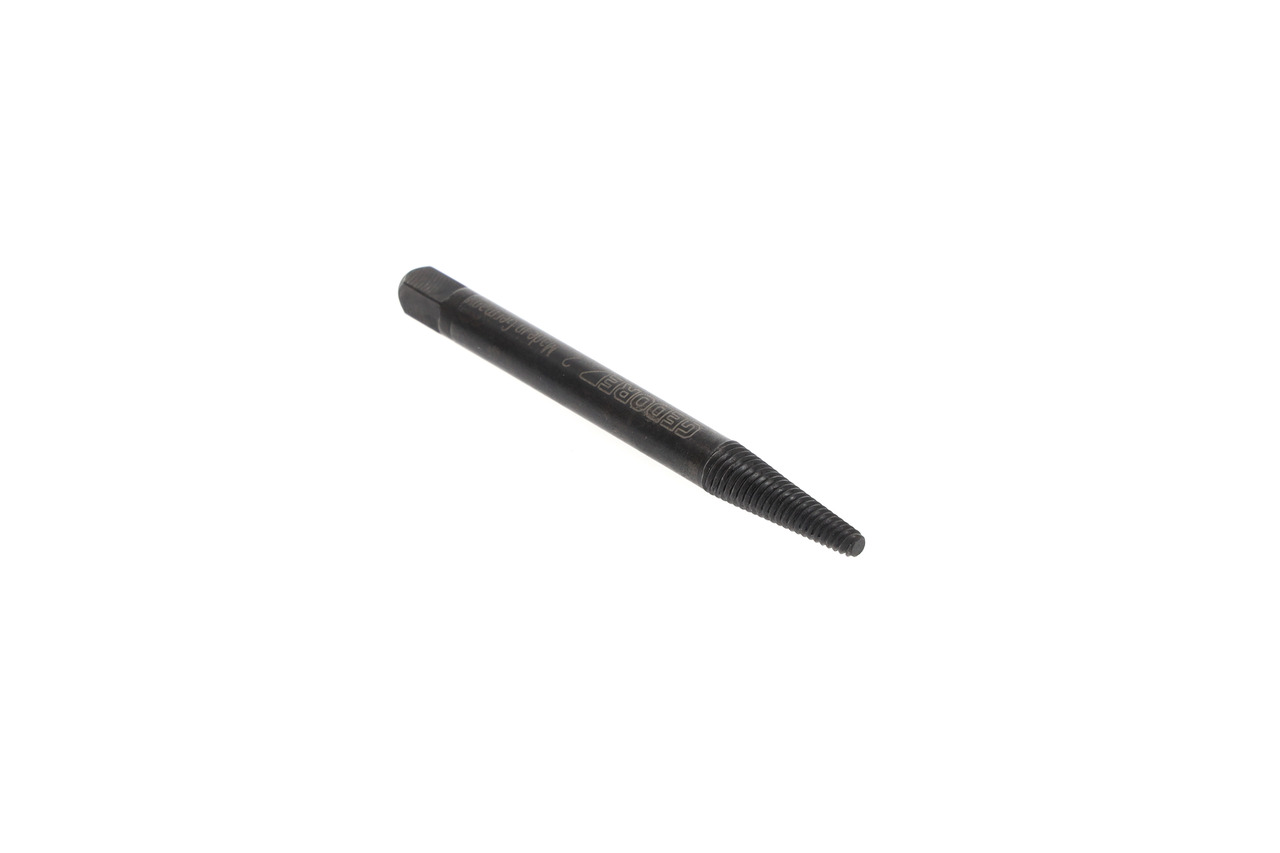

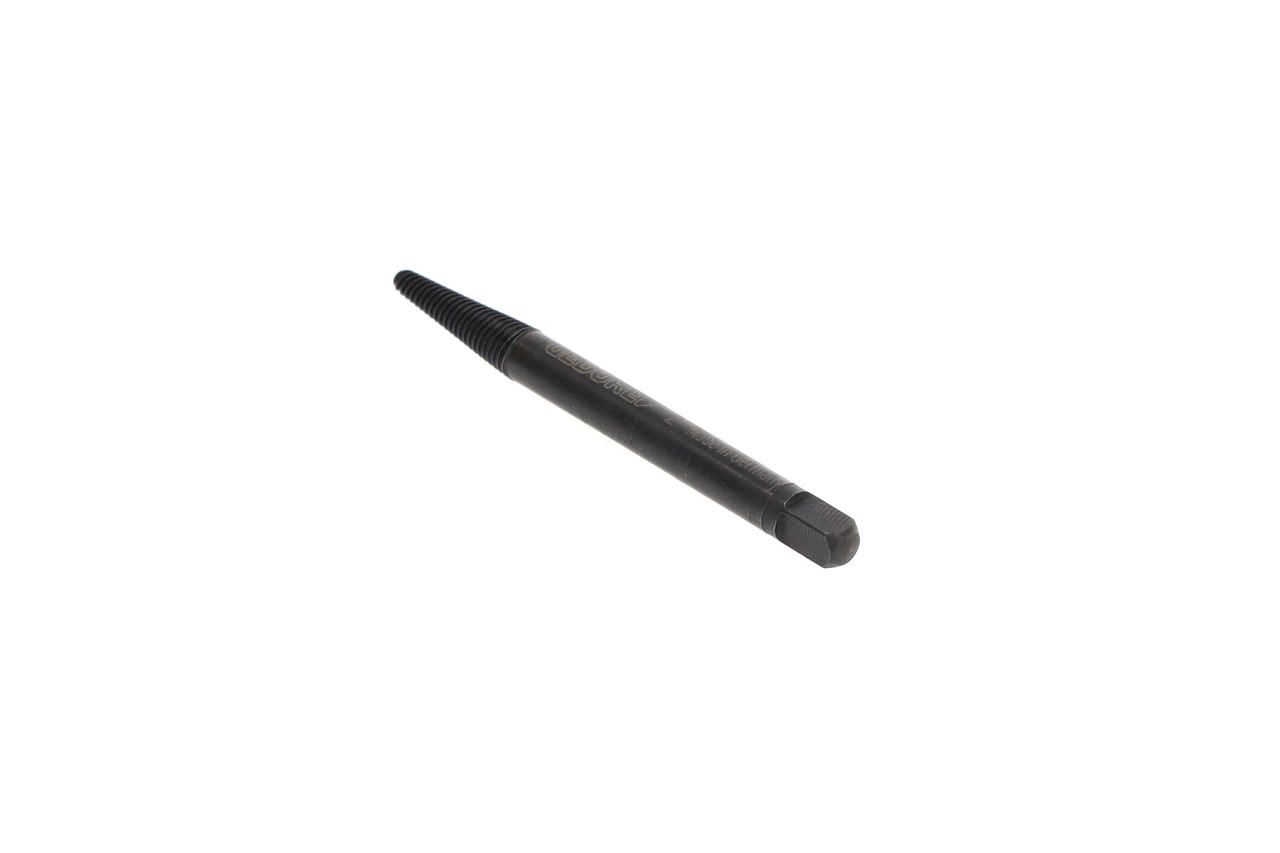

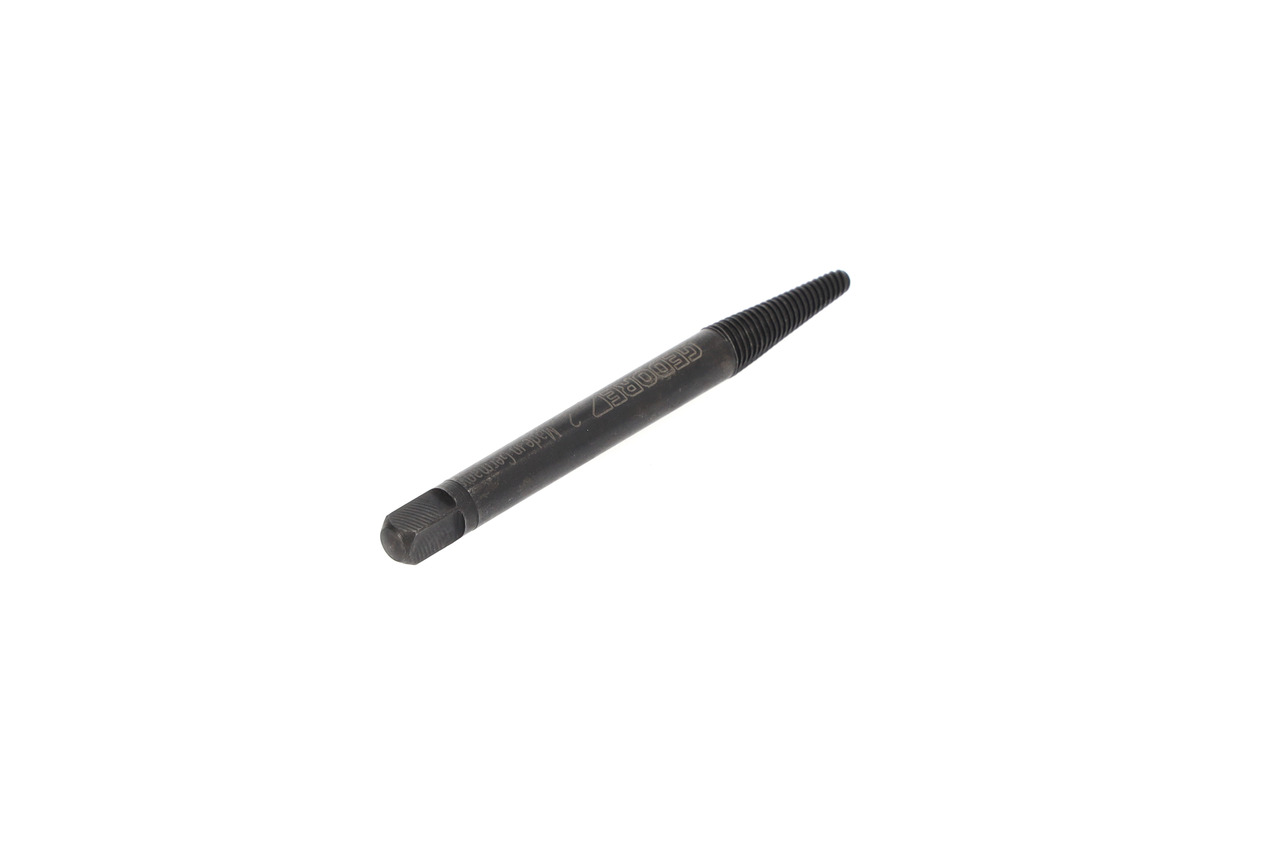

Bolt extractor 2.1-4.9 mm, M6-M8

Chrom-vanadium-steel, 54 HRC, Operation: Drill a central hole into the broken bolt, Turn the bolt extractor to the left into this hole until it grips and removes the bolt (penetrating oil may be necessary!), Select screw extractors as large as possible

Features:

  • Country of origin: Germany
  • Customs tariff number: 82079091
  • Contents (Qty of pieces): 1
  • Total width: 5 mm
  • Total height: 5 mm
  • Net weight: 0,009 kg
  • 1000 V insulated: No
  • VDE certified: No
  • Total length: 57 mm
  • Material: Chrome-vanadium steel
  • for thread: M6 - M8
  • Bore Ø: 2,6 mm
  • Square drive: 3,8 mm
  • Hardness: 54 HRC
  • Diameter range: 2,1 - 4,9 mm
