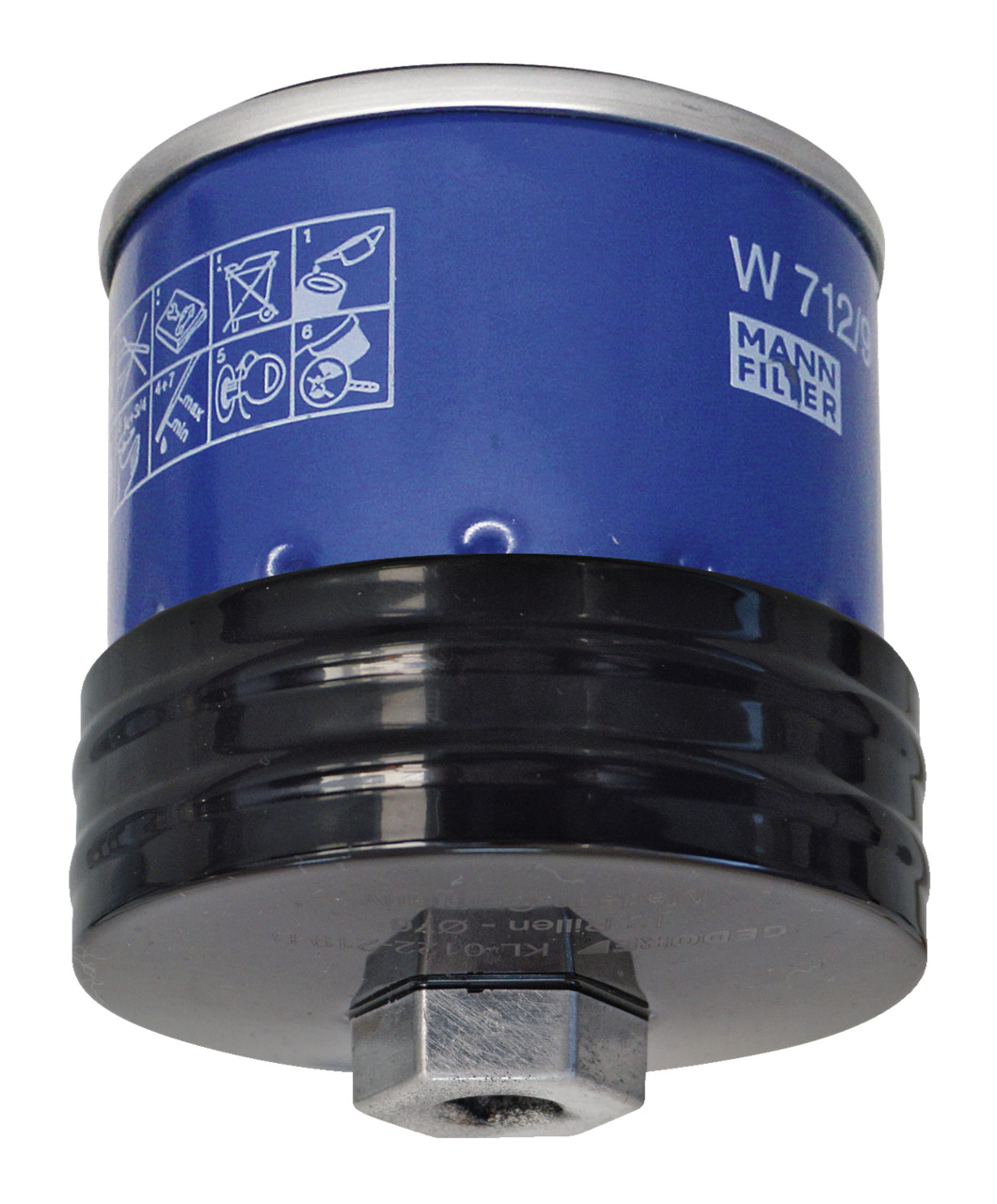

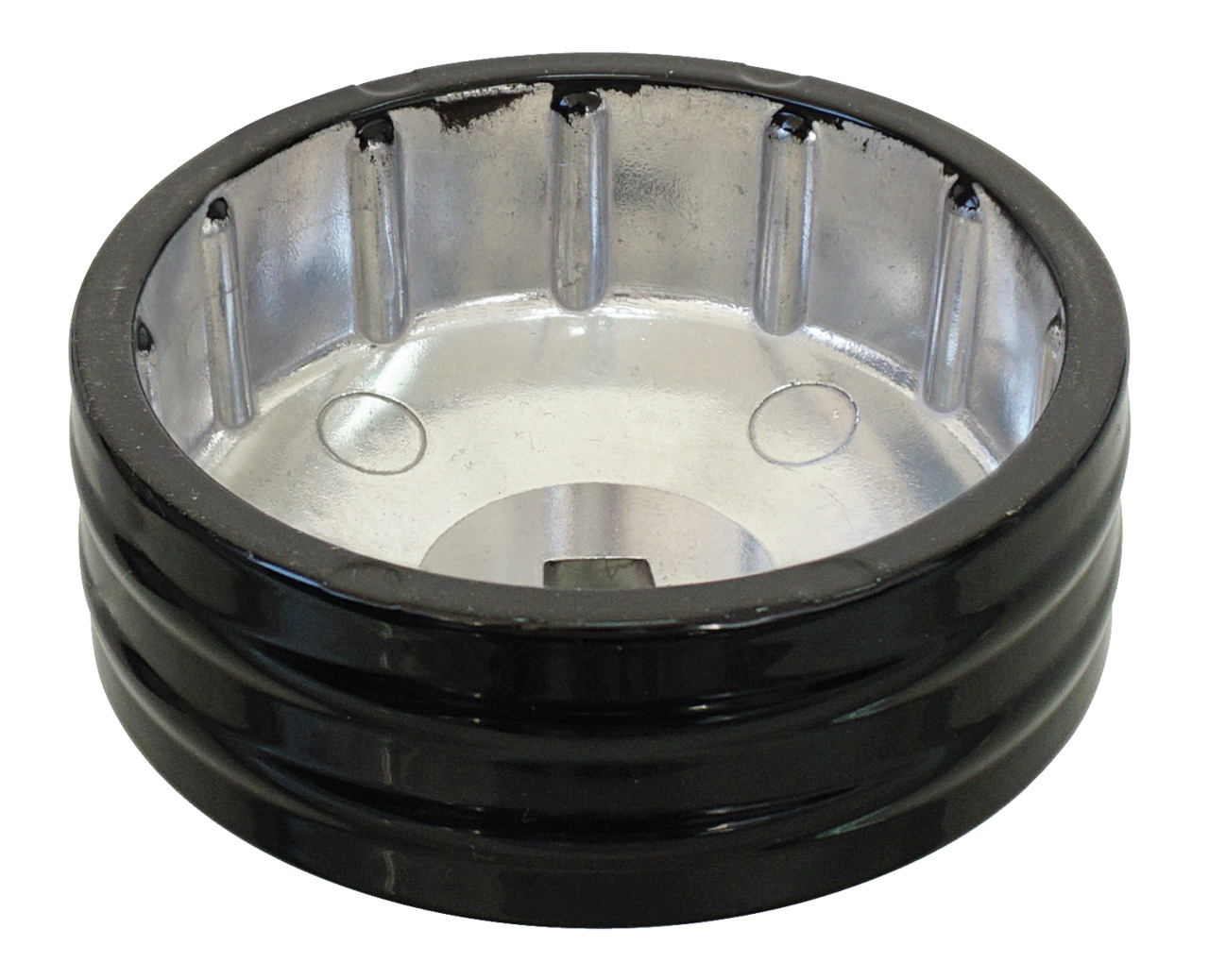

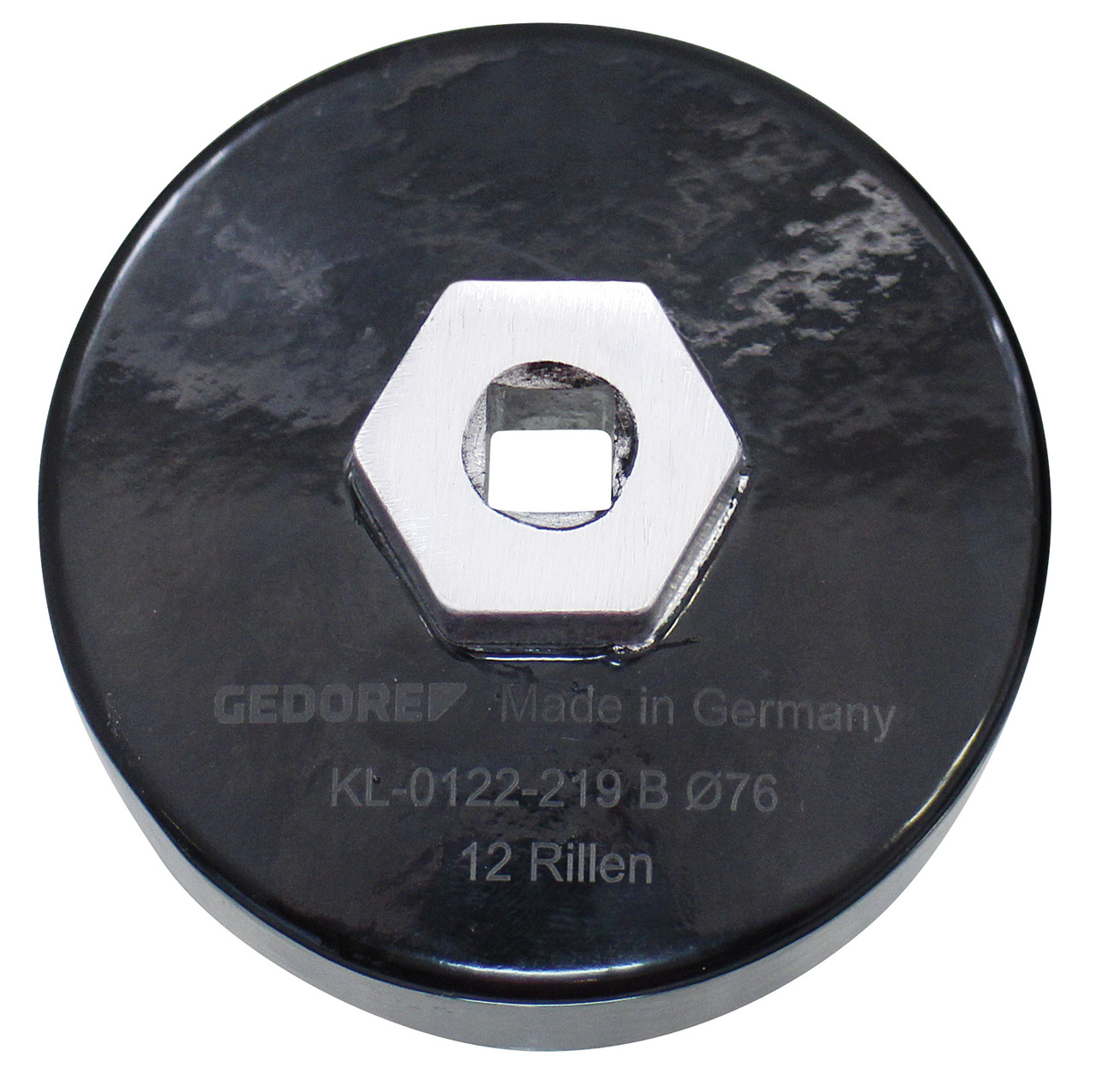

Oil Filter Socket, Alu, Ø 76mm, plastic-coated

Thanks to the particularly compact design of the oil filter socket, oil filters on Mercedes M102 and M103 engines can be replaced without the need for removing the induction pipe. The problem with K9K engines is that the alternator is located very close to the oil filter. Thus, there is a risk of causing a short circuit with the alternator charging cable when using a conventional oil filter tool The KL-0122-219 B oil filter socket was specifically developed for this type of engines. The socket features a non-conductive surface coating designed to prevent accidental short circuits and, as a result, to allow the oil filter to be loosened and tightened safely., The problem with K9K engines is that the alternator is located very close to the oil filter. Thus, there is a risk of causing a short circuit with the alternator charging cable when using a conventional oil filter tool., The KL-0122-219 B oil filter socket was specifically developed for this type of engines., The socket features a non-conductive surface coating designed to prevent accidental short circuits and, as a result, to allow the oil filter to be loosened and tightened safely.

Features:

  • Country of origin: Germany
  • Customs tariff number: 82055980
  • Reach: compliant
  • Contents (Qty of pieces): 1
  • 1000 V insulated: No
  • VDE certified: No
  • Material: Aluminium
  • Target groups: Automotive Construction and commercial vehicles
  • Suitable for: Suitable for oil filters with a diameter of 76 mm and 12 grooves for VW-Audi, Mercedes, Seat, Škoda, Citroën, Peugeot, Renault, Ford, Nissan, Dacia, and Suzuki, etc. (e.g., filters: Purflux LS 918, MANN W716/1). Particularly suitable for Renault, Nissan, Dacia, and Suzuki with K9K engines as well as Mercedes 6-cylinder petrol engines M102 and M103.
  • Version: isolated
  • Drive hexagon: 27,0 mm
  • Diameter milled slot of piston rod: 76 mm
  • Square drive: 3/8"
  • Outer diameter: 90 mm
  • Number of grooves: 12
