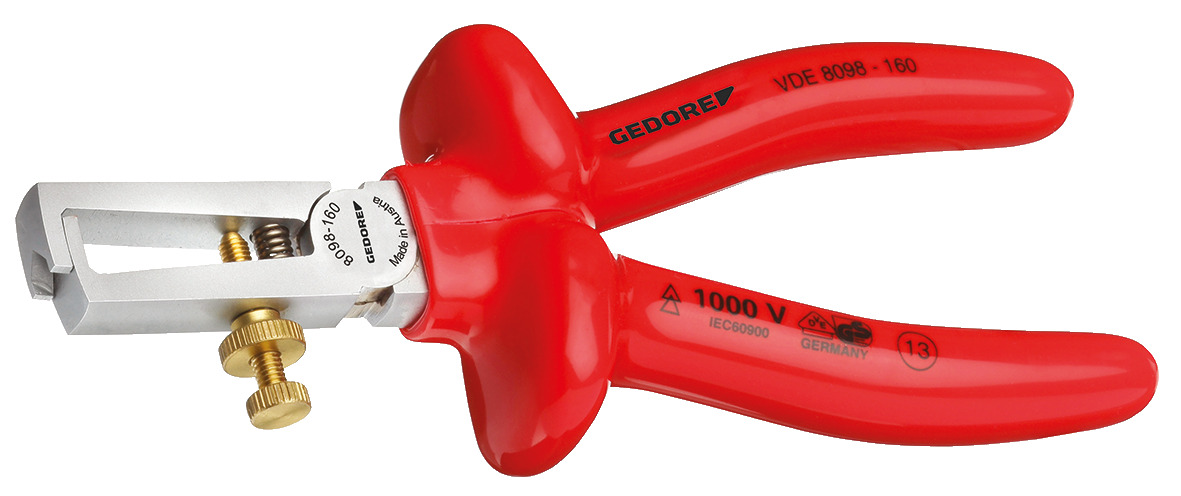

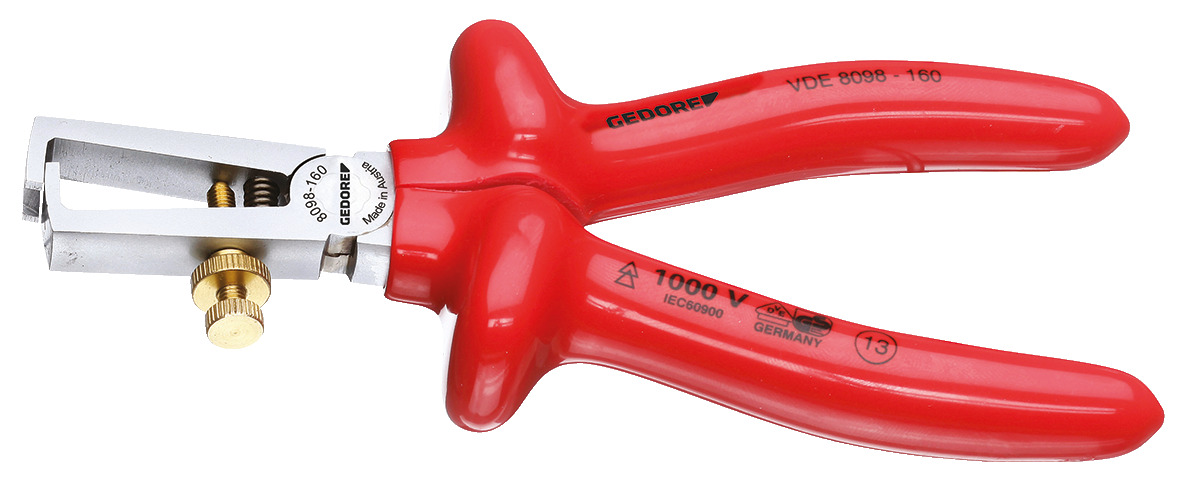

VDE Stripping pliers with VDE dipped insulation
Ready for shipment in 6 workdays
- Item number:
- WS03606708980
- Manufacturer number:
- VDE 8098-160
- Weight:
- 0.217 kg
VDE Stripping pliers with VDE dipped insulation

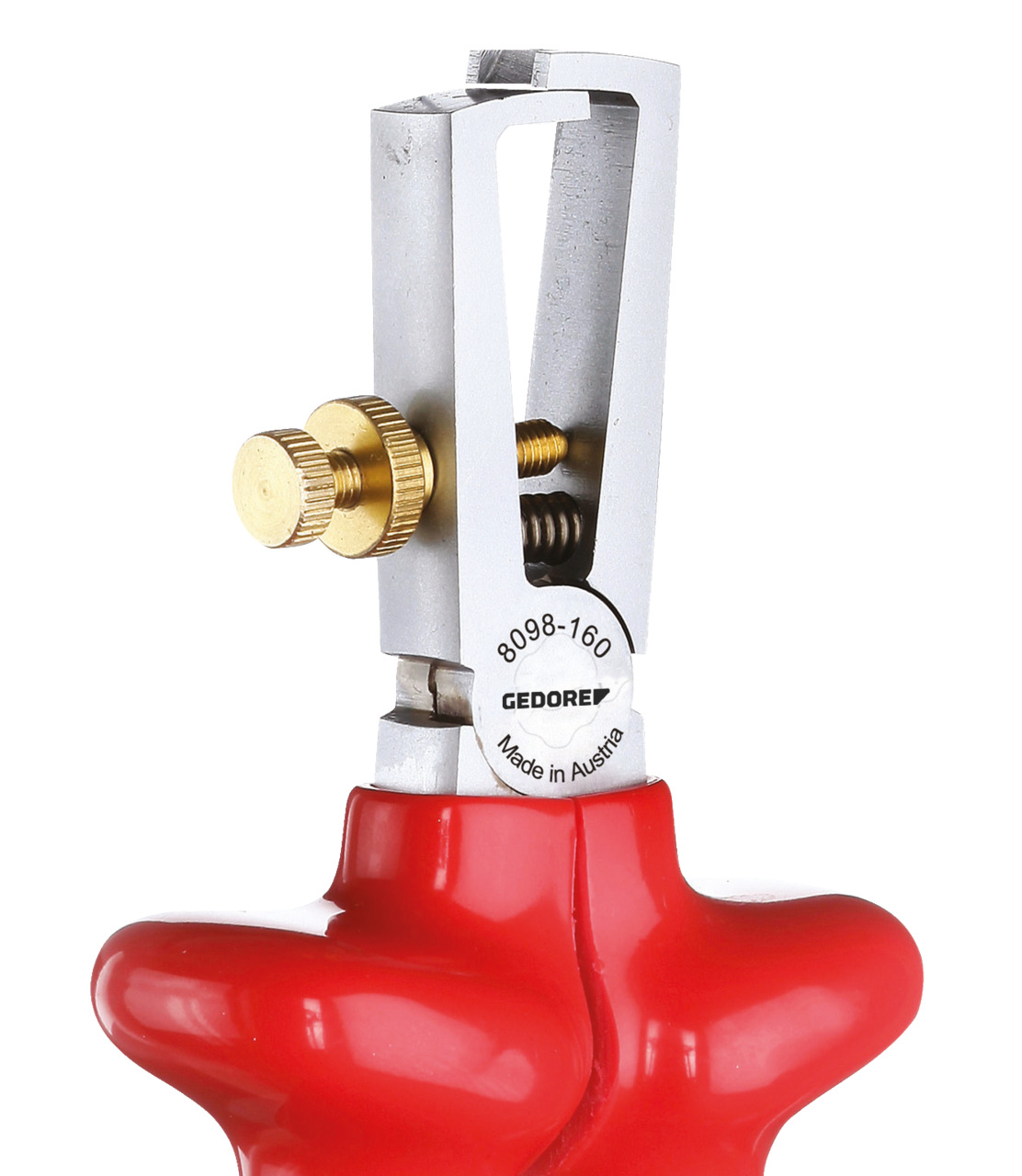

Opens automatically, with spring and adjusting screw, V-shaped cutting jaws for stripping the plastic insulation of single- and multi-core conductors, Easy adjustment to the required wire or strand diameter by means of the set screw and lock nut, For wires from 0.8 to 6.0 mm², GEDORE special hardened and tempered steel, drop-forged, oil-hardened and annealed, Handles with VDE dipped insulation up to 1000 V, acc. to EN 60900/IEC 60900, two-ply Check-Tool insulation
Features:
- Country of origin: Austria
- Customs tariff number: 82032000
- Reach: compliant
- Contents (Qty of pieces): 1
- Net weight: 0,217 kg
- 1000 V insulated: Yes
- VDE certified: Yes
- Total length: 160 mm
- Width of head 1: 18,5 mm
- Surface: chrome-plated
- Standard: EN 60900/IEC60900
- Handle design: Immersion insulation: 2-fold Check-Tool insulation
- Cable cross section: 0,8-6,0 mm²
- Jaw length L3: 43,5 mm
- Design non-sparking: No
- Opening spring present: No
- Joint types: inserted joint
- Head thickness: 8,5 mm
