Side cutter 140 mm
Ready for shipment in 6 workdays
- Item number:
- WS03603463532
- Manufacturer number:
- 8314-140 TC
- Weight:
- 0.129 kg

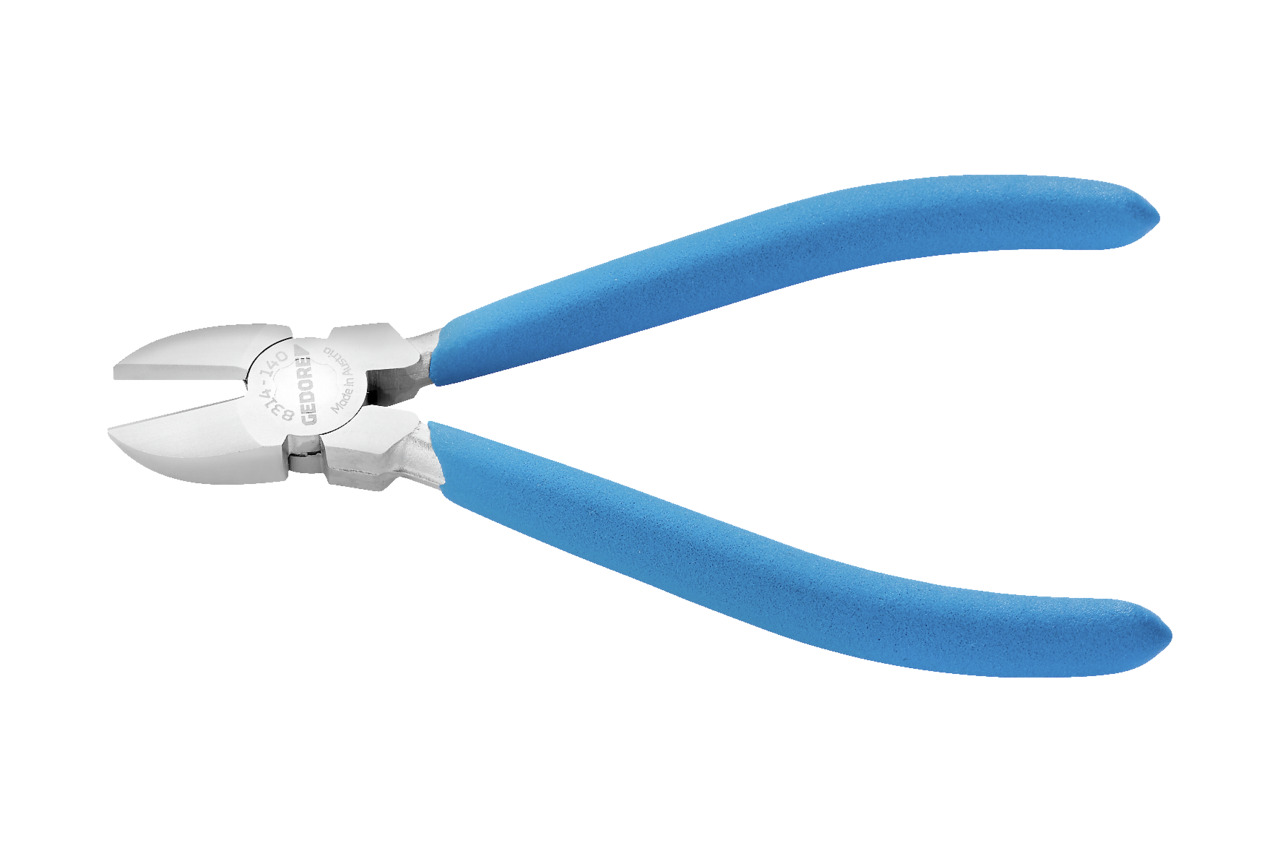

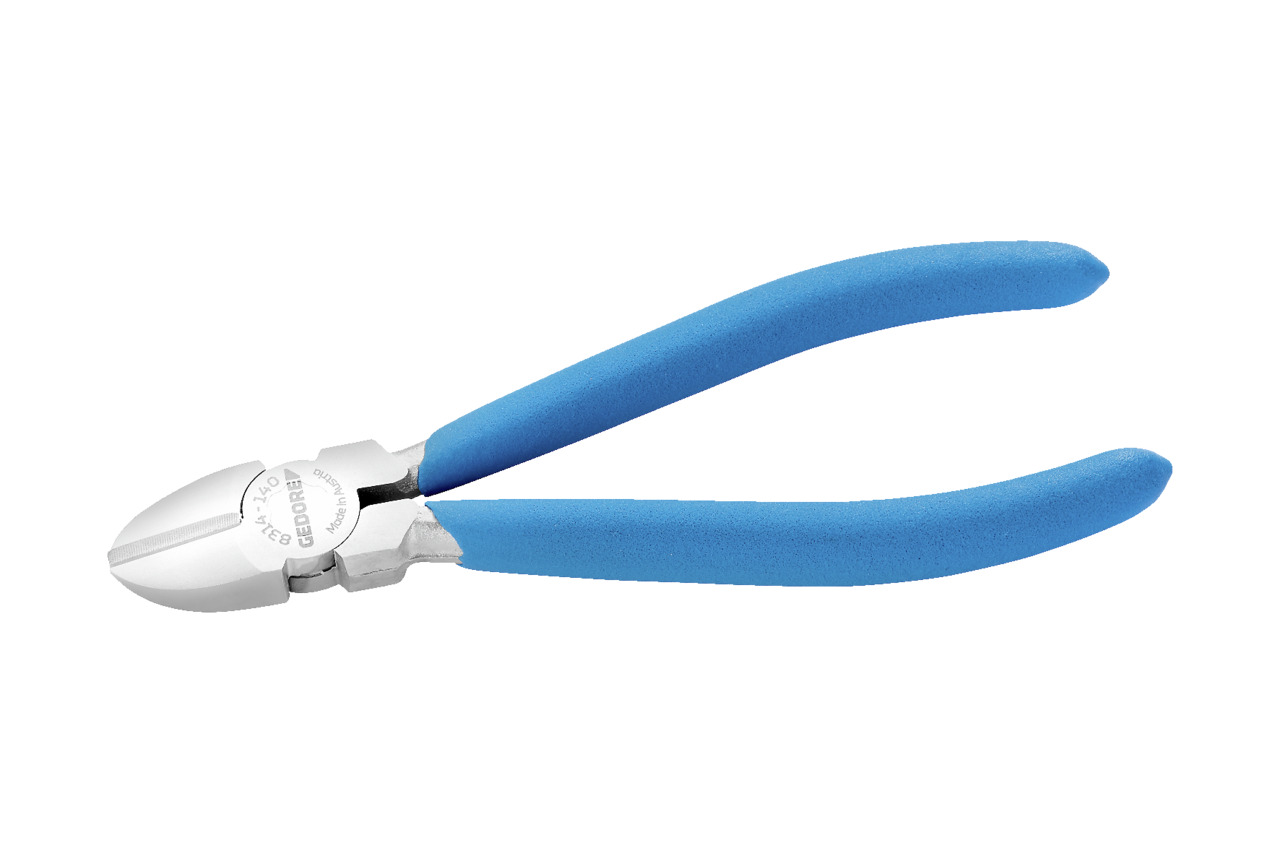

Side cutter 140 mm
Acc. to DIN ISO 5749, With slender head, ideal for confined spaces, Induction-hardened precision cutting edges, hardness 63 - 65 HRC, GEDORE special hardened and tempered steel, drop-forged, oil-hardened and annealed, JC = chrome-plated, with 2-component handle covers, TL = steel-grey, with blue dipped non-slip handles
Features:
- Country of origin: Austria
- Customs tariff number: 82032000
- Reach: compliant
- Contents (Qty of pieces): 1
- Total width: 51 mm
- Total height: 12 mm
- Net weight: 0,129 kg
- 1000 V insulated: No
- VDE certified: No
- Total length: 140 mm
- Material: Heat-treated steel
- Width of head 1: 18,5 mm
- Surface: chrome-plated
- Head height 1: 18,5 mm
- Standard: DIN ISO 5749
- Handle design: dip-insulated
- Cutting edge length: 18 mm
- Cutting values: Hard wire: 1.8 mm / 13 AWG Medium hard wire: 2.5 mm / 10 AWG Soft wire: 4 mm / 6 AWG
- Hardness of cutting edge: 63 - 65 HRC
- Design non-sparking: No
- Opening spring present: No
- Joint types: inserted joint
- Blade shape: with facet
- Head thickness: 9,5 mm
- Handle colour: blue
- Thickness of point: 1,0 mm
- ESD Yes/No: No
- with cutting edge: Yes
- Hardening process: Induction hardened
- Bevel: with
