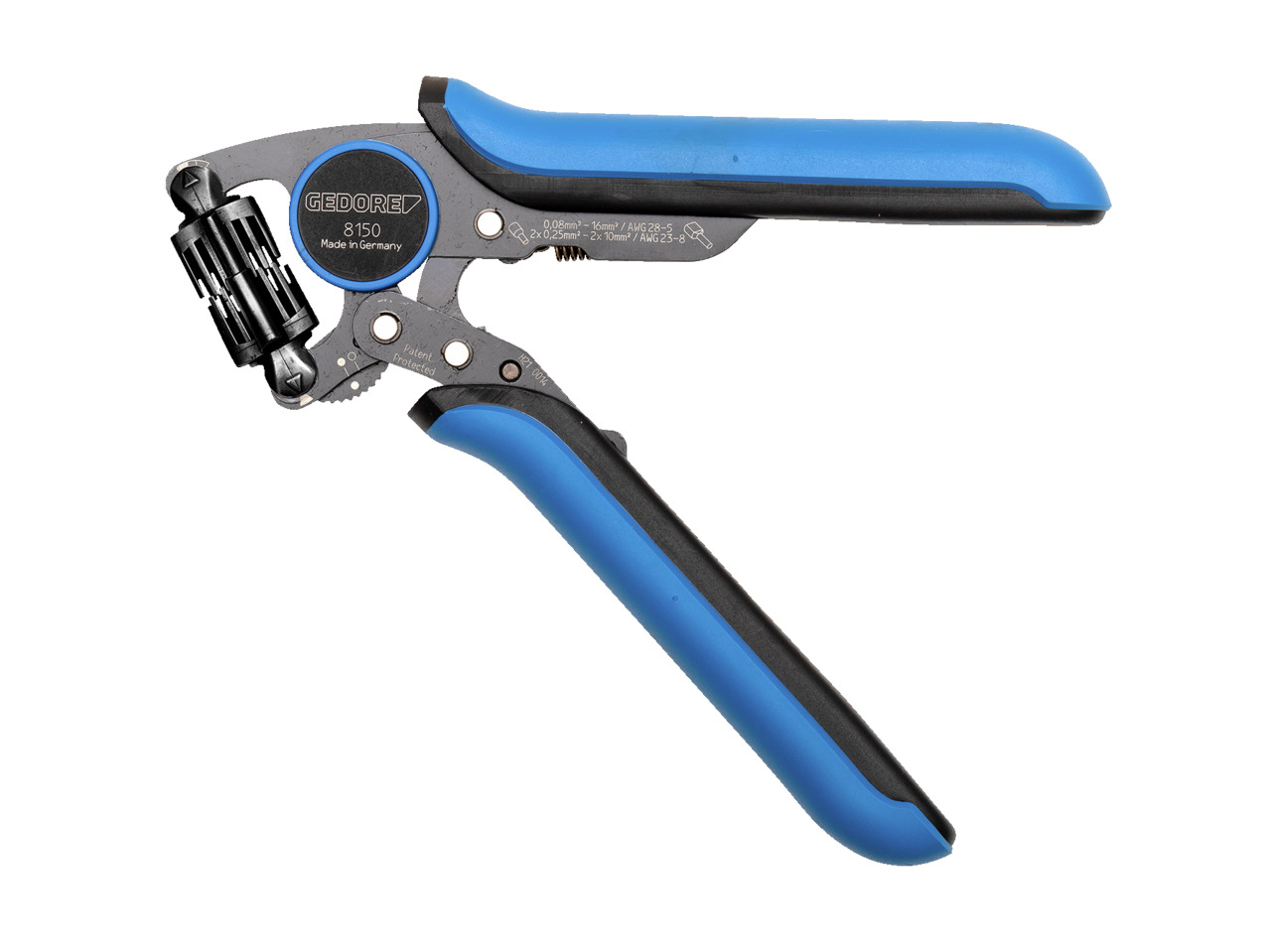

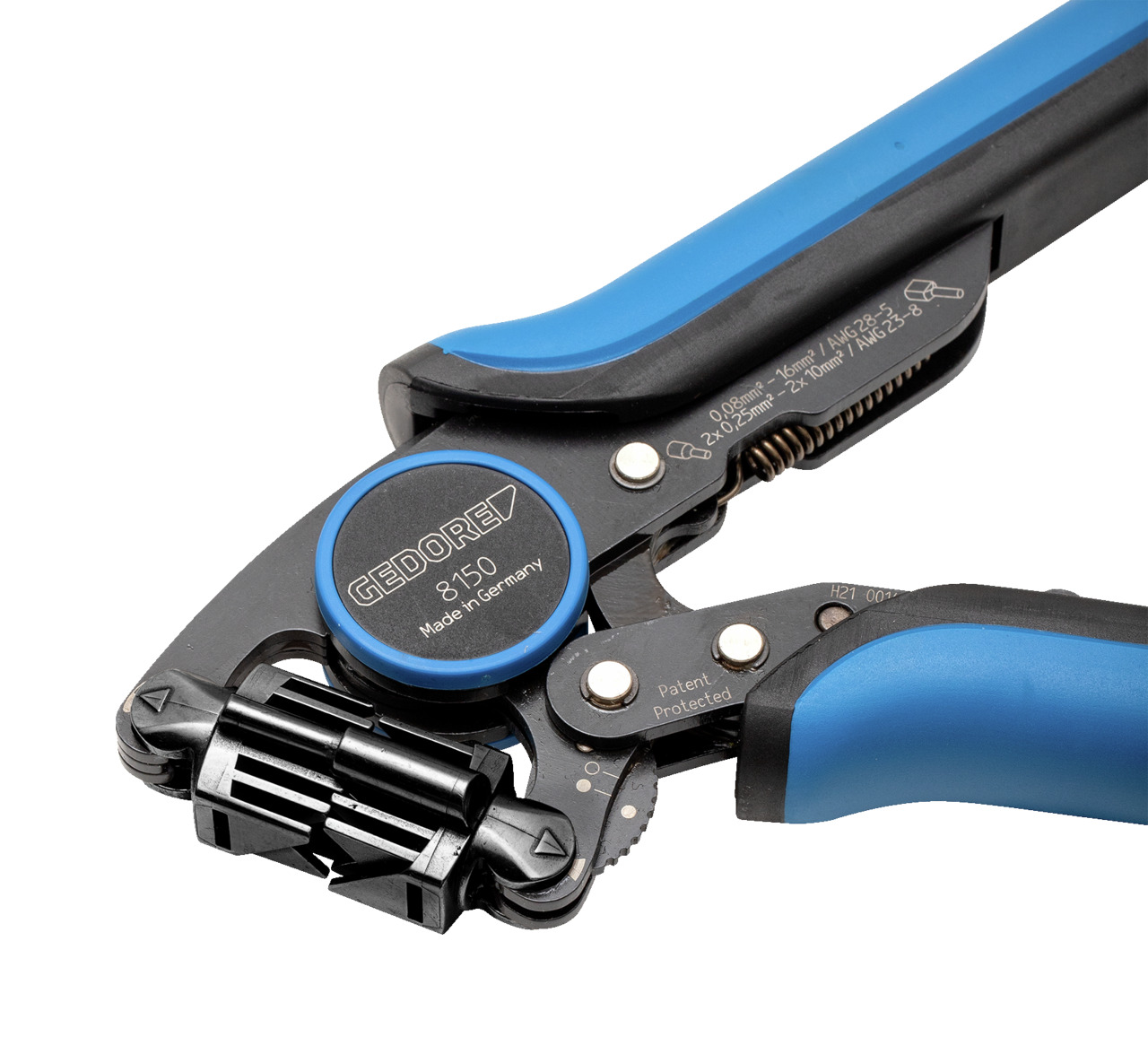

Crimping Pliers CrimpMax-360 Professional
Ready for shipment in 6 workdays
- Item number:
- WS03603416437
- Manufacturer number:
- 8150
- Weight:
- 0.45 kg

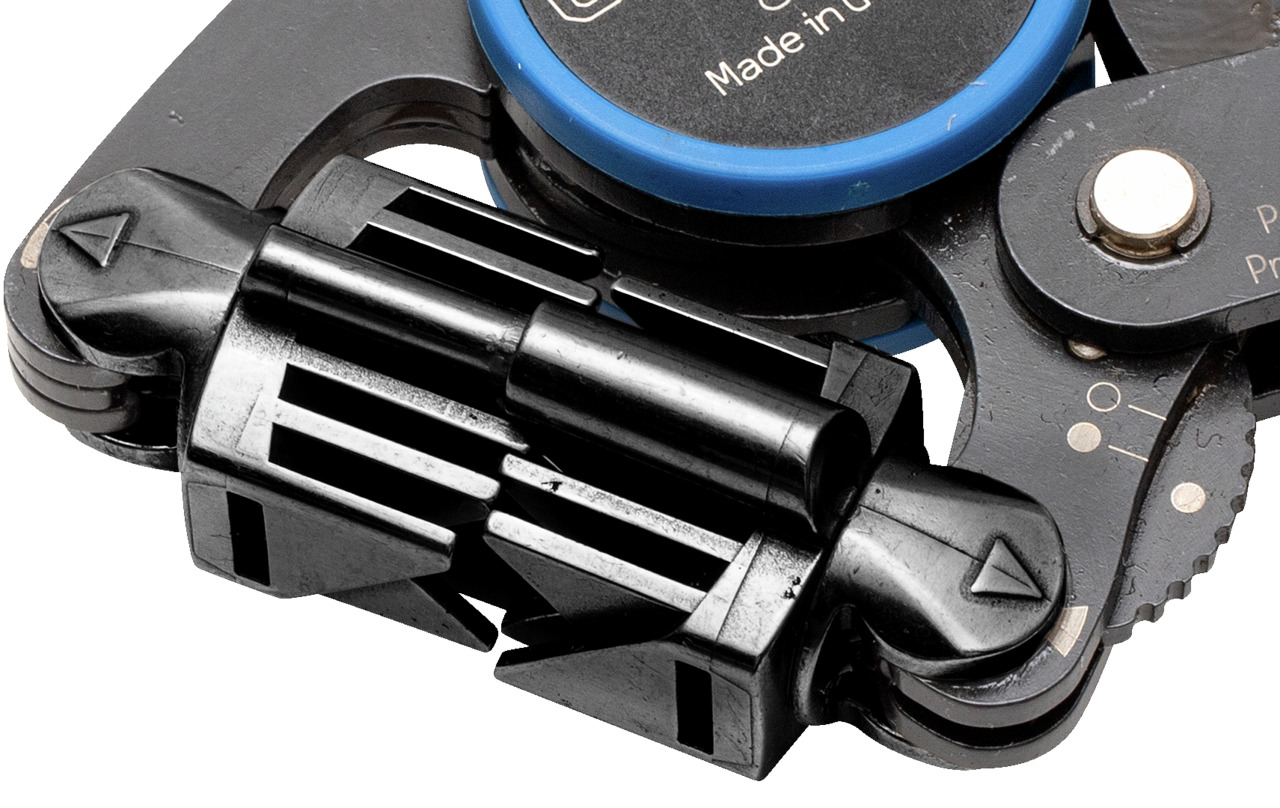

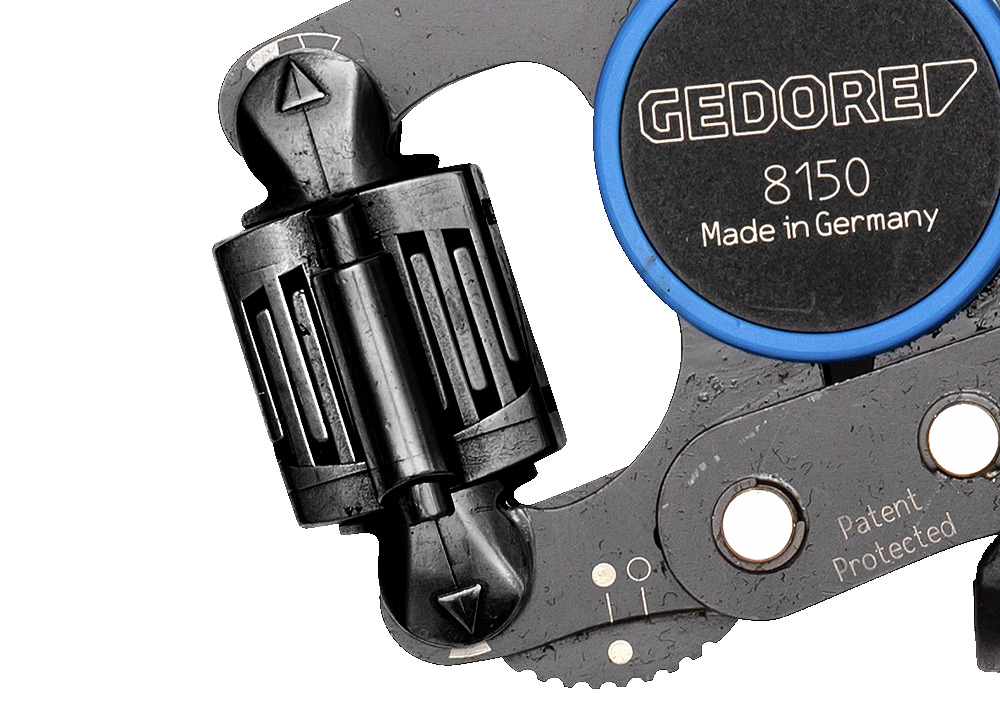

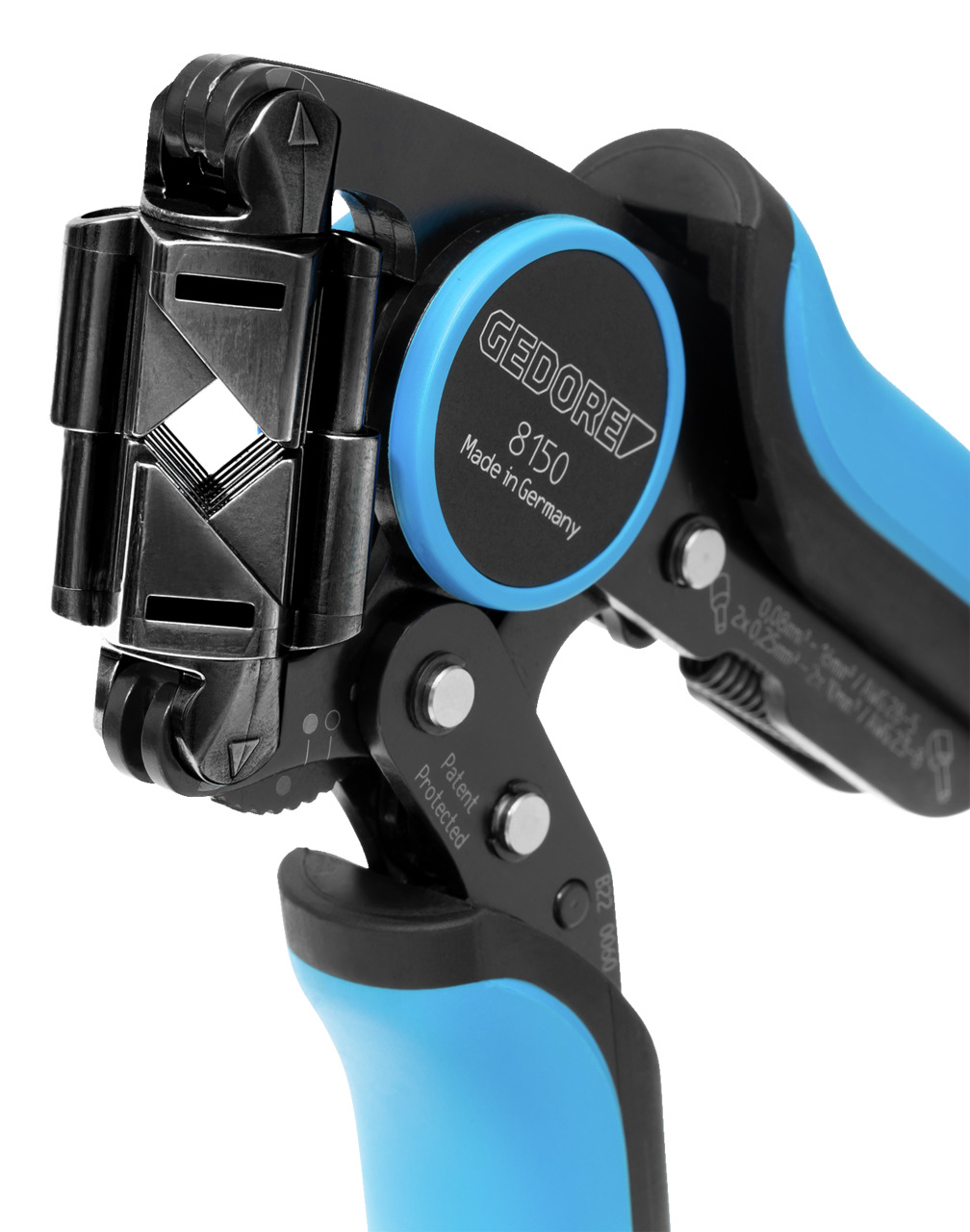

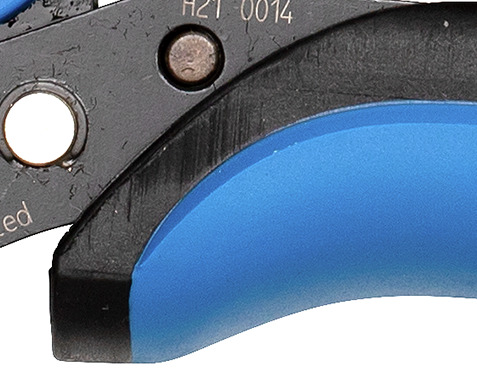

Lightweight, handy crimping pliers, easily operated with minimal hand force and used in hard-to-reach places, 360° crimping work area rotatable in 45° increments, 4-sided precision crimp over the entire sleeve length, crimping according to DIN 46228 EN50027, For ferrules with and without insulating collar up to a length of 18 mm and a cross-section of 0.08 to 16.0 mm² and twin ferrules from 2x 0.25 to 2x 10.0 mm² in only one tool., With automatic cross section adjustment, Unlockable ratchet for securing the complete crimping process, Manufactured with high precision and optimally adjusted at the factory, therefore no further adjustment of the crimp force is required, Comfortable handling due to soft hand grips with formed slip guard, Made of high-strength special steel, stressed parts specially hardened and tempered
Features:
- Country of origin: Germany
- Customs tariff number: 82032000
- Reach: compliant
- Contents (Qty of pieces): 1
- Total width: 62 mm
- Net weight: 0,45 kg
- 1000 V insulated: No
- VDE certified: No
- Total length: 193 mm
- Version: ferrules
- Cable cross section: 0,08-16 mm²
- Wire gauge AWG: 26-8
