Puller with clamping yoke
Ready for shipment in 6 workdays
- Item number:
- WS03608009020
- Manufacturer number:
- 1.22/1
- Weight:
- 2.2 kg
Puller with clamping yoke
Double sided usable hooks, Especially suitable for separating and pulling off flush fitting parts, Particularly economical due to the multiple adjustment possibilities of the clamping depth
Features:
- Country of origin: Germany
- Customs tariff number: 82055980
- Reach: compliant
- Contents (Qty of pieces): 1
- Net weight: 2,2 kg
- 1000 V insulated: No
- VDE certified: No
- 3D data available: No

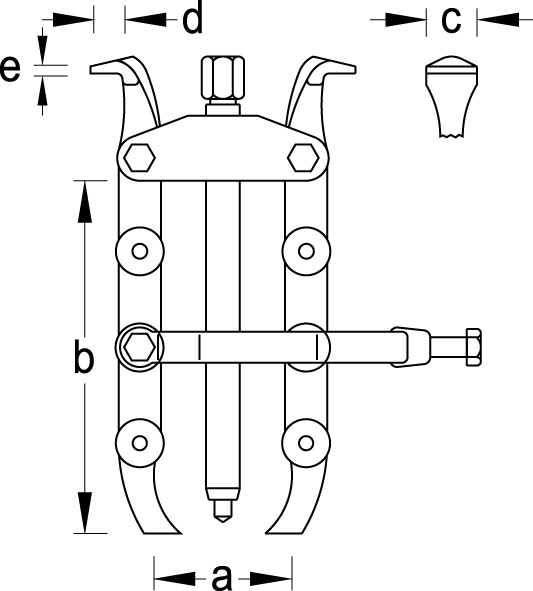

- Usable clamping reach: 170 mm
- Spindle thread size: M 18x1,5 x 200
- Width of hooked foot: 25 mm
- Usable depth of hooked foot: 14 mm
- Thickness of hooked foot at tip: 3,5 mm
- Width across flats [mm]: 19 mm
- Tractive force (max.): 5 t
- reversible arms available: No
- Clamping bracket available: No
- Number of arms: 2
- Hook brake available: No
- Spindle anti-slip device: No
- Hydraulic spindle available: No
- Screws included: No
- Can be retrofitted with hydraulic spindle: No
- automatic pressing: No
- reversible hooks: Yes
- Clamping width (max.) external pulling: 110 mm
- Hydraulic spindle optional: -
