Internal extractor set in L-BOXX
Ready for shipment in 6 workdays
- Item number:
- WS03603461777
- Manufacturer number:
- 1100-1.31/2
- Weight:
- 8.97 kg

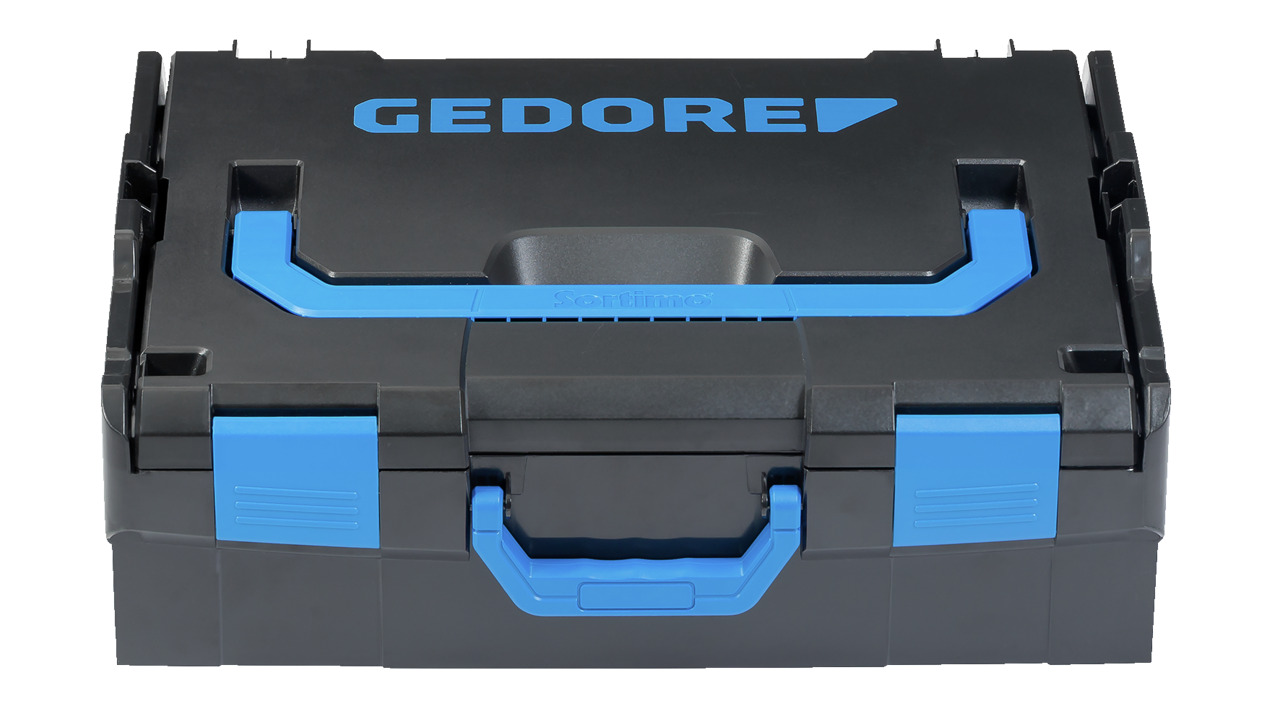

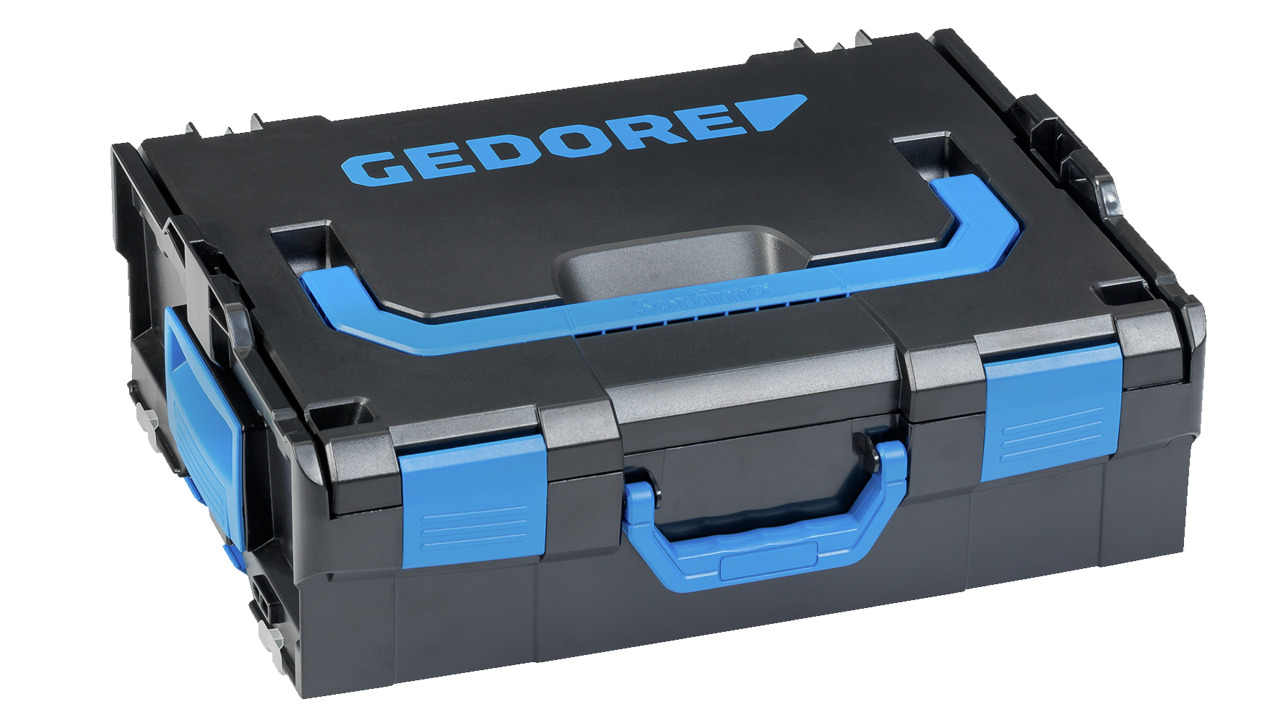

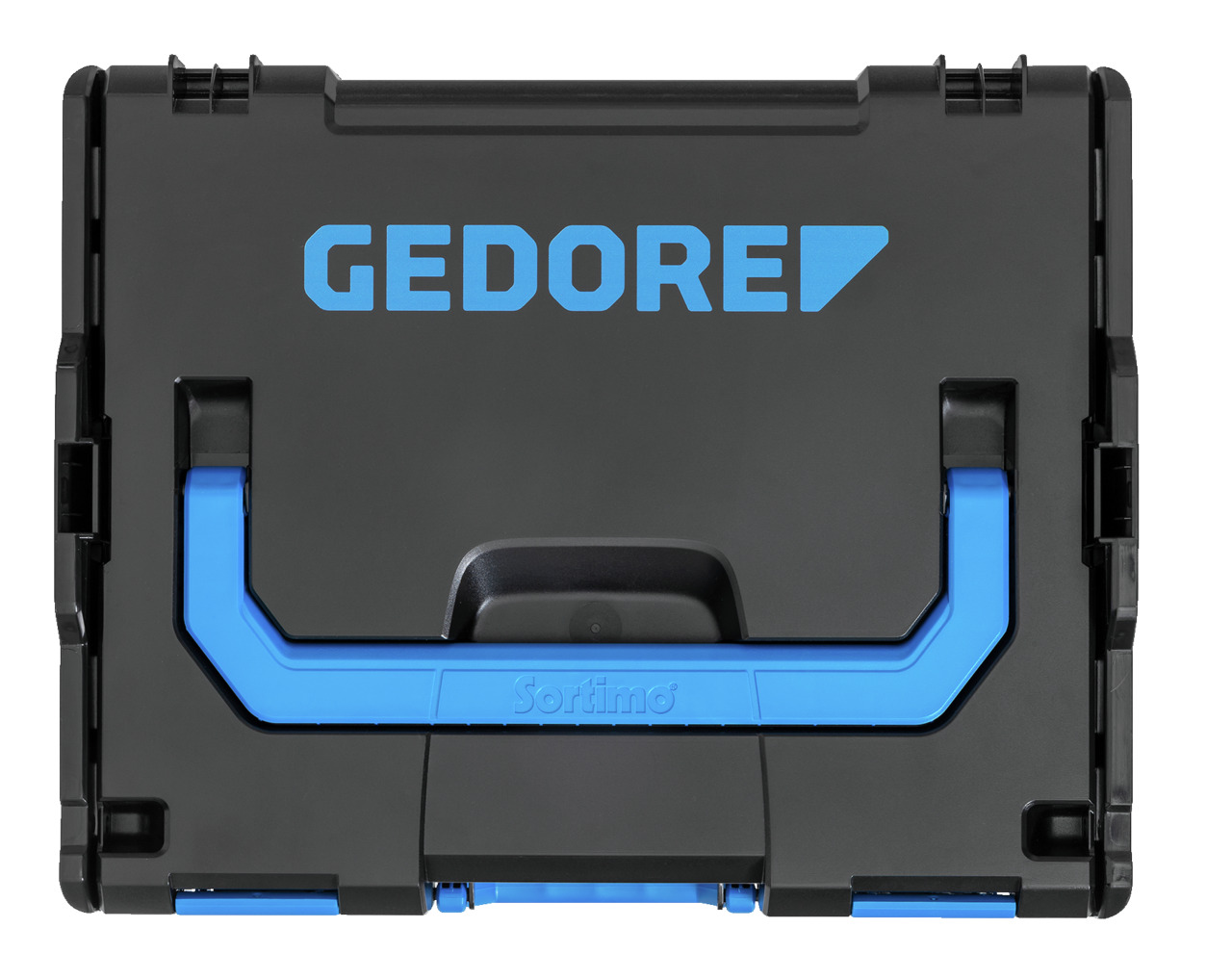

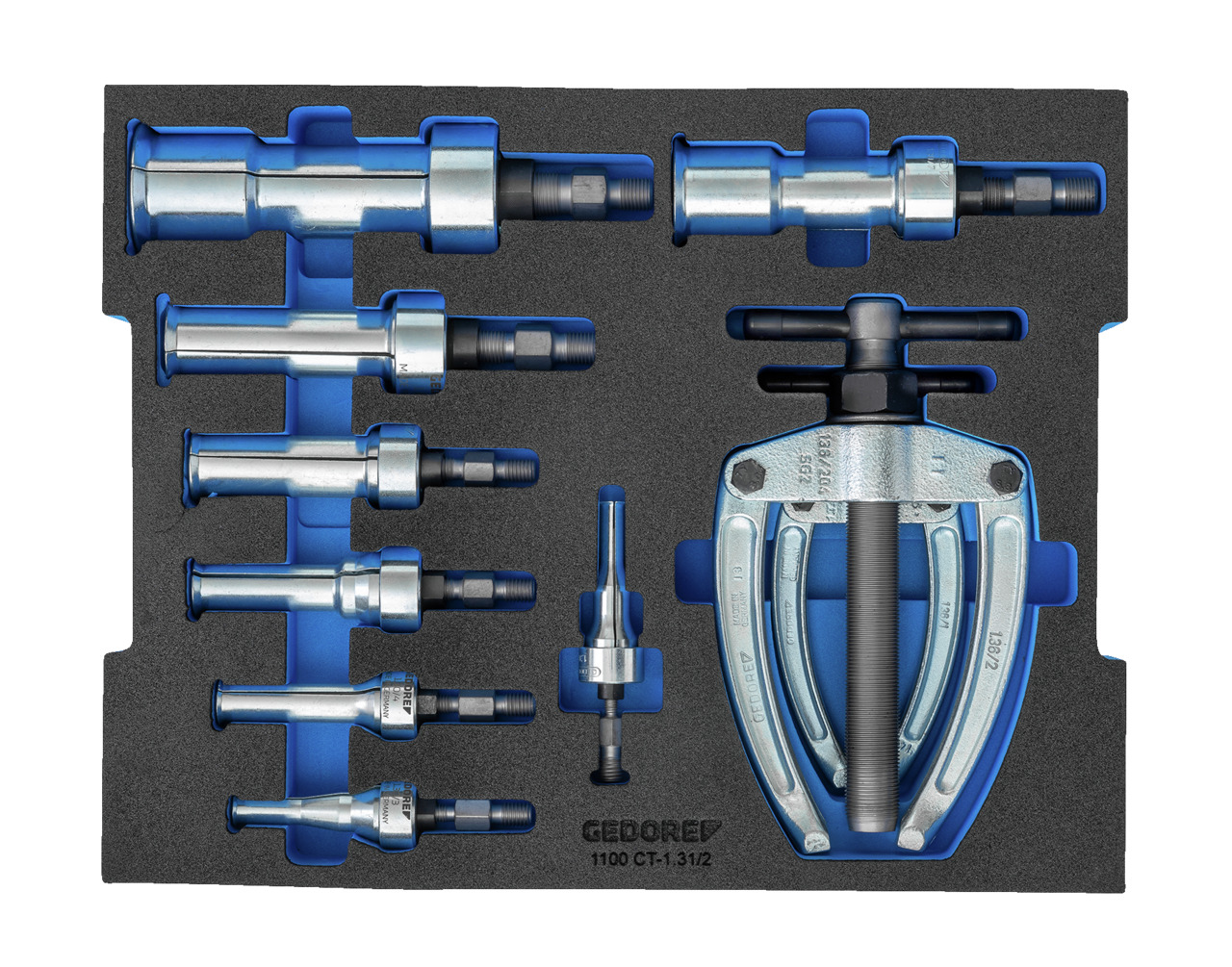

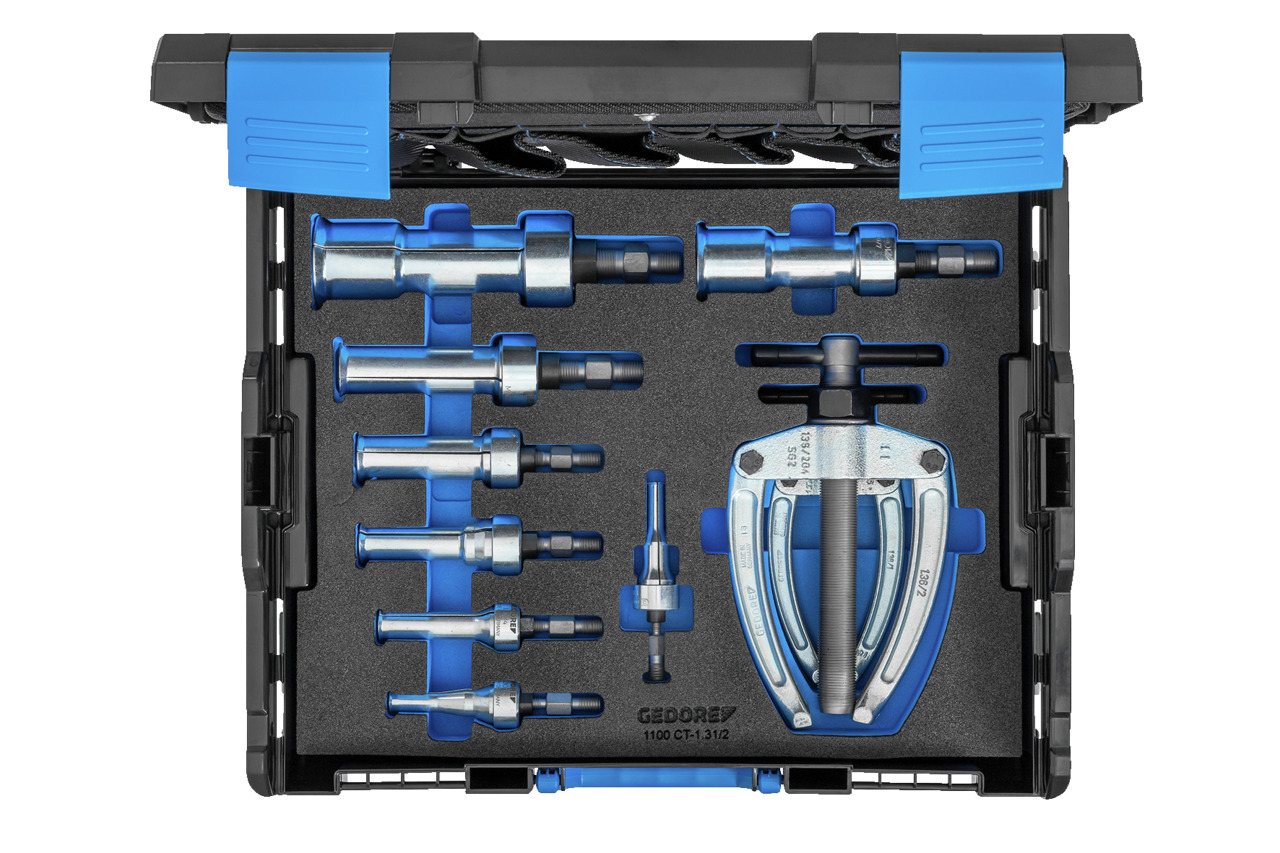

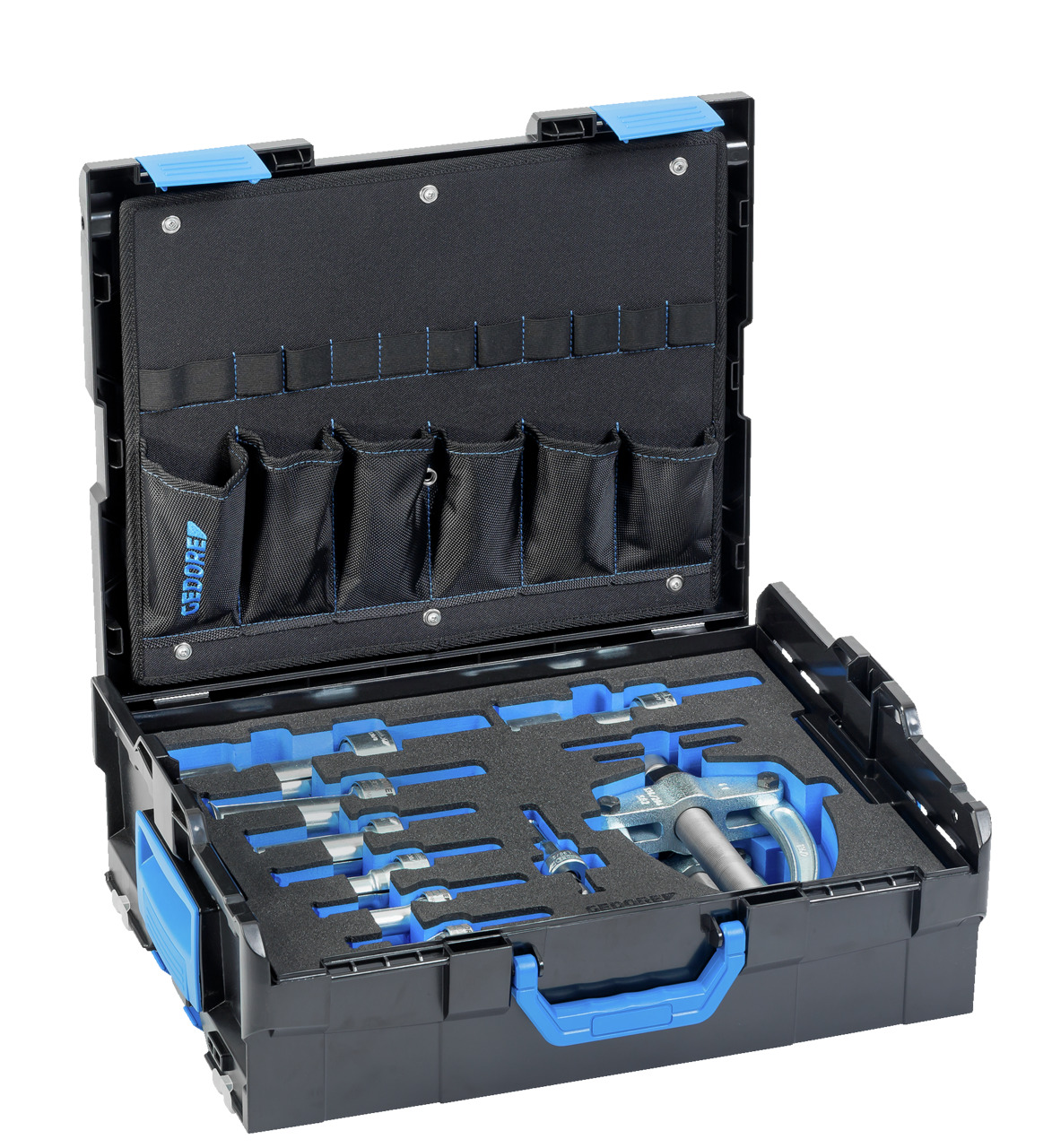

Internal extractor set consisting of internal extractors & counter supports, Storage box made of impact and shock resistant ABS plastic, In the L-BOXX® mobile, as well as stationary usable, System compatible -> Mixx&Click and Sortimo in-vehicle equipment, With Check-Tool insert for quick check of tools, Tools completely recessed in the foam, thus the equipped insert is stackable, Insert can be used in drawers with minimum dimensions 400x310x90 mm, Made in Germany, All components available as spare parts
Features:
- Country of origin: Germany
- Customs tariff number: 82055980
- Contents (Qty of pieces): 10
- Total width: 360 mm
- Total height: 152 mm
- Net weight: 8,97 kg
- 1000 V insulated: No
- VDE certified: No
- Parts list (Text):
1.30/2 Innenauszieher für Ø 12-15 mm
1.30/3 Innenauszieher für Ø 14-19 mm
1.30/4 Innenauszieher für Ø 19-25 mm
1.30/4A Innenauszieher für Ø 24-30 mm
1.30/5 Innenauszieher für Ø 30-36 mm
1.30/6 Innenauszieher für Ø 36-46 mm
1.30/7 Innenauszieher für Ø 46-56 mm
1.30/8 Innenauszieher für Ø 56-70 mm
1.36/1 Gegenstütze für 1.30/0 - 1.30/5
1.36/2 Gegenstütze für 1.30/6 - 1.30/7
EI-1100 CT-1.31/2 Check-Tool-Modul, leer
1100 L GEDORE L-BOXX 136 mit Frontgriff - Clamping width (min.) internal pulling: 12 mm
- Clamping width (max.) internal pulling: 70 mm
- reversible arms available: No
- Hook brake available: No
- Hook can be moved parallel: No
- Quick release lever available: No
- Hydraulic spindle available: No
- Can be retrofitted with hydraulic spindle: No
- Total length: 444 mm
- Connecting thread: M10 & M14x1,5mm
- Target groups: Industry Agriculture Automotive Workshop Steel and analogue construction Mechanical engineering Service
- Graduation: No
- Anti-slip device on the spindle: No
- Exchangeable spindle tip: No
- Surface: zinc-plated
