Locking Tool Set, VW-Audi

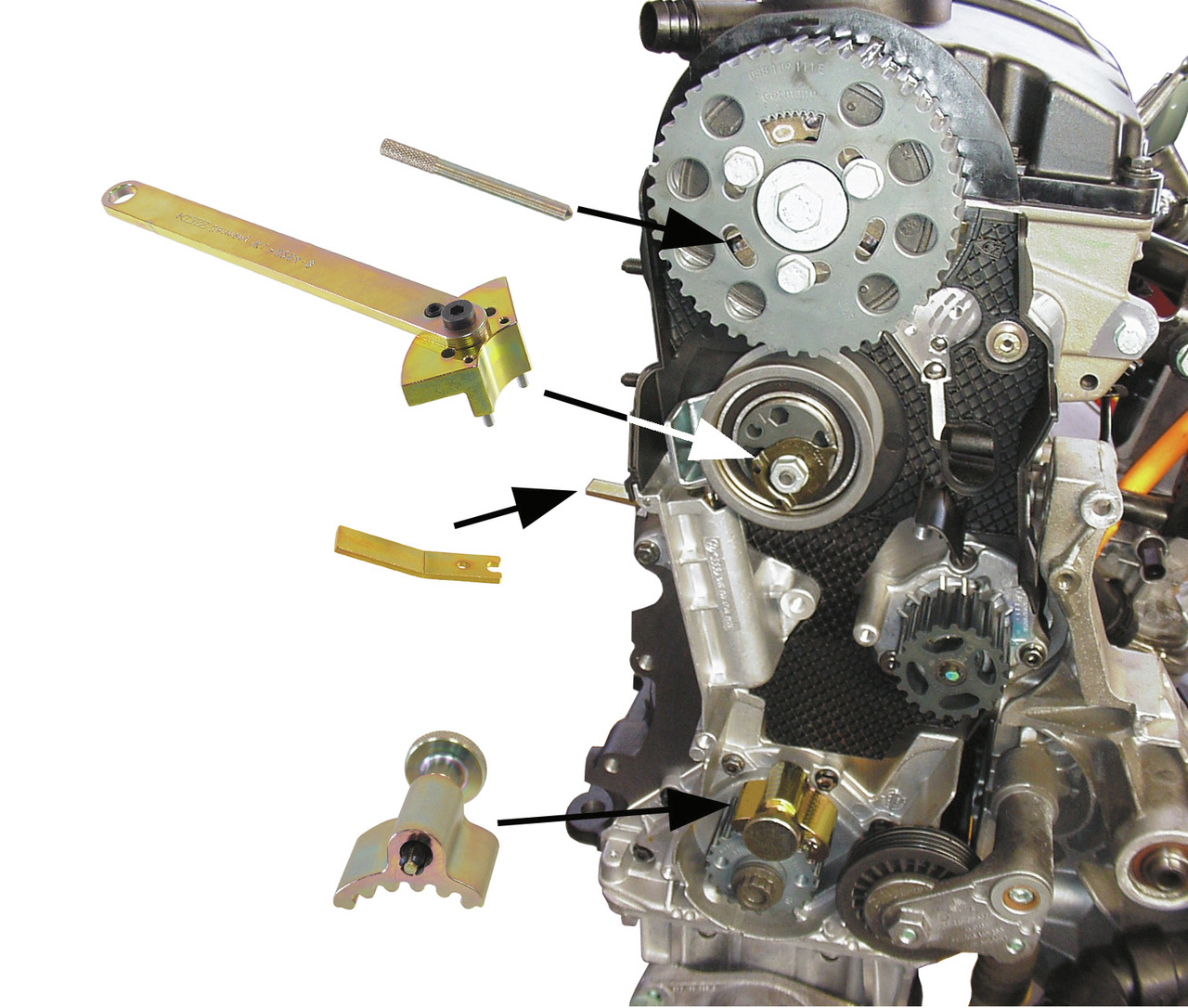

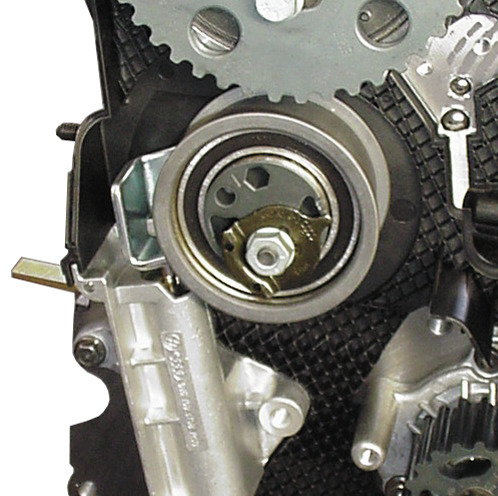

Universal Diesel tool set designed to lock/position engine shafts such as camshaft, crankshaft as well as the injection pump sprocket when replacing a timing belt or during engine repairs. Scope of Delivery: KL-0280-8 Locking Pin, Ø 15.5mm. For locking injection pump sprockets. Suitable e.g. for VW-Audi, Seat, Škoda, etc. KL-0280-16 Holding Tool. For locking the timing belt tensioner in the starting position. e.g. suitable for VW-Audi, Ford, Seat, Škoda TDI PD (unit injector) engines. KL-1480-16 Locking Pin, Ø 6x60mm. For locking the injection pump sprocket; suitable for VW-Audi, Seat, Škoda, 1.9 D / SD / SDI / TD / TDI and 2.5 TDI. For positioning camshafts; suitable for VW-Audi, Ford, Seat, Škoda TDI PD-engines. KL-0280-19 Locking Tool for Crankshaft (German Utility Model). For locking crankshafts. Suitable for VW-Audi, Ford, Seat, Škoda 3- and 4-Cyl. TDI PD (unit injector) engines e.g. 1.2, 1.4, 1.9 and 2.0 (crankshaft sprocket with marking left to the locking screw). KL-0280-91 Setting Gauge for Camshaft. For locking camshafts. Suitable for VW-Audi, Seat, Škoda 1.9 D / SD / SDI / TD / TDI engines Ford 1.6 D, 1.9 TD / TDI engines. Volvo Diesel-engines D24, D24T, D24TIC etc.

Features:

• Country of origin: Germany
• Customs tariff number: 82055980
• Contents (Qty of pieces): 5
• 1000 V insulated: No
• VDE certified: No
• Parts list (Text):

  1x KL-0280-8 - Arretierdorn Ø 15,5 mm

  1x KL-0280-16 - Halteblech

  1x KL-1480-16 - Arretierdorn Ø 6 x 60 mm

  1x KL-0280-19 A - Arretierwerkzeug für Kurbelwelle

  1x KL-0280-91 - Einstell-Lehre für Nockenwelle

• OEM: 3418|5193|T20038|T10008|T10050|2064|2065-A|T10098|3268|T20102|3359
• Target groups: Automotive Construction and commercial vehicles
• Suitable for: Suitable for VW-Audi diesel engines.
• for motor type: Diesel
