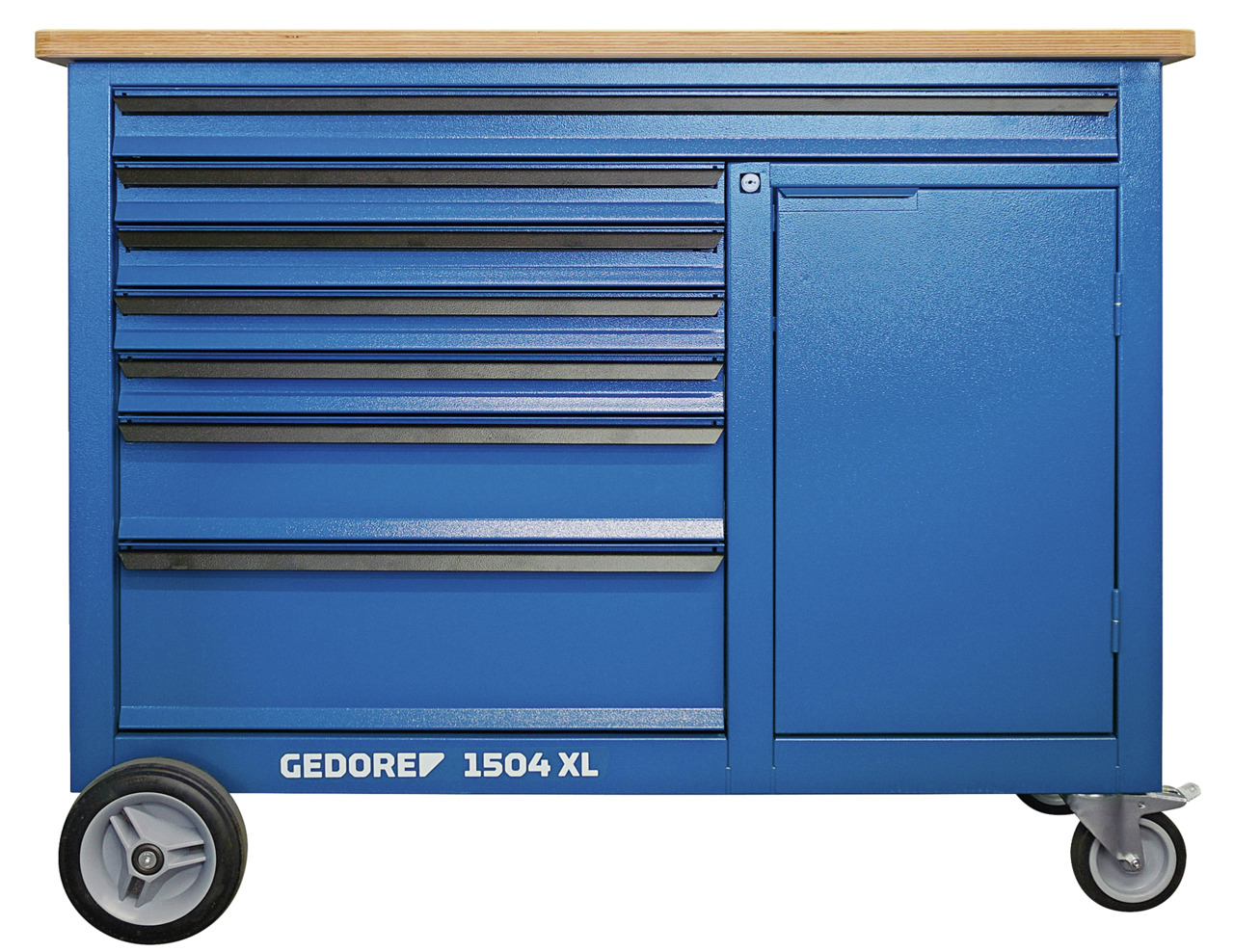

Mobile workbench with tool assortment

Range: Ideally suited for service and maintenance work on agricultural machinery, Metric dimension tools, With GEDORE Check-Tool-System: completeness check by 2-colored foam inserts, Resistant to oils and fats, In workbench no. 1504XL 1411, Body: Sheet steel, corrosion-resistant and scratch-resistant powder-coated, GEDORE blue, 30 mm thick multiplex beech wood panel, surface additionally protected with linseed oil varnish, Large storage space with shelf and door, Safety through heel protection for people, Drawers: Central locking with cylinder lock, 1 XL drawer (W 1055 x D 400 mm), 6 wide drawers (W 640 x D 400 mm) with full extension, removable, Safety lock for each drawer, one-handed operation, Ball bearing guide rails, Load capacity per drawer 40 kg, lower heavy-duty drawer 60 kg, GEDORE high-performance chassis: Total load capacity 1000 kg, in mobile operation 750 kg, 2 roller-bearing GEDORE high-performance wheels (fixed castors Ø 200 mm), 2 ball-bearing mounted GEDORE smooth-running wheels (swivel castors Ø 125 mm), both with total brakes, Even under maximum loads, the GEDORE trapezoidal axle construction ensures: smooth running, maneuverability and directional stability, Options: Expandable with rear panel no. R 1504 XL-L, Special colors on request

Features:

• Country of origin: Germany
• Customs tariff number: 82060000
• Reach: compliant
• Contents (Qty of pieces): 198
• Total width: 630 mm
• Total height: 985 mm
• Net weight: 157,5 kg
• 1000 V insulated: No
• VDE certified: No
• Parts list (Text):

  Rollwerkbank 1504 XL 1411 1,25 m breit
  Schraubendreherbit-Set 1/4" 620-024
  Vierkantgriff 1/4" 2098
  Steckschlüsseleinsatz 20 4  4,5  5  5,5  6  7  8  9  10  11  12  13  14 mm
  Schraubendrehereinsatz 1/4" IN 20 4  5  6  8 mm
  Schraubendrehereinsatz ITX 20 T8  T9  T10  T15  T20  T25
  Umschaltknarre 1/4"2093 U-10
  Quergriff 1/4"2087
  Verlängerung 2090-2
  Verlängerung 2090-4
  Verlängerung 2090-6
  Kardangelenk 2095
  Steckschlüsseleinsatz 1/2" 19 10  11  12  13  14  15  16  17  18  19  20  21  22  23  24  25  26  27  28  29  30  32  33  34  36 mm
  Schraubendrehereinsatz 1/2" IN 19 4  5  6  7  8  9  10  12  14  17  19
  Schraubendrehereinsatz 1/2" ITX 19 L T20-100  T25-100  T27-100  T30-100  T40-100  T45-100  T50-100  T55-100  T60-100
  Umschaltknarre 1/2"1993 U-10 T
  Quergriff 1/2"1987
  Verlängerung 1/2" 1990-3
  Verlängerung 1/2" 1990-5
  Verlängerung 1/2" 1990-10
  Kardangelenk 1/2" 1995
  Ring-Maulschlüssel 1 B 6  7  8  9  10  11  12  13  14  15  16  17  18  19  20  21  22  23  24  25  26  27  30  32  34 mm
  Winkelschraubendreher-Satz H 42 EL-88
  Winkelschraubendreher 42 EL 12  14
  3K-Schraubendreher kurze Form 2153 5,5
  3K-Schraubendreher mit Schlagkappe 2154SK 3,5  5,5  6,5  8
  3K-Schraubendreher kurze Form 2161 PH 2
  3K-Schraubendreher mit Schlagkappe 2160SK PH 1  PH 2  PH 3  PH 4
  3K-Schraubendreher 2163 TX T10  T15  T20  T25  T30  T40
  Flachstumpfe Werkstattfeile 10" 8701 2-10 | 250x25mm
  Runde Werkstattfeile 10" 8722 2-10 | 250x10 mm
  Halbrunde Werkstattfeile 10" 8725 2-10 | 250x25 mm
  Wasserpumpenzange 10" 142 10 TL
  Gedore-Gripzange 137 10
  Kombinationszange 8210-160 JC
  Kraft-Seitenschneider 8316-200 JC
  Mehrfachzange 8133-180 JC
  Flachrundzange 8132 AB-200 JC
  Montagezangen-Satz S 8008, 8-tlg
  Zangenschlüssel 10" 183 10 JC
  Schlosserhammer ROTBAND-PLUS 600 H-600 S
  Schlosserhammer ROTBAND-PLUS 600 H-1500
  Schonhammer 248 H-50
  Splinttreiber 119-2 2  3  4  5  6  7  8  9  10 mm
  Körner 100-12
  Schlitzmeißel 104
  Kreuzmeißel flachoval 96-175 | 175x17x11 mm
  Fühlerlehre 702 13 M
  Dichtungsschaber 133 K
  Stahlbandmaß 4534-8 | 8 m
  Taschen-Messschieber 710
  Autolicht-Prüflampe 4610
  Drahtbürste 644
  Montierhebel 39
  Kniebrett aus festem Schaumstoff 906
  Magnetheber 640-1800

• Total length: 1.250 mm
• Material: Sheet steel
• Colour: GEDORE blue, RAL 5017
• Are there any disposal instructions in the operating instructions?: No
• Are there any disposal instructions on the battery?: No
• Disposal instructions on tools: No
• Drawer type: 1xType XL, H=75mm, extra wide
• Number of drawers: 7
• Load capacity: 750 kg
• Single pull-out stop: No
• Static load carrying capacity: 1000 kg
• Load capacity per drawer: 40 kg
• Load capacity heavy duty drawer: 60 kg
