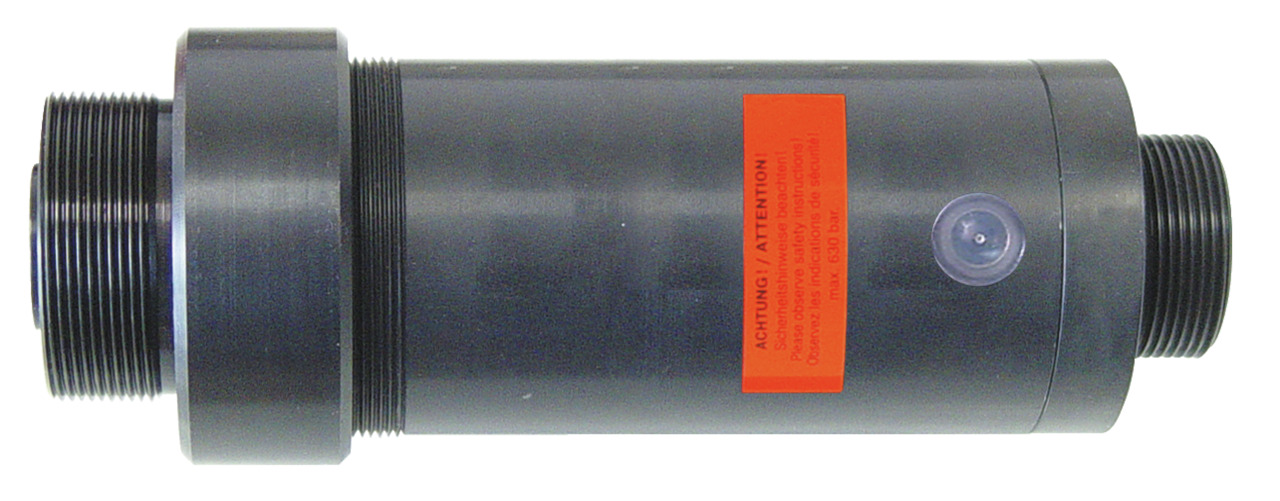

Cilindro hidráulico. 10 toneladas
Listo para envío en 6 días laborables
- Nº de artículo:
- WS03602369540
- Número de fabricante:
- KL-0040-2200
- Peso:
- 5.12 kg
Cilindro hidráulico. 10 toneladas
Due to its special design as a tubular cylinder, the KL-0040-2200 hydraulic cylinder (10 t) can be used to perform pulling and pushing operations in conjunction with the corresponding spindles available as accessories., In combination with the different GEDORE Automotive tools, the hydraulic cylinder can be used for removing and installing cardan shafts, silent blocks and suspension joints.
Features:
- Country of origin: Germany
- Customs tariff number: 84679900
- Contents (Qty of pieces): 3
- Net weight: 5,1 kg
- 1000 V insulated: No
- VDE certified: No
- Target groups: Automotive
- Required accessories: KL-0215-35 M22 - Hydraulic Pump
- Stroke: 45 mm
- Cylinder body length: 218 - 262 mm
- Drive type: hydraulic
- Internal thread: M16
- Cylinder diameter: 69 mm
- Connection thread for hydraulic coupling: 3/8" NPT
- Piston surface: 15 cm²
- Oil pressure (max.): 700 bar
- Oil volume (max.): 76 cm³
- Permissible force (max.): 105,8 kN (10 t)
- Connection thread on the pull side: M42x2
- Connection thread on pressure side: 2¼"-14 UNS
